OJC6000-W916RT02REDEEM Transmitter

Reason why the Block Diagram, External Photos, Schematics, Test Data, Test Setup Photos, and Users Manual were upload twice: The reason why the above exhibits were uploaded twice is because one the first attempt to upload these exhibits, we did NOT receive a confirmation screen showing the exhibits had been uploaded successfully. Instead the website reset back to the OET main page without ever showing a confirmation. We were not sure whether these exhibits had uploaded, so we uploaded the above exhibits again just to make sure they were in the server. (This time we did get a confirmation screen showing they were uploaded). Any duplicate exhibit is the EXACT same file – just uploaded twice. Thank you Kyle Fujimoto Test Engineer Compatible Electronics – Brea Division

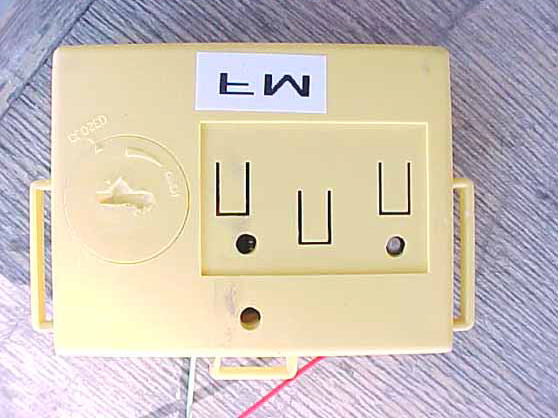

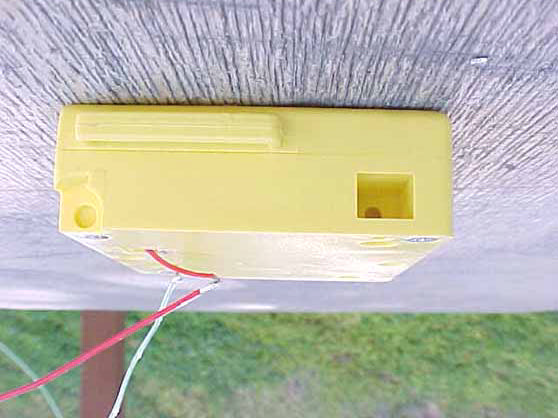

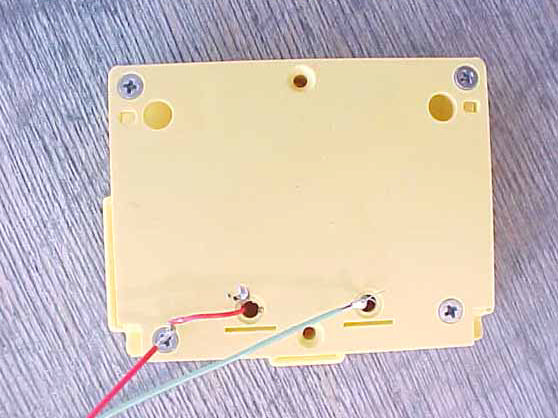

Description of Use for REDEEM™ Transmitter Model 6000-4 The REDEEM™ transmitter is a professional incontinence management system designed to sense a fluid release from patients in nursing home or hospital. The transmitter (model 6000-4) is attached to a Sense’R Strip® that recognizes a wet condition in the patient’s bed. When a wet condition is detected, the transmitter is activated and sends a coded transmission to the companion REDEEM™ receiver (model 6000-3) located at the nurse’s station. The transmitter receives power from a 9-volt battery.

FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART C TEST REPORT for TRANSMITTER Model: 6000-4 Prepared for HEALTH SENSE INTERNATIONAL, INC. 30211 AVENIDA DE LAS BANDERAS, SUITE 120 RANCHO SANTA MARGARITA, CA 92688 COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: NOVEMBER 20, 2000 REPORT APPENDICES TOTAL BODY A B C D PAGES 16 2 2 11 12 43 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Band Edge Plots of the Low and High Channels 15 8. CONCLUSIONS 16 FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Transmitter Model: 6000-4 P/N: 30700 Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Health Sense International, Inc. 30211 Avenida de las Banderas, Suite 120 Rancho Santa Margarita, CA 92688 Test Date: November 9, 2000 File # For Canada: IC2154-D Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT is powered by a three 3 volt lithium batteries. 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249 FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Transmitter Model: 6000-4. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249. FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Health Sense International, Inc. John Jenson Vice President of Operations Compatible Electronics Inc. Kyle Fujimoto Test Engineer Scott McCutchan Lab Manager 2.4 Date Test Sample was Received The test sample was received on November 8, 2000. 2.5 Disposition of the Test Sample The test sample was returned to Health Sense International, Inc. on November 20, 2000. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: OJC6000-W916RT02 Report No.: B01109D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 16 3. APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPEC TITLE C…
