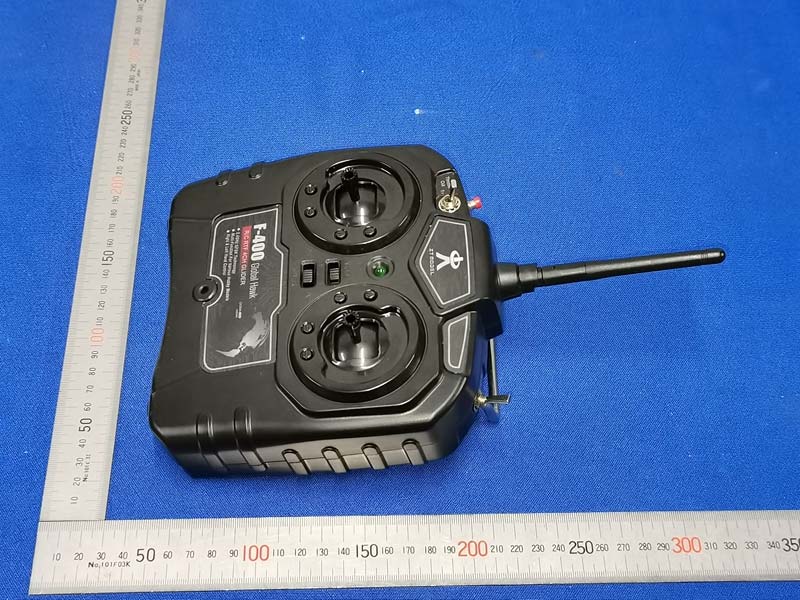

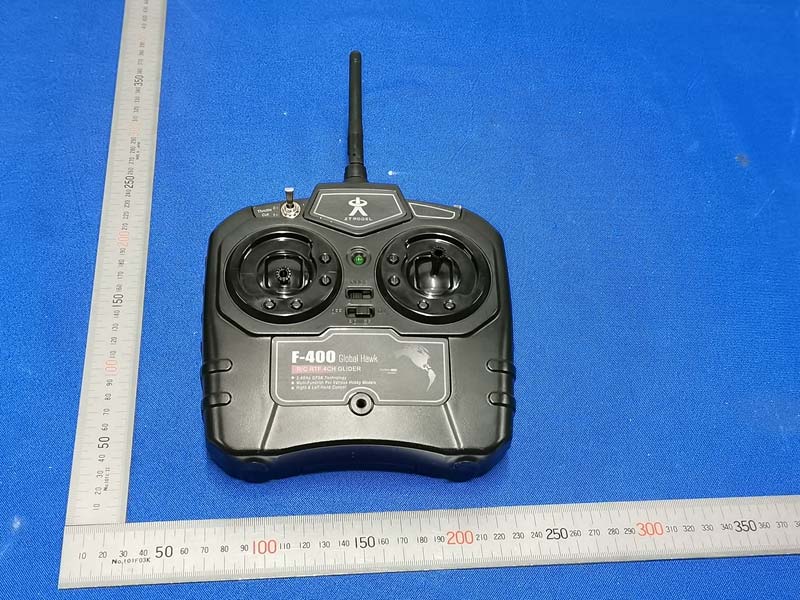

OJPXA08801-08802Global Hawk 2.4GHz RC Seaplane

ZT MODEL Global Hawk EP Airplane FEATURES/SPECIFICATIONS: Powerful 2830-1300kv motor with 30A ESC All servos and linkages preinstalled Easy to Assemble! Durable EPP foam construction. Wingspan: 1220mm, Length: 915mm, Flying weight: 1000g Flight Battery: 11.1V 3S 1800~2200mAh 25C Lithium Polymer Battery (T-style plug) 3S LiPo Battery Charger Required: (4) 1.5V AA size batteries for the transmitter. IMPORTANT! Read the ENTIRE instruction guide to become familiar with the model before operating. This guide contains instructions for safety, operation, and maintenance. It is essential to read and follow all the instructions and warnings, prior to assembly, setup, or use, in order to operate correctly and avoid damage or injury. NOTICE: All instructions, warranties and other collateral documents are subject to change at the sole discretion of ZT Model. LITHIUM BATTERY/CHARGER CAUTIONS: This model airplane uses a lithium polymer (LiPo) battery. Improper handling may result in damage or injury. You are responsible for following all safety precautions as outlined below: • Very important! Never leave the charger and LiPo battery unattended while charging! • Do not charge a LiPo battery on a flammable surface or near combustible materials. • Never charge inside a vehicle or at a location that could be damaged in the event of a LiPo fire. • Keep out of reach of children! • Do not charge or use a battery that is deformed, bent, crushed, or has any type of visible damage. • Disconnect the battery and unplug the charger if the charge time exceeds 3 hours. • Disconnect the battery and unplug the charger after the charge is complete. • Keep LiPo batteries out of reach of animals. A punctured battery may cause a harm. • Never disassemble or modify a battery, its wiring, or puncture cells, as this may result in fire. • Do not allow the battery to short circuit by touching exposed wires together. • LiPo batteries must always be recycled or disposed of properly. WARRANTY Do not return your model to the Store. ZT Model will repair or replace factory defects for 90 days from the date of purchase. This warranty specifically does not cover crash damage, misuse, or abuse. To make a warranty claim, please contact our product support team . This warranty applies only if the product is operated in compliance with the instructions and warnings provided. ZT Model assumes no liability except for the exclusive remedy or repair of parts as specified above. ZT Model shall not be liable for consequential, crash, or incidental damages. SAFETY PRECAUTIONS • Warning: Do not modify or alter this model. • This model is suitable for ages 14 and above. • You must always disconnect and remove the battery from the airplane when not in use. • Do not operate near people or animals. • Always remove the propellers when working on the airplane. • Important! Always unplug the battery from the charger after charging is complete. • Before each flight, examine all parts for damage. If any is found, do not operate until the damage has been repaired. • Keep the airplane and battery away from direct sunlight and/or heat sources. • Always unplug and remove the battery after each flight. CHARGING THE BATTERY: Charge the Lithium polymer (Lipo) Battery. Review the warnings in the front of this manual and most importantly, NEVER leave a charger unattended. 1. Plug the C-420 charger into an outlet. The three LED’s will indicate green. 2. Plug the battery into the 4-wire port on the end of the charger. Do not force! The plug will only go in one way. 3. The LED’s will turn red indicating that the battery is charging. Note: This charger is capable of charging 2S or 3S batteries. The number of lit LED’s will correspond to the number of cells being charged. 4. Once all three LED’s turn green, the battery is finished charging. Note: It is normal for the charger to be warm while charging. 5. Unplug the battery from the charger and the charger from the wall as soon as it is finished. TRANSMITTER SETUP: 1. Install (4) 1.5v AA batteries into the back of the transmitter. Make sure the polarity matches the (+/-) indicators. 2. Familiarize yourself with the transmitter controls. Throttle Cut : locks the motor from accidentally turning on. Auto: Toggle between three flight modes: • 0-Manual mode. Minimal stabilization. Use for aerobatics. • 1-Semi stabilization for faster performance with mild stability control. • 2-Full stabilization for smoothest flight. Perfect for learning to fly. HELP! Use when you get disoriented and need the airplane to roll to upright and level flight. ASSEMBLY: 1. Line up and install the main gear into the slot on the bottom of the fuselage. Make sure the landing gear angle forward. Secure using two flat straps and (4)M3x8 screws. 2. Insert the tail wheel into the tail bracket. Attach the steering arm to the top and secure with (1)M3x6 screw. Make sure the tail gear pivots freely or you risk binding the servo. If needed, use a drill to clean out the hole for free movement. 3. Attach the base parts to the fin. Secure with (2)M2.8x8 screws. Do not overtighten. 4. Place the stabilizer in position on the fuselage. 5. Attach the fin assembly to the fuselage. Fasten in place using (2)M2.6x16 screws. 6. Attach the steering arm to the rudder with (1)M3x6 screw. DO NOT fully tighten, the arm needs to float on the screw. 7. Attach the clevis to the rudder and elevator control surfaces. Use the outer holes of the arms. Slide the clevis retainers up to secure the clevis. 8. Insert the two carbon wing joiners into the wing and slide the two wing halves together. 9. Install the wing center cover by lining up the posts on the bottom of the cover with the holes in the wing. 10. Connect the aileron servos to the Y-harness coming from the receiver. 11. Place the wing in place making sure you are not pinching the servo wires. 12. Secure the wing in place using the 4 rubber bands. Install them in a X pattern. a. If flying in high winds or want to fly aeroba…

Text truncated - open the document above for the full version.

HANGZHOU ZT MODEL CO.,LTD. NO.6 MINGDE RD,BINJIANG DISTRICT, HANGZHOU, ZHEJIANG PROVINCE, CHINA TEL: 86-755-571-82877488 FAX: 86-755-82877241 Statement FCC ID: OJPXA08801-08802 Product: Global Hawk 2.4GHz RC Seaplane We HANGZHOU ZT MODEL CO.,LTD. Hereby Declare that The product Global Hawk 2.4GHz RC Seaplane, models no. XA08801, XA08802 are all identical in interior structure, electrical circuits and components, and just model names is different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, <Signature>： Name：Haiqiao Zhang Title：Manager Applicant Company：HANGZHOU ZT MODEL CO.,LTD.

Janu Fede Auth 7345 Colu On o Bloc Distr agen subm certif defin labe For i beha for c MING <Sig n Name Title： Applic uary 23, 202 eral Commu horization & 5 Oakland M umbia, Mary our behalf, I ck B, Jun Xia rict, Shenzh nt in the p mitted docu fication is so ned in the F l identical to instances w alf, I acknow certification, GDE RD,BIN nature>： e：Haiqiao Z Manager cant Compa 21 unications C Evaluation D Mills Road land 21046 appoint She ang Da Build hen, China preparation uments prop ought. I also Federal Com o that submit where our au wledge that still resides NJIANG DI Zhang any：HANG ommission Division Author i enzhen Time ding, Zhongs (Name of A of this app perly descr o certify that mmunications tted for appr uthorized ag all responsi with H A N STRICT, HA GZHOU ZT ity to Act as eway Testin shan Park R Agent comp plication for ribe the de t each unit m s Commissi roval with th ent signs th ibility for com NGZHOU ANGZHOU, MODEL CO s Agent ng Laborator Road West, T pany name r equipment evice or sy manufacture ion’s regulat his applicatio he applicatio mplying with ZT MODE ZHEJIANG O.,LTD. ries/ Zone C Tong Le Vill and addres t certificatio stem for w ed, imported tions will ha on. on for certific h the terms EL CO.,LT PROVINC C, 1st Floor, lage, Nansh ss) to act as on. I certify which equip d or markete ave affixed t cation on ou and conditio TD . / NO.6 CE, CHINA han s our y that pment ed, as to it a ur ons

January 23, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OJPXA08801-08802 Product Name: Global Hawk 2.4GHz RC Seaplane Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Haiqiao Zhang Title：Manager Company：HANGZHOU ZT MODEL CO.,LTD.

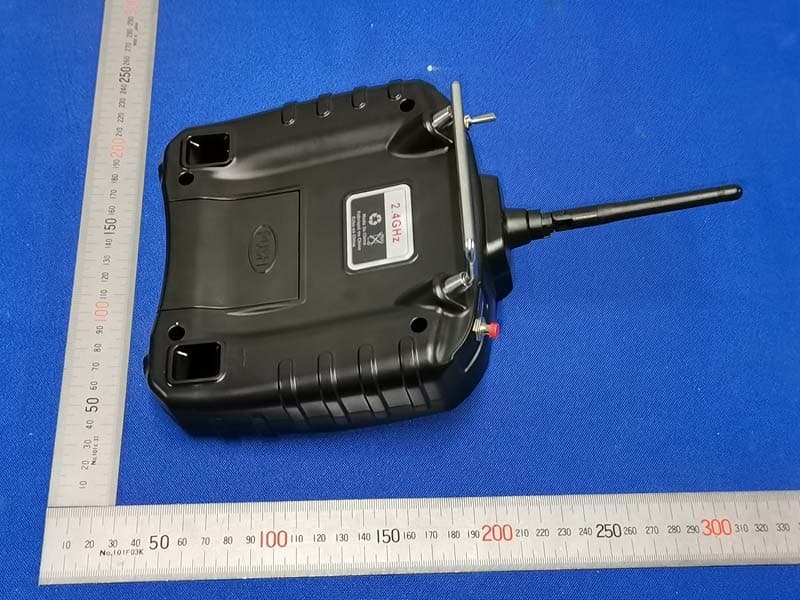

Label Location

FCC ID: OJPXA08801-08802 RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculat ion Result (Worse case) [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =63.97/20 * 1.55= 4.96, this value is less than ≤ 7.5 for 10-g extremity SAR. Min. test separation distance measured=20mm The SAR measurement is not necessary. Note： The shortest distance between antenna and The location wh ere the user operates is 20mm.

Report No.: TW2012184-01E File Reference No.: 2021-01-14 Applicant: HANGZHOU ZT MODEL CO.,LTD. Product: Global Hawk 2.4GHz RC Seaplane Model No.: XA08801, XA08802 Trademark: N/A Test Standards: FCC Part 15.247 Test Result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15.247 for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: January 14, 2021 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2012184-01E Page 2 of 55 Date: 2021-01-14 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No.: TW2012184-01E Page 3 of 55 Date: 2021-01-14 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ……………………..…………………………..……………………………..…4 1.1 Test Lab Details…………………………………………………………..………………….…… 4 1.2 Applicant Details………………………………………………………….……………….…….. 4 1.3 Description of EUT ……………………………………………………………..………….…… 4 1.4 Submitted Sample………………………..……………………………………..……………….. 4 1.5 Test Duration…………………………………….…………………………………..…….……... 5 1.6 Test Uncertainty……………………………………….……………………………...…………... 5 1.7 Test By……………………………………………………………………………………………. 5 2.0 List of Measurement Equipment…………………………………………………………….… 6 3.0 Technical Details………………………………………………………………………………… 7 3.1 Summary of Test Results…………………………………………………………………………. 7 3.2 Test Standards…………………………………………………………………………………….. 7 4.0 EUT Modification………………………………………………………………………………... 7 5.0 Power Line Conducted Emission Test……………………………………………………………. 8 5.1 Schematics of the Test……………………………………………………………………………. 8 5.2 Test Method and Test Procedure…………………………………………………………………. 8 5.3 Configuration of the EUT………………………………………………………………………… 8 5.4 EUT Operating Condition………………………………………………………………………… 9 5.5 Conducted Emission Limit……………………………………………………………………….. 9 5.6 Test Result………………………………………………………………………………………... 9 6.0 Radiated Emission test………………………………………………………………………….. 10 6.1 Test Method and Test Procedure…………………………………………………………………. 10 6.2 Configuration of the EUT………………………………………………………………………… 11 6.3 EUT Operation Condition………………………………………………………………………… 11 6.4 Radiated Emission Limit…………………………………………………………………………. 11 7.0 20dB Bandwidth …………………………..………………….…..………………….………….. 22 8.0 Maximum Output Power……….……………………………………………………………..….. 26 9.0 Carrier Frequency Separation……………………………………………………………………. 28 10.0 Number of Hopping Channel…………………………………………………………………….. 30 11.0 Time of Occupancy (Dwell Time)……………………………………………………………….. 32 12.0 Out of Band Measurement……………………………………………………………………….. 36 13.0 Antenna Requirement……………….…………………………………………………………… 45 14.0 FCC ID Label………………...………….………………………………...……………….…….. 46 15.0 Photo of Test Setup and EUT View………………………………………

Text truncated - open the document above for the full version.

Radiated Emission Te s t Setup:
