SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 BEST LUCK S.A 2012-11-6 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, BEST LUCK S.A hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: GSM MOBLIE PHONE model name: E71 FCC ID: OKI071 We affirm that between SIEMIC and BEST LUCK S.A, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature： Client’s name / title：Carson Cheung / Manager Contact information / address：PARQUE EMPRESARIAL CELTA TRADE PARK, BODEGA NO. 66 FUNZA CUNDINAMARCA, COLOMBIA.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 BEST LUCK S.A 2012-11-6 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OKI071 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up Procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature： Client’s name / title：Carson Cheung / Manager Contact information / address：PARQUE EMPRESARIAL CELTA TRADE PARK, BODEGA NO. 66 FUNZA CUNDINAMARCA, COLOMBIA.

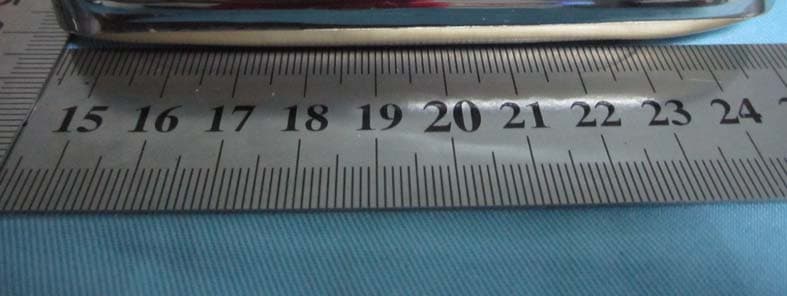

Annex B. EUT External Photo Whole Package - Top View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

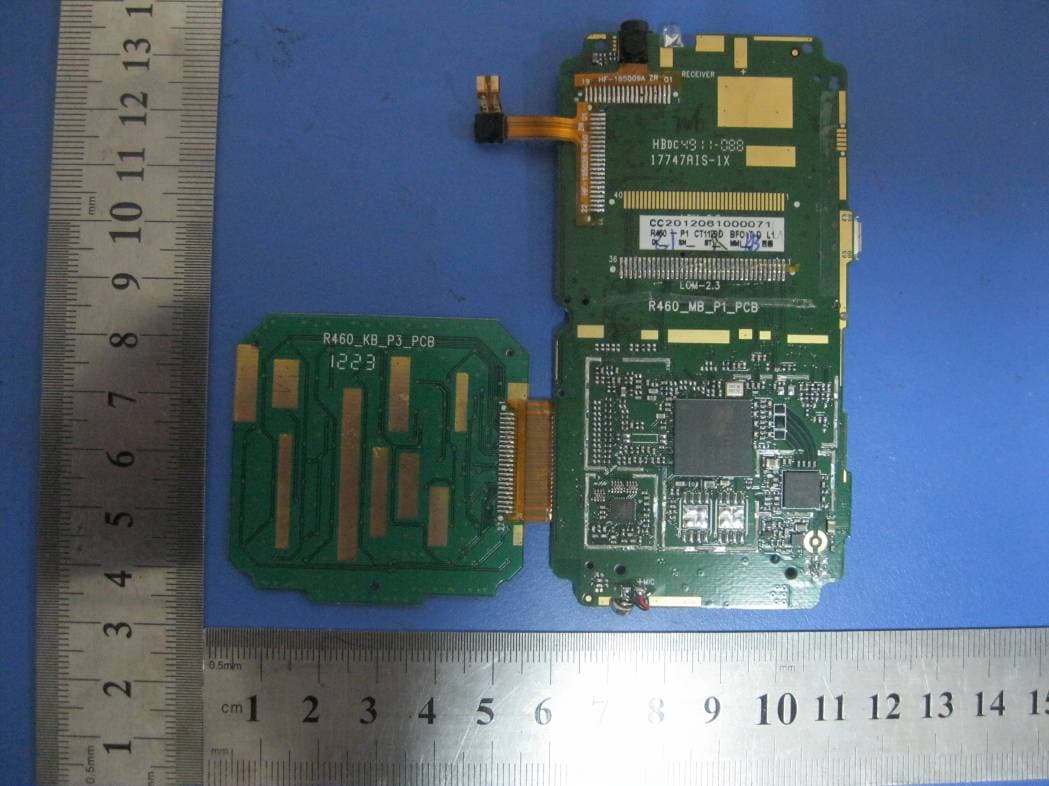

Annex B. EUT Internal Photo Cover Off - Top View Cover Off - Bottom View Battery - Top View Battery - Bottom View LCD - Top View LCD - Bottom View Uncover - Top View Uncover - Bottom View Uncover without LCD - Top View Uncover Without Shielding - Top View GSM Antenna - Top View Bluetooth Antenna - Top View GSM Antenna Bluetooth Antenna

BEST LUCK S.A GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A November 02, 2012 Report No.: 12070288-FCC-R2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Alan Lv Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 12070288-FCC-R2 Issue Date: November 02, 2012 Page: 2 of 49 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report for GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 12070288-FCC-R2 Issue Date: November 02, 2012 Page: 3 of 49 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 12070288-FCC-R2 Issue Date: November 02, 2012 Page: 4 of 49 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................37 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................43 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................44 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................48 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................49 Title: RF Test Report for GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 12070288-FCC-R2 Issue Date: November 02, 2012 Page: 5 of 49 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the BEST LUCK S.A, GSM MOBLIE PHONE and model: E71 against the current Stipulated Standards. The GSM MOBLIE PHONE has demonstrated compliance with the FCC 15.247: 2012, ANSI C63.4: 2009. EUT Information EUT Description : GSM MOBLIE PHONE Main Model : E71 Serial Model : N/A Antenna Gain : GSM850: 2 dBi PCS1900: 1 dBi Bluetooth: 1 dBi Input Power : Adapter: Model: ZC-S0506 Input: AC100-240V 50/60Hz 0.15A Output: DC5.0V-600mA Li-ion Battery: Model: T900 Charge Limit: 4.2Vdc Voltage: 3.7V, 500mAh Classification Per Stipulated Test Standard : FCC 15.247: 2012, ANSI C63.4: 2009 Title: RF Test Report for GSM MOBLIE PHONE Main Model: E71 Serial Model: N/A To: FCC 15.247: 2012, ANSI C63.4: 2009 Report No: 12070288-FCC-R2 Issue Date: November 02, 2012 Page: 6 of 49 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of GSM MOBLIE PHONE with stipulated standard Applicant / Client BEST LUCK S.A PARQUE EMPRESARIAL CELTA TRADE PARK, BODEGA NO. 66 FUNZA CUNDINAMARCA, COLOMBIA Manufacturer BEST ELECTRONICS TECHNOLOGY(HK)CO.,LIMITED Room 506,Unit3, Building 6,Haixinyuan,Huaqiang North Road 4005 Futian District,Shenzhen Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12070288-FCC-R2 Date EUT received October 19, 2012 Standard applied FCC 15.247: 2012, ANSI C63.4: 2009 Dates of test (from – to) October 29, 2012 No of Units #1 Equipment Category DSS Trade Name N/A RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX :869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX :1930.2 ~ 1989.8 MHz Bluetooth: 2402-2480MHz Number of…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz - Front View
