OKUBS2708ECSTEREO

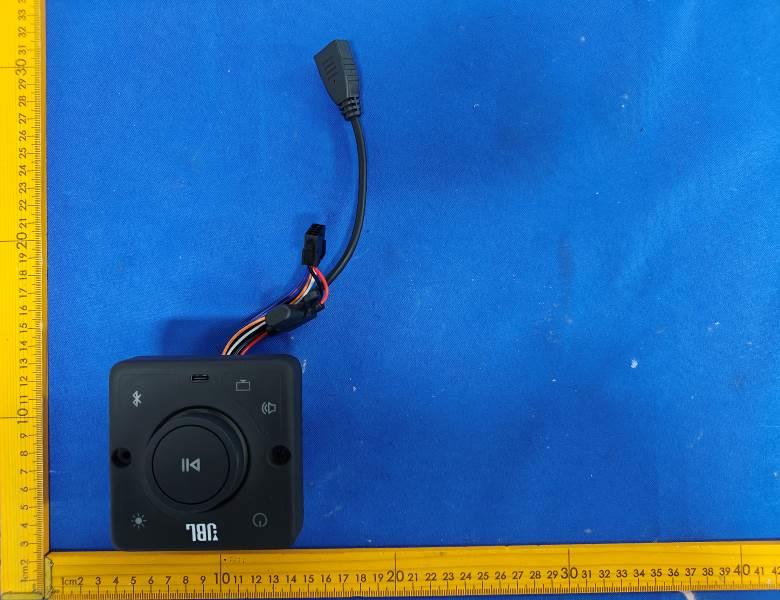

OWNER’S MANUAL JBL-AURA-BT-HDMI STEREO FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation. IMPORTANT SAFETY INSTRUCTIONS 2 2. WHAT'S IN THE BOX 6 3. PRODUCT OVERVIEW 7 4. SPEAKER/POWER WIRE SOCKET 8 DIAGRAM 5. MOUNTING 9 6. BLUETOOTH OPERATION 10 7. PLAYING TV SOUND 10 THROUGH THE AURA-BT-HDMI 8. USB PLAYBACK 11 9. ZONE A/FRONT -ZONE B/REAR 11 SPEAKER OPERATION 10. HDMI OPERATION 12 11. LED BEHAVIOR AROUND KNOB 12 12. RESTORE FACTORY SETTINGS 12 13. TROUBLESHOOTING 13 1. INTRODUCTION 6 TABLE OF CONTENTS 14. PRODUCT SPECIFICATIONS 14 Quick Start Guide Wire harness for speaker and power supply Screws X 2 Unpack the box carefully and ensure that the following parts are included. User manual 2. WHAT’S IN THE BOX 1. INTRODUCTION Thank you for purchasing the JBL-AURA-BT-HDMI STEREO which is designed to bring an extraordinary sound experience to your entertainment system. We encourage you to take a few minutes to read through this manual, which describes the product and includes step-by-step instructions for setting up and getting started. JBL AURA-BT-HDMI STEREO Connectors 1 2 3 8 7 6 5 4 Controls and Features 3. PRODUCT OVERVIEW 9 1 Power Button 2 Light Effect Button 3 Sound/Zone Button 4 HDMI Button 5 USB Type C Port 6 Play/Pause Multi-Function Button 7 Pair Button 8 Wire Harness Outlet 9 Volume Knob 4. SPEAKER/POWER WIRE SOCKET DIAGRAM SPEAKER (4X4-ohms) WIRING COLOR CODE GUIDE ORANGE-A LEFT+ GRAY/BLACK-B RIGHT- ORANGE/BLACK-A LEFT- GRAY- B RIGHT+ BLUE-A R IGHT+WHITE/BLACK-B LEFT- BLACK-POWER GND RED 12V+ BLUE/BLACK-A R IGHT- WHITE-B LEFT+ CABINET OR WALL ROUGH OPENING CUT-OUT 5. MOUNTING 3.67’’ 2.83’‘ 1.42 ’’ 2.57’’ 3.67’’ 2.99’’ 2.57’’ 1. Power ON the AURA-BT-HDMI. 2. Turn on the Bluetooth compatible device and enter pairing mode. 3. When the Bluetooth device finds the unit, “JBL-AURA-BT-HDMI” will appear on the display of the device, select it to make the connection. 4. During Playback: - Short press button on the front panel to pause playback, short press button again to resume playback. - Quick short press button twice on the front panel to play next track, quick short press button three times to play previous track. - Rotate the volume knob right on the front panel to increase the volume, rotate the volume knob left to decrease the volume. 5. To pair another Bluetooth Device, disconnect the current paired device by pressing the button on the front panel. The unit now can be discovered by other Bluetooth devices. Note: After first time pairing, the unit will connect to the last paired Bluetooth Device when both are within working range. Hearing TV sound through the AURA-BT-HDMI is possible when using a compatible SMART TV that has a sound out via Bluetooth, Place the AURA-BT-HDMI in the Bluetooth pairing/discoverable mode, then open the TV settings menu for sound out, select Bluetooth, and do a device search to select “JBL-AURA-BT-HDMI”. Adjust the volume on the TV and/or the AURA-BT-HDMI to hear TV sound through the connected speakers. 6. BLUETOOTH OPERATION 7. PLAYING TV SOUND THROUGH THE AURA-BT-HDMI 1. Power ON the AURA-BT-HDMI. 2. Plug a USB device into the USB Type C port on the front panel. 3. During Playback: Short press button on the front panel to pause playback, short press button again to resume playback. 4. Quick short press button twice on the front panel to play next track, quick short press button three times to play previous track. 5. Rotate the volume knob right on the front panel to increase the volume, rotate the volume knob left to decrease the volume. Notes: The unit will automatically switch to USB mode and start playback when the USB flash drive is connected. Press the button or button to switch to Bluetooth mode or HDMI mode. The USB Type C port can provide external charging (10W/2.1A). 1. Press the button on the front panel to switch ON or OFF the corresponding FRONT and REAR Speakers. FRONT speakers are default ON and REAR speakers are default OFF when the unit is turned on. 2. Press the button once, FRONT and REAR are on. 3. Press the button second time, FRONT is OFF and REAR is ON. 4. Press the button third time, FRONT is ON and REAR is OFF. 8. USB PLAYBACK 9. ZONE A/FRONT - ZONE B/REAR SPEAKER OPERATION 1. Press b…
