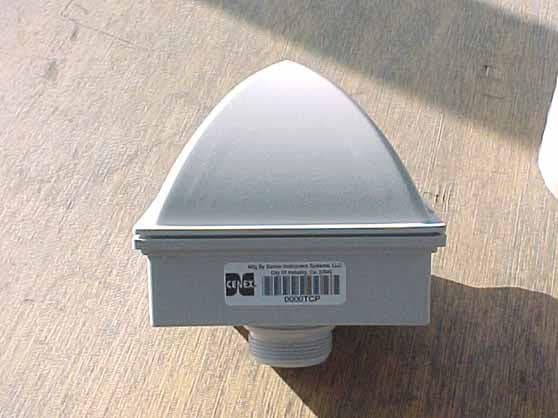

OKZ-TL10TankScan Monitor Assembly

FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 17 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 4.1.1 Cable Construction and Termination9 5.LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 Radiated Emissions (Spurious and Harmonics) Test13 8.CONCLUSIONS14 FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 17 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors DData Sheets LIST OF FIGURES FIGURETITLE 1 Plot Map And Layout of Test Site FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:TankScan MIR Monitor Model: TANKSCAN TL10 SERIES S/N: N/A Product Description:See Expository Statement. Modifications:The EUT was not modified during the testing. Manufacturer:Barton Instrument Systems 900 South Turnbull Canyon Road City of Industry, California 91749-1882 Test Date:May 4, 1999 IC File # for CanadaIC2154-D Test Specifications : EMI requirements FCC Title 47, Part 15 Subpart C, Sections 15.205 and 15.249 Test Procedure:ANSI C63.4: 1992 Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHzThis test was not performed because the EUT runs off four “AA” batteries only and cannot be powered by any device that runs off of the AC public mains. 2Radiated RF Emissions, 10 kHz - 9300 MHzComplies with the limits of FCC Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.249 FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 17 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the TankScan MIR Monitor Model: TANKSCAN TL10 SERIES. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart B and Subpart C, sections 15.205 and 15.249. FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 17 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3Cognizant Personnel Barton Instrument Systems Bill LeeEngineer Compatible Electronics Inc. Kyle FujimotoTest Engineer Scott McCutchanLab Manager 2.4Date Test Sample was Received The test sample was received on May 4, 1999 2.5Disposition of the Test Sample The test sample was returned to Barton Instrument Systems on May 4, 1999. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 17 3.APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPECTITLE FCC Title 47, Subpart C. FCC Rules – Radio frequency devices (including digital devices) – Intentional Radiators ANSI C63.4 1992 Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. FCC Title 47, Subpart B. FCC Rules – Radio frequency devices (including digital devices) – Unintentional Radiators FCC ID: OKZ-TL10 Report No.: B90504D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 8 of 17 4.DESCRIPTION OF TEST CONFIGURATION 4.1Description of Test Configuration - EMI Setup and operation of the equipment under test. Specifics of the EUT and Peripherals Tested The TankScan MIR Monitor Model: TANKSCAN TL10 SERIES (EUT) was tested as a sta…
