OL3AH80DONGLEAH80 Bluetooth Headset Dongle

Connecting AH80 to your PC, SIP deskphone or smartphone/tablet AH80 and the USB dongle are supplied pre-paired and ready for use. Slide the button to the middle position to power on AH80 and plug the USB dongle into your PC or SIP deskpone. Bluetooth Slide the button to the end position and hold for 2~3s to power on AH80 and enter paring mode. Then, turn on Bluetooth on your Bluetooth device and select AH80 for pairing. 3.5mm Aux Cable When AH80 runs out of power, you can also connect via a 3.5mm aux cable to listen to music or for communication. USB Dongle Function Instructions Wireless charge Tap once: Volume - Press and hold for 1s: Previous track Press once: Answer/end a call or Play/Pause Press twice: Reject a call Press and hold for 1s: Call Hold/Resume or wake up voice assistant (in idle state) Tap once: Volume + Press and hold for 1s Next track Status Light Left Right Power Switch Power Light Press once: Mute on/off Press and hold for 2s: Status light turns red/blue/off Press once: ANC on/off, Transparency USB Port Branchement de l'AH80 à votre PC, téléphone SIP ou smartphone/tablette L'AH80 et le dongle USB sont fournis pré-appairés et prêts à l'emploi. Faites glisser le bouton en position centrale pour allumer l'AH80 et branchez le dongle USB sur votre PC ou votre téléphone SIP. Bluetooth Faites glisser le bouton vers la position finale et maintenez-le pendant 2 à 3 s pour allumer l'AH80 et entrer en mode appairage. Ensuite, activez le Bluetooth sur votre appareil Bluetooth et sélectionnez AH80 pour l'appairage. Câble aux. 3,5 mm Lorsque le casque n’a plus de batterie, vous pouvez utiliser le câble audio 3.5mm pour vos communications et écoutes musicales. Dongle USB Instructions de la fonction Charge sans fil Appuyez une fois Volume - Appuyez et maintenez pendant 1 s Piste précédente Branchez le connecteur Type-C d'une extrémité du câble USB sur l'AH80 et le connecteur Type-A sur le chargeur ou le PC. La charge complète du casque prend environ 2 heures. Charge sans fil Placez l'écouteur gauche (marqué d'un « L ») sur la base de chargement sans fil. La charge complète du casque prend environ 2,5 heures. Câble USB Charge Appuyez une fois : répondre ou mettre fin à un appel ou lecture/pause Appuyez deux fois : rejeter un appel Appuyez et maintenez pendant 1 s : mise en attente/reprise d'appel ou réveil de l'assistant vocal (en mode veille) Appuyez une fois Volume + Appuyez et maintenez pendant 1 s Piste suivante Voyant de statut Gauche Droite Interrupteur d'alimentation Voyant d'alimentation Appuyez une fois : activer/désactiver le mode muet Appuyez et maintenez la pression pendant 2 s : le voyant du statut devient rouge/bleu/désactivé Appuyez une fois : ANC activé/désactivé, transparence Port USB AH80 与电脑、SIP 桌面话机、智能手机或平板电脑连接 AH80 和提供的蓝牙适配器是预先配对好且可直接使用的。拨动耳机的开关按键到中间位置将耳 机开机，并将蓝牙适配器插入电脑（或者SIP话机）的USB 接口。 蓝牙 将耳机的开机按键拨到底部并保持2~3 秒，让耳机开机并进入配对模式。打开蓝牙设备（如电脑、 SIP 话机、智能手机/平板电脑）端的蓝牙，找到AH80 并点击配对连接。 3.5mm 音频线 当耳机没电时，也可以通过3.5mm 音频线连接进行通信或聆听音乐。 USB 蓝牙适配器 使用说明 将 USB‒C 端插入耳机，同时将 USB-A 端 插入电脑或充电器充电。预计 2 小时充 满。 充电 无线充电 将耳机的无线充位置（左耳侧）平放在充 电底座上充电。预计 2.5 小时充满。 无线充 轻触一下：音量 - 长按 1 秒：上一曲 短按一下：接听/挂断 电话或播放/暂停 连按两下：拒接电话 长按 1 秒: 保持/恢复 通话或唤醒语言助 手（空闲状态） 轻触一下：音量 + 长按 1 秒：下一曲 状态灯 左右 开关按键 电源灯 短按一下：静音开/关 长按2 秒：状态灯切换（红/蓝/关闭） 短按一下：降噪开/关/透传 USB 接口 Plug the Type-C connector at one end of the USB cable into AH80 and the Type-A connector into the charger or PC. It takes approx. 2 hours to fully charge the headset. Put the left earphone (marked with “L”) onto the wireless charging base. It takes approximately 2.5 hours to fully charge the headset. Charging USB cable Wireless charging USB 线 AH80 Quick User Guide Guide d'installation rapide 快速用户指南 Input: 5V 1A (charger output Warning: Use a charger or wireless charger that has been approved by relevant authorities, complies with device electrical parameters, and local laws and regulations. Otherwise, fire, explosion, and other hazards may occur. Dispose of it properly as this product contains a built-in rechargeable lithium battery. Do not throw it into the fire. This may cause explosion hazards. 输入： 5V 1A（充电器输出） 警告： 应使用经过相关部门批准、符合设备电气参数、符合本地法规要求的充电器或者无线充 电器，否则可能引发火灾、爆炸和其他危险。 OFF ON BT OFF ON BT OFF ON BT 2 sec OFF ON BT 2 秒 OFF ON BT 2 sec OFF ON BT 12 尺寸: 600X210 毫米 下 1 12 12 12 12 12 12 (RED), 2014/35/EU(LVD), 2014/30/EU(EMC), 2011/65/EU(ROHS), and 2015/863(RoHS). 53 Electrical Equipment (Safety) Regulations 2016 and the Radio Equipment Regulations 2017 , the The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. FCC RF exposure warning 本产品含有内置可充电锂电池，请妥善处置。请不要直接投入火中，以免引起爆炸等危险。 12 , The ： Entrée : 5 V 1 A (sortie chargeur) Avertissement : utilisez un chargeur ou un chargeur sans fil approuvé par les autorités compétentes, conforme aux paramètres électriques de l’appareil ainsi qu’aux lois et réglementations locales. À défaut, vous encourez un risque d’incendie, d’explosion ou autre. Éliminez ce produit de manière appropriée car il contient une batterie au lithium rechargeable intégrée. Ne le jetez pas au feu. Cela pourrait entraîner un risque d'explosion. Dahili bir şarj edilebilir lityum pil içerdiğinden bu ürünü uygun şekilde bertaraf edin. Ateşe atmayın. Patlama tehlikesine neden olabilir. Продукт содержит перезаряжаемую литиевую батарею. Следуйте инструкциям по утилизации продукта. Не бросайте его в огонь. Нагревание продукта может привести к взрыву. صحیح حیث یحتوي ھذا المنتج على بطاریة لیثیوم قابلة لإعادة الشحن. لا تتخلص من ٍ تخلص من المنتج بشكل المنتج بإلقائھ في النار. فقد یؤدي ھذا إلى حدوث انفجار. Descarte o produto corretamente pois ele contém uma bateria de lítio recarregável embutida. Não jogue no fogo. Isso pode causar perigo de explosão. Smaltirlo correttamente dal momento che questo prodotto contiene una batteria al litio ricaricabile integrata. Non gettarla nel fuoco. Potrebbero verificarsi esplosioni. Deséchelo de …

Text truncated - open the document above for the full version.

ALE International 32, Avenue Kléber, 92700 Colombes, France TEL: +33 39067 5212 Email: [email protected] https://dekracloud-my.sharepoint.com/personal/a419058_dekra_org/Documents/DEKRA/Oliver Shan/Oliver案件/上海贝尔/2260782R-22A0151R-上海德凯 （贝尔）-AH80 耳机-EMC+SAFETY/Product Information/FCC IC/Dongle/申请文件/FCC/FCCRCMTRW#1-4998-22/POA_Letter-1108.docx Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022-11-8 SUBJECT: FCC Application for OL3AH80DONGLE To Whom It May Concern: We, the undersigned, hereby authorize _Oliver Shan from DEKRA Testing and Certification (Suzhou) Co., Ltd. at _ No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, Jiangsu, China_ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by DEKRA Testing and Certification (Suzhou) Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name: Patrick Hauptmann Title: Product Certification Manager, Voice Division

ALE International 32, Avenue Kléber, 92700 Colombes, France TEL: +33 39067 5212 Email: [email protected] Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OL3AH80DONGLE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Schematics-AH80DONGLE Block Diagrams Block Diagrams-AH80DONGLE Operational Description Operational Description-AH80DONGLE The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name N/A N/A Sincerely, Signature: Name: Patrick Hauptmann Title: Product Certification Manager, Voice Division

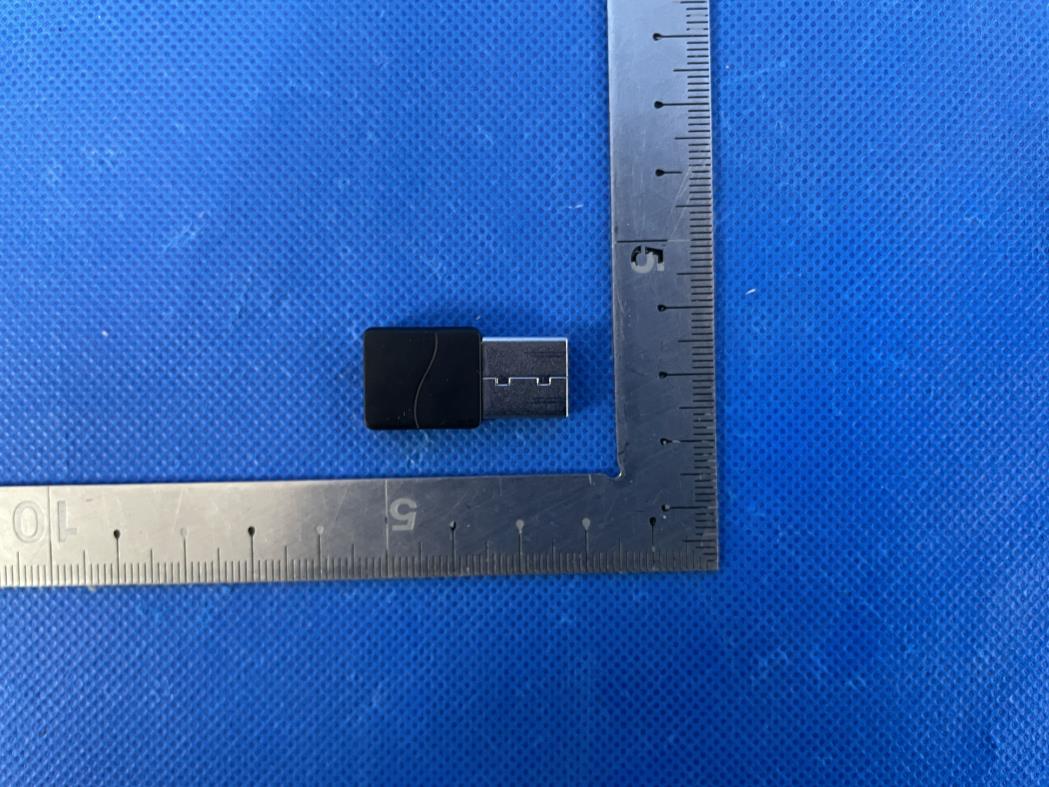

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF- External Photo Page 1 / 3 External Photographs EUT Photo(1) EUT Photo(2) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF- External Photo Page 2 / 3 EUT Photo(3) EUT Photo(4) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF- External Photo Page 3 / 3 EUT Photo(5) EUT Photo(6)

Label Sample Label Location on the Outside Package Label Information in the User Manual

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-Internal Photo Page 1 / 2 Internal Photographs EUT Photo(1) EUT Photo(2) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-Internal Photo Page 2 / 2 EUT Photo(3)

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 61 of 64 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 62 of 64 Appendix E. DAE Calibration Data DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 63 of 64 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 64 of 64 The End

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 22A0151R-RF-US-P03V02 SAR TEST REPORT Product Name AH80 Bluetooth Headset Dongle Trademark Alcatel-Lucent Enterprise Model and /or type reference AH80 FCC ID OL3AH80DONGLE IC 1737D-AH80DONGLE Applicant’s name / address ALE International 32, Avenue Kléber – 92700 Colombes – FRANCE Test method requested, standard FCC KDB Publication 248227 D01v02r02 FCC KDB Publication 447498 D04v01 FCC KDB Publication 447498 D02v01 FCC KDB Publication 865664 D01v01r04 BS IEC/IEEE 62209-1528-2020 FCC 47CFR §2.1093 ANSI C95.1-2005 RSS - 102 Issue 5: 2015 Test Result MAX Body SAR 1g SAR Bluetooth: 0.429W/kg Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Tim Cao /Project Engineer Approved by (name / position & signature) Jack Zhang/Manager Date of issue 2022-11-11 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 2 of 64 Report Version V1.1 Report template No Template_FCC SAR-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P03V02 Page: 3 of 64 INDEX Page COMPETENCES AND GUARANTEES ....................................................................................................................... 5 GENERAL CONDITIONS ............................................................................................................................................... 5 ENVIRONMENTAL CONDITIONS ............................................................................................................................... 6 POSSIBLE TEST CASE VERDICTS ........................................................................................................................... 6 DOCUMENT HISTORY .................................................................................................................................................. 7 REMARKS AND COMMENTS ...................................................................................................................................... 7 1 GENERAL INFORMATION .................................................................................................................................. 8 1.1 GENERAL DESCRIPTION OF THE ITEM(S) ........................................................................................................ 8 1.2 ANTENNA INFORMATION ................................................................................................................................ 10 1.3 CHANNEL LIST ............................................................................................................................................... 11 2 SAR MEASUREMENT SYSTEM....................................................................................................................... 14 2.1 DASY5 SYSTEM DESCRIPTION .................................................................................................................... 14 2.1.1. Applications .............................................................................................................................................. 15 2.1.2. Area Scans ................................................................................................................................................ 15 2.1.3. Zoom Scan (Cube Scan Averaging)........................................................................................................... 15 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging .................................................................................. 16 2.2 DASY5 E-FIELD PROBE ............................................................................................................................... 17 2.3 BOUNDARY DETECTION UNIT AND PROBE MOUNTING DEVICE .................................................................... 18 2.4 DATA ACQUISITION ELECTRONICS (DAE) AND MEASUREMENT SERVER .................................................. 18 2.5 ROBOT ........................................................................................................................................................... 19 2.6 LIGHT BEAM UNIT .......................................................................................................................................... 19 2.7 DEVICE HOLDER ............................................................................................................................................ 20 2.8 SAM TWIN PHANTOM .................................................................................................................................... 20 3 TISSUE SIMULATING LIQUID .......................................................................................................................... 21 3.1 THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................ 21 3.2 TISSUE CALIBRATION RESULT ...................................................................................................................... 22 3.3 TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ........................................................ 25 4 SAR MEASUREMENT PROCEDURE ............................................................................................................. 26 4.1 SAR SYSTEM VALIDATION ............................................................................................................................ 26 4.1.1. Validation Dipoles ....................................................................................................…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 22A0151R-RF-US-P06V01 FCC TEST REPORT Product Name AH80 Bluetooth Headset Dongle Trademark Alcatel-Lucent Enterprise Model and /or type reference AH80 FCC ID OL3AH80DONGLE Applicant ́s name / address ALE International 32, Avenue Kléber – 92700 Colombes – FRANCE Test method requested, standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 KD558074 D01 15.247 Meas Guidance v05r02 Verdict Summary IN COMPLIANCE Tested by (name / position & signature) Jun Xu/ Project Engineer Approved by (name / position & signature) Jack Zhang/ Manager Date of issue 2022-10-26 Report Version V1.0 Report template No Template_FCC 15.247-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-P06V01 Page 2 / 92 INDEX page General conditions ............................................................................................................................................................ 5 Environmental conditions .................................................................................................................................................. 5 Possible test case verdicts ................................................................................................................................................ 6 Abbreviations..................................................................................................................................................................... 6 Document History .............................................................................................................................................................. 7 Remarks and Comments .................................................................................................................................................. 7 Used Equipment ................................................................................................................................................................ 8 Uncertainty ...................................................................................................................................................................... 10 1 General Information ............................................................................................................................................... 11 1.1 General Description of the Item(s) ............................................................................................................... 11 1.2 Antenna Information .................................................................................................................................... 12 1.3 Channel List ................................................................................................................................................. 13 2 Description of Test Setup....................................................................................................................................... 14 2.1 Operating mode(s) used for tests ................................................................................................................ 14 2.2 Auxiliary equipment / Test software for the EUT ......................................................................................... 14 2.3 Test Configuration / Block diagram used for tests ....................................................................................... 15 2.4 Testing process ........................................................................................................................................... 16 3 Verdict summary section ........................................................................................................................................ 17 3.1 Standards .................................................................................................................................................... 17 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ............................................................................ 17 3.3 Overview of results ...................................................................................................................................... 18 3.4 Test Facility .................................................................................................................................................. 19 4 Test Results ........................................................................................................................................................... 20 4.1 Conducted Emission .................................................................................................................................... 20 4.1.1 Limit ................................................................................................................................................... 20 4.1.2 Test Setup ......................................................................................................................................... 20 4.1.3 Test Procedure .................................................................................................................................. 20 4.1.4 Test Data ........................................................................................................................................... 21 4.2 Emissions in restricted frequency bands ..................................................................................................... 22 4.2.1 Limit ................................................................................................................................................... 22 4.2.2 Test…

Text truncated - open the document above for the full version.

2440 2450MHz 41.6 2420 2.81 Beamwidth 2490 44.7 -40 ~ +110°C Document Number Document Release Date Antenna Type Dimensions 2022/8/22 2.64 Peak Gain: Operating Temperature Soldering Tolerance Passive Efficiency 245046.35 Document version: 50 Ohms 45.6 Termination 2430 2500 2.45 10 sec. @260°C Rev A Freq.(MHz) 42.4 Impedance 2460 39-00062 Linear 2.83 41.6 3.0 3.0dBi Date: Date: Date: Preparation Review Approval Peak Gain(dBi) Efficiency(%) 42.3 Copper foil line width 0.5mm, total length 19.5mm FR-4, thickness 0.8mm 2400 2.70 Polarization 2022/8/22 45.2 Omni-directional 2470 2022/8/15 2.12 2.46 100MHz(Min.) -10dB(Max) Zhang Ruizhi Chen Xinzhong Wang Dong 2.33 2.30 Circuit board material center frequency bandwidth 2410 43.2 Azimuth PCB copper foil antenna 2.62 Cu/Sn (Leadless) 2480 2022/8/20 40.8 42.1 Return Loss BT560 Bluetooth Antenna Specifications Xiamen Guyin Communication Technology Co., Ltd. Machine Translated by Google 2. Connection method: Use a 50-ohm coaxial cable, one end is connected to the test point at the rear end of the matching circuit (front end of the RF test hole) on the prototype motherboard, and the other end is connected to the SMA connector. The schematic diagram is as follows: Xiamen Guyin Communication Technology Cable Company 3. Matching circuit VSWR 4. S11 test Test equipment: network analyzer (HP 8753E) Test method: use a 50 ohm CABLE cable to export from the test port of the instrument, use the calibration parts to calibrate and connect the SMA connector of the prototype fixture, and record the response corresponding to the relevant frequency point Wave loss and standing wave ratio. The connection diagram is as follows: After the RF output of the Bluetooth chip passes through the filter, there is an antenna matching circuit as shown in the figure above, and the red area on the right represents the PCB antenna. The test coaxial cable is connected to the test point on the left. The actual board circuit E02=2.7nH, E01 and E03 are not connected. S11 test results: 1. The actual product Frequency (MHz) BT560 Onboard PCB Antenna Test Report Machine Translated by Google 2450 1.2 1.5 2400 Xiamen Guyin Communication Technology Cable Company Test environment: temperature 22°C±3°C, humidity 50% ±15% Test equipment: When testing passive data, use a network analyzer Agilent E5062C When testing active data, use a comprehensive tester Agilent 8960 Test site: 2.1 Passive test: 5. Darkroom test data test system: shielded darkroom 2500 VSWR graph: 2.642420 42.1 24102.46 240041.6 42.4 Freq.(MHz)Peak Gain(dBi) Efficiency(%) 2.30 Machine Translated by Google Xiamen Guyin Communication Technology Cable Company Direction diagram: 2430 2.81 46.35 2.83 2450 44.7 2450MHzH 41.6 2.45 2470 2500MHzH 2490 2.12 2500MHz E2 2.70 45.6 2400MHz E1 3.0 2440 45.2 2450MHz E2 2.62 42.3 2460 2450MHz E1 2480 2500MHz E1 40.8 2.33 2500 43.2 2400MHzH 2400MHz E2 Machine Translated by Google Xiamen Guyin Communication Technology Cable Company Date: Date: test approval 2022/7/25 Zhang Zhenrong Wang Dong 2022/7/19 Machine Translated by Google

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-Test Photo Page 1 / 2 Test Photographs Description: Radiated emission Below 1GHz Description: Radiated emission 1-18GHz DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-Test Photo Page 2 / 2 Description: Radiated emission Above 18GHz

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-Test Photo Page 1 / 3 Test Photographs Description: SAR TEST(Horizonal-Up) Description: SAR TEST(Horizonal-Down) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-Test Photo Page 2 / 3 Description: SAR TEST(Horizonal-Front) Description: SAR TEST(Horizonal-Back) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0151R-RF-US-Test Photo Page 3 / 3 Description: SAR TEST(Horizonal-Top)
