OL3BTMOD01Bluetooth Daughter Board

All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. Table of Content 1. GENERALITIES ................................................................................................................... 2 1.1 INTRODUCTION ............................................................................................................................................. 2 1.1.1 Overview .................................................................................................................................................. 2 1.1.2 Aim of the document ................................................................................................................................. 2 1.2 SERVICES PROVIDED BY THE FEATURE OR EQUIPMENT ................................................................................. 2 1.3 EXTERNAL INTERFACES ................................................................................................................................ 2 1.4 TERMINOLOGY / ABBREVIATIONS ................................................................................................................. 4 2. GENERAL DESCRIPTION ................................................................................................. 5 2.1 BT FUNCTION GLOBAL LOGICAL BLOC DIAGRAM ......................................................................................... 5 2.2 BT DAUGHTER BOARD BLOC DIAGRAM ........................................................................................................ 5 2.3 MECHANICAL ASPECTS AND INTEGRATION ................................................................................................... 6 2.4 SPECIFICATION .............................................................................................................................................. 7 3. INDUSTRIAL CONSIDERATIONS ................................................................................... 7 3.1 MANUFACTURING ......................................................................................................................................... 7 3.2 REQUIREMENTS ............................................................................................................................................ 8 3.3 MECHANICAL ASSEMBLY / INDUSTRIAL FEASIBILITY .................................................................................... 8 3.3.1 Board outline ............................................................................................................................................ 8 3.3.2 Connections.............................................................................................................................................. 8 3.3.3 Mounting on the main board .................................................................................................................... 9 3.3.4 Shielding Mounting ................................................................................................................................ 11 4. REGULATORY COMPLIANCE ....................................................................................... 12 4.1 FCC STATEMENT: ........................................................................................................................................ 12 4.2 IC STATEMENT: ........................................................................................................................................... 12 All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. 1. Generalities 1.1 Introduction 1.1.1 Overview The main objectives for this board, discussed also with the marketing are:  Get lowest cost solution to enable BT for a maximum of IP terminals  Enable new usages like o The phone is seen as a carkit for a smartphone o The phone can exchange phonebook with a smartphone  From R&D point of view: o The board must be small enough to be integrated easily into our ID. o The board must integrate the antenna to avoid a re-certification for each phone which would use it. For this project, a pre-study has been done. See reference [1]. The choice is to do a daughter board with the chip CC2564 from Texas Instruments, with an integrated antenna on the layout (Printed antenna). 1.1.2 Aim of the document A pre-study has been done, in order to define the best choices for the whole solution, going from antenna to the BT management software in the phone. This document is intended to give all the technical inputs in order to make a BT daughter board which will be used on the Alcatel-Lucent IP Phones. A first step will be to use it on 8088, but we should care to make it possible to be used also on nextgen phones. 1.2 Services provided by the feature or equipment The BTDB will give a BT2.1+ EDR connectivity to the product where it is mounted into. The main reasons of this daughter board are to have:  A common function usable on several phones without the need of RF expertise and full BT qualification  A cost effective solution 1.3 External Interfaces The interface signals are listed hereafter: All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. Pin N° Name Function Type Voltage 1 GND Keep feet on the ground. Power 0V 2 VDD_IO Direct path supply for 1.8V I/O pads. Power 1.8V 3 GND Keep feet on the ground. Power 0V 4 SLOW_CLK 32.768KHz +/- 250ppm I 1.8V 5 GND Keep feet on the ground. Power 0V 6 HCI_RX HS UART Receive up to 4Mbps I /PU 1.8V 7 TX_DBG TI internal debug messages. Not used. O /PU 1.8V 8 HCI_CTS HS UART flow control: data from BTDB to Host allowed when low I /PU 1.8V 9 GND Keep feet on the ground. Power 0V 10 GND Keep feet on the ground. Power 0V 11 HCI_RTS HS UART flow control: data f…

Text truncated - open the document above for the full version.

Date: Feb 02, 2015 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Alcatel-Lucent Enterprise, the undersigned, hereby authorizes Mr. Adrian Shi of TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the Alcatel-Lucent Enterprise solely in matters relating to the application for an FCC equipment authorization for FCC ID: OL3BTMOD01 including the signing of documents in connection with this Application. Necessary acts carried out by Alcatel-Lucent Enterprise on our behalf of the Alcatel-Lucent Enterprise in connection with the Application shall have the same effect as acts of the Alcatel-Lucent Enterprise. The Alcatel-Lucent Enterprise also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name: Patrick Hauptmann Company: Alcatel-Lucent Enterprise

-1- FCC-Confidentiality Request Letter Date: Feb 02, 2015 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Alcatel-Lucent Enterprise FCC ID: OL3BTMOD01 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Alcatel-Lucent Enterprise requests that the following documents regarding this submission will be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Alcatel-Lucent Enterprise considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Alcatel-Lucent Enterprise considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Name: Patrick Hauptmann Company: Alcatel-Lucent Enterprise

Part Number: BTDB01 FCC ID: OL3BTMOD01 Request for Modular Approval Feb 02, 2015 In accordance with FCC Part 15, we, Alcatel-Lucent Enterprise, hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Single Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module does have a permanently attached antenna. 4) The module can be tested as a stand-alone device. 5) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations. 8) The module does have its own RF shielding. Signature: Name: Patrick Hauptmann Company: Alcatel-Lucent Enterprise

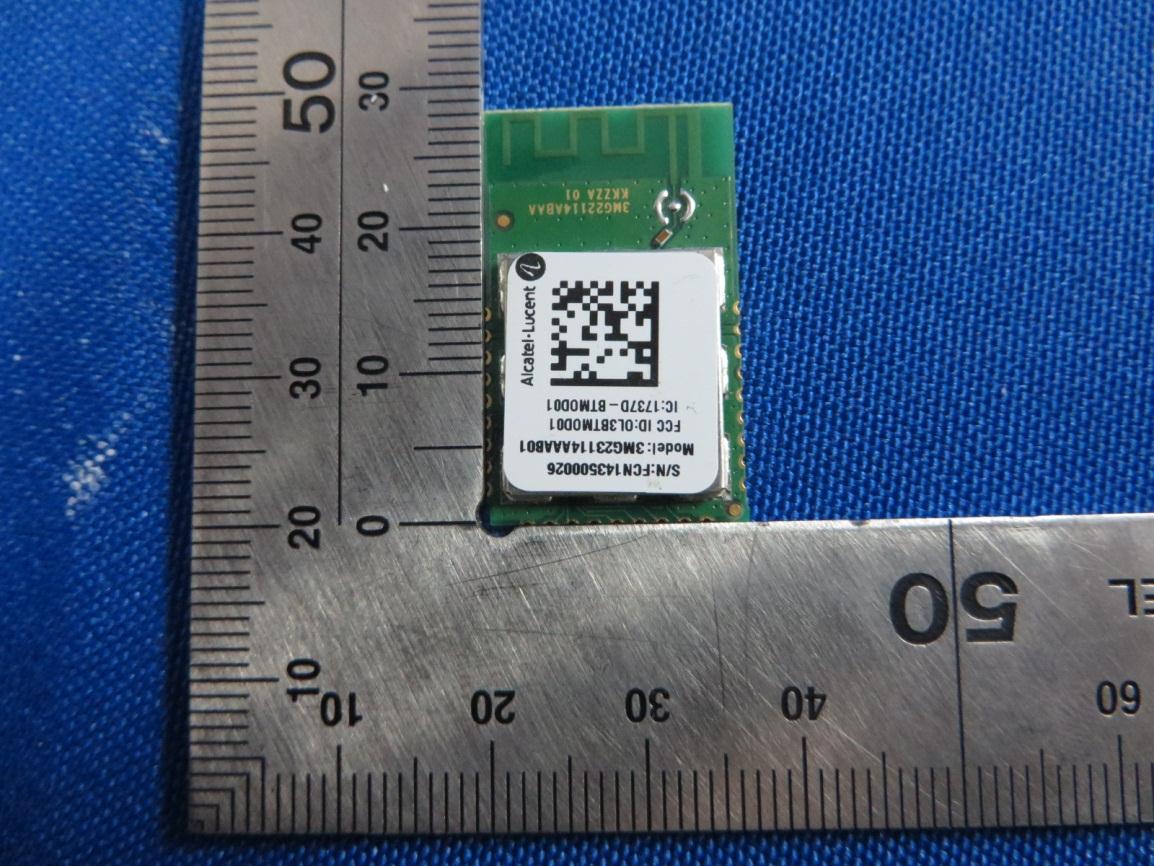

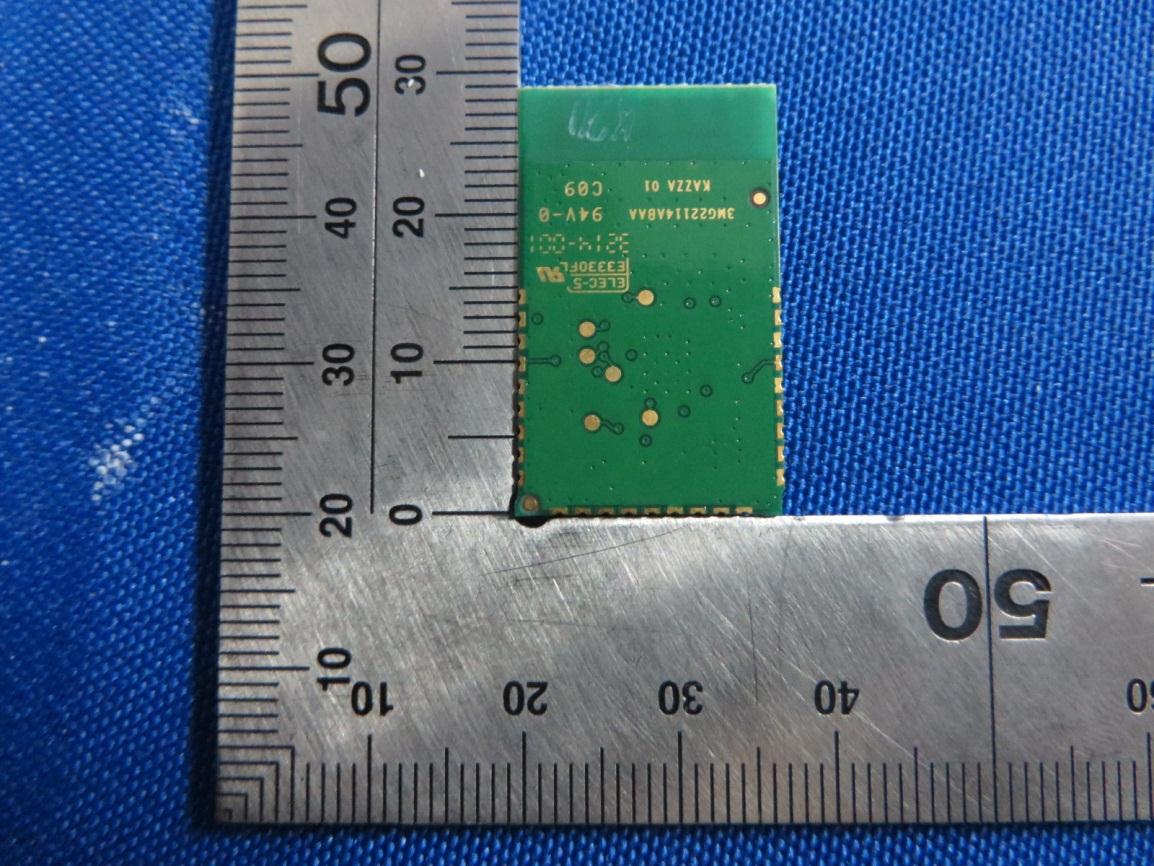

ATTACHMENT Photo Documentation Report No.: 15079432 001 Type Designation: BTDB01 Rev. 0 Page 1 of 2 ATTACHMENT Photo Documentation Report No.: 15079432 001 Type Designation: BTDB01 Rev. 0 Page 2 of 2

ATTACHMENT Photo Documentation Report No.: 15079432 001 Type Designation: BTDB01 Rev. 0 Page 1 of 2 ATTACHMENT Photo Documentation Report No.: 15079432 001 Type Designation: BTDB01 Rev. 0 Page 2 of 2

Produkte Products TÜV Rheinland (Shanghai) Co., Ltd  West Guangzhong Road, Zhabei District, Shanghai  Tel.: +86 21 6108 1188  Fax: +86 21 6108 1199 Mail: [email protected]  Web: www.tuv.com Prüfbericht-Nr.: Test Report No.: 15079432 001 Auftrags-Nr.: Order No.: 154087730 Seite 1 von 46 Page 1 of 46 Kunden-Referenz-Nr.: Client Reference No.: 450786 Auftragsdatum: Order date: 30.10.2014 Auftraggeber: Client: Alcatel-Lucent Enterprise 1 Route du Dr A.Schweitzer, ILLKIRCH, 67408, France Prüfgegenstand: Test item: Bluetooth Daughter Board Bezeichnung / Typ-Nr.: Identification / Type No.: BTDB01 FCC ID: OL3BTMOD01 IC: 1737D-BTMOD01 Auftrags-Inhalt: Order content: Complete test Prüfgrundlage: Test specification: FCC CFR47 Part 15, Subpart C Section 15.247 ANSI C63.10-2009 Public Notice DA 00-705: Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (March 30, 2000) RSS-Gen Issue 4, November 2014 RSS-210 Issue 8, December 2010 Wareneingangsdatum: Date of receipt: 30.10.2014 Prüfmuster-Nr.: Test sample No.: A000123003-001 A000123003-002 Prüfzeitraum: Testing period: 26.11.2014 - 10.12.2014 Ort der Prüfung: Place of testing: MRT Technology (Suzhou) Co., Ltd Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 20.01.2015 Adrian Shi / PE kontrolliert von / reviewed by: 20.01.2015 Shi Li / Reviewer Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 15079432 001 Seite 2 von 46 Page 2 of 46 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED RESULT: Pass 5.1.5 SPURIOUS EMISSION RESULT: Pass 5.1.6 FREQUENCY SEPARATION RESULT: Pass 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.8 TIME OF OCCUPANCY RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 15079432 001 Seite 3 von 46 Page 3 of 46 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 5. TEST RESULTS ............................................................................................................... 10 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 10 5.1.1 Antenna Requirement ................................................................................................................ 10 5.1.2 Peak Output Power .................................................................................................................... 11 5.1.3 20dB Bandwidth and 99% Bandwidth ..........................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 15078515 001 Seite 1 von 1 Page 1 of 1 Appendix I- RF Exposure statement Exposure Requirements – FCC KDB # 447498 D01 and RSS-102 Issue 4 FCC KDB # 447498 DO1 V05r02 - Mobile and Portable Device RF Exposure and Procedures and Equipment, Appendix A shows that the SAR Text Exclusion Threshold for a device with a separation distance of 10 mm at 2450 MHz is 19 mW. RSS-102 section 2.5.1 states that a device is exempt from SAR evaluation if the frequency is “above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use...”. Calculated EIRP The maximum measured transmitter power is the following: Note: Per the equation in section 1.3.1 of FCC Document # 412172 D01 Determining ERP and EIRP v01; EIRP = p t x g t where: p t = transmitter output power in watts g t = Numeric gain of transmitting antenna (unitless) Evaluation for FCC The maximum EIRP peak power output of the EUT is: 11.01 mW. The EUT is well below the 19mW power level. Evaluation for IC The maximum EIRP peak power output of the EUT is: 11.01 mW. The EUT is well below the 20mW power level. Conclusion SAR data is not required for either FCC or IC. Conducted Output Power Pout [dBm] Conducted Output Power Pout [mW] Maximum Antenna Gain [dBi] Pout EIRP [mW] 5.323.405.111.01

Produkte Products Prüfbericht - Nr.: Test Report No. 15079432 001 Seite 1 von 2 Page 1 of 2 Appendix II- Photographs of the Test Set-Up Photograph 1: Set-up for Conducted RF test at Antenna Port Produkte Products Prüfbericht - Nr.: Test Report No. 15079432 001 Seite 2 von 2 Page 2 of 2 Photograph 2: Set-up for Spurious Emissions below 1GHz Photograph 3: Set-up for Spurious Emissions above 1GHz
