OL7WM-1025AWireless Mouse

USER’S GUIDE WIRELESS MOUSE Wireless Mouse1.fm Page -4 Friday, July 21, 2000 10:48 AM Wireless Mouse1.fm Page -3 Friday, July 21, 2000 10:48 AM Important Safety Instructions 1.Read these instructions. 2.Follow all instructions. 3.Keep these instructions. 4.Heed all warnings. 5.Do not use this apparatus near water. 6.Clean only with a damp cloth. 7.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, or the apparatus does not operate normally or has been dropped. ii Wireless Mouse1.fm Page -2 Friday, July 21, 2000 10:48 AM FCC Notice NOTICE FEDERAL COMMUNICATIONS COMMISSION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Peracom Networks, Inc. may void the user's authority to operate the equipment. iii Wireless Mouse1.fm Page -1 Friday, July 21, 2000 10:48 AM Table of Contents Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii The Avcast Home Entertainment System . . . . . . . . . . . . . . . . . . . . . .1 Introducing the Wireless Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Appendix A: Changing the RF Address. . . . . . . . . . . . . . . . . . . . . . . .5 Appendix B: Wireless Mouse Specifications. . . . . . . . . . . . . . . . . . . .7 Appendix C: Support and Troubleshooting. . . . . . . . . . . . . . . . . . . . .8 Appendix D: Accessories and Replacement Parts. . . . . . . . . . . . . .10 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 iv Wireless Mouse1.fm Page 0 Friday, July 21, 2000 10:48 AM The Avcast Home Entertainment System The Avcast system uses the existing coaxial cable wiring in a house to create a home entertainment network. The Avcast home entertainment network connects television sets (TVs) and a personal computer (PC) together — allowing the user to their PC screen on any television connected to the network. The following is an example of a basic Avcast home entertainment network: personal computer TV OUT card (not included) required for audio/video connection CableCaster PC Caster TV TV wireless mouse filter audio/video cable ground block USB cable wall adapter wireless keyboard TV from cable company or local TV antenna TV wall adapter IRCaster (optional) 1 Wireless Mouse1.fm Page 1 Friday, July 21, 2000 10:48 AM 2 Introducing the Wireless Mouse The Avcast Wireless Mouse is used with a PC Caster and a PC in the Avcast home entertainment network. The PC Caster allows you to watch the screen of your personal computer on any TV connected to the Avcast home entertainment network. The Wireless Mouse allows you to perform all of the functions of the mouse that is connected to your personal computer — remotely. You can view and control the PC using a TV screen in a completely different room. The Wireless Mouse uses radio frequency (RF) to communicate with the PC Caster that is connected to the PC. The Wireless Mouse has a joystick, and left and right buttons. It is possible to have more than one PC connected to your Avcast home entertainment system by using additional PC Casters. Setting the internal “frequency addresses” of each set of PC Caster and remote devices to different channels allows them to exist on the system and be used simultaneously. The Wireless Mouse is powered by 3 AAA batteries that you install in the battery compartment on the back of the Wireless Mouse (see Appendix A for Wireless Mouse Specifications). Other Items in the Kit AAA Batteries (3) Warranty Card Technical Information The appendixes in the back of this guide provide technical specifications. The Avcast Home Entertainment System How to Use the Wireless Keyboard left mouse button right mouse button joystick A B C A B C Wireless Mouse1.fm Page 2 Friday, July 21, 2000 10:48 AM 3 How to Use the Wireless Mouse Before you start: •The original PC keyboard and mouse need to be connected to the PC for it boot up properly. •The PC mouse should not be used at the exact same time as the Wireless Mouse. Using both of them simultaneously may produce unexpected results. Set up the Wireless Mouse 1.Remove the battery compartment cover and insert 3 new AAA batteries (supplied). The Wireless Mouse is powered by 3 AAA batteries located in the battery compartment under a snap-on cover on the…

Text truncated - open the document above for the full version.

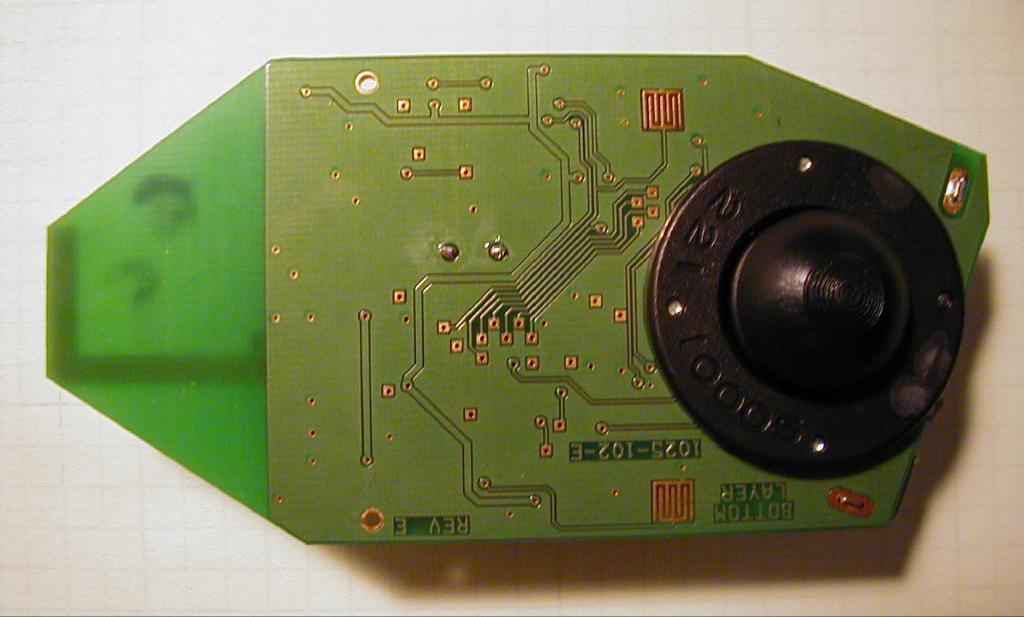

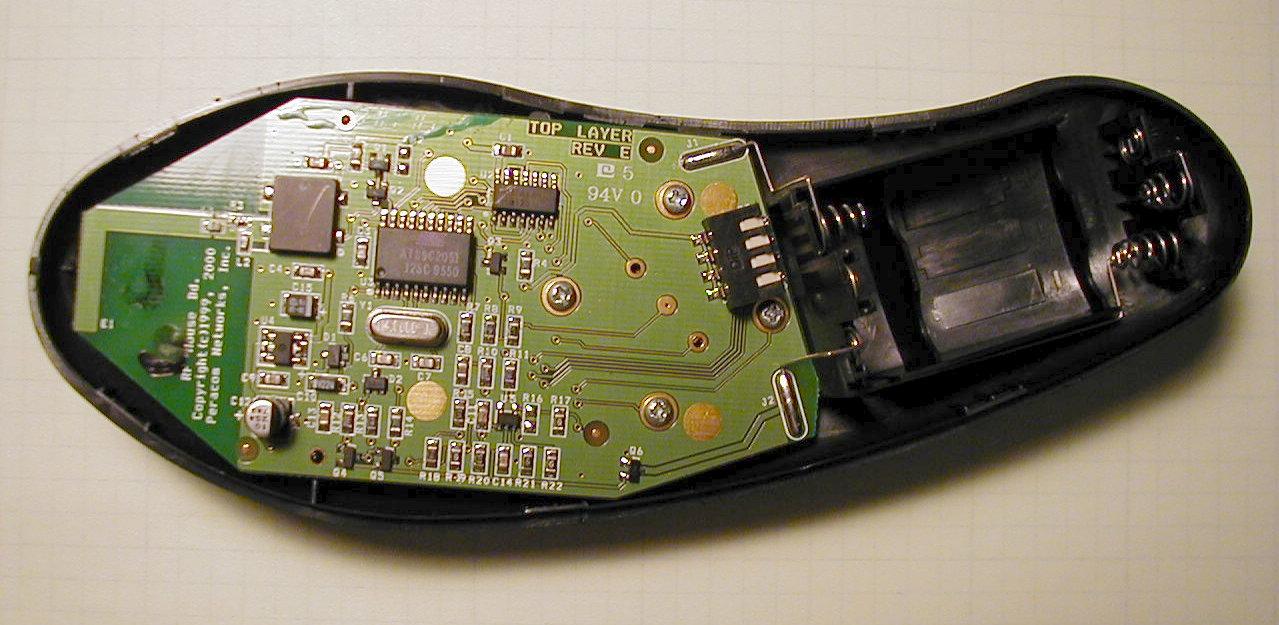

RF Mouse Functional Description This product is a low-powered transmitter operating at 916.5 MHz (+/- 200 kHz) containing an antenna integrated into the board design (thus preventing removal and replacement). The EUT contains a voltage regulator, RF Source, and pulse timing circuit in addition to the antenna. Output pulses are produces (timing described in test report) that represents mouse commands. A joystick-type pointing device and buttons on the product provide user input to the mouse. Power is provided by three 1.5 V “AA” batteries. A separate receive circuit connected to a Personal Computer or similar device decodes the signal for the user.

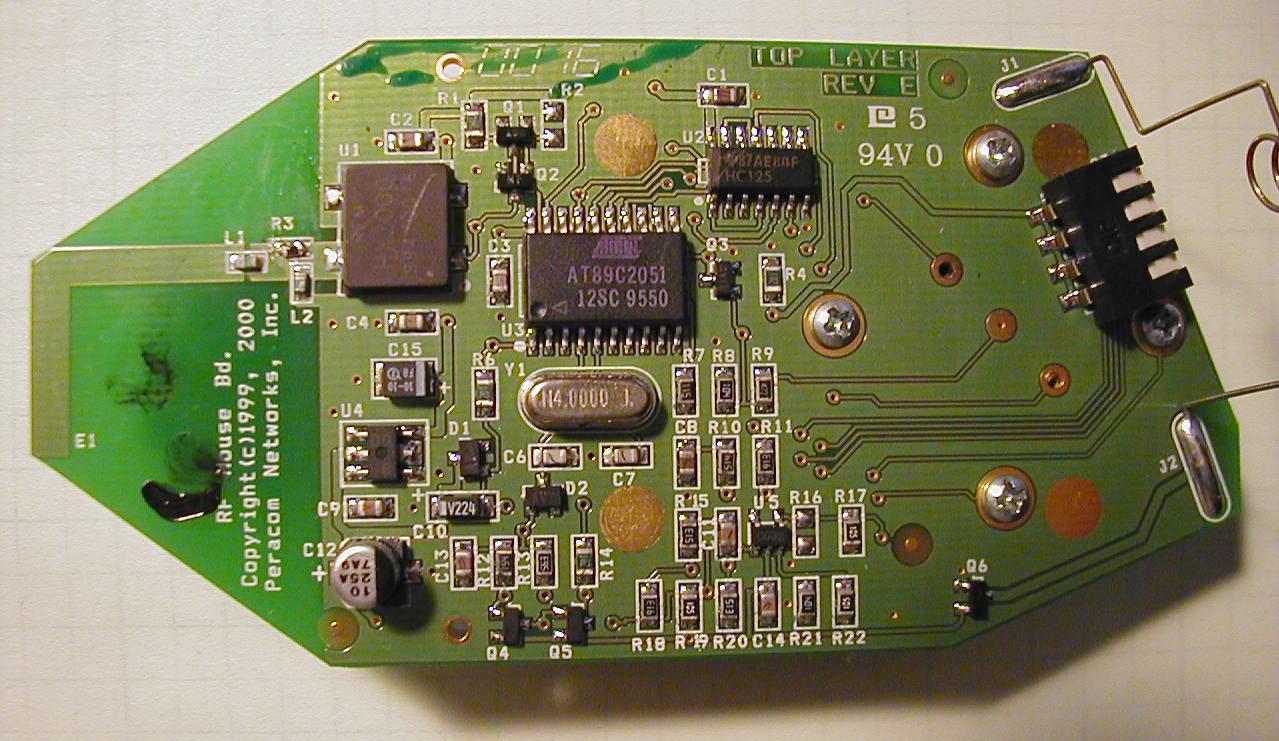

1025-101 F Schematic, RF Mouse Bd. A 15Thur s day, Jul y 06 , 2000 Title SizeDocument NumberRev Date:Sheet of VCC VCC VCC VCC VCC RF_T X_DATA3 JOYS TICK_SEN SE4 NORT H_EAST_D RIVE4 NORT H_SOUTH _ENA4 EAST _WEST_EN A4 SOUT H_WEST_DRIVE4 SW_22 SW_42 SW_82 PUSH _B_SENSE4 MB_R IGHT2 MB_LEFT2 SW_12JOYS TICK_SEN SE4 ACTIV E2 ANAL OG_REF R12 150K R13 56K Y1 4 MHz Q4 FM MT 4403 C7 22pF U3 AT89C 2051- 12SC 1 4 5 20 10 14 15 16 17 18 19 13 6 8 7 2 12 11 9 3 RST X2 X1 VCC GND P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 -P1.1 P3.2 P3.4 P3.3 P3.0 +P1.0 P3.7 P3.5 P3.1 C13 0.1uF + C12 10uF 2 5V C6 22pF Q5 FMMT 4403 R6 1K R22 1M C3 .01uF R21 100K R14 1K R19 1M C10 .22uF R17 1M R16 DNP R15 51K D1 BAS16 D2 BAS16 C11 .01uF R20 51K C14 .01uF U5 LMC7 225IM5 3 4 5 1 2 R10 510K R7 510 C8 1000p F ANC C BAS1 6 Top View BE C FMMT4403 S0T2 3 Top V iew E E B B C C + Peracom 13000 Weston Parkway PERACOM CONFIDENTIAL Car y, N.C. 27513 U.S.A. SCH-1025-F.DSN 1025-101 F Schematic, RF Mouse Bd. A 25Thur s day, Jul y 06, 2000 Title SizeDocument NumberRev Date:Sheet of MB_R IGHT1 MB_LEFT1 ACTIV E1 SW_81 SW_41 SW_21 SW_11 S1S2 S3 SW D IP- 4 1 2 3 4 8 7 6 5 R11 91K R18 91K R4 1K Peracom 13000 Weston Parkway Car y, N.C. 27513 U.S.A. PERACOM CONFIDENTIAL M1left M2right 1025-101 F Schematic, RF Mouse Bd. A 35Thur s day, Jul y 06, 2000 Title SizeDocument NumberRev Date:Sheet of VCCVCC RF_T X_DATA1 + U1 HX2000 1 2 4 3 C2 100pF C9 0.1uF C4 0.1uF R2 DNP Q2 ZVN3 310F D G S U4 XC62G R3312PR 52 43 OUTIN GNDSW Q1 MGSF 1P02LT1 D G S L1 22nH E1 R1 1K R3 82 J1 Batter y Connector - 1 J2 Batter y Connector + 1 Q6 MGSF 1P02LT1 D G S L2 82nH + C15 10uF 1 0V 916.5M HZ Peracom 13000 Weston Parkway Car y, N.C. 27513 U.S.A. PERACOM CONFIDENTIAL +3.3V GS D ZVN3 310F S0T2 3 Top View 123 XC62 GR3312P R S0T-8 9-5 Top V iew +3.3V GS D MGS F1P02LT1 S0T2 3 Top V iew 45 +3.3V F 1025-101 F Schematic, RF Mouse Bd. A 45Thur s day, Jul y 06 , 2000 Title SizeDocument NumberRev Date:Sheet of VCC NORT H_SOUTH _ENA1 EAST _WEST_EN A1 NORT H_EAST_D RIVE1 SOUT H_WEST_DRIVE1 JOYS TICK_SEN SE1 PUSH _B_SENSE1 CENT ER_SWITC H EAST SOUT H WEST NORT H JOYS TICK_SEN SE Q3 FMMT 3904 R9 4.7K U2A 74HC 125 23 1 U2C 74HC 125 98 10 U2B 74HC 125 56 4 R8 100K U2D 74HC 125 1211 13 R5 Ipoi nt Mouse R B r i dg e 1 2 3 4 SW1 SW D OME 1 2 3 C1 100pF IPOINT DRIVE INP UTS PERACOM CONFIDENTIAL Peracom 13000 Weston Parkway Car y, N.C. 27513 U.S.A. RESISTOR SEN SE POINT SWITCH SEN SE POINT BE C FMMT3904 Top View RIGHT SIDE OF MOUSE, VIEWED FROM MOUSE SIDE OF PCB TOP OF MOUSE, TOWARD ANTENNA BOTTOM OF MOUSE TOWARD BATTERIES LEFT SIDE OF MOUSE, VIEWED FROM MOUSE SIDE OF PCB 1025-101 F Schematic, RF Mouse Bd. A 55Thur s day, Jul y 06 , 2000 Title SizeDocument NumberRev Date:Sheet of RevDescr i pti onDate FID1 FIDUT IAL FID2 FIDUT IAL FID3 FIDUT IAL MH2 PAD MH3 PAD MH5 PAD MH6 PAD TH1 HOLE TH2 HOLE V1V2V3V4V5V6V7V8 V9V10V12V11V13V14V16V15 V17V18V20V19V21V22V24V23 A1BOM, RF Mouse Bd.DNP1025- 1 00- F A2Schemati c, RF M ouse Bd.DNP1025- 1 01- F A3PC Bo ar d, RF Mo use Bd.11025- 1 01- E A4Pr og r ammed AT8 9C2051- 12 SC ( U3)11025- 4 00 A5Retaining Ring (R5)1- A6St i ck, Or b ( R5)1- A7St i ck, Base ( R5)1- A8Resi s ti ve Rubber ( R5) 1 - A9Scr ews, Mouse ( R 5)4- Peracom 13000 Weston Parkway Ca r y, N.C. 2 7 5 13 U.S.A. PERACOM CONFIDENTIAL DesigQTYPeracom P/NDescription DRelea sed to S icon01-06 -2000 EPCB change, mov ed m ouse patt ern up .0 12.03-20 -2000 F Chan ged R3 f rom 51 oh m to 82 ohm07-06 -2000

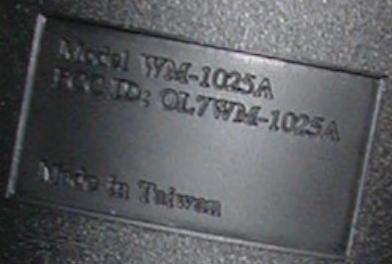

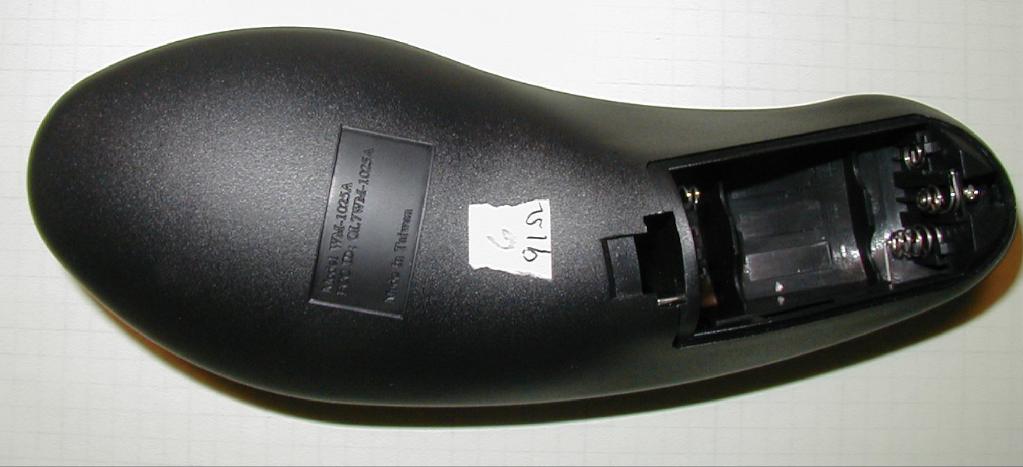

Project: 00RT8098 File: MC1072 Report: 000254 Date: June 30, 2000 Model: WM1025A FCC ID:OL7WM-1025A Test Report On Electromagnetic Compatibility Testing Peracom, Inc. Cary, NC USA Copyright  2000 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 00RT8098Underwriters Laboratories, Inc.Issued: 06/30/00 File: MC1072Test Report on Electromagnetic CompatibilityPage 2 of 48 FCC ID: OL7WM-1025ATest Report: 000254 Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Peracom, Inc. 13000 Weston Parkway Suite 105 Cary, NC 27513 USA Applicant Contact: Mr. Ralph Yeager Engineer Voice: (919) 379-2763 Test Report Number: 000254 Test Report Date: June 30, 2000 (Revised August 11, 2000) Product Type: RF Mouse Model Number: WM-1025A Sample Serial Number: Unserialized Pre-production Sample Sample Tag Number: S00LB275A EUT Category: Transmitter EUT Type: Hand Held Sample Receive Date: June 27, 2000 Testing Start Date: June 27, 2000 Date Testing Complete: June 27, 2000 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP or any agency of the US government. This report may contain data which is not covered by the NVLAP accreditation. Only data which is noted under Remarks of Summary of Testing as being NVLAP Accredited Data can be considered to be covered by the NVLAP accreditation. Project: 00RT8098Underwriters Laboratories, Inc.Issued: 06/30/00 File: MC1072Test Report on Electromagnetic CompatibilityPage 3 of 48 FCC ID: OL7WM-1025ATest Report: 000254 Summary of Testing: TestTest NameComplyDoes NotSee #Test Requirement/SpecificationComplyRemark 1Radiated Disturbance Emissions - 9 kHz to 30 MHzX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.209 2Radiated Disturbance Emissions - 30 to 1000 MHz Electric FieldX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Sections 15.209 and 15.249 3Radiated Disturbance Emissions - 1 to 10 GHz Electric FieldX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Sections 15.209 and 15.249 4Radiated Disturbance Emissions - Occupied BandwidthX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.249 5Radiated Disturbance Emissions - Peak-to-Average RatioN/AN/A2 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.249 6Radiated Disturbance Emissions - Restricted Bands of OperationX- 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.205 Remarks: 1)The EUT was found to comply with FCC Part 15 Section 15.249 rules for transmitters in 902-928 MHz band. For spurious emissions the EUT was found to comply with the general rules for low-powered transmitters in Section 15.209 and Restricted Bands in Section 15.205. Results can also be considered applicable to Canadian RSS-210 Issue 2, Rev.1 Section 6.2.2. 2)No limit applies. Result used to calculate average value from peak measurement for Tests 1 through 4. 3)The emissions designator is interpreted to be P0D444K from FCC Part 2.201. Conclusion: The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Project: 00RT8098Underwriters Laboratories, Inc.Issued: 06/30/00 File: MC1072Test Report on Electromagnetic CompatibilityPage 4 of 48 FCC ID: OL7WM-1025ATest Report: 000254 Test Facilities: Test Location A) 10-Meter Anechoic Chamber (Industry Canada - IC 2953, NVLAP - 200246-0, VCCI - R-722) Constructed by Lindgren RF Enclosures, this room consists of a 17.9 by 12 by 8.3 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 4.0 m diameter embedded turntable and a 1.2 by 2.1 m and 2.4 by 2.4 m double knife edge doors for access. Also, the room is fed electrical EUT power via permanently installed filters and is provided with a permanently mounted video surveillance camera. A remotely controllable antenna mast is located in the room for positioning the measuring antenna from 1 to 4 m above the ground plane. Test Location B) Compact Anechoic Chamber Constructed by Lindgren RF Enclosures, this room consists of a 6 by 3 by 2.9 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered wi…

Text truncated - open the document above for the full version.

Project: 00RT8098Underwriters Laboratories, Inc.Issued: 06/30/00 File: MC1072Test Report on Electromagnetic CompatibilityPage 17 of 48 FCC ID: OL7WM-1025ATest Report: 000254 Test 1, Item A - Test Set-Up Photo: Radiated Disturbance Emissions - 9 kHz to 30 MHz Electric Field (Photo also representative of set-up for other tests detailed in this report)
