OLPSLHHR24SLRC HAND HELD TRANSMITTER

Rel. Date: 04/23/10 Part Number: 210-015 Revision: A Rev. Date: 04/23/10 Description: SLRC FCC Label Engineer: Keith Beavers Procurement form rC PROCUREMENT SPECIFICATION SHEET Rev. Date ECO # Remarks By A 4/23/10 1065 Initial Drawing Release KB APPROVED MANUFACTURER MFR PART NUMBER Marking Systems Inc. (MSI) 210-015 SPECIFICATIONS: Dimensions: 0.5” H x 1.5” L Colors used: BLACK lettering against clear background (no border) Materiel: 2 Mil clear Polyester 21940 DPM 50 lb Adhesive type: Permanent Acrylic Adhesive 10070 50 lb, “peel and stick”.UL-969 Finish: Matte Packaging: on roll Model: SLRC-HH FCC ID.: OLPSLHHR24 1.5 inches 0.5 inches

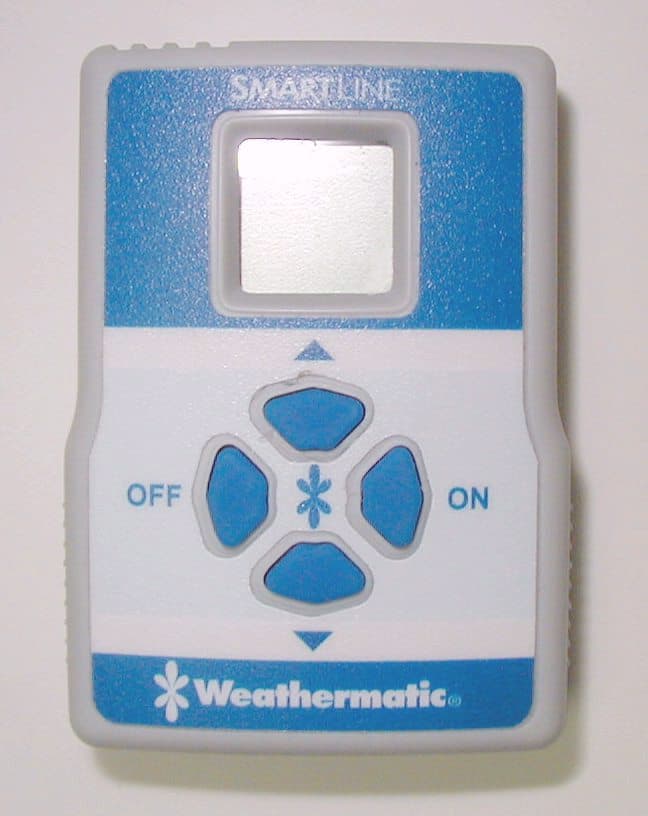

Weathermatic • 3301 W. Kingsley Rd. • Garland, TX 75041 • 888-4 THE PRO Operational Description SLRC-HH is a Hand held Transmitter designed to interact with SLHUBRF.SLRC-HH operates wirelessly using a 3V AAA battery either Alkaline or Lithium. This Product sends data to SLHUBRF which in turn communicate to the Irrigation Controller to turn ON/OFF the required zones or Electro Mechanical Valves. The SLRC-HH has a Unique Network ID to Interact with SLHUBRF which is mounted inside the Irrigation Controller. A single SLRC-HH can interact with different controllers by Changing the Network ID by either through Contractor Code or Joining each time with a Separate SLHUBRF wirelessly. The Contractor code can be changed in the SLRC-HH to match that of SLHUBRF to interact seamlessly. After having a same Network ID with a press of an ON button it turns on the Valves and allow them to be ON for a preset time on SLRC-HH. This RUN time can be adjusted accordingly. This device can also access different Programs set inside the controller. If the device is left ON , it turns OFF approximately within 2-3 minutes to save the Battery life. The device also can be used to turn OFF the Valves using an OFF button. Each transmission is a 40 Byte message that lasts approximately 1.5mSecs.

Nemko Test Report: 37576RUS2 Applicant: Weathermatic, Inc. 3301 W. Kingsley Rd. Garland, Texas 75041 USA Equipment Under Test: OLPSLHHR24 (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 06 April 2010 David Light, Wireless Engineer APPROVED BY: DATE: 07 April 2010 Tom Tidwell, Telecom Direct Total Number of Pages: 16 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 2 of 16 Table Of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RADIATED EMISSIONS 7 SECTION 4. TEST EQUIPMENT LIST 13 ANNEX A TEST DIAGRAMS 14 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 3 of 16 Section 1. Summary Of Test Results Manufacturer: Weathermatic, Inc. Model No.: OLPSLHHR24 Serial No.: H1091111320368 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made on an open area test site. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 4 of 16 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions 15.207 NA* Radiated Emissions 15.249 Complies Footnotes: * The device is battery powered. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 5 of 16 Section 2. General Equipment Specification Frequency Range: 2400 to 2483.5 MHz Operating Frequency(ies) of Sample: 2405 MHz (single channel) Number of Channels: 1 Channel Spacing: NA User Frequency Adjustment: None Integral Antenna Yes No Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 6 of 16 Description of EUT Product is a four button remote control. The remote is used for controlling the irrigation system. System Diagram Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 7 of 16 Section 3. Radiated Emissions NAME OF TEST: Radiated Emissions PARA. NO.: 15.249 TESTED BY: David Light DATE: 05 April 2010 Minimum Standard: Para no. 15.249 (a) The field strengths shall not exceed the following: Carrier (MHz) Field Strength (mV/m) Field Strength (dBμV) Harmonic (μV/m) Harmonic (dBμV) 902-928 50 94 500 54 2400-2483.5 50 94 500 54 5725-5875 50 94 500 54 24000-24250 250 108 2500 68 (b) Field strength limits are specified at a distance of 3 metres. (c) Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limits of 15.209 whichever is the less attenuation. (d) ...for frequencies above 1000 MHz, the above field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Spectrum analyzer settings: RBW/VBW: 1 MHz Detector: Peak Test Results: Complies Measurement Data: See attached table. Test Equipment: 993-1484-1485-1464-1016-1480-791 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. EQUIPMENT: OLPSLHHR24 PROJECT NO.: 37576RUS2 Page 8 of 16 Test Data - Radiated Emissions Cable Cable Pre-AHorn # Freq Rdng Duty Corr Spec Margin Polar MHz dBμV dB dB dB dB dBμV/m dBμV/m dB Ant 1 2405.0 78.7 +0.7 +2.3 -0.0 +28.9 110.6 114.0 -3.4 Vert +0.0 2 2405.0 78.7 +0.7 +2.3 -32.8 +28.9 37.8 94.0 -56.2 Vert Ave -40.0 3 4810.0 55.7 +1.0 +3.2 -32.4 +33.1 60.6 74.0 -13.4 Vert +0.0 4 4810.0 55.7 +1.0 +3.2 -32.4 +33.1 20.6 54.0 -33.4 Vert Ave -40.0 5 7215.0 53.8 +1.2 +3.9 -32.2 +35.8 62.5 74.0 -11.5 Vert +0.0 6 7215.0 53.8 +1.2 +3.9 -32.2 +35.8 22.5 54.0 -31.5 Vert Ave -40.0 7 9620.0 51.5 +1.1 +4.7 -34.3 +37.1 60.1 74.0 -13.9 Vert +0.0 8 9620.0 51.5 +1.1 +4.7 -34.3 +37.1 20.1 54.0 -33.9 Vert Ave -40.0 9 12025.0 51.5 +1.8 +5.5 -34.9 +39.6 63.5 74.0 -10.5 Vert +0.0 10 12025.0 51.5 +1.8 +5.5 -34.9 +39.6 23.5 54.0 -30.5 Vert Ave -40.0 11 14430.0 44.2 +1.6 +5.6 -33.0 +41.2 59.6 74.0 -14.4 Vert +0.0 12 14430.0 44.2 +1.6 +5.6 -33.0 +41.2 19.6 54.0 -34.4 Vert Ave -40.0 13 16835.0 43.8 +2.0 +6…
