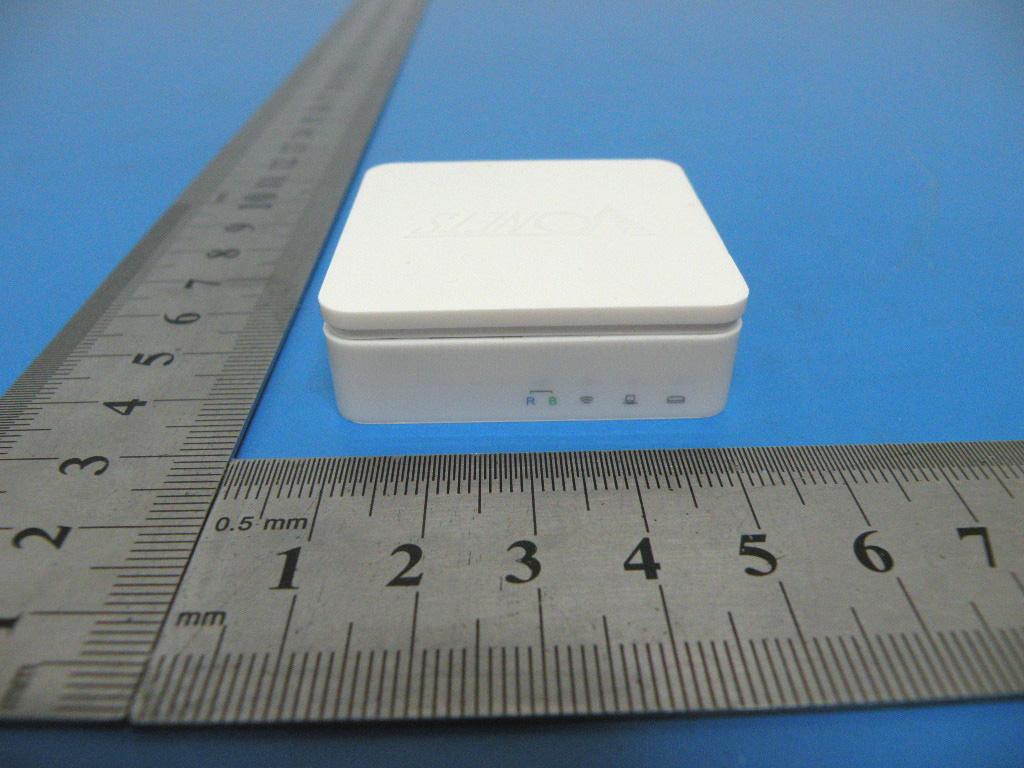

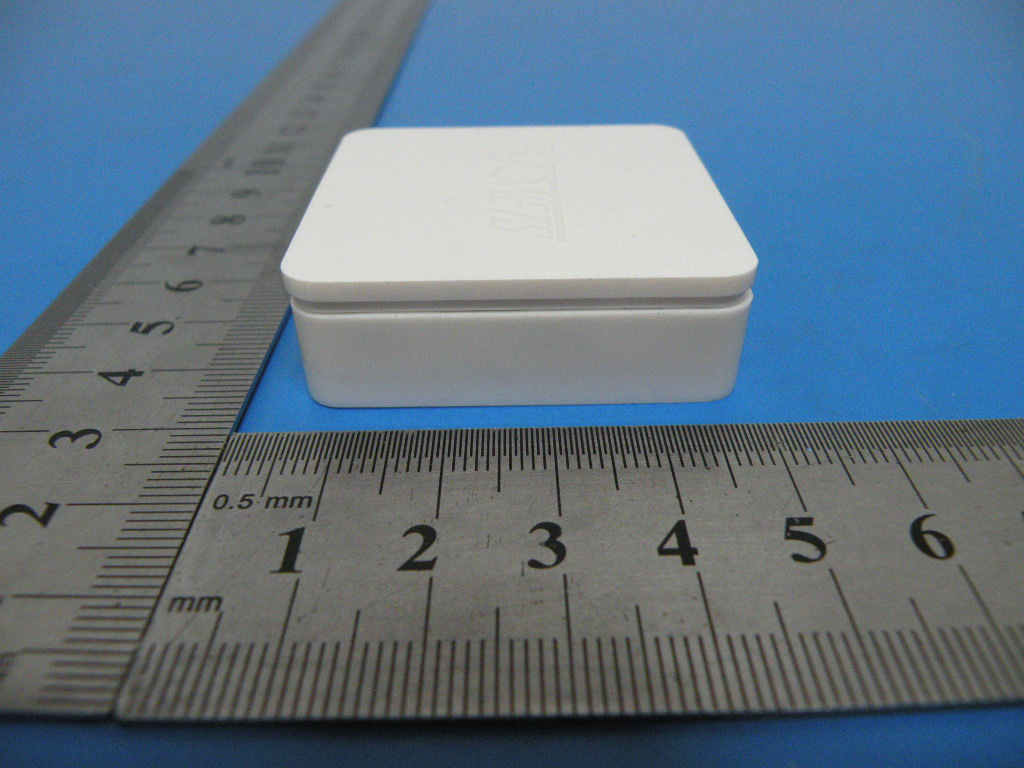

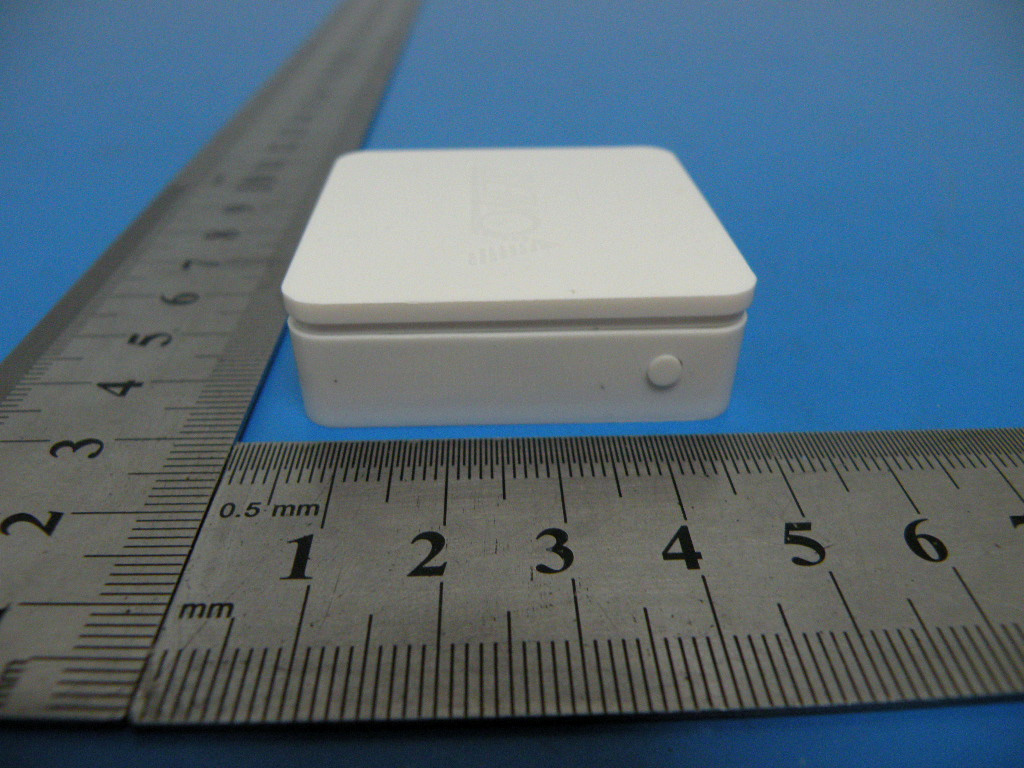

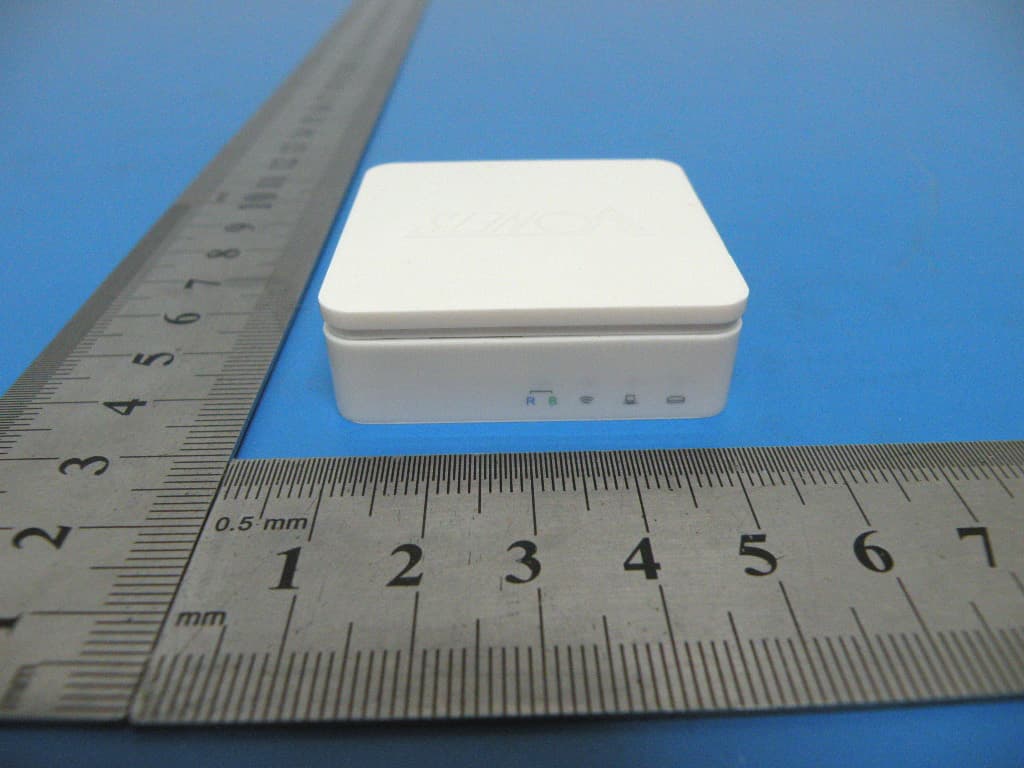

OM7-VAR11NWIFI Router

VONETS——VAR11N150MMiniWIFIRouter 1 150M Mini WIFI Router VAR11N User Manual VONETS——VAR11N150MMiniWIFIRouter 2 Contents Chapter1 Product Overview..........................................................................4 1.1 Product Descrption...................................................................................................4 1.2 Main Features......................................................... ....................................................4 Chapter 2 Hardware Descrption ...................................................................6 2.1 Panel Layout................................................................................................................6 2.2 Reset............................................................................................................................8 2.3 System Requirement............................................... ..............................................8 Chapter 3 Quick Installation guide ...............................................................8 3.1 Work Mode Introduction ..........................................................................................8 3.1.1 WIFI Router Mode.................................................................................8 3.1.2 WIFI Bridge Mode..................................................................................9 Chapter 4 Hardware Connect ...................................................................12 4.1 Set up correct IP address....................................................................................12 4.2 Connect to WIFI Network......................................................................................17 4.2.1 Windows 7 WIFI connect ...................................................................17 Chapter 5 Router Settings............................................... .........................18 5.1 Operative Status..................................................................................... ..............19 5.2 Operative Mode....................................................................................... ...............20 5.3 WAN settings .........................................................................................................21 5.3.1 Basic settings...........................................................................................21 5.3.2 DDNS.........................................................................................................22 5.4 LAN settings........................................................................................................ ..23 5.4.1 Basic settings...........................................................................................23 5.4.2 DHCP Client........................................................................................24 5.4.3 MAC binding IP............................................................................. ..........25 5.5 WIFI settings..........................................................................................................25 5.5.1 Basic settings...................................................................................... ....25 5.5.2 WIFI security........................................................................................26 5.6 Firewall........................................................................................................ ............28 5.6.1 ACL setting ..............................................................................................28 5.6.2 Connection filter.......................................................................... ..........29 5.6.3 System Security....................................................................................29 5.7 Forwarding rule..................................................................................................... 30 5.7.1 Port Forwarding......................................................................................30 5.7.2 Virtual Servers........................................................................................30 5.7.3 DMZ....................................................................................................... ...31 5.8 System Settings.....................................................................................................32 5.8.1 Device Reboot..........................................................................................32 5.8.2 Recovery Factory....................................................................................32 5.8.3 Login settings...........................................................................................32 5.8.4 Firmware Upgrade..................................................................................32 Chapter 6 WIFI Bridge mode settings.......................................................33 VONETS——VAR11N150MMiniWIFIRouter 3 Declaration Copyright © 2012 Shenzhen HouTian Network Communication Technology Co.Ltd All rights reserved, with retained ownership Without Shenzhen HouTian Network Communication Technology Co.Ltd written authorization, any company or personal can’t copy, writer or translation part or all contents. Can’t do commodity distribution for any commercial or profitable purposes by any ways(electricity, mechanical, photoprint, record or other methods). VONETSis the registered trademark of Shenzhen HouTian Network Communication Technology Co.Ltd. The other all trademarks or registered trademarks mentioned in this documents are belong to the individual owners. The product specifications and information technology mentioned in this manual are just for reference, if any updates, without other notice. Except for special agreements, this manual is just for user guidance, any statements, information and so on in this manual can’t constitute the warranty of any forms. VONETS——VAR11N150MMiniWIFIRouter 4 Chapter 1 Product Overview 1.1Product Descriptio…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen HouTian Network Communication Technology Co. Ltd November 16, 2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____Shenzhen HouTian Network Communication Technology Co. Ltd _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: OM7-VAR11N Product name: WIFI Router Model: VAR11N We affirm that between SIEMIC and ____Shenzhen HouTian Network Communication Technology Co. Ltd___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Chu Lisong /General Manager Adress : RM803, Floor 8, Building Five, Industrial Plant, Donghua Yuan, Nanhai Road, Nanshan District, Shenzhen, Guangdong Province, China Tel. : (86) 755-26642519 Fax : (86) 755-26645879 Email : [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen HouTian Network Communication Technology Co. Ltd November 16, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OM7-VAR11N We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block diagram - e.g. Schematic - e.g. Operating description - etc. - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature : Client’s name / title : Chu Lisong /General Manager Adress : RM803, Floor 8, Building Five, Industrial Plant, Donghua Yuan, Nanhai Road, Nanshan District, Shenzhen, Guangdong Province, China Tel. : (86) 755-26642519 Fax : (86) 755-26645879 Email : [email protected]

30mm 10mm Company: Shenzhen HouTian Network Communication Technology Co. Ltd Name: WIFI Router Model Number: VA R 1 1 N FCC ID: OM7-VAR11N

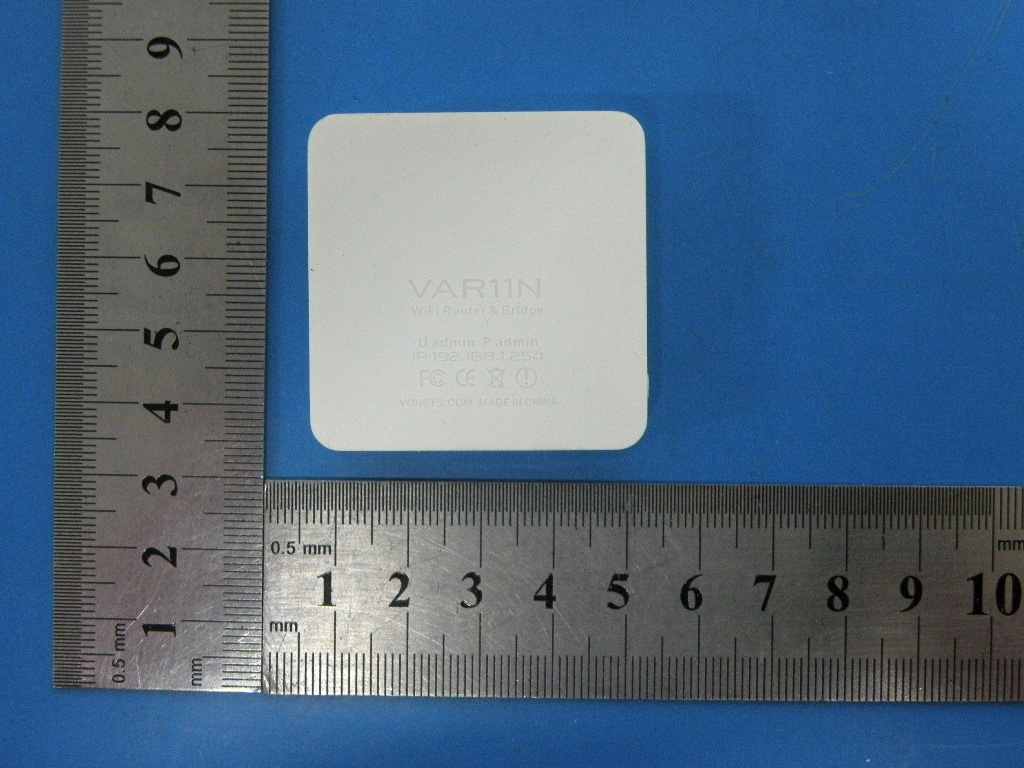

Label Location

ANTENNA

MPE ESTIMATION 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode CH PK Output power(dBm) Output power(W) Antenna Gain(dBi) Antenna Gain (linear) MPE CH1 13.49 0.022336 3 1.995 0.088695 CH6 13.87 0.024378 3 1.995 0.096804 11b CH11 14.55 0.028510 3 1.995 0.113211 CH1 15.55 0.035892 3 1.995 0.142525 CH6 16.43 0.043954 3 1.995 0.174539 11g CH11 17.87 0.061235 3 1.995 0.243160 CH1 14.74 0.029785 3 1.995 0.118274 CH6 16.50 0.044668 3 1.995 0.177374 11n/HT20 CH11 16.68 0.046559 3 1.995 0.184883 CH3 8.00 0.006310 3 1.995 0.025057 CH6 7.97 0.006266 3 1.995 0.024882 11n/HT40 CH9 7.86 0.006109 3 1.995 0.024258 Note: S = PG / 4πR 2 Note: The estimation distance is 20cm

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCC ID: OM7-VAR11N Page 1 of 104 TEST REPORT FCC ID: OM7-VAR11N Applicant : Shenzhen HouTian Network Communication Technology Co. Ltd Address : RM803, Floor 8, Building Five, Industrial Plant, Donghua Yuan, Nanhai Road, Nanshan District, Shenzhen, Guangdong Province, China Equipment under Test (EUT): Name : WIFI Router Model : VAR11N Standards : FCC PART 15, SUBPART C : 2011 (Section 15.247) Report No. : STE121017399 Date of Test : November 1-15, 2012 Date of Issue : November 16, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE121017399 FCC ID: OM7-VAR11N Page 2 of 104 TABLE OF CONTENT Description Page 1 General Information -------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility -----------------------------------------------------------------------3 2 EMC Equipment List ------------------------------------------------------------------------------------4 3 Test Procedure---------------------------------------------------------------------------------------------5 4 Summary of Measurement -----------------------------------------------------------------------------6 4.1 Summary of test result ----------------------------------------------------------------------------6 4.2 Test connection -------------------------------------------------------------------------------------6 4.3 Assistant equipment used for test ----------------------------------------------------------------6 4.4 Test mode -------------------------------------------------------------------------------------------7 5 Spurious Emission----------------------------------------------------------------------------------------8 5.1 Conducted Spurious Emission -------------------------------------------------------------------8 5.2 Radiation Emission ------------------------------------------------------------------------------ 21 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------ 39 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 39 6.2 Test Setup ----------------------------------------------------------------------------------------- 39 6.3 Test Procedure------------------------------------------------------------------------------------ 40 6.4 Test Results --------------------------------------------------------------------------------------- 40 7 Conducted Maximum Output Power--------------------------------------------------------------- 43 7.1 Test limit ------------------------------------------------------------------------------------------ 43 7.2 Test Procedure------------------------------------------------------------------------------------ 43 7.3 Test Setup ----------------------------------------------------------------------------------------- 43 7.4 Test Results --------------------------------------------------------------------------------------- 43 8 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 63 8.1 Test limit ------------------------------------------------------------------------------------------ 63 8.2 Method of measurement ------------------------------------------------------------------------ 63 8.3 Test Setup ----------------------------------------------------------------------------------------- 63 8.4 Test Results --------------------------------------------------------------------------------------- 64 9 6dB Bandwidth ----------------------------------------------------------------------------------------- 71 9.1 Test limit ------------------------------------------------------------------------------------------ 71 9.2 Method of measurement ------------------------------------------------------------------------ 71 9.3 Test Setup ----------------------------------------------------------------------------------------- 71 9.4 Test Results --------------------------------------------------------------------------------------- 71 10 Band Edge Check -------------------------------------------------------------------------------------- 79 10.1 Test limit ------------------------------------------------------------------------------------------ 79 10.2 Test Procedure------------------------------------------------------------------------------------ 79 10.3 Test Setup ----------------------------------------------------------------------------------------- 79 10.4 Test Result ---------------------------------------------------------------------------------------- 79 11 Antenna Requirement --------------------------------------------------------------------------------- 96 11.1 Standard Requirement --------------------------------------------------------------------------- 96 11.2 Antenna Connected Construction-------------------------------------------------------------- 96 11.3 Result ---------------------------------------------------------------------------------------------- 96 12 Photog…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup Radiated Emission Test Setup in Chamber
