CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2015-8-17 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name OMC-IFACT2VUE IFACT For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: brent.thompson Company: Icon Health and Fitness, Inc. Address: 1500 South 1000 West Logan, UT 84321, USA Phone: 435-750-5272 Email: [email protected]

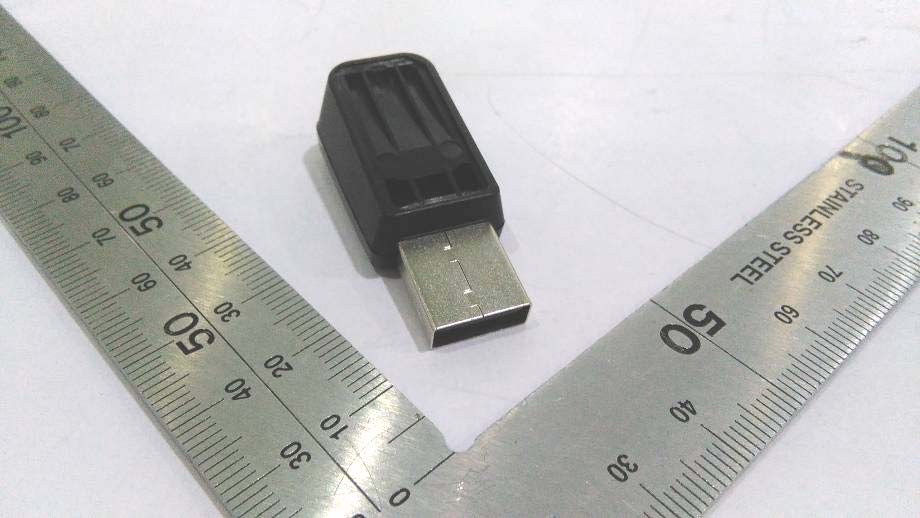

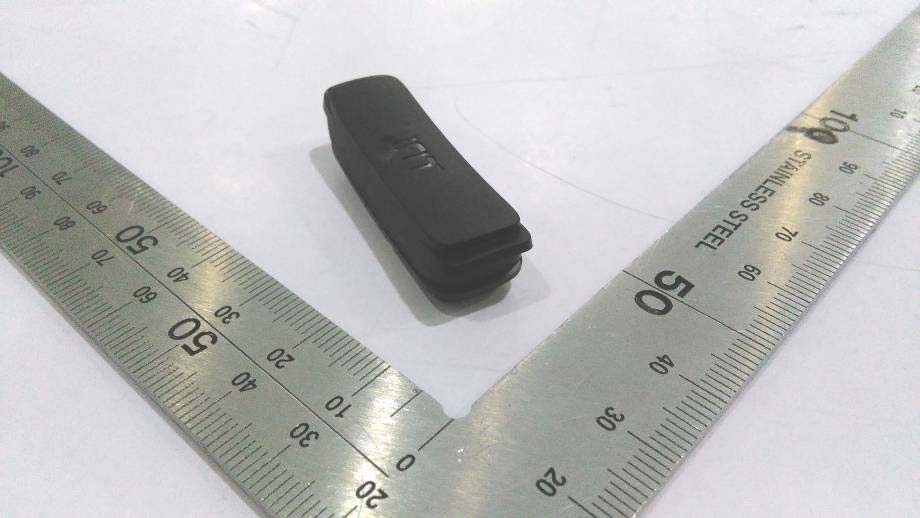

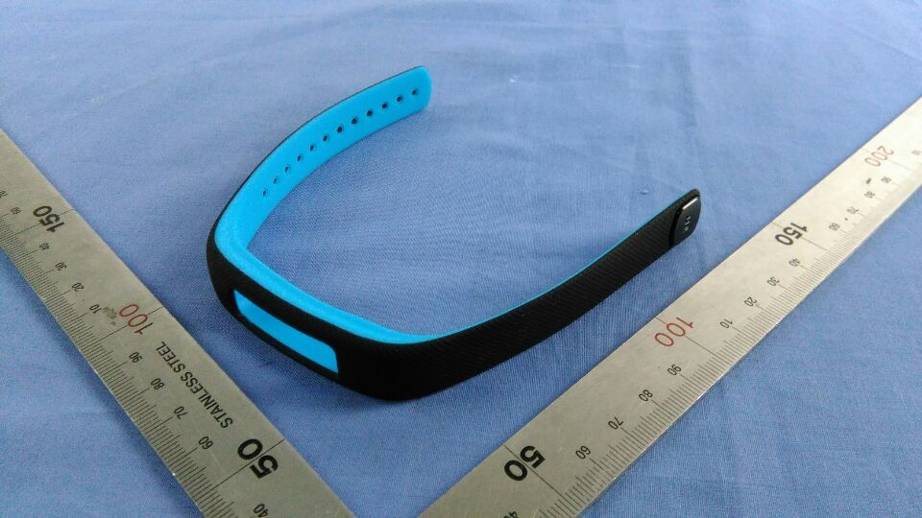

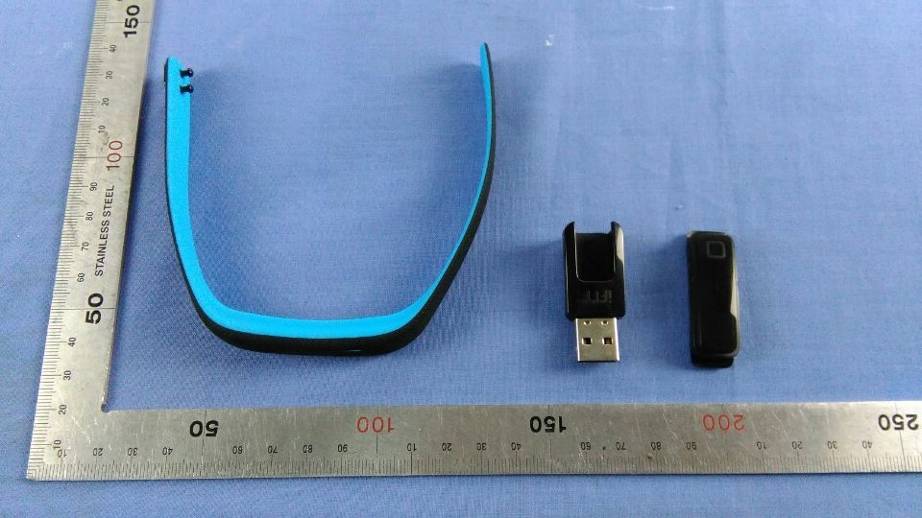

Report No.: C150520Z05 1 / 4 External Photos of EUT Report No.: C150520Z05 Page 2 / 4 Report No.: C150520Z05 Page 3 / 4 Report No.: C150520Z05 Page 4 / 4 This USB dongle is just use to charge.

9mm 45mm FCC ID: OMC‐IFACT2VUE IC: 3673A‐IFACT2VUE S/N: 0000000000000

Report No.: C150520Z05 1 / 3 Internal Photos of EUT Report No.: C150520Z05 Page 2/3 RF Module Antenna Report No.: C150520Z05 3 / 3

FCC RF Exposure FCC ID: OMC-IFACT2VUE Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:͞hŶůĞƐƐƐƉĞĐŝĨŝĐĂůůLJƌĞƋƵŝƌĞĚďLJƚŚĞƉƵďůŝƐŚĞĚZ&ĞdžƉŽƐƵƌĞKDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-ǁĂLJƌĂĚŝŽƐ͕ŚĂŶĚƐĞƚƐ͕ůĂƉƚŽƉƐΘƚĂďůĞƚƐĞƚĐ͘Ϯϯ͞ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [Ĝf (GHz)] ζ 3.0 for 1-g SAR andζ 7.5 for 10-g extremity SAR, where: Ȉf (GHz) is the RF channel transmit frequency in GHz ȈPower and distance are rounded to the nearest mW and mm before calculation ȈThe result is rounded to one decimal place for comparison Ȉ3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ζ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results Bluetooth Mode Channel Frequency(MHz) PeakConducted Output Power (dBm) GFSK 01 2402 -15.05 20 2440 -15.51 40 2480 -15.83 Manufacturing tolerance Bluetooth GFSK (Peak) Channel Channel 01 Channel 20 Channel 40 Target (dBm) -15.0 -15.0 -15.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT* 2.450 5 -14.00 0.04 0.01<7.5 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................End of Report.........................

Report No.: C150520Z05-RP1 FCC ID: OMC-IFACT2VUE Page 1 / 44 FCC 47 CFR PART 15 SUBPART C for VUE Model: IFACT Brand: iFIT VUE Test Report Number: C150520Z05-RP1 Issued for Icon Health and Fitness, Inc. 1500 South 1000 West Logan, UT 84321, USA Issued by: Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 16, 2015 检 测 CNAS L4818 Report No.: C150520Z05-RP1 FCC ID: OMC-IFACT2VUE Page 2 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Data Revisions Effect Page Revised By 00 July 16, 2015 Initial Issue ALL Sinphy Xie Report No.: C150520Z05-RP1 FCC ID: OMC-IFACT2VUE Page 3 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................ 5 3 EUT DESCRIPTION ................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ..................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST .................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS ............................................................................... 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................ 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES ........................................................................................................................ 9 6.2. ACCREDITATIONS ............................................................................................................ 9 6.3. MEASUREMENT UNCERTAINTY ..................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ...................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT .......................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT ..................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................ 28 7.4. PEAK OUTPUT POWER .................................................................................................. 31 7.5. BAND EDGES MEASUREMENT ..................................................................................... 34 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT ................................................. 40 7.7. ANTENNA GAIN .............................................................................................................. 44 Report No.: C150520Z05-RP1 FCC ID: OMC-IFACT2VUE Page 4 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product VUE Model IFACT Brand iFIT VUE Tested May 20~July 16, 2015 Applicant Icon Health and Fitness, Inc. 1500 South 1000 West Logan, UT 84321, USA Manufacturer GOLDTEK TECHNOLOGY CO., Ltd. 3F, No. 10, JianKang Rd., Zhonghe Dist., New Taipei City 23586, Taiwan, R.O.C. APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a)  Spurious Emissions  Conducted Measurement  Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service (Shenzhen) Inc. Report No.: C150520Z05-RP1 FCC ID: OMC-IFACT2VUE Page 5 / 44 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the requirement of limit. 15.247(e) Peak Power Spectral Density Pass Meet the requirement of limit. 15.247(d) 15.209(a)  Spurious Emissions  Conducted Measurement  Radiated Emissions Pass Meet the requirement of limit. 15.207(a) Po…

Text truncated - open the document above for the full version.

Report No.: C150520Z05-RP1 FCC ID : OMC-IFACT2VUE Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C150520Z05-RP1 FCC ID : OMC-IFACT2VUE Page 2 / 2 CONDUCTED EMISSION TEST
