OMC1219Pulse Monitor

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 23 5. OWNERS MANUAL PDF File. See the attachment that was electronically submitted.

July 13, 1999 FEDERAL COMMUNICATIONS COMMISSION Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 ATTENTION: New Applications RE: ICON Health & Fitness Application for Equipment Authorization-Certification Model: 121 kHZ FCC ID: OMC1219 Gentlemen: Transmitted herewith on behalf of ICON Health & Fitness, is an Application for Certification of the above referenced Heart Rate Transmitter Should any questions arise regarding this matter, kindly contact the undersigned. Sincerely, DNB ENGINEERING, INC. Rick Linford RL/cy

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 12 3. With Enclosure With Enclosure back removed

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 22 4.2 Photograph of Label Placement and Contents PDF File. See the attachment that was electronically submitted.

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 11 2.7 Photograph of EUT - per 2.1033(b)(7) 1219 Antenna Component Side Solder Side Sensor Inputs Sensor Inputs 3 VDC Lithium battery contacts

1 1 2 2 AA BB 14 7 Approved By: Verified By: Prepared By: Page: 2/2Ver. 1.4 Your Model: Transmitter Board (USE TOSHIBA TC4001BFN) Doc Control No:0000-0612 Doc Title: Transmitter Schematic (121kHz) 3V BATTERY R3 68K C1 0.33uF/16V C2 0.22uF + C3 22uF/4V R5 180K R2 10M R1 10M U1A 4001 1 2 3 Q1 BC848B R7 2.2M C4 0.047u + C5 1uF/16V R8 33K Q2 BC848B R6 68K C7 0.22uF R10 560K R11 150K C8 0.22uF C9 0.22uF Q3 BC858B R9 680K R12 1K R13 680K R15 220K R14 220K Q4 BC848B + C10 1uF/16V R17 680K C11 0.22uF R19 10M R18 3.3M R16 680K U1B 4001 5 6 4 R23 1.5M U1B 4001 5 6 4 R22270K R21 10K Q6 BC848B Q5 BC858B L11.25mH + C16 1uF/16V + C14 1uF/16V + C17 10uF/4V Q7 BC848B R4 22K C26 0.022uF U1C 4001 8 9 10 + C122.2uF/4V R25 22K R24 22K C15 C27 0.02uF C18 100pF C19 1000pF L R temp1.sch-1 - Fri Jun 11 11:21:49 1999

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 1 DNB ENGINEERING, INC. CERTIFICATION FOR INTENTIONAL RADIATOR per Part 15 Subpart C (CFR 47, 15,203 & 15.209) Model No. 1219 121 kHz EKG Pulse Transmitter PREPARED FOR APPLICANT: ICON HEALTH AND FITNESS 1500 S. 1000 West Logan, UT 84321 REPORT # 96100-1 Test Date: 17 June 1999 Prepared By: DNB ENGINEERING, INC. 1100 East Chalk Creek Rd. Coalville, Utah 84017 Tel: 1(435) 336-4433 FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 2 Revision Letter Number of Pages Page No. of Rev. DescriptionDate ADocument Release FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 3 TRANSMITTAL SUMMARY Unit tested:Sample #1 Model #:1219 FCC ID: OMC1299 Specifications: ANSI C63.4 (1992) and CFR 47 FCC part 15 Subpart C Purpose of Report:This report was prepared to document the status of the 121 kHz Heart Rate Transmitter with requirements of the standards listed above. Requirements not applicable to EUT Part 15.37 - Not applicable Emergency Broadcast System - Not applicable Spread Spectrum Exhibit - Not applicable Scanning Receiver - Not applicable Test Summary The EUT’s compliance status according to the tests performed is as follows. REQUIREMENTSSTATUS FCC part 15 Subpart C per 15.203 & 15.209COMPLIANT The report shall not be reproduced, except in full, without the written approval of DNB ENGINEERING, INC. Results contained in this report relate only to the item tested. FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 4 CERTIFICATION OF TEST DATA - per 2.911(d) This report, containing emissions test data and evaluations, has been prepared by an independent electromagnetic compatibility laboratory, DNB ENGINEERING, in accordance with the applicable specifications and instructions required per the Introduction. DNB Engineering has been evaluated to do these tests by the American Association for Laboratory Accreditation, A2LA. The data evaluation and equipment configuration presented herein are a true and accurate representation of the measurements of the test emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Equipment Tested:Sample #1 Model #:1219 FCC ID#: OMC1219 Dates of Test:17 June 1999 Test Performed: ____________________________________________ Yancey StaplesDate Test Technician Test Report Reviewed: ____________________________________________ Rick LinfordDate Facility Manager Regulatory Engineer FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 5 TABLE OF CONTENTS 1.INTRODUCTION..............................................................................................................................................6 1.1ADMINISTRATIVE DATA PER 2.1033(A) AND 2.911(C).........................................................................................6 1.1.1REQUEST FOR CERTIFICATION Per 2.1033(b)1:.............................................................................6 1.2RELATED SUBMITTALS/GRANTS..........................................................................................................................6 1.3PURPOSE OF TESTS............................................................................................................................................6 2.TEST DESCRIPTION........................................................................................................................................7 2.1TEST CONFIGURATION.......................................................................................................................................7 2.2EQUIPMENT DESCRIPTION.................................................................................................................................7 2.3MODE OF OPERATION.......................................................................................................................................7 2.4ANTENNA REQUIREMENT - PER 15.203..............................................................................................................7 2.5CIRCUIT DESCRIPTION - PER 2.1033(B)4...........................................................................................................8 2.6SCHEMATICS.....................................................................................................................................................9 2.7PHOTOGRAPH OF EUT - PER 2.1033(B)(7)......................................................................................................11 3.EMISSIONS FCC PART 15...........................................................................................................................13 3.1RADIATED EMISSIONS TEST SETUP AND PROCEDURE - PER 2.1033(B)(6) PER 2.947(A)....................................13 3.1.1Spurious Radiation Test Site Per 2.1033(b)6......................................................................................13 3.1.2Example Of Typical Calculation Per 2.1033(b)6................................................................................15 3.1.3Diagram of Test Setup - per 2.1033(b)5...............................................................................................16 3.1.4Field Strength of Intentional Radiator Inside of Band.........................................................................17 3.1.5Spurious Radiated Emissions................................................................................................................18 3.1.6Photograph of Radiated Test Setup - per 2.1033(b)(7)........................................................................19 3.2CONDUCTED EMISSIONS TEST SETUP AND PROCEDURE - PER 2.1033(B)(6) PER 2.947(A)................................20 4.LABELING REQUIREMENTS - PER 2.1033(B)(7)....................................................................................21 4.1ADDITIONAL LABEL REQUIRED........................................................................................................................21 4.2PHOTOGRAPH OF LABEL PLACEMENT AND CONTENTS................…

Text truncated - open the document above for the full version.

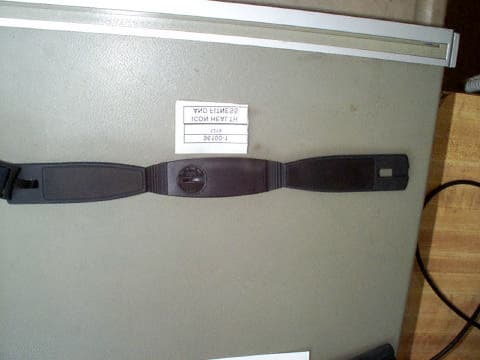

FCC ID: OMC1219 DATE: 7-12-99 REPORT # 96100-1 19 3.1.6 Photograph of Radiated Test Setup - per 2.1033(b)(7) Model 1219
