OMC287380Wi-Fi Transmitter

1 Notice for the USA FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation. CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device is comply with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may results in interference to radio or reception. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device. Important Safety Instructions 2 Note: This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 3. Consult the dealer or an experience radio/TV technician for help. Installation The block diagram for the whole treadmill. Notes: 1. Treadmill send some info and data to our MP6 module by USB(Host) cable, such as Basic Operation 3 displaying info, status of itself like speed, incline, mode, time, distance and road maps and so on. 2. This USB port is not open and not usable for ICON’s customers. 3. Treadmill need MP6 module to display all status. 4. MP6 module outputs the analog audio to Treadmill in which audio power amplifier and speakers built. 5. MP6 module uses independent DC power from independent DC adapter, not from Treadmill’s DC power. 6. 7 keys are built on treadmill, not on MP6 module. All keys signals are from GPIOs of treadmill micro-controller. 7. ICON will buy MP6 modules from our OEM factory, Malata. And in the future, we will never to change it unless some special situations come out. 8. Our users can use SD card to update the walkouts downloaded from our web server. Also, they also can connect the treadmill by W ifi to our web server to download some workouts to the MP6 module. ICON special web server for users is http://www.ifit.com/. 9. MP6 module is designed with one 7” touch panel placed above 7” TFT LCD panel. 10. The USB(OTG) port is used for debugging, fixing, updating and testing the firmware in the factories, by one OTG-Host adapter cable. And this USB port is not open and not usable for ICON’s customers to operate. Turn on The unit will be turn on after it is powered on and receives signal. Turn off Tap the icon “”  “Logout”. A pop-up information box will display on the screen and tap “Shutdown” to turn off the unit. View of Main Unit 4 Calibrating the touch screen Tap the icon “”  “Preferences”  “SysSettings”, enter the System Manager Setup menu. Tap “Calibrate touch screen” and the screen will display as below: This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear and tap the screen to return to the settings menu. Note: If “+” doesn’t disappear, you should rectify again. Wireless network connection Tap the W IFI icon, the unit will search and list the available networks automatically. Select one network in the list and click “Connect”. Some networks may need to type the password before connecting. 5 Web Browser Tap the icon “”  “Internet”  “Midori Web Browser”, enter the Midori Web Browser interface. The screen will display as below: Playback of AV Files The unit is designed with an SD card slot and a USB port. It supports audio and video files playback. Tap the icon “”  “Sound & Video”  “SMPlayer” or “Sonata”. Select “SMPlayer” to play video files and select “Sonata” to play audio files. Take Sonata for example. The operation for SMPlayer is similar. Other settings software keybord control. Volume control Brightness control Time and Date settup

Date (30/12/2009) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: OMC287380 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Wanlida Group Co., Ltd on behalf of Icon Health & Fitness hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Wang Guiteng Telephone Number: 86-596-7653680-8266 Email: [email protected]

Ref: US.000335 January 25 th 2010 To FCC BABT Forsyth House, Churchfield Road Walton on Thames Surrey, KT12 4TD United Kingdom Telephone: +44 (0)1932 251200 Fax: +44 (0)1932 251201 Direct Dial: +44 (0)1932 251261 E-mail: [email protected] Website: www.babt.com RE: Supersede Internal Photos exhibit FCC ID: OMC287380 This request is for supersede of the Internal Photos exhibit from the filing for the above FCC ID. The exhibit requires supersede to provide an updated photo on page two, whereby the PCB version no is not visible. Sincerely, Vina Kerai Compliance Engineer

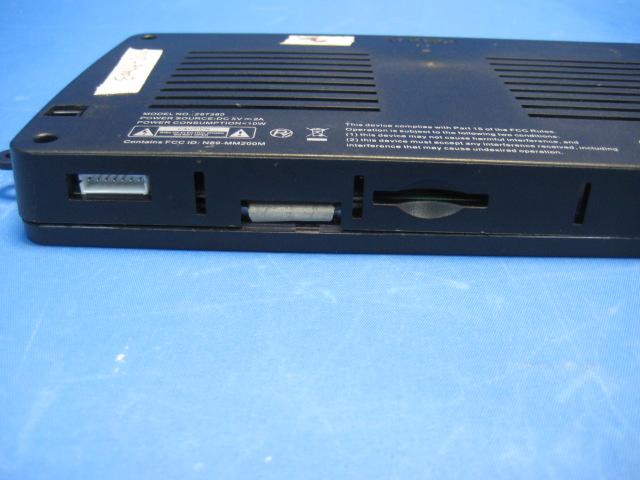

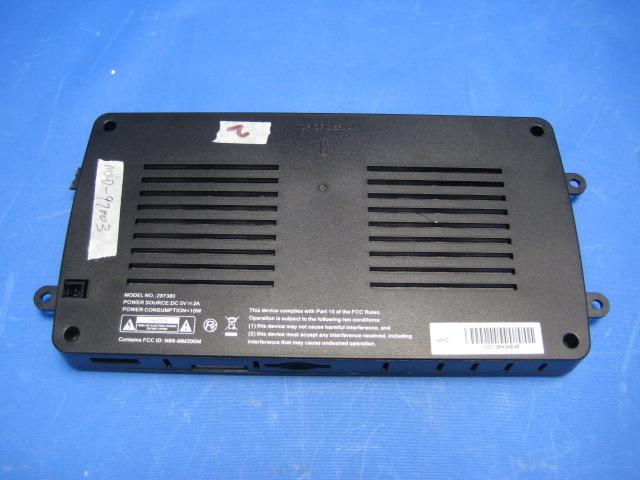

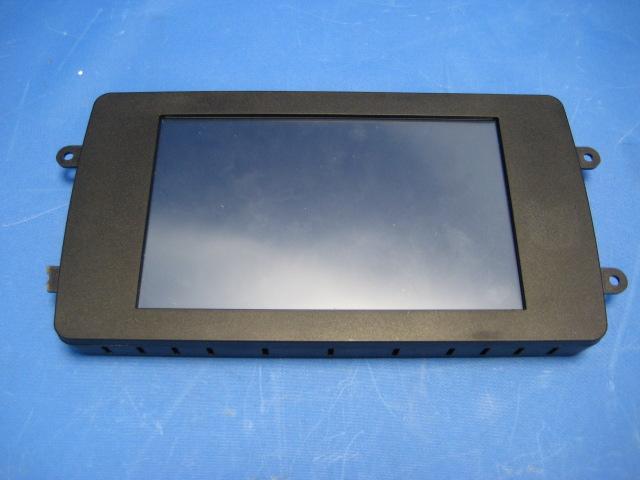

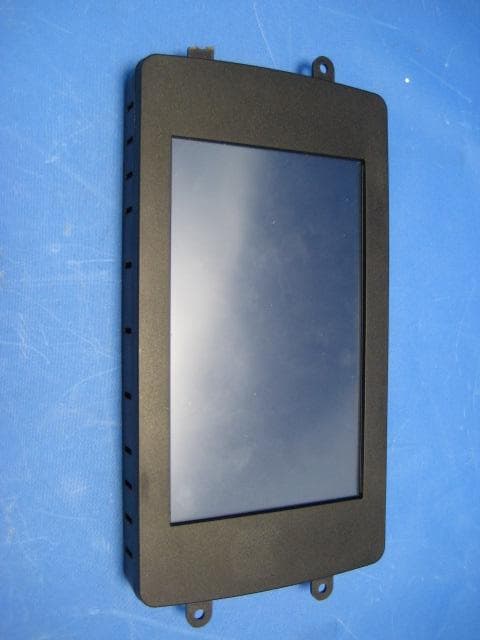

External Photos of 287380

Internal Photos of 287380

4. GENERAL FEATURES Item Description Notes 802.11b/g Standard Complies with the latest IEEE802.11b/g wireless LAN Physical Layer Specification (IEEE 802.11g dated 12/6/2003) Chip Set Marvell 88W8686 Module Interface Type SDIO (1bit and 4 bit) , SDIO_SPI , G-SPI Module Connection 36pin LGA Co-existence Supports 3-wire BT coexistence scheme for an external BT solution Data Rate 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps, auto rate 802.11b: 11, 5.5, 2, 1Mbps, auto rate OFDM (54, 48, 36, 24, 18, 12, 9, 6Mbps) Modulation CCK (11Mbps, 5.5Mbps) DQPSK (2Mbps) DBPSK (1Mbps) Operating Frequency 2.4GHz ISM band Operating Channels IEEE Channels 1–11 depending on Regulatory Domain settings Others Compliance with FCC Class B Part 15.247, R&TTE, TELEC major RF regulatory requirements 5. RADIO SPECIFICATION Over full range of values specified in the “Recommended Operation Condition” unless specified otherwise. Features Description Frequency Band 2.4000 – 2.497 GHz (2.4 GHz ISM Band) Number of selectable Sub 11 channels channels Modulation OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK , 16QAM, 64QAM Supported rates 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps Maximum receive level - 10dBm (with PER < 8%) Output Power 14 dBm +2.0 /-1.5 dBm for 1, 2, 5.5, 11Mbps 12 dBm +2.0 /-1.5 dBm for 6 , 9 and > 12Mbps Carrier Frequency Accuracy +/- 25ppm (crystal: 38.4MHz +/-5ppm in 250C) 802.11g EVM Requirement Item Data Rate (Mbps) Relative Constellation Error (dB) EVM (%RMS) 1 6 (BPSK) -5 56.2 2 9 (BPSK) -8 39.8 3 12 (QPSK) -10 31.6 4 18 (QPSK) -13 22.4 5 24 (16-QAM) -16 15.8 6 36 (16-QAM) -19 11.2 7 48 (64-QAM) -22 7.9 8 54 (64-QAM) -25 5.6 802.11b EVM Item Data Rate (Mbps) EVM (%RMS) 1 1 (BPSK) 35% 2 2 (QPSK) 35% 3 5.5 (QPSK) 35% 4 11 (QPSK) 35% Sensitivity Receiver Characteristics ( 3.3V, 25 degree C ) Typical Maximum Unit PER <8%, Rx Sensitivity @ 11 Mbps -85 -83 dBm PER <8%, Rx Sensitivity @ 1 Mbps - 91 -89 dBm PER <10%, Rx Sensitivity @ 6 Mbps - 86 -84 dBm PER <10%, Rx Sensitivity @ 54 Mbps - 70 -68 dBm 6. The channel center frequency and CHNL_ID numbers shall be shown in the following table. 802.11b/g Channel Center Frequency CHNL_ID Frequency (MHz) 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 7. Antenna Specification

Page 1 of 1 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Maximum Permissible Exposure(MPE) Estimation for 287380 1. Introduction 287380 is a MP6 module, which contain Wi-Fi function inside (802.11b/g). Also the MP6 module will be installed in the treadmill for expanded internet function. 2. Limit and Guidelines on Exposure to Electromagnetic Fields The minimum safe distance per FCC part 2.1091 was calculated the power density of 1 mW/cm limit for maximum permissible exposure in an uncontrolled environment per FCC part 1, section 1.1307(b). So the minimum safe distance is the larger of this calculated distance or 20cm. As this MP6 module, it is being insured by specify the minimum safe distance the antenna must be kept the user is 20cm in User manual. So this MP6 module is compliance with the FCC part 2.1091. 3. Calculation method For the final determination of compliance boundary the model for far-field calculation is used since this overestimates the field strength in the near-field region. Thus the calculated compliance boundary should be rather more conservative and on the safe side. For EUT the following compliance boundary is calculated: Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=power density in mW/cm 2 Pout=output power to antenna in mW G=gain of antenna in linear scale Pi=3.14159 R=distance between observation point and center of the radiator in cm 287380: Maximum power output: Pout=58.88mW(17.7dBm) Maximum Antenna gain of the certified antenna list: G=1dBi=1.259 Maximum EIRP from transmit antenna: EIRP=17.7 +1.0 =18.7dBm To be determine the overall exposure at 20cm from the EUT(R=20cm) Pd=0.0147 mW/cm 2 The power density at 20cm from the antenna of the EUT is 0.0147mW/cm 2, which is less than the permitted maximum power density. Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Paul Yu/EMC Project Manager Ken Li//EMC Test Engineer Date: 2010-01-04 Date: 2010-01-04

Report Number: 68.760.9.258.01 Page 1 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF - TEST REPORT Report Number : 68.760.9.258.01 Date of Issue: 28 December 2009 Model : 287380 Product Type : MP6 Module Applicant : ICON Health & Fitness Inc. Address : 1500 S. 1000 W. LOGAN, UT84321 Production Facility : Wanlida Group Co., Ltd. Address : Wanlida Industry Zone, Nanjing, Fujian, China 363601 Test Result :  Positive  Negative Total pages including Appendices : 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.760.9.258.01 Page 2 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................ 2 2 Details about the Test Laboratory..................................................................... 3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards............................................................................. 5 5 Summary of Test Results................................................................................ 6 6 General Remarks.......................................................................................... 7 7 Technical Requirements................................................................................. 8 7.1 Conducted Emission AC Power Port......................................................... 8 7.2 Conducted Peak Power......................................................................... 12 7.3 Band edge compliance of RF emission...................................................... 14 7.4 Spurious RF Conducted emission............................................................ 24 7.5 Spurious radiated emissions................................................................... 29 7.6 6dB bandwidth.................................................................................... 33 7.7 Power spectral density........................................................................... 39 8 System Measurement Uncertainty................................................................... 45 Report Number: 68.760.9.258.01 Page 3 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Company name: China Shenzhen Academy of Metrology and Quality Inspection, Metrology and Quality Inspection building, Central Section of LongZhu Road, Nan Shan, Shenzhen, Telephone: 86 755 2694 1599 Fax: 86 755 2694 1545 Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.760.9.258.01 Page 4 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: MP6 Module Model no.: 287380 Serial number: NIL Options and accessories: NIL Rating: DC 5V, 10W AC Adaptor: Input: 100-240V ~ 50/60Hz 0.5A Output: 5V DC 2A Antenna: Integral antenna inside enclosure of EUT, NOT accessible by end user Antenna Gain=1dBi RF Transmission Frequency: 2412-2462MHz Description of the EUT: NIL Auxiliary Equipment and Cable Used during Test: DESCRIPTION MANUFACTURER MODEL NO.(SHIELD) S/N(LENGTH) USB flash drive Kingston Data Traveller ---- SD card Kingston SD4/4GBFE ---- Report Number: 68.760.9.258.01 Page 5 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Report Number: 68.760.9.258.01 Page 6 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture S…
