OMC304662MP10 Module

1 Directions Meanings of icons: Forbidding: forbid improper operations to avoid damaging the MP10 Module. Caution: cautions for operators to avoid potential damages. Please note and remember. Importance: important information, common notes, definitions, general knowledge and references, etc. Other trademarks and trade name may be used in this manual to refer to either the entities claiming the marks and names or their products. The manufacture disclaims any proprietary interest in trademarks and trade names other than its own. Information in this manual is subject to change without notice. Reproduction in any manner whatsoever without the written permission from the manufacture is strictly forbidden. Product images in this manual are for your reference only. 2 Content Directions ....................................................................................................................... 1 Safety Precautions......................................................................................................... 3 FCC Compliance ............................................................................................................ 4 1 Knowing Your MP10 Module ...................................................................................... 5 1-1 Front View ............................................................................................................ 5 1-2 Left View .............................................................................................................. 5 1-3 Rear View ............................................................................................................. 5 2 Caring the MP10 Module ............................................................................................ 6 2-1 LCD Screen .......................................................................................................... 6 2-2 Other accessories................................................................................................. 6 2-3 If the water comes into the MP10 Module ............................................................. 7 2-4 Other Notes .......................................................................................................... 7 3 Traveling with the MP10 Module ................................................................................ 8 4 Turning on the MP10 Module ..................................................................................... 8 5 Get to know your system ........................................................................................... 9 6 For system security .................................................................................................. 10 7 Communication ......................................................................................................... 12 8 Fun ............................................................................................................................. 13 9 Spare Parts ................................................................................................................ 14 10 Appendix ................................................................................................................. 15 10-1 Troubleshooting ................................................................................................ 15 10-2 Specifications ................................................................................................... 16 3 Safety Precautions 1. DO NOT press or touch the LCD Screen. DO NOT place the MP10 Module with small items, they may scratch LCD Screen or enter the MP10 Module. 2. DO NOT expose the MP10 Module to dirty or dusty environment. Keep the environment clean and dry. 3. DO NOT place the MP10 Module on uneven or unstable work surface. 4. DO NOT place or drop objects on the top of the MP10 Module. DO NOT shove any foreign objects into the MP10 Module. DO NOT cover the LCD Screen strongly. 5. DO NOT expose the MP10 Module to strong magnetic or electrical fields; DO NOT place the floppy disk near or on the MP10 Module, that may loss the data of the floppy disk. 6. DO NOT leave the MP10 Module facing the sun as it can damage the LCD Screen, especially in the car. 7. SAFE TEMP: This MP10 Module should only be used in environments with ambient temperatures between 5°C(41°F) and 35°C(95°F). 8. DO NOT expose the MP10 Module to or use near liquids, rain, or moisture. 9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 10. DO NOT throw the MP10 Module in municipal waste. Check local regulations for disposal of electronic products. Please recycle the Battery Pack, and check with your Local Authority or retailer for recycling advice. 11. The MP10 Module and the Adapter may occur some heat during operating or charging. DO NOT leave the MP10 Module on your lap or any part of the body in order to prevent discomfort or injury from heat exposure. 12. INPUT RATING: Refer to the rating label on the MP10 Module and be sure that the Power Adapter complies with the rating. Only use attachments or accessories specified by the manufacturer. 13. Checking the connections between the main unit and attachments before turning on the MP10 Module. 14. DO NOT use the MP10 Module during eating food avoid dirtying the MP10 Module. 15. DO NOT insert anything into the MP10 Module that may result in short circuit or damage the circuit. 16. Powering off the MP10 Module, if you want install or remove some external devices, which are not support hot-plug. 17. Disconnect the MP10 Module from the electrical outlet and remove any installed batteries before cleaning. And Keep it away from children. 18. DO NOT disassemble the MP10 Module, only a certified service technician should perform repairs on your computer. Otherwise, problem may result and the manufacturer should not hold responsibility for the damage. 19. Only use Battery…

Text truncated - open the document above for the full version.

Date (19/09/2010) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: OMC304662 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Wanlida Group Co., Ltd on behalf of Icon Health & Fitness hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Wang Guiteng Telephone Number: 86-596-7653680-8266 Email: [email protected]

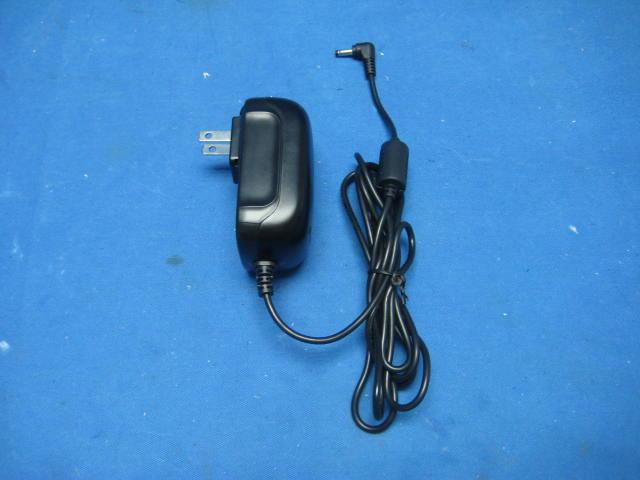

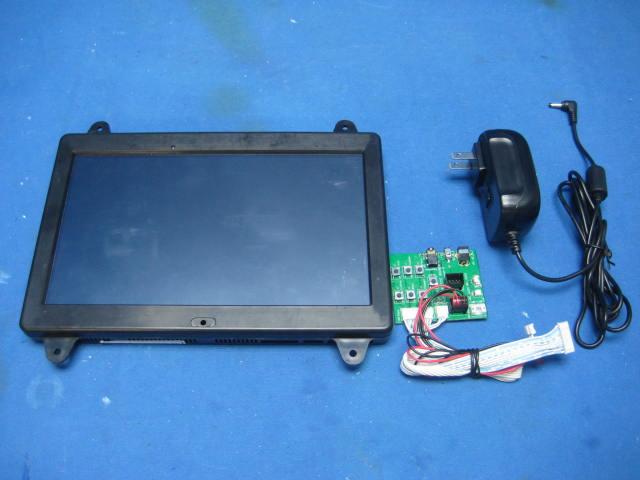

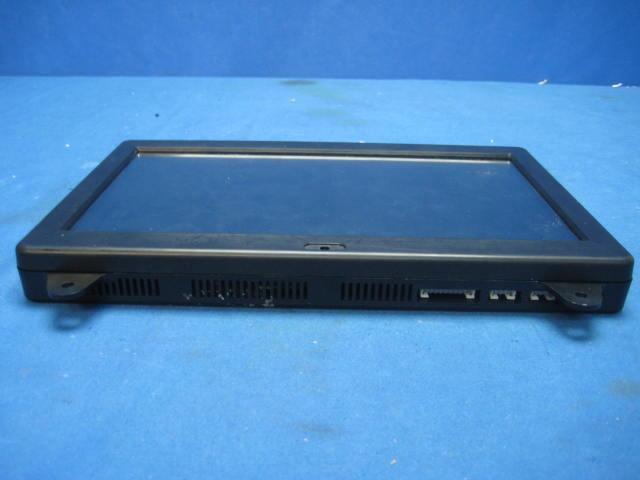

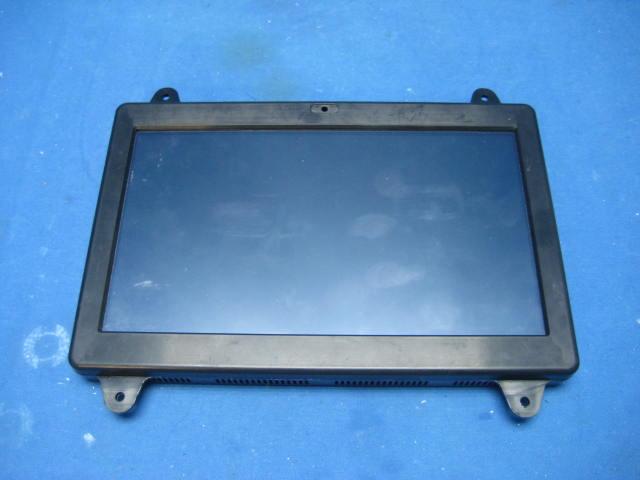

External Photos of 304662

Internal Photos of 304662

304662 Operation Description 1 System Block Diagram 2 Production Description Samsung S5PV210˄Cortex A8˅CPUˈOperational Frequency is 800MHz /1GHzˈ512MB DDR2ˈa USB HOST portˈa USB OTG portˈan audio jackˈa multi-card holder˄support SD/MMC˅ˈ10.1” AUO LCD DISPLAY with touchpanelˈ4GB iNand. 3 WLAN description The 304662 WiFi module which is the onboard module communicate with the CPU by SDIO interface WiFi Module technical details as follow 3.1 Features ‚IEEE 802.11b/g compliant ‚Data rates of 1–54 Mbps for 802.11g ‚Advanced power management to minimize standby, sleep and active power ‚Security support for WPS, WPA2, WPA,WAPI and protected management frames ‚Support for 2.4 GHz operation in all available bands in all regulatory domains ‚Full 802.11e QoS support including WMM and U-APSD ‚Support for fast Tx and Rx antenna diversity allowing optimal antenna selection on a perpacket basis ‚Supports both SDIO 1.1 and GSPI host interfaces. ‚Standard 2, 3 and 4 wire Bluetooth coexistence handshake support ‚16550-compliant UART Wake-on-Wireless (WoW) maximizes host sleep duration ‚7.4 x 8 mm LGA package ‚Pre-certified to meet FCC, ETSI, and TELEC standards ‚Integrated PA, LNA, RF switch and High Freq Reference Clock, minimizing external component count ‚Integrated RF shielding ‚Suports cellular co-existence with an external band-pass filter 3.2 Simplified block diagram 3.3 Power consumption 3.4 The channel center frequency and CHNL_ID numbers shall be shown in the following table. 802.11b/g Channel Center Frequency CHNL_IDFrequency (MHz) 12412 22417 32422 42427 52432 62437 72442 82447 92452 102457 112462 3.5 Antenna Specification 4 Antenna Location

Page 1 of 1 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Maximum Permissible Exposure(MPE) Estimation for 304662 1.Introduction 304662 is a MP10 module, which contain Wi-Fi function inside (802.11b/g). Also the MP10 module will be installed in the treadmill for expanded internet function. 2.Limit and Guidelines on Exposure to Electromagnetic Fields The minimum safe distance per FCC part 2.1091 was calculated the power density of 1 mW/cm limit for maximum permissible exposure in an uncontrolled environment per FCC part 1, section 1.1307(b). So the minimum safe distance is the larger of this calculated distance or 20cm. As this MP6 module, it is being insured by specify the minimum safe distance the antenna must be kept the user is 20cm in User manual. So this MP10 module is compliance with the FCC part 2.1091. 3.Calculation method For the final determination of compliance boundary the model for far-field calculation is used since this overestimates the field strength in the near-field region. Thus the calculated compliance boundary should be rather more conservative and on the safe side. For EUT the following compliance boundary is calculated: Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=power density in mW/cm 2 Pout=output power to antenna in mW G=gain of antenna in linear scale Pi=3.14159 R=distance between observation point and center of the radiator in cm 304662: Maximum power output: Pout=151.0mW(21.79dBm) Maximum Antenna gain of the certified antenna list: G=1dBi=1.259 Maximum EIRP from transmit antenna: EIRP=21.79+1.0 =22.79dBm(190.1mW) To be determine the overall exposure at 20cm from the EUT(R=20cm) Pd=0.3782 mW/cm 2 The power density at 20cm from the antenna of the EUT is 0.3782mW/cm 2, which is less than the permitted maximum power density. Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Paul Yu/EMC Project Manager Ken Li//EMC Project Engineer Date: 2010-09-21 Date: 2010-09-21

Report Number: 68.850.10.054.01Page 1 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF - TEST REPORT Report Number: 68.850.10.066.01 Date of Issue: 24 September 2010 Model: 304662 Product Type:MP10 Module Applicant:ICON Health & Fitness Inc. Address:1500 S 1000 W, LOGAN, Utah 84321 Production Facility:Wanlida Group Co., Ltd. Address:Wanlida Industry Zone, Nanjing, Fujian, China 363601 Test Result: „Positive†Negative Total pages including Appendices :45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.850.10.054.01Page 2 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents............................................................................................2 2 Details about the Test Laboratory.....................................................................3 3 Description of the Equipment Under Test............................................................ 4 4 Summary of Test Standards.............................................................................5 5 Summary of Test Results................................................................................6 6 General Remarks.......................................................................................... 7 7 Technical Requirements.................................................................................8 7.1 Conducted Emission AC Power Port......................................................... 8 7.2 Conducted Peak Power......................................................................... 12 7.3 Band edge compliance of RF emission...................................................... 14 7.4 Spurious RF Conducted emission............................................................ 24 7.5 Spurious radiated emissions...................................................................29 7.6 6dB bandwidth.................................................................................... 33 7.7 Power spectral density........................................................................... 39 8 System Measurement Uncertainty................................................................... 45 Report Number: 68.850.10.054.01Page 3 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone:86 755 8828 6998 Fax:86 755 8828 5299 Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone:86 755 2663 9496 Fax:86 755 2663 2877 Report Number: 68.850.10.054.01Page 4 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: MP10 Module Model no.: 304662 Serial number: NIL Options and accessories: NIL Rating: DC 12V, 24W AC Adaptor: Input: 100-240V, 50/60Hz, 1A Output: 12V DC, 2A Antenna: Integral antenna inside enclosure of EUT, NOT accessible by end user Antenna Gain=1dBi RF Transmission Frequency: 2412-2462MHz Description of the EUT: NIL Auxiliary Equipment and Cable Used during Test: DESCRIPTIONMANUFACTURERMODEL NO.(SHIELD)S/N(LENGTH) LCD monitorDELL1907FPt7735430660P0G WD-04 KeyboardDELLSK-8115E145614 MouseDELLOCJ339G0203WAZ SD cardKingstonSD4/4GBFE---- VGA cableDELLUnshield140cm AC Power cableDELLUnshield180cm SD cardKingstonSD4/4GBFE---- LaptopLenovoX61L3-L3729 08/03 Report Number: 68.850.10.054.01Page 5 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 4Summary of Test Standards Test Standards FCC Part 15 Subpart CPART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Report Number: 68.850.10.054.01Page 6 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel.…

Text truncated - open the document above for the full version.

Page 1 of 2 Test setup photos of 304662 1. Conducted Emission Test setup Front side Rear Side Page 2 of 2 2. Radiated Emission Test Below 1GHz Above 1GHz
