OMC342047342047, 342233, 342235 is a control unit for treadmill, which contains Wi-Fi module inside.

1 Directions Meanings oficons: Forbidding: forbid improper operations to avoid damaging the Tablet PC. Caution: cautions for operators to avoid potential damages. Please note and remember. Importance: important information, common notes, definitions, general knowledge and references, etc. Other trademarks and trade name may be used in this manual to refer to either the entities claiming the marks and names or their products. The manufacture disclaims any proprietary interest in trademarks and trade names other than its own. Information in this manual is subject to change without notice. Reproduction in any manner whatsoever without the written permission from the manufacture is strictly forbidden. Product images in this manual are for your reference only. 2 Content Directions .......................................................................................................................................... 1 Safety Precautions ......................................................................................................................... 2 FCC Compliance ............................................................................................................................. 3 1 Knowing Your Tablet PC...........................................................................................................4 1-1 Front View.............................................................................................................................4 1-2 Left View ................................................................................................................................ 4 1-3 Rear View .............................................................................................................................. 5 2 Caring the Tablet PC .................................................................................................................. 5 2-1 LCD Screen .......................................................................................................................... 5 2-2 Other accessories................................................................................................................6 2-3 If the water comes into the Tablet PC..............................................................................6 2-4 Other Notes...........................................................................................................................6 3 Traveling with the Tablet PC....................................................................................................7 4 Turning on the Tablet PC .......................................................................................................... 8 5 Get to know your system .......................................................................................................... 8 6 For system security .................................................................................................................. 10 7 Communication ......................................................................................................................... 11 8 Fun ................................................................................................................................................ 13 9 Spare Parts ................................................................................................................................. 13 10 Appendix ................................................................................................................................... 14 10-1 Troubleshooting ............................................................................................................... 14 10-2 Specifications...................................................................................................................15 3 Safety Precautions 1. DO NOT press or touch the LCD Screen. DO NOT place the Tablet PC with small items, they may scratch LCD Screen or enter the Tablet PC. 2. DO NOT expose the Tablet PC to dirty or dusty environment. Keep the environment clean and dry. 3. DO NOT place the Tablet PC on uneven or unstable work surface. 4. DO NOT place or drop objects on the top of the Tablet PC. DO NOT shove any foreign objects into the Tablet PC. DO NOT cover the LCD Screen strongly. 5. DO NOT expose the Tablet PC to strongmagnetic or electrical fields; DO NOT place the floppy disk near or on the Tablet PC, that may loss the data of the floppy disk. 6. DO NOT leave the Tablet PC facing the sun as it can damage the LCD Screen, especially in the car. 7. SAFE TEMP: This Tablet PC should only be used in environments with ambient temperatures between 5°C(41°F) and 35°C(95°F). 8. DO NOT expose the Tablet PC to or use near liquids, rain, or moisture. 9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 10. DO NOT throw the Tablet PC in municipalwaste. Check local regulations for disposal of electronic products. Please recycle the Battery Pack, and check with your Local Authority or retailer for recycling advice. 11. The Tablet PC and the Adapter may occur some heat during operating or charging. DO NOT leave the Tablet PC on your lap or any part of the body in order to prevent discomfort or injury from heat exposure. 12. INPUT RATING: Refer to the rating label on the Tablet PC and be sure that the Power Adapter complies with the rating. Only use attachments or accessories specified by the manufacturer. 13. Checking the connections between the main unit and attachments before turning on the Tablet PC. 14. DO NOT use the Tablet PC during eating food avoid dirtying the Tablet PC. 15. DO NOT insert anything into the Tablet PC that may result in short circuit or damage the circuit. 16. Powering off the Tablet PC, if you want install or remove some external devices, which are not support hot-plug. 17. Disconnect the Tablet PC from the electrical outlet and…

Text truncated - open the document above for the full version.

To: Jiangsu TÜV Product Service Ltd. Shenzhen Branch Attention: Mr.RaduGosav From: M Date: December 27, 2012 Fax No:86 755 8828 5299Total Page (Cover Included): 1 Project No .: Declaration Letter We: ICON Health & Fitness Inc. 1500 South 1000 West, Logan, UT 84321, United States Officially notify Jiangsu TÜV Product ServiceLtd. Shenzhen Branch that the << Co-license Model >> have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical constructionand mechanical construction, with <<PRODUCT>>, << Main license Model >>. The difference lies only in __model nameof the different models. <<Co-license Model >>: 342233,342235 <<Main license Model >>:342047 <<Product>>:MP10v1 Module Applicant: ICON Health & Fitness Inc. 2012-12-27 ___________________ (Date)(Applicant’s authorized signature and company Chop) 地址：厦门市嘉禾路 618 号万利达工业园 邮编： 361006 电话： 0596 － 7653680 传真： 0596 － 7666248

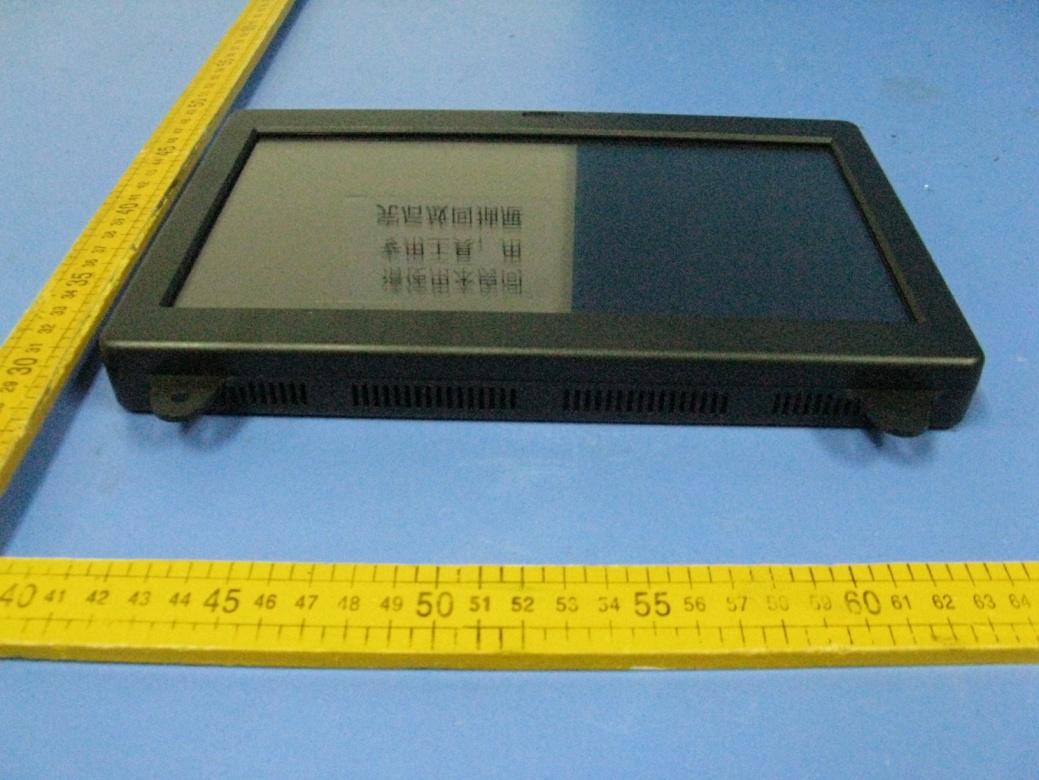

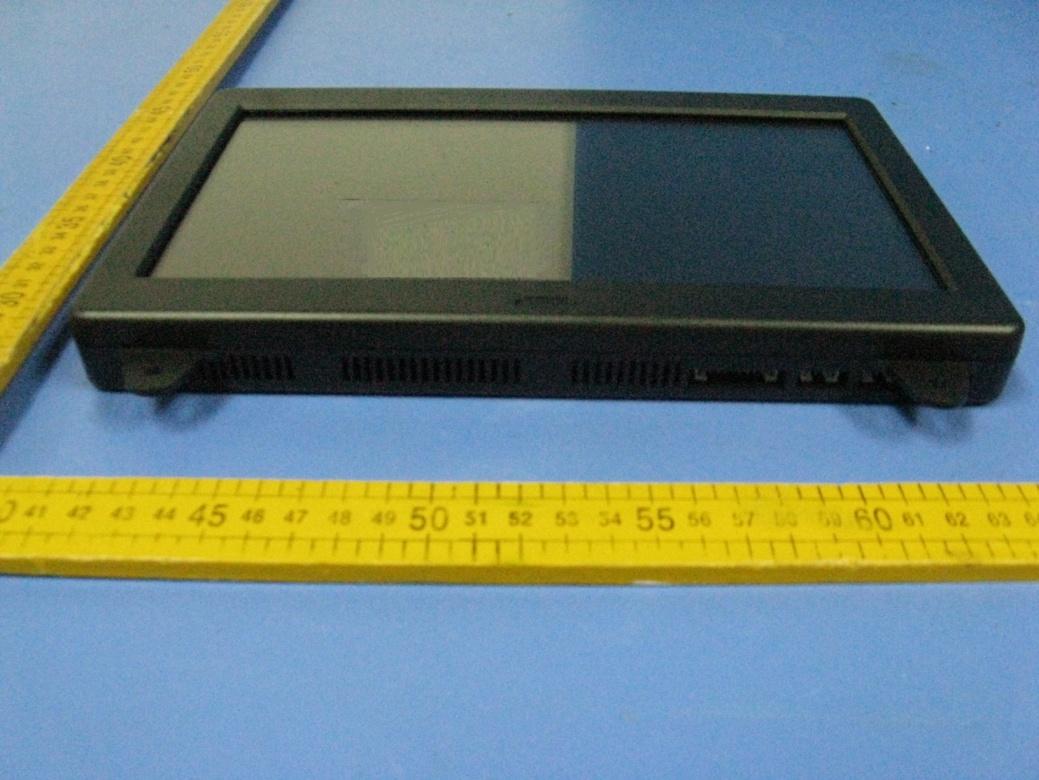

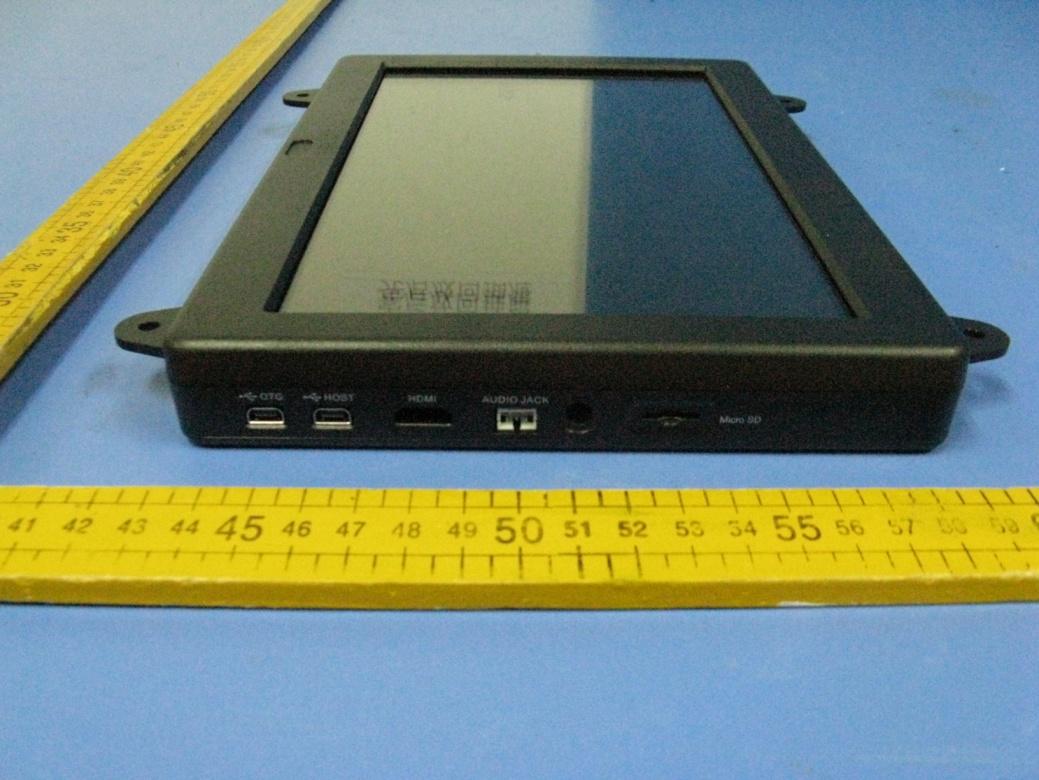

External Photo

13/01/05 342233英文型号表牌 MID-B1003 V1.0 S01 342233 2012302、2012355 342233 FCC ID:OMC304662 5mm MODEL NO.: 342233 FCC ID:OMC342047 IC:3673A-342047 ICON Health & Fitness Inc made in China CAN ICES-3 (B)/NMB-3(B) ICON Part No.:342233 125mm 35mm 消银龙PET上哑膜、环保、无毒 0.1mm（100番）消银龙PET 如图底色采用黑色(PANTONE PROCESS BLACK C) 与消银龙银色(材质原色) MODEL NO.: 342233 FCC ID:OMC342047 IC:3673A-342047 ICON Health & Fitness Inc made in China CAN ICES-3 (B)/NMB-3(B) ICON Part No.:342233

13/01/05 342235英文型号表牌 MID-B1003 V1.0 S01 342235 2012273、2012301 2012354 342235 FCC ID:OMC304662 MODEL NO.: 342235 FCC ID:OMC342047 IC:3673A-342047 ICON Health & Fitness Inc made in China CAN ICES-3 (B)/NMB-3(B) ICON Part No.:342235 125mm 35mm 消银龙PET上哑膜、环保、无毒 0.1mm（100番）消银龙PET 如图底色采用黑色(PANTONE PROCESS BLACK C) 与消银龙银色(材质原色) 5mm MODEL NO.: 342235 FCC ID:OMC342047 IC:3673A-342047 ICON Health & Fitness Inc made in China CAN ICES-3 (B)/NMB-3(B) ICON Part No.:342235

Page 1 of 1 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Maximum Permissible Exposure(MPE) Estimation for 342047 1. Introduction 342047 is a MP10v1 Module, which contain Wi-Fi function inside (802.11b/g/n). Also the MP10v1 Module will be installed in the treadmill for expanded internet function. 2. Limit and Guidelines on Exposure to Electromagnetic Fields The minimum safe distance per FCC part 2.1091 was calculated the power density of 1 mW/cm limit for maximum permissible exposure in an uncontrolled environment per FCC part 1, section 1.1307(b). So the minimum safe distance is the larger of this calculated distance or 20cm. As this MP10v1 Module, it is being insured by specify the minimum safe distance the antenna must be kept the user is 20cm in User manual. So this MP10 module is compliance with the FCC part 2.1091. 3. Calculation method For the final determination of compliance boundary the model for far-field calculation is used since this overestimates the field strength in the near-field region. Thus the calculated compliance boundary should be rather more conservative and on the safe side. For EUT the following compliance boundary is calculated: Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=power density in mW/cm 2 Pout=output power to antenna in mW G=gain of antenna in linear scale Pi=3.14159 R=distance between observation point and center of the radiator in cm 342047: Maximum power output: Pout=181.79mW(22.60dBm) Maximum Antenna gain of the certified antenna list: G=1dBi=1.259 Maximum EIRP from transmit antenna: EIRP=22.35+1.0 =23.60dBm(229.09mW) To be determine the overall exposure at 20cm from the EUT(R=20cm) Pd=0.045 mW/cm 2 The power density at 20cm from the antenna of the EUT is 0.045 mW/cm 2, which is less than the permitted maximum power density. Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Ken Li/EMC Project Manager Peter Kang//EMC Project Engineer Date: 2013-01-09 Date: 2013-01-09

Report Number: 68.950.12.260.01 Page 1 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC&IC - TEST REPORT Report Number : 68.950.12.260.01 Date of Issue: 15 January 2013 Model : 342047, 342233, 342235 Product Type : MP10v1 Module Applicant : ICON Health & Fitness Inc. Address : 1500 South 1000 West, Logan, UT 84321, USA Production Facility : Wanlida Group Co., Ltd. Address : Wanlida Industry Zone, Nanjing, Fujian, China 363601 Test Result :  Positive  Negative Total pages including Appendices : 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.12.260.01 Page 2 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Content 1 Table of Content ................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................... 3 3 Description of the Equipment Under Test ......................................................................................................... 4 4 Summary of Test Standards ............................................................................................................................. 5 5 Summary of Test Results .................................................................................................................................. 6 6 General Remarks .............................................................................................................................................. 7 7 Technical Requirement ..................................................................................................................................... 8 7.1 Conducted Emission ................................................................................................................................. 8 7.2 Conducted peak output power ................................................................................................................ 11 7.3 Band edge compliance of RF emissions ................................................................................................. 12 7.4 Spurious RF conducted emissions .......................................................................................................... 25 7.5 Spurious radiated emissions for transmitter and receiver ....................................................................... 31 7.6 6 dB bandwidth & 99% bandwidth .......................................................................................................... 36 7.7 Power spectral density ............................................................................................................................ 43 8 Product Information ......................................................................................................................................... 44 9 Test Equipment ............................................................................................................................................... 45 10 System Measurement Uncertainty .............................................................................................................. 45 Report Number: 68.950.12.260.01 Page 3 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test site1: Company name: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6th Floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test site2: Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.950.12.260.01 Page 4 of 45 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 3 Description of the Equipment Under Test Description of the Equipment Under Test Product: MP10v1 Module Model no.: 342047 Options and accessories: NIL Rating: DC 12V Powered by external adaptor: Adaptor Input: 100-240VAC, 50/60Hz, 1.5A M…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission Test Radiated Emission Test Below 1GHz Radiated Emission Test Above 1GHz
