OMC360526MP7QCFS Module

1 Directions Meanings of icons: Forbidding: forbid improper operations to avoid damaging the Tablet PC. Caution: cautions for operators to avoid potential damages. Please note and remember. Importance: important information, common notes, definitions, general knowledge and references, etc. Other trademarks and trade name may be used in this manual to refer to either the entities claiming the marks and names or their products. The manufacture disclaims any proprietary interest in trademarks and trade names other than its own. Information in this manual is subject to change without notice. Reproduction in any manner whatsoever without the written permission from the manufacture is strictly forbidden. Product images in this manual are for your reference only. 2 Content Directions ....................................................................................................................... 1 Safety Precautions......................................................................................................... 3 FCC Compliance ............................................................................................................ 4 1 Knowing Your Tablet PC ............................................................................................ 5 1-1 Front View ............................................................................................................ 5 1-2 Rear View ............................................................................................................. 5 2 Caring the Tablet PC ................................................................................................... 6 2-1 LCD Screen .......................................................................................................... 6 2-2 Other accessories................................................................................................. 6 2-3 If the water comes into the Tablet PC ................................................................... 7 2-4 Other Notes .......................................................................................................... 7 3 Traveling with the Tablet PC ...................................................................................... 7 4 Turning on / off the Tablet PC .................................................................................... 8 5 Get to know your system ........................................................................................... 8 6 For system security .................................................................................................. 10 7 Communication ......................................................................................................... 11 8 Fun ............................................................................................................................. 13 9 Appendix ................................................................................................................... 14 9-1 Troubleshooting .................................................................................................. 14 9-2 Specifications ..................................................................................................... 15 3 Safety Precautions 1. DO NOT press or touch the LCD Screen. DO NOT place the Tablet PC with small items, they may scratch LCD Screen or enter the Tablet PC. 2. DO NOT expose the Tablet PC to dirty or dusty environment. Keep the environment clean and dry. 3. DO NOT place the Tablet PC on uneven or unstable work surface. 4. DO NOT place or drop objects on the top of the Tablet PC. DO NOT shove any foreign objects into the Tablet PC. DO NOT cover the LCD Screen strongly. 5. DO NOT expose the Tablet PC to strong magnetic or electrical fields; DO NOT place the floppy disk near or on the Tablet PC, that may loss the data of the floppy disk. 6. DO NOT leave the Tablet PC facing the sun as it can damage the LCD Screen, especially in the car. 7. SAFE TEMP: This Tablet PC should only be used in environments with ambient temperatures between 5°C(41°F) and 35°C(95°F). 8. DO NOT expose the Tablet PC to or use near liquids, rain, or moisture. 9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 10. DO NOT throw the Tablet PC in municipal waste. Check local regulations for disposal of electronic products. Please recycle the Battery Pack, and check with your Local Authority or retailer for recycling advice. 11. The Tablet PC and the Adapter may occur some heat during operating or charging. DO NOT leave the Tablet PC on your lap or any part of the body in order to prevent discomfort or injury from heat exposure. 12. INPUT RATING: Refer to the rating label on the Tablet PC and be sure that the Power Adapter complies with the rating. Only use attachments or accessories specified by the manufacturer. 13. Checking the connections between the main unit and attachments before turning on the Tablet PC. 14. DO NOT use the Tablet PC during eating food avoid dirtying the Tablet PC. 15. DO NOT insert anything into the Tablet PC that may result in short circuit or damage the circuit. 16. Powering off the Tablet PC, if you want install or remove some external devices, which are not support hot-plug. 17. Disconnect the Tablet PC from the electrical outlet and remove any installed batteries before cleaning. And Keep it away from children. 18. DO NOT disassemble the Tablet PC, only a certified service technician should perform repairs on your computer. Otherwise, problem may result and the manufacturer should not hold responsibility for the damage. 19. Only use Battery Packs approved by the manufacturer or else damage may occur. 20. The Tablet PC has some little metal flake to disperse heat. DO NOT place the Tablet PC on soft objects (e.g.: bed, sofa, your lap), or else the Tablet PC may become hot and halt the system operating. 4 FCC Complian…

Text truncated - open the document above for the full version.

Date: (24/11/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah 84321, United States hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Calvin Weng Phone: +86-755-33323658 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Model name: 360526 FCC ID: OMC360526 This authorization expires one year from the current date. Yours Sincerely, Brent Thompson Compliance Engineer ICON Health and Fitness 435-786-5272 [email protected]

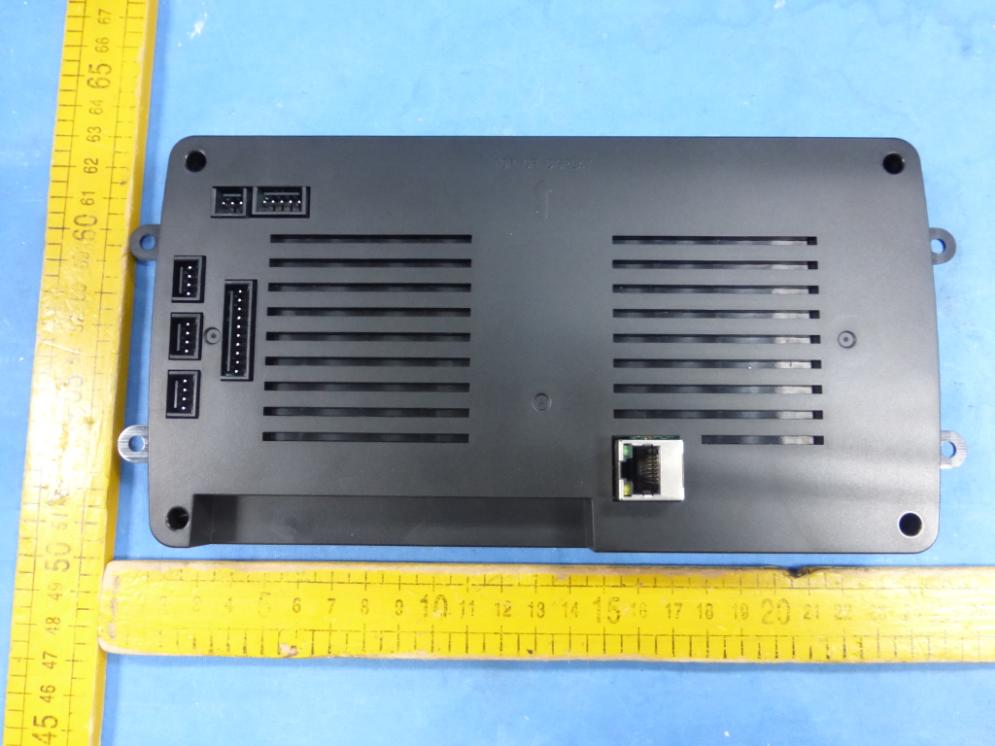

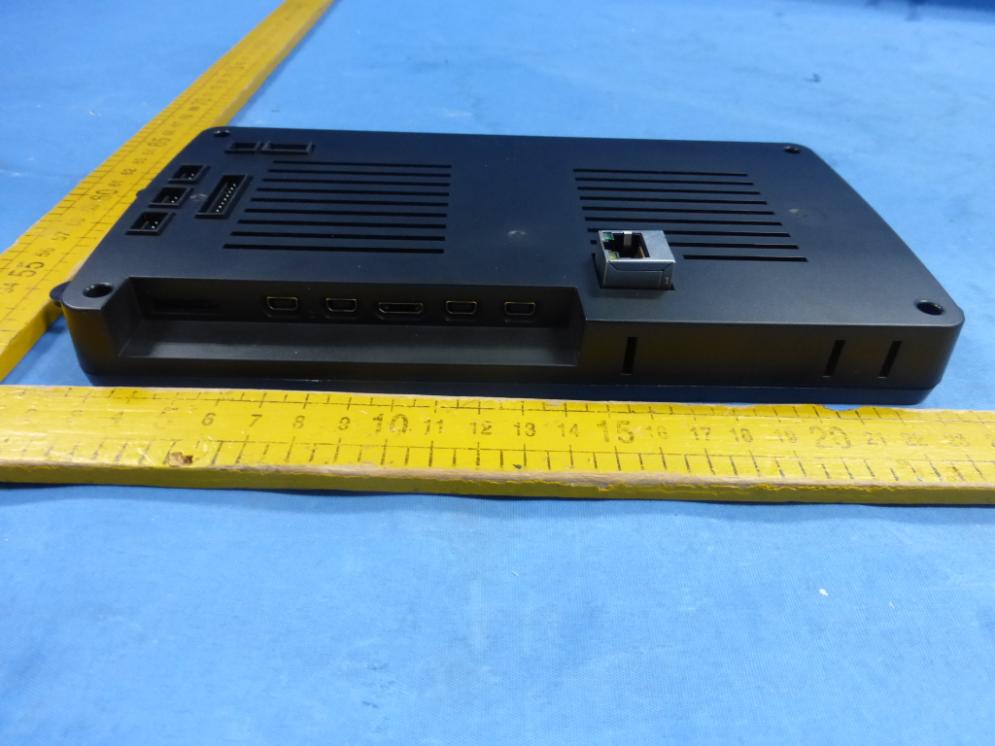

14/12/17 360526面板英文丝印 V1.0 S01 MID-E7001 360526 试制 料号:0616201020353 此前相关图纸作废. 5mm 360526 MODEL NO.: FCC ID:OMC360526 IC:3673A-360526 360526 Made in China 3mm 3mm LAN HOST1HOST2HOST3 U A R T 1 12V DC POWER

BT WIFI Antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 MPE Calculation Applicant: ICON Health & Fitness Inc. Address: 1500 South 1000 West, Logan UT 84321, USA Product: MP7QCFS Module Model No.: 360526 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Maximum peak output power at antenna input terminal (dBm): 4.45(BT),19.63(Wi- Fi), Maximum peak output power at antenna input terminal (mW): 2.79(BT),91.83(Wi- Fi) Prediction distance (cm): 20 Antenna Gain, typical (dBi): 1 Maximum Antenna Gain (numeric): 1.259 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.00070(BT), 0.023(Wi-Fi) MPE limit for general population exposure at prediction frequency (mW/cm2): 1.0 0.0237 (mW/cm2) < 1 (mW/cm2) Result: Compliant TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/EMC Project Manager Calvin Weng/EMC Project Engineer Date: 2014-12-12 Date: 2014-12-12

Report Number: 68.950.14.245.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 44 FCC/IC - TEST REPORT Report Number : 68.950.14.245.01 Date of Issue: December 12, 2014 Model : 360526 Product Type : MP7QCFS Module Applicant : ICON Health & Fitness Inc. Address : 1500 South 1000 West, Logan UT 84321, USA Production Facility : Wanlida Group Co., Ltd. Address : Wanlida Industry Zone, 363601 Nanjing, Fujian, PEOPLE'S REPUBLIC OF CHINA Test Result :  Positive  Negative Total pages including Appendices : 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.14.245.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 44 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment Under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................... 9 9 Technical Requirement ....................................................................................................... 10 9.1 Conducted Emission ..................................................................................................... 10 9.2 Conducted peak output power ...................................................................................... 13 9.3 20 dB bandwidth and 99% Occupied Bandwidth .......................................................... 15 9.4 Carrier Frequency Separation ...................................................................................... 25 9.5 Number of hopping frequencies .................................................................................... 27 9.6 Dwell Time .................................................................................................................... 29 9.7 Spurious RF conducted emissions ............................................................................... 32 9.8 Band edge testing ......................................................................................................... 36 9.9 Spurious radiated emissions for transmitter and receiver ............................................. 41 10 Test Equipment List ............................................................................................................ 43 11 System Measurement Uncertainty ...................................................................................... 44 Report Number: 68.950.14.245.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 44 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Test Site 2 Company name: Audix Technology (shenzhen) Co.,Ltd No. 6, Ke Feng Rd, 52 Block Shenzhen Science and Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.950.14.245.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052…

Text truncated - open the document above for the full version.

Test setup photos Conducted emission test Spurious emission (30MHz-1000MHz) Spurious emission above 1GHz
