Declaration on model difference 产品差异声明 Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为外观和型号不同，其它设计完全相同。 „ FCC ID: OMCAXISHR15 Production name 产品名称 Trade name 商标 Model no. 型号 Axis HR IFit IFAXJS115, IFAXJL115, IFAXJS215, IFAXJL215 Confirmed by Icon Health and Fitness, Inc. Authorized Signature: 授权人签字 Date: 2015-11-20 日期

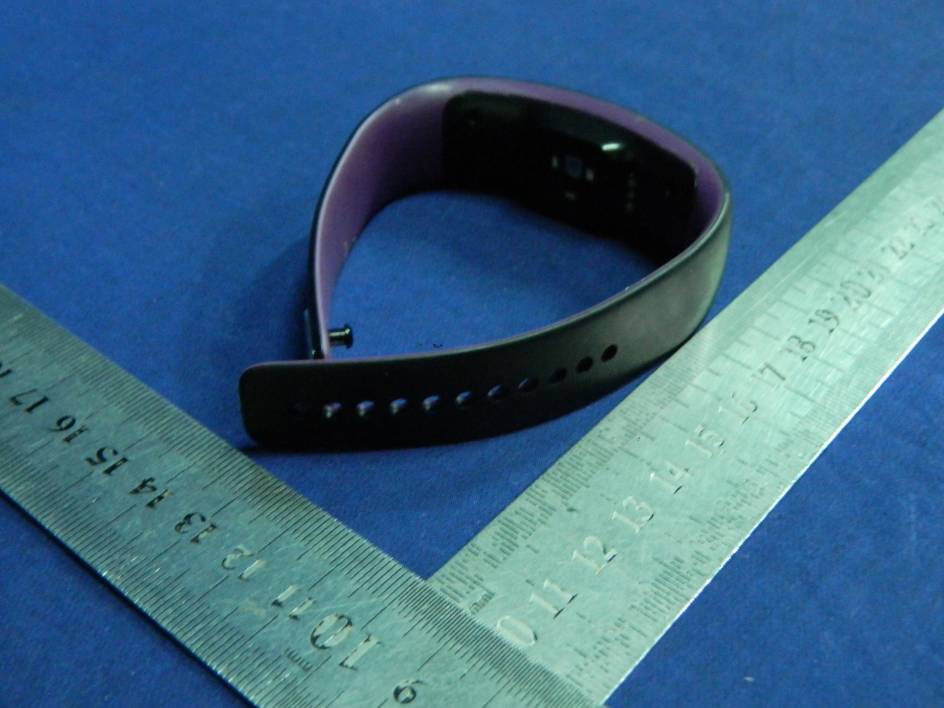

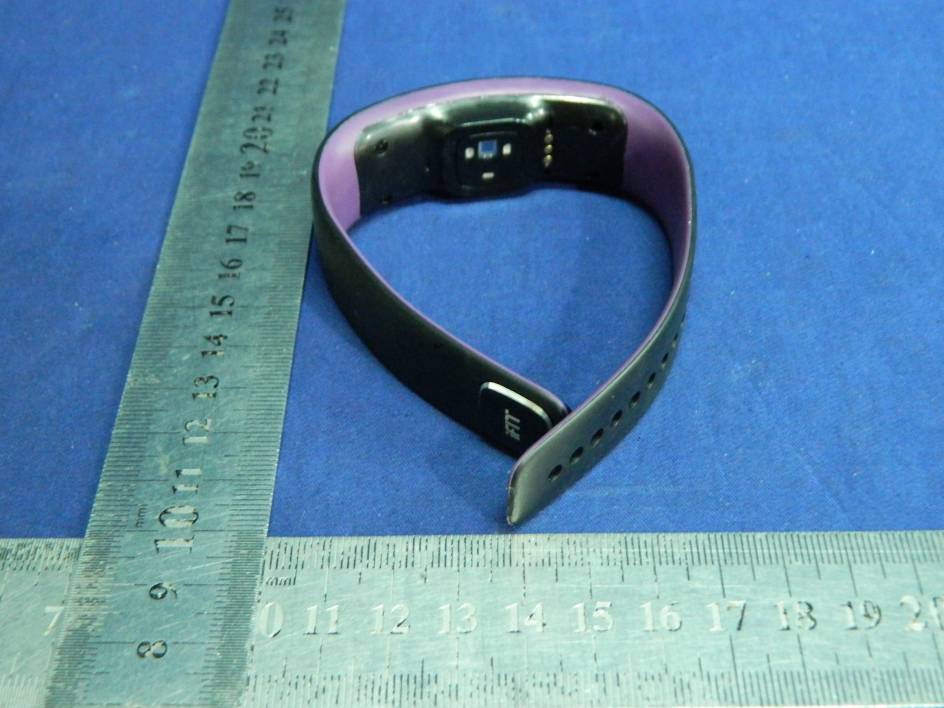

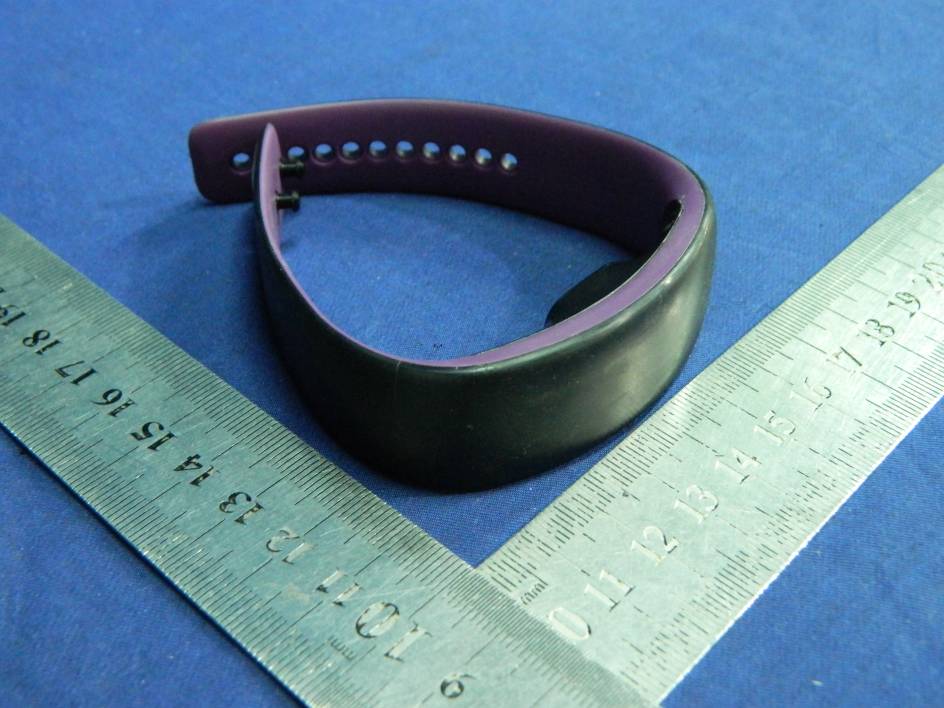

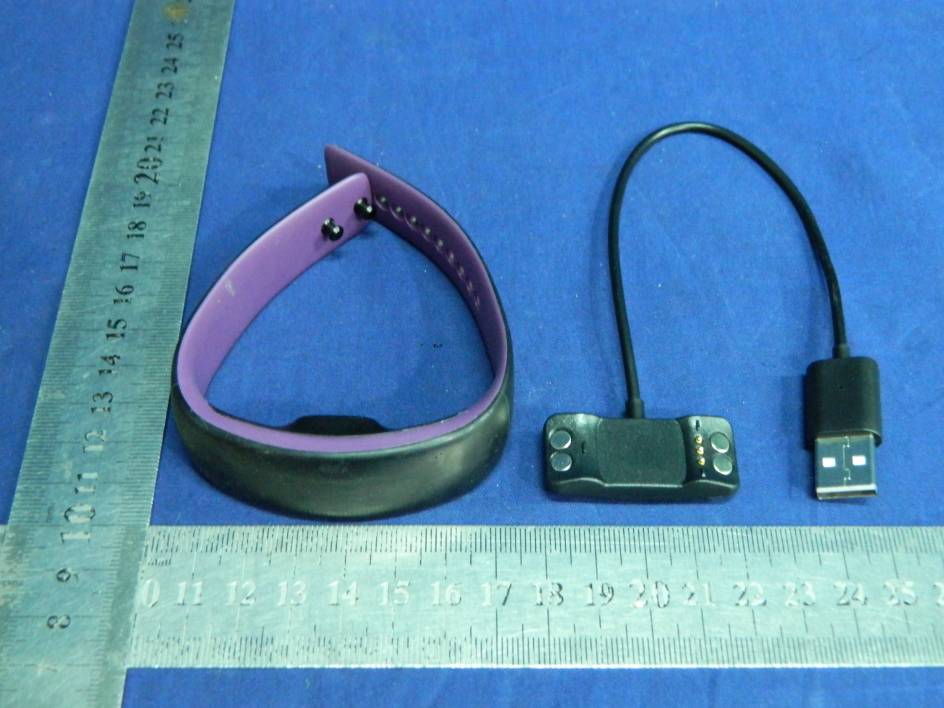

External Photos

Label Location

Internal Photos Antenna Antenna

FCC ID: OMCAXISHR15 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DTS: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) tune up maximum power Result calculation 1-g SAR 2.402 GFSK 1.14 0dBm to 2dBm 0.49 3.0 2.440 GFSK 1.27 0dBm to 2dBm 0.49 3.0 2.480 GFSK 1.26 0dBm to 2dBm 0.50 3.0 Conclusion: For the max result : 0. 50≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2015-11-06 NAME AND TITLE (Please print or type): David Lee/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China

TRF No.:FCC 15.247/A Page 1 of 40 Report No.: ES151012016E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Axis HR MODEL No.: IFAXJS115, IFAXJL115, IFAXJS215, IFAXJL215 Trade Mark: IFit FCC ID: OMCAXISHR15 REPORT NO: ES151012016E ISSUE DATE: October 29, 2015 Prepared for Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States Prepared by EMTEK (SHENZHEN) CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 40 Report No.: ES151012016E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................. 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES .................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 11 7.4 SUPPORT EQUIPMENT ............................................................................................................. 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 DTS 6DB BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................... 16 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................. 17 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................. 20 8.5 RADIATED SPURIOUS EMISSION ............................................................................................. 25 8.6 CONDUCTED EMISSION TEST .................................................................................................. 37 8.7 ANTENNA APPLICATION ............................................................................................................ 40 TRF No.:FCC 15.247/A Page 3 of 40 Report No.: ES151012016E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States Manufacturer: SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Product Description: Axis HR Model Number: IFAXJS115, IFAXJL115, IFAXJS215, IFAXJL215 (Note: These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance and model no. for trading purpose. We prepare IFAXJS115 for test, and the worst result recorded in the report.) File Number: ES151012016E Date of Test: October 12, 2015 to October 29, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : October 12, 2015 to October 29, 2015 Test by : KingKong /Tester Prepared by : Yaping Shen/Editor Approve & Authorized Signer : Lisa Wang/Manager TRF No.:FCC 15.247/A Page 4 of 40 Report No.: ES151012016E Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Data Rate 1Mbps for GFSK modulation Modulation: GFSK modulation Operating Frequency Range(s): 2402-2480MHz Number of Channels: 40 channels Transmit Power Max: 1.27 dBm Antenna Type : FPC Antenna Antenna Gain: 0 dBi Power supply: DC supply: DC 3.8V by battery or DC 5V from external power Adapter supply: N/A Temperature Range -20°C ~ +55°C Note: for more details, please refer to the User’s manual of the EUT. TRF No.:FCC 15.247/A Page 5 of 40 Report No.: ES151012016E Ver.1.0 Access to the World 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Ve…

Text truncated - open the document above for the full version.

Setup photos LINE CONDUCTED EMISSION TEST RADIATED EMISSION TEST
