OMCBTAUD3Bluetooth Module

Product specifications (Bluetooth module) Product Model: F-3368 Document number: XZX_RD_SP_F 3368V1.0 Hardware version: V1.0 File version: V 1.0 Entry into force :2020-10-26 (Picture for reference only) Documents containing (C-CHIP) confidential documents may not be passed on without permission File include (C-CHIP) classified documents, with out permission, can not be excluded Change record Change History： Change record Vers ion Revised content Page Revision date Revisi on Audito r V1.0 New construction 12 2020-10-26 Li Jian Attention the products, services or features you purchase shall be subject to the commercial contract and terms of xiamen sixin micro-tech co., ltd. all or part of the products, services or features described in this document may not be within the scope of your purchase or use. Unless otherwise agreed in the contract, Xiamen Sixin Micro Technology Co., Ltd. does not make any express or implied statement or guarantee of the contents of this document. Due to product version upgrades or other reasons, the contents of this document will be updated on a regular basis. Unless otherwise agreed, this document serves only as guidance for use and all statements, information and recommendations in this document do not constitute any express or implied warranty. 1. Summary F -3368(BK3268E-40P) Bluetooth module is an intelligent wireless audio data transmission product developed by our company, Is a low - cost, high - cost stereo wireless transmission scheme, The module adopts BEKEN BK3268E chip QFN40 package design. F-3368 Bluetooth module is driver-free, The customer only needs to connect the module to the application product, You can quickly wirelessly transmit music, Enjoy wireless music, And support simple data transmission function. Support intelligent voice prompt and number function, Integrated TF card playback, Integrated mobile U playback, Support internal LINE-IN, Support for internal MIC calls. 2. Basic characteristics Bluetooth Profiles * Bluetooth V5.0specification support mA average current for A2DP 9 0.8 uA deep sleep current * Bluetooth 4.2classic and low energy * A2DP v1.3,AVRCP v1.6,HFP v1.7,HID v1.1,AVCTP v1.4,AVDTP v1.3,and SPP v1.2 * True wireless stereo and two active link * Two wires UART download interface 16 bits stereo ADC and DAC * Stereo line in and dual microphone * Five bands digital hardware equalizer * SPI,UART,I2C,SDIO and USB * I2S master and slave interface with MCLK output * Interface for external PA and LNA * Up to 220mA battery charge controller 3. Applications • Bluetooth Audio • Bluetooth headset • No phone calls • Bluetooth Wireless Audio • Bluetooth Digital Transmission Application • Support for mobile interconnection peripherals • Bluetooth Smartphone 4. Performance parameters 4.1. Module parameters Module parameters Wireless standards Bluetooth Bluetooth V5.0 Antenna PCB Antenna Frequency range 2.402 GHz-2.480GHz Transmission power CLASS2,4dbm Receiving sensitivity -81 dBm<0.1 BER per cent Extended interface PIO, SPI, AIO, UART, USB, I2S, I2C, PWM, MIC, LIN, SPK (L/R) Support systems: Support for Android (android), Apple (IOS) and windows systems Audio decoding output: SBC decoding (decode) Module dimensions 15 mm *24mm*2mm (LxWxH) SMD Certification information - Support Bluetooth Protocol A2DP v1.2,AVRCP v1.5,HFP v1.7,AVCTP v1.4,AVDTP v1.2 4.2. Recommended working conditions Scope of operation Min Typical Max Unit Operating temperature range -40 - +85 °C VCC4BAT 3.0 3.7 4.2 V 5V (USB VBUS) 4.75 5.0 5.75 V Digital I/O 1.7 1.8 3.6 V VCC3XTAL 2.8 - 3.8 V VCCAUD 1.6 - 2.4 V VCCBT 1.6 - 2.4 V PRX RX input power - 10 - dB 4.3. Battery Input Pin Specification BAT Min Typical Max Unit Operating voltage 2.8 3.7 4.2 V Software power-off threshold - 3 - V Under voltage lockout rising threshold 2.47 2.6 2.73 V Under voltage lockout hysteresis 50 - 120 mV USB dead/weak battery rising threshold 3.14 3.3 3.46 V USB dead/weak battery hysteresis 50 - 120 mV 4.4. Charger Input Pin Specification VCHG Min Typical Max Unit Operating voltage (full device specification) 4.75 5.0 5.75 V Operating voltage (reduced charger specification) 4.0 5.0 5.75 V VCHG_PRESENT rising threshold 3.4 3.6 4.0 V VCHG_PRESENT hysteresis 70 - 150 mV Full operating range VCHG_PRES ENT - 5.75 V On chip pull-down (disabled when VCHG_PRESENT =1) 10 20 30 kΩ 4.5. System LDO Parameter Description Min Typical Max Unit VCC4BAT Battery input voltage 2.8 - 4.2 V VCC3SYS LDO output voltage 2.8 3.2 3.3 V Load Current - - 200 mA 4.6. USB LDO Parameter Description Min Typical Max Unit VCC5USB USB Input voltage 2.8 - 4.2 V VCC3SYS LDO output voltage - 3.3 - V Load Current - - 200 mA 4.7. BATTERY CHARGE Parameter Description Min Typical Max Unit VCC5USB Chargerinputvoltage 4.75 5.0 5.75 V I_trickle Charge Current at trickle mode as percent of fast charge mode - 10 - % I_fast Charge current at fast charge mode 40 - 220 mA V_end (Need Calibrated) VBAT voltage when Charge End - 4.2 - V 4.8. Analog LDO/BUCK Parameter Description Min Typical Max Unit Analog LDO VDDANA Analog LDO output voltage 1.6 1.8 2.4 V Load Current - - 150 mA Analog BUCK Analog BUCK output voltage 1.6 1.8 2.4 V Load Current - - 150 mA Switching frequency BUCK modulationfrequency 0.5 1 1.6 MHZ 4.9. Digital LDO/BUCK Parameter Description Min Typical Max Unit Digital LDO VDDDIG Digital LDO output voltage 1.0 1.2 1.35 V Load Current - - 40 mA Digital BUCK Digital BUCK output voltage 1.0 1.2 1.35 V Load Current - - 40 mA Switching frequency BUCK modulationfrequency 0.5 1 1.6 MHZ 4.10. Crystal and Reference Clock Parameter Description Min Typical Max Unit Frequency Crystal and Reference frequency - 26 - MHZ Tolerance Crystal and Reference frequency tolerance -10 - +10 ppm I_fast Charge current at fast charge mode 40 - 220 mA XI Pin Input voltage range for reference clock input 0.3 - 3.6 V 4.11. Typical Power Consumption State Description Min Typical Max Unit Shut Down Software sets device into shut down mode,wake up from GPIO15 - 0.…

Text truncated - open the document above for the full version.

Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States, 84321, USA Agent Authorization Company: Icon Health and Fitness, Inc. Address: 1500 South 1000 West, Logan, Utah, United States, 84321, USA Product Name: Bluetooth Module Model Number(s): F-3368 Product Description: Bluetooth Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 04, 2020 Name: Craig Jensen Title: Compliance Engineer Company: Icon Health and Fitness, Inc.

Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States, 84321, USA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 04, 2020 Subject; Request for Confidentiality FCC ID: OMCBTAUD3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Craig Jensen Title: Compliance Engineer

Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States, 84321, USA RE FCC ID: OMCBTAUD3 To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [Craig Jensen] [Compliance Engineer] Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is fixed. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed in a stand-alone configuration as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will labeled Contains TX FCC ID: OMCBTAUD3, Please refer to User Manual. Icon Health and Fitness, Inc. 1500 South 1000 West, Logan, Utah, United States, 84321, USA (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module compliance with RF Exposure requirements, please refer to MPE Report.

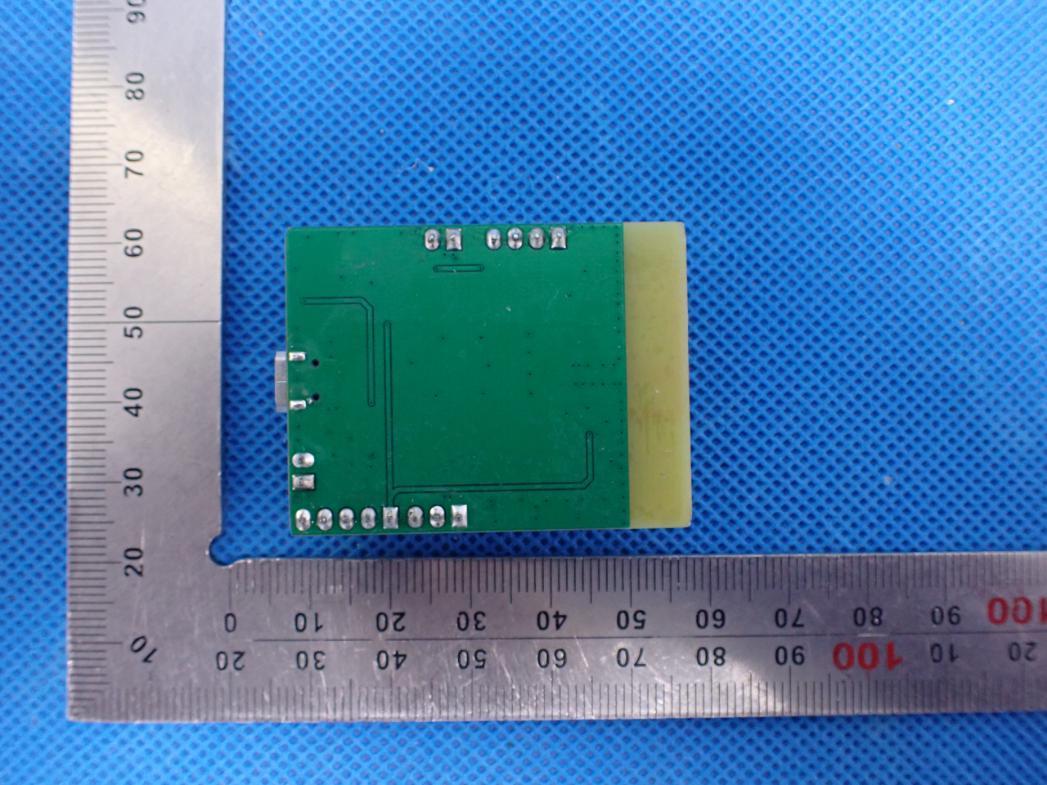

External Photos WHOLE VIEW-1 OF EUT WHOLE VIEW-2 OF EUT BT Antenna EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT

FCC ID and IC Label Location 5mm*15mm FCC ID: OMCBTAUD3 IC: 3673A-BTAUD3 F-3368

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Module Model Name F-3368 FCC ID OMCBTAUD3 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=0dBi (Numeric 1), π=3.14 Note: 1. Only the worst case recorded. 3. conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2441 1.713 0.67 0.0003 1

Page 1 of 68 FCC Test Report Report No.: AGC02031201002FE03 FCC ID : OMCBTAUD3 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Module BRAND NAME : C-chip MODEL NAME : F-3368 APPLICANT : Icon Health and Fitness, Inc. DATE OF ISSUE : Nov. 04, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02031201002FE03 Page 2 of 68 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 04, 2020 Valid Initial Release Report No.: AGC02031201002FE03 Page 3 of 68 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC02031201002FE03 Page 4 of 68 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC02031201002FE03 Page 41 of 68 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC02031201002FE03 Page 42 of 68 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC02031201002FE03 Page 43 of 68 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC02031201002FE03 Page 44 of 68 RADIATED EMISSION BELOW 1GHz EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 33.8800 21.84 10.53 40.00 18.16 100 253 Horizontal 2 52.3100 24.42 11.49 40.00 15.58 100 6 Horizontal 3 64.9200 22.85 10.09 40.00 17.15 150 3 Horizontal 4 99.8400 21.56 11.30 43.50 21.94 150 167 Horizontal 5 108.5700 21.32 12.27 43.50 22.18 150 45 Horizontal 6 728.4000 34.77 26.67 46.00 11.23 100 36 Horizontal RESULT: PASS Report No.: AGC02031201002FE03 Page 45 of 68 EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m ] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 40.6700 26.60 11.91 40.00 13.40 100 358 Vertical 2 48.4300 28.88 11.71 40.00 11.12 100 2 Vertical 3 56.1900 23.57 11.20 40.00 16.43 100 286 Vertical 4 66.8600 22.78 9.76 40.00 17.22 100 103 Vertical 5 141.5500 22.35 14.88 43.50 21.15 150 172 Vertical 6 564.4700 32.01 23.54 46.00 13.99 100 194 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Limit-Measurement. 2. All test modes had been pre-tested. The mode 8 is the worst case and recorded in the report. Report No.: AGC02031201002FE03 Page 46 of 68 RADIATED EMISSION ABOVE 1GHz EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.170.0844.2574-29.75 peak 4804.00036.560.0836.6454-17.36 AVG 7206.00041.962.2144.1774-29.83 peak 7206.00031.282.2133.4954-20.51 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00043.430.0843.5174-30.49 peak 4804.00036.040.0836.1254-17.88 AVG 7206.00041.342.2143.5574-30.45 peak 7206.00030.582.2132.7954-21.21 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC02031201002FE03 Page 47 of 68 EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00042.640.1442.7874-31.22 peak 4882.00035.720.1435.8654-18.14 AVG 7323.00040.732.3643.0974-30.91 peak 7323.00030.592.3632.9554-21.05 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00042.110.1442.2574-31.75 peak 4882.00035.240.1435.3854-18.62 AVG 7323.00039.632.3641.9974-32.01 peak 7323.00029.762.3632.1254-21.88 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC02031201002FE03 Page 48 of 68 EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00041.660.2241.8874-32.12 peak 4960.00034.750.2234.9754-19.03 AVG 7440.00039.492.6442.1374-31.87 peak 7440.00029.312.6431.9554-22.05 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Module Model Name F-3368 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00041.370.2241.5974-32.41 peak 4960.00033.540.2233.7654-20.24 AVG 7440.00038.852.6441.4974-32.51 peak 7440.00028.712.6431.3554-22.65 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. …

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz LINE CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
