OMCSBACCELSBACCEL

SBAccel Users Manual User’s Manual Model No. / PMN: SBACCEL Table of Contents Getting Started2 Maintenance And Troubleshooting:2 Recycling Information:2 Compliance Information:3 1 Getting Started 1 Install the batteries in the device The device uses two AAA batteries; alkaline batteriesare recommended. Do not use old and new batteries together or alkaline, standard,and rechargeable batteries together. IMPORTANT: If the device has been exposed to coldtemperatures, allow it to warm to room temperature before you insert batteries. Otherwise,you may damage the electronic components. Remove the cover and insert two AAA batteries intothe battery compartment. Make sure that the negative end of each battery is pressed againsta spring. Then, reattach the cover. Maintenance And Troubleshooting The base will attempt to automatically schedule updatesto the SBACCEL when it is idle, but due to unforeseen scheduling this maynot always be when it is not in use. The update process takes approximately 5 minutesand no data will be recorded during that process. Recycling Information This electronic product must not be disposed of inmunicipal waste. To preserve the environment, this product must be recycled afterits useful life as required by law. Use recycling facilities that are authorized to collectthis type of waste in your area In doing so, you will help to conserve naturalresources and improve standards of environmental protection For informationabout safe and correct disposal methods, please contact your local city officeor waste disposal office, or the establishment where you purchased this product 2 Compliance Information United States Compliance Information FCC ID: OMCSBACCEL This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, andcan radiate radio frequency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radioor television reception, which can be determined by turning the equipment off andon, try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment andthe receiver. • Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technicianfor help. FCC CAUTION: To assure continued compliance, use onlyshielded interface cables when connecting to computer or peripheral devices.Changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate this equipment. IMPORTANT: To satisfy exposure compliance requirements,the antenna and transmitter of the device must be at least 1.5 in.(4 cm) from all persons and must not be near or connected to any other antenna or transmitter. 3 Canada Compliance Information IC: 3673A-SBACCEL HVIN: SBACCEL IC INFORMATION This device contains licence-exempt transmitter(s)/receiver(s)that comply with Innovation, Science and Economic Development Canada’slicence-exempt RSS(s). Operation is subject to the following twoconditions: 1. This device may not cause interference. 2.This device must acceptany interference, including interference that may cause undesired operation ofthe device. IMPORTANT: To satisfy exposure compliance requirements,the antenna and transmitter of the device must be at least 1.5 in.(4 cm) from all persons and must not be near or connected to any other antenna or transmitter. CAN ICES-3 (B)/NMB-3(B) INFORMATIONS DE LA IC Cet appareil contient un ou des émetteurs/récepteursexonorés de licence conformes aux normes du ou des CNR d’Innovation, Scienceset Développement Économique Canada. Le fonctionnement est assujettiaux deux conditions suivantes : 1. Cet appareil ne peut pas créer d’interférences.2. Cet appareil doit accepter toute interférence, dont une interférencequi pourrait entraîner un fonctionnement indésirable de l’appareil. IMPORTANT : pour respecter les exigences de conformitéà l’égard de l’exposition, l’antenne et le transmetteur de l’appareildoivent être situés à non moins de 1.5 pouces (4 centimètres) des personneset ne peuvent être reliés à aucune autre antenne ni aucun autre transmetteur. CAN ICES-3 (B)/NMB-3(B) 4

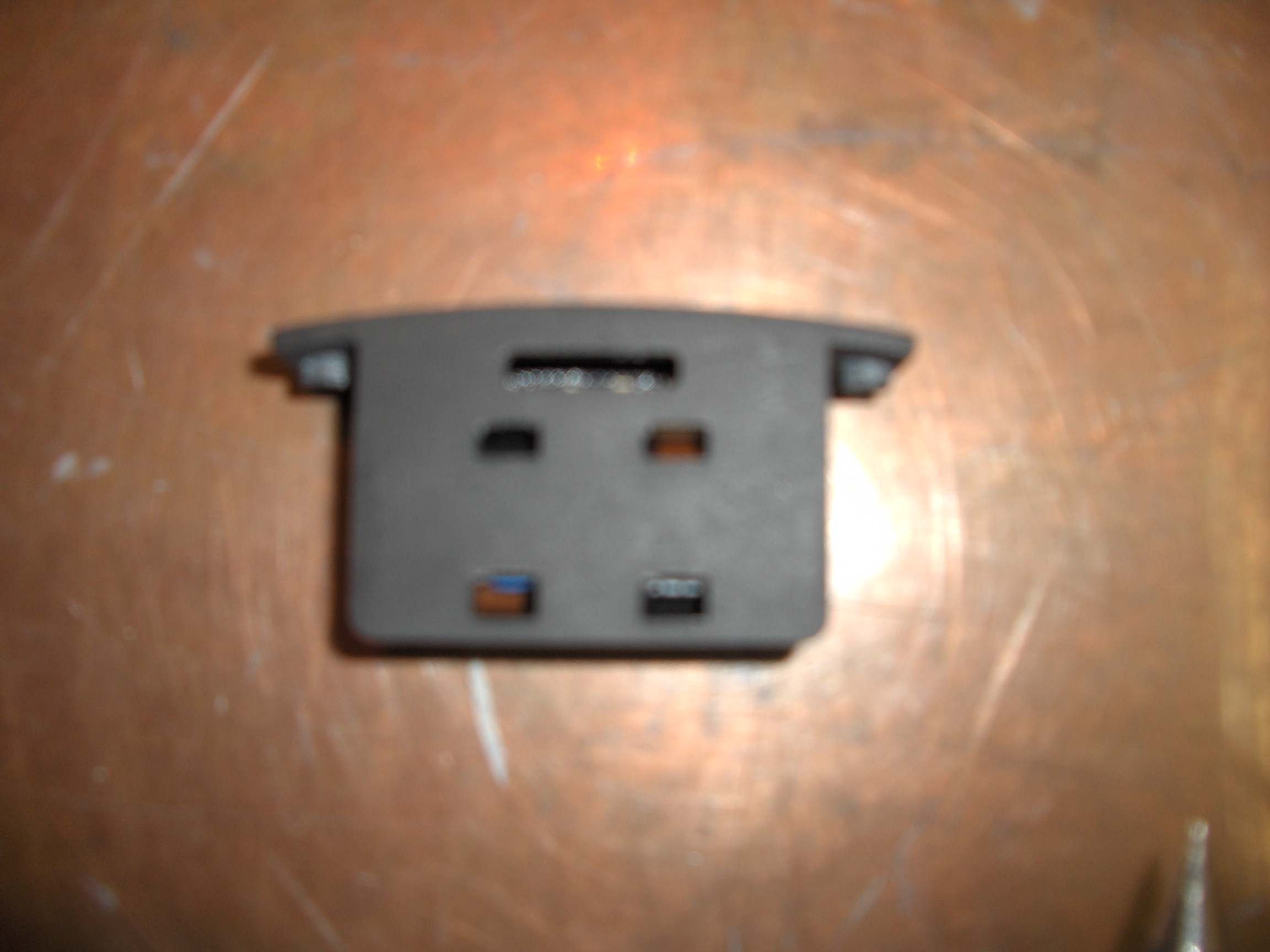

External Photos - 1 External Photos - 2

Internal Photos - 1 Internal Photos - 2 Internal Photos - 3

Customer: Model: FCC ID: IC ID: Classification: MPE Calculator Lowest Frequency2402.000MHz Highest Frequency2480.000MHz Wavelength (lowest frequency)0.125m Antenna aperture (1/4 wavelength radiator assumed)0.031m Far Field Distance1.561cm Power (Conducted) (Calculated)0.070dBm Ant Gain dBi1.300dB Cable Loss0.000dB EIRP dBm1.370dB EIRP mW1.371mW R3.810cm S0.007519mW/cm^2 Occupational/Controlled Exposure Limitinchescmtime OSHA10.000mW/cm^2246 FCC5.000mW/cm^2246 IC3.164mW/cm^2246 General Population/Uncontrolled Exposure Limit OSHA10.000mW/cm^2246 FCC1.000mW/cm^22430 IC0.535mW/cm^2246 Value Maximum conducted output power (mW)1 Tune up tolerance (mW)1 Minimum Test Separation distance ≤ 5mm5 Frequency in GHz2.48 HeadLimb Formula = OP+TU/Separation*√Freq in GHzResult →0.630 3.007.50Pass HeadLimb Compared to Table 11.371≤ 5mm24504.0010.00 Pass Exemption Limit (mW) Result Exemption Limit (mW) SAR Test Exclusion per RSS-102 Issue 5 Clause 2.5.1 Freq MHzSeparationEIRP mWResult Calculations RF Exposure Standards CFR 47 Part 1.1310 RSS-102 Issue 5 SAR Test Exclusion per FDB 447498 D01 4.3.1a Icon SBACCEL OMCSBACCEL 3673A-SBACCEL General Population Notes DTS

Application for Certification For a Transmitter. Icon Health & Fitness 1500 South 1000 West West Logan, UT 84321 DTS Transmitter M/N: SBACCEL FCC ID: OMCSBACCEL IC : 3673A-SBACCEL REPORT # UT16043A-001 This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1033, Part 15.247, RSS-247 Issue 2, and other applicable sections of the rules as indicated herein. Prepared By: DNB Engineering, Inc. 1100 E Chalk Creek Road Coalville, UT 84017 10 Nov 2020 TABLE OF CONTENTS Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. TABLE OF CONTENTS................................................................................................................2 1.0ADMINISTRATIVE DATA...................................................................................3 1.1Certifications and Qualifications............................................................................3 1.2Measurement Repeatability Information.................................................................3 1.3Test Equipment List................................................................................................4 1.4Test Summary Cross Reference..............................................................................5 1.5Measurement Uncertainty.......................................................................................5 2.1033 (b,2)FCC Identifier.........................................................................................................7 2.1033 (b,3)Installation and Operating Instructions...................................................................8 2.1033 (b,4)Brief Description of Circuit Function.....................................................................8 2.1033 (b,5)Block Diagram........................................................................................................8 2.1033 (b,7)Equipment Photographs..........................................................................................8 2.1033 (b,6)Report of Measurements ........................................................................................9 15.203Antenna Requirement ..................................................................10 15.207Conducted Emissions ...................................................................11 15.209Radiated Emissions (General Provisions) ....................................14 15.247 (b,2)Output Power (DTS).....................................................................17 15.247 (e) Power Spectral Density (PSD)......................................................21 15.247 (d)Band-edge RF Conducted.............................................................25 15.247 (a,2)DTS Bandwidth............................................................................29 RSS-Gen 6.799% Occupied Bandwidth............................................................33 15.247 (d)Conducted Spurious......................................................................37 15.247 (d)Radiated Spurious Emissions........................................................50 15.247 (d)Restricted Bands...........................................................................53 End of Report UT16043A-001.....................................................................................................79 Page 2 of 79 1.0ADMINISTRATIVE DATA 1.1Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, Part 15. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Facility Manager Coalville Facility. DNB Engineering, Inc. Tel. (435) 336-4433 FAX (435) 336-4436 Page 3 of 79 1.3Test Equipment List TEST EQUIPMENT LIST - CONDUCTED EMISSIONS DescriptionManufacturerModel No.Asset #Serial #Cal Due LISN Fisher Custom Communications FCCLISN5032401U-286202003 Feb 2021 Spectrum Analyzer Rhode & SchwarzFSV30U-24810136727 Aug 2021 TILE Software ETS Lindgren3.4.11.13U-317811200607 Mar 2021 TEST EQUIPMENT LIST - RADIATED EMISSIONS DescriptionManufacturerModel No.Asset #Serial #Cal Due Pre-AmplifierHewlett Packard8447DU-0682727A0618404 Aug 2021 Pre-AmplifierDNBS-21GU-095U-095-103 Feb 2021 BiConiLog AntennaETS - Lindgren3142EU-255154973 03 Sep 2021 DRG Horn AntennaAH SystemsSAS-571U-07141711 Jul 2021 Spectrum Analyzer Rhode & SchwarzFSV30U-24810136727 Aug 2021 TILE SoftwareETS- Lindgren3.4.11.13U-317811200607 Mar 2021 TEST EQUIPMENT LIST - ANTENNA CONDUCTED DescriptionManufacturerModel No.Asset #Serial #Cal Due Spectrum Analyzer Rhode & SchwarzFSV30U…

Text truncated - open the document above for the full version.

Client:Icon Health & FitnessDate: 22 Oct 2020DNB Job: 16043 EUT: DTS TransmitterModel No: SBACCEL Requirement: General limit of 15.209Tech: CL Payne Mid Channel: 2440 MHzResult: Pass Radiated Spurious Freq in MHz Meter Reading (dBuV/m) Pre-Amp (dB) Cable (dB) Antenna (dB) Corr’d Reading (dBuV/m) Limit (dBuV/m)Delta Azimuth (degrees) Height (m)Polarity Meas TypeAxis 4880.000 32.525.9 5.9 32.9 45.39 74.0-28.61 3301HorzPeakX 4880.000 21.525.9 5.9 32.9 34.33 54.0-19.67 3301HorzAveX 7320.000 32.225.3 7.6 35.8 50.36 74.0-23.64 3301HorzPeakX 7320.000 19.825.3 7.6 35.8 37.93 54.0-16.07 3301HorzAveX 9760.000 30.424.5 9.2 38.0 53.12 74.0-20.88 3321HorzPeakX 9760.000 19.024.5 9.2 38.0 41.75 54.0-12.25 3321HorzAveX 4880.000 32.025.9 5.9 32.9 44.87 74.0-29.13 1271VertPeakX 4880.000 21.025.9 5.9 32.9 33.87 54.0-20.13 1271VertAveX 7320.000 31.825.3 7.6 35.8 49.98 74.0-24.02 1271VertPeakX 7320.000 19.525.3 7.6 35.8 37.68 54.0-16.32 1271VertAveX 9760.000 30.924.5 9.2 38.0 53.58 74.0-20.42 1271VertPeakX 9760.000 19.224.5 9.2 38.0 41.87 54.0-12.13 1271VertAveX 4880.000 32.825.9 5.9 32.9 45.62 74.0-28.38 2001.9HorzPeakY 4880.000 21.125.9 5.9 32.9 33.95 54.0-20.05 2001.9HorzAveY 7320.000 30.625.3 7.6 35.8 48.75 74.0-25.25 2011.9HorzPeakY 7320.000 20.125.3 7.6 35.8 38.24 54.0-15.76 2011.9HorzAveY 9760.000 30.224.5 9.2 38.0 52.91 74.0-21.09 2001.89HorzPeakY 9760.000 19.124.5 9.2 38.0 41.81 54.0-12.19 2001.89HorzAveY 4880.000 32.425.9 5.9 32.9 45.24 74.0-28.76 1121VertPeakY 4880.000 20.925.9 5.9 32.9 33.72 54.0-20.28 1121VertAveY 7320.000 30.525.3 7.6 35.8 48.69 74.0-25.31 1121VertPeakY 7320.000 19.625.3 7.6 35.8 37.72 54.0-16.28 1121VertAveY 9760.000 31.724.5 9.2 38.0 54.40 74.0-19.60 1121VertPeakY 9760.000 19.024.5 9.2 38.0 41.75 54.0-12.25 1121VertAveY 4880.000 33.825.9 5.9 32.9 46.67 74.0-27.33 1001.15HorzPeakZ 4880.000 20.925.9 5.9 32.9 33.79 54.0-20.21 1001.15HorzAveZ 7320.000 31.425.3 7.6 35.8 49.53 74.0-24.47 1001.15HorzPeakZ 7320.000 19.625.3 7.6 35.8 37.70 54.0-16.30 1001.15HorzAveZ 9760.000 30.024.5 9.2 38.0 52.74 74.0-21.26 1001.15HorzPeakZ 9760.000 19.124.5 9.2 38.0 41.80 54.0-12.20 1001.15HorzAveZ 4880.000 34.325.9 5.9 32.9 47.17 74.0-26.83 2641VertPeakZ 4880.000 28.825.9 5.9 32.9 41.66 54.0-12.34 2641VertAveZ 7320.000 31.725.3 7.6 35.8 49.83 74.0-24.17 2641VertPeakZ 7320.000 19.625.3 7.6 35.8 37.75 54.0-16.25 2641VertAveZ 9760.000 31.924.5 9.2 38.0 54.61 74.0-19.39 2641VertPeakZ 9760.000 19.124.5 9.2 38.0 41.82 54.0-12.18 2641VertAveZ Page 51 of 79 Client:Icon Health & FitnessDate: 22 Oct 2020DNB Job: 16043 EUT: DTS TransmitterModel No: SBACCEL Requirement: General limit of 15.209Tech: CL Payne High Channel: 2480 MHzResult: Pass Radiated Spurious Freq in MHz Meter Reading (dBuV/m) Pre-Amp (dB) Cable (dB) Antenna (dB) Corr’d Reading (dBuV/m) Limit (dBuV/m)Delta Azimuth (degrees) Height (m)Polarity Meas TypeAxis 4960.000 43.625.8 5.9 33.0 56.66 74.0-17.34 01.22HorzPeakX 4960.000 31.525.8 5.9 33.0 44.49 54.0-9.51 01.22HorzAveX 7440.000 39.125.3 7.7 35.9 57.48 74.0-16.52 01.22HorzPeakX 7440.000 27.325.3 7.7 35.9 45.74 54.0-8.26 01.22HorzAveX 9920.000 39.524.4 9.3 38.1 62.42 74.0-11.58 01.22HorzPeakX 9920.000 28.024.4 9.3 38.1 50.93 54.0-3.07 01.22HorzAveX 4960.000 40.425.8 5.9 33.0 53.39 74.0-20.61 2161.25VertPeakX 4960.000 29.125.8 5.9 33.0 42.18 54.0-11.82 2161.25VertAveX 7440.000 39.325.3 7.7 35.9 57.69 74.0-16.31 2151.26VertPeakX 7440.000 27.425.3 7.7 35.9 45.78 54.0-8.22 2151.26VertAveX 9920.000 40.724.4 9.3 38.1 63.63 74.0-10.37 2151.26VertPeakX 9920.000 28.024.4 9.3 38.1 50.95 54.0-3.05 2151.26VertAveX 4960.000 41.425.8 5.9 33.0 54.41 74.0-19.59 2002.42HorzPeakY 4960.000 29.725.8 5.9 33.0 42.69 54.0-11.31 2002.42HorzAveY 7440.000 38.825.3 7.7 35.9 57.16 74.0-16.84 2002.42HorzPeakY 7440.000 27.325.3 7.7 35.9 45.74 54.0-8.26 2012.42HorzAveY 9920.000 40.024.4 9.3 38.1 62.97 74.0-11.03 2022.42HorzPeakY 9920.000 27.924.4 9.3 38.1 50.87 54.0-3.13 2032.42HorzAveY 4960.000 40.925.8 5.9 33.0 53.95 74.0-20.05 1071VertPeakY 4960.000 29.325.8 5.9 33.0 42.31 54.0-11.69 1071VertAveY 7440.000 39.625.3 7.7 35.9 58.03 74.0-15.97 1101VertPeakY 7440.000 27.425.3 7.7 35.9 45.79 54.0-8.21 1101VertAveY 9920.000 38.324.4 9.3 38.1 61.29 74.0-12.71 1061VertPeakY 9920.000 28.024.4 9.3 38.1 50.94 54.0-3.06 1061VertAveY 4960.000 41.525.8 5.9 33.0 54.56 74.0-19.44 921HorzPeakZ 4960.000 29.125.8 5.9 33.0 42.17 54.0-11.83 921HorzAveZ 7440.000 39.125.3 7.7 35.9 57.51 74.0-16.49 921HorzPeakZ 7440.000 27.325.3 7.7 35.9 45.73 54.0-8.27 921HorzAveZ 9920.000 40.224.4 9.3 38.1 63.19 74.0-10.81 921HorzPeakZ 9920.000 28.024.4 9.3 38.1 50.93 54.0-3.07 921HorzAveZ 4960.000 42.525.8 5.9 33.0 55.55 74.0-18.45 2701.45VertPeakZ 4960.000 30.025.8 5.9 33.0 43.08 54.0-10.92 2701.45VertAveZ 7440.000 50.225.3 7.7 35.9 68.62 74.0-5.38 2701.45VertPeakZ 7440.000 27.325.3 7.7 35.9 45.70 54.0-8.30 2701.45VertAveZ 9920.000 40.724.4 9.3 38.1 63.71 74.0-10.29 2701.45VertPeakZ 9920.000 28.024.4 9.3 38.1 50.93 54.0-3.07 2701.45VertAveZ Page 52 of 79 15.247 (d)Restricted BandsANSI C63.10-2013 Clause 11.12.2 11.12.2 Antenna-port conducted measurements 11.12.2.1 General Antenna-port conducted measurements may also be used as an alternative to radiated measurements for determining compliance in the restricted frequency bands requirements. If conducted measurements are performed, then proper impedance matching must be ensured and an additional radiated test for cabinet/case emissions is required. 11.12.2.2 General procedure for conducted measurements in restricted bands The general procedure for conducted measurements in restricted bands is as follows: a) Measure the conducted output power (in dBm) using the detector specified by the appropriate regulatory agency (see 11.12.2.3 through 11.12.2.5 for guidance regarding measurement procedures for determining quasi-peak, peak, and average conducted output power, respectively). b) Add the maximum transmit antenna gain (in dBi) to the measured output power level to determine the EIRP (see 11.12.2.6 for guidance o…

Text truncated - open the document above for the full version.

Test Set Up Photos - 1 Test Set Up Photos - 2 Test Set Up Photos - 3
