ON5-OHR30Optical Heart Rate Sensor

Copyright© 2020 CATEYE Co,.Ltd. OHR-30 Optical heart rate sensor 3. Using the optical heart rate sensor 2. Pairing 1. Before use: How to charge Parts names Handling and Support Button Wrist band LED indicator Optical sensor Contact 1. Before use: How to charge OHR-30 Charging precautions •Avoid charging under direct sunlight or in a vehicle parked under direct sunlight, and make sure to charge only when the ambient temperature is between 5 and 40°C. • Before charging, be sure that no dust or other foreign objects are attached to the USB plug. • When the connected PC is in the sleep state, the battery cannot be charged. • Do not subject the device to vibrations while charging. Usage precautions • Charging, discharging, and storing in high temperature environments will cause the rechargeable battery to deteriorate faster. Do not place the product inside a vehicle or near a heater. • If the operating time is significantly reduced even after proper charging, the rechargeable battery may be reaching the end of its service life. Dispose of the battery according to the disposal precautions. Storage precautions If the device will not be used for a long period of time, store it in a location that is not too hot or too humid. In addition, charge the battery for about 30 minutes every 6 months. Disposal precautions When disposing of the product, remove the internal rechargeable battery and dispose of it according to local regulations. Caution! When using this sensor with a CATEYE computer, the heart rate display will flash when the remaining battery power is low. Important Be sure to charge it before use, according to the instructions “How to charge” and “Charging precautions”. Handling the rechargeable battery Recharge the sensor if the computer's heart rate display starts flashing. Copyright© 2020 CATEYE Co,.Ltd. The indicator turns red and charging starts. The indicator turns blue to indicate that charging is complete. * When your PC is in sleep state, the unit may not be charged. * Charging and operating times are approximate values, and will vary by environmental and user conditions. USB charging cable connector LED indicator Contact Standard charging time Approx. 1.5 hours Continuous operating time Approx. 8 – 10 hours 1. Attach the USB charging cable connector to the contact of the heart rate sensor, and charge using a PC or a commercially available USB charger. Be careful that metal objects do not touch the contacts of the charging cable connector. This Caution! could lead to an electrical short circuit and damage the device. - 1. Before use: How to charge 2. Pairing OHR-30 This section explains how to pair the smart computer and the sensor using the “Cateye Cycling™” smartphone app. To pair the sensor directly to the computer without a smartphone, refer to your computer’s online manual or instruction manual. Important The Cateye Cycling™ smartphone app (free) must be installed on the smartphone to be used in advance. * For the latest information on the smartphones that are compatible with Cateye Cycling™ operations, see “Cateye Cycling™ Recommended Devices”. If using an iPhoneIf using an Android smartphone Tap [Pair to Device] to start pairing. 2. Press the heart rate sensor button to transmit the signal. The indicator flashes blue. When Cateye Cycling™ detects the sensor signal, a message will be displayed on the smartphone. Tap [Pair to Device]. The verified sensor (CATEYE OHR-30) is displayed under [Device] and pairing is completed. * When pairing a sensor with the Cateye Cycling™ app an “A” is displayed after the sensor name (HR). Press LED indicator Smartphone 1. Verify that [Connect] is set to ON in the (MENU), and then tap [Device]. Pairing via Bluetooth Perform pairing at a distance of no more than 3 m. Important Copyright© 2020 CATEYE Co,.Ltd. Heart rate will not be displayed on the measurement screen in default configuration. Customize the measurement screen to display heart rate. AVVEBTURA: Changing the measurement screen PADRONE SMART+: Changing the measurement screen When using ANT+ to perform pairing or pairing with a commercial computer Refer to the instruction manual for your computer. - • When using the smart computer in Sensor Direct Mode: Connect the smart computer to Cateye Cycling™, and then transmit the paired sensor information. STRADA SMART/PADRONE SMART: Connecting smart computer and smartphone PADRONE SMART+: Connecting smart computer and smartphone • When using AVVENTURA/PADRONE SMART+: Important 3.After pairing is complete, turn off the power of the heart rate sensor. Press and hold the heart rate sensor button, and release your finger when the LED indicator turns red. 1. Before use: How to charge 3. Using the optical heart rate sensor OHR-30 Never use this device if you are using a pacemaker. Warning!!! • Secure the sensor appropriately using the wrist band so that the optical sensor part makes close contact with the skin. • If an allergic reaction or skin inflammation occurs during use, stop using immediately, and consult with a doctor. • When the outside temperature is low, the heart rate may not be measured correctly. In these situations, use your cycling wear or other object to warm the sensor, and then perform measurement. •This sensor cannot be used underwater. Wear the optical heart rate sensor on your arm. Before wearing the heart rate sensor 2. Wear the sensor on your wrist, forearm, or upper arm using the wrist band. Adjust the length of the wrist band, and secure the sensor in place. Overtightening the wrist band may cause discomfort during measurement. 1. Press the heart rate sensor button to turn on the sensor. The indicator flashes blue. Press LED indicator 2. Pairing Copyright© 2020 CATEYE Co,.Ltd. * Ensure that the optical sensor part is in close contact with your body. * If the heart rate cannot be measured correctly, try again by wearing on a different area (wrist, forearm, upper arm). 3.After measurement is complete, turn off the power of the…

Text truncated - open the document above for the full version.

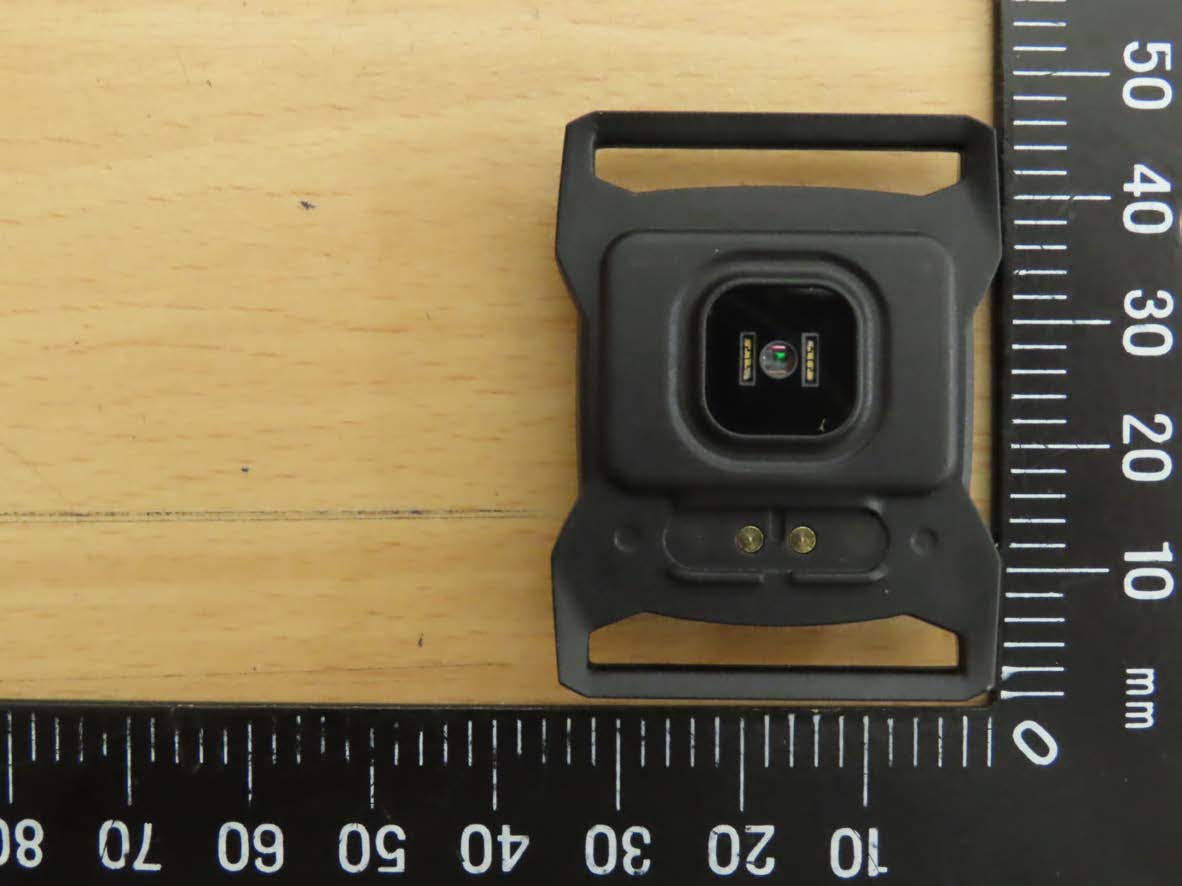

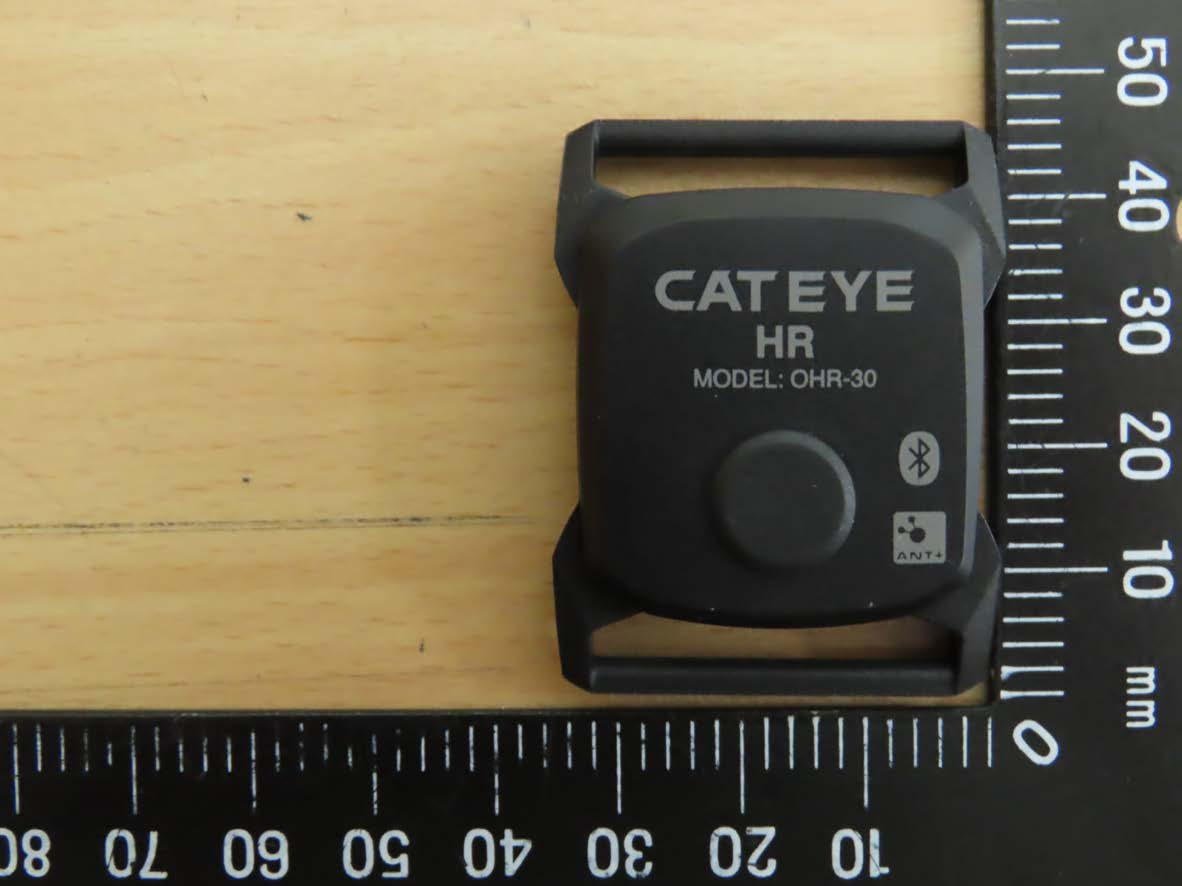

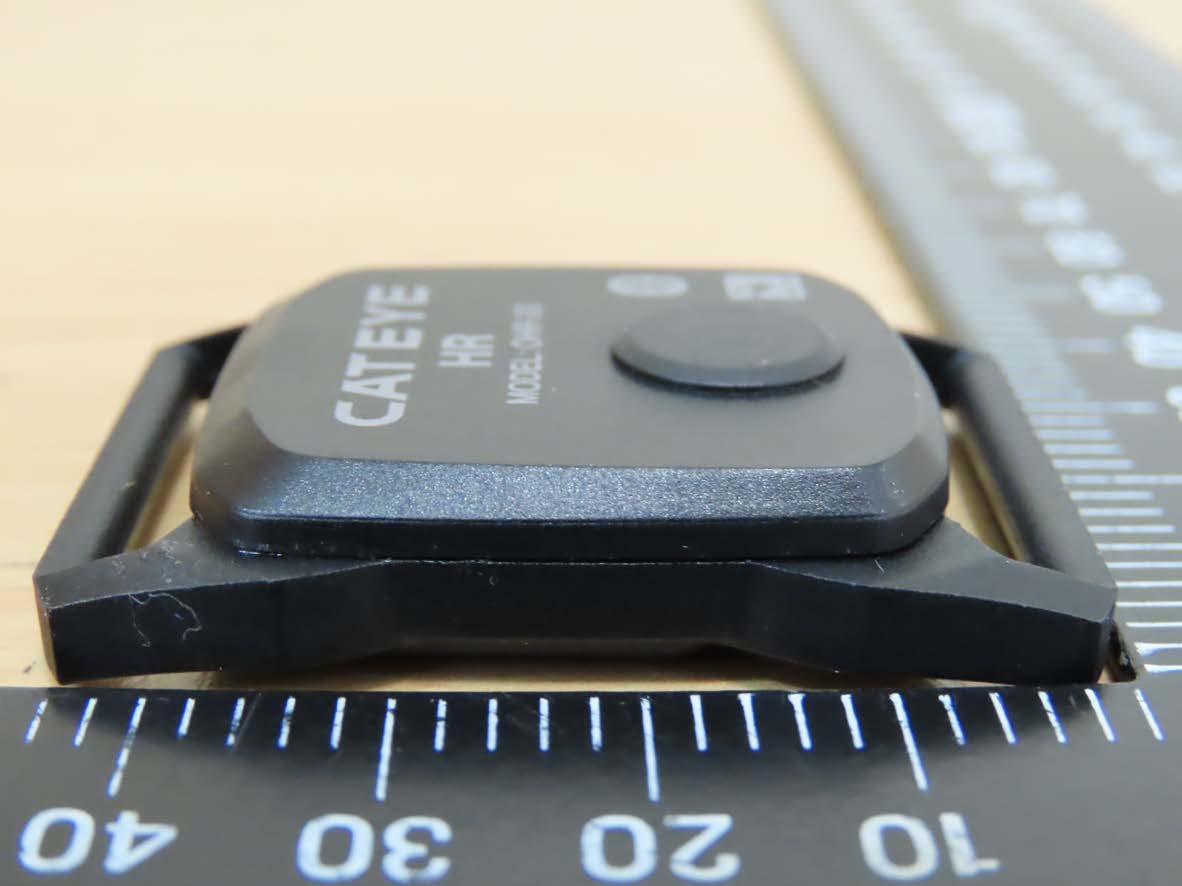

Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 20

FCCID: ON5‐OHR30 IC: 5672A‐OHR30

Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 20 Registration number: W6M22004-19822-FCC FCC ID: ON5-OHR30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 20

Registration number: W6M22004-19822-C-1 FCC ID: ON5-OHR30 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) BLE EIRP = max. conducted output power + antenna gain EIRP = - 3.11 dBm + (0 dBi [antenna gain claimed by manufacturer] = -3.11 dBm = 0.4887 mW ANT+ EIRP = max. conducted output power + antenna gain EIRP = - 3.30 dBm + (0 dBi [antenna gain claimed by manufacturer] = -3.30 dBm = 0.4677 mW Test equipment used: ETSTW-RE 055 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation distance BLE MHz 5 10 15 20 25 mm 2402 10.09 19.26 29.35 38.52 48.52 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2402 57.70 67.79 77.87 87.05 97.13 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz Max. output power level at 5 mm separation distance at 2402 MHz according to table is: 10.09 mW The product is exempt from SAR Evaluation/Testing because the output power of 0.4887 mW is below the exemption limit of 10.09 mW. Worldwide Testing Services (Taiwan) Co., Ltd. Page 16 of 32 Registration number: W6M22004-19822-C-1 FCC ID: ON5-OHR30 ANT+ MHz 5 10 15 20 25 mm 2457 9.99 18.98 28.97 37.96 47.95 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2457 56.94 66.93 76.91 85.91 95.90 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2457 MHz Max. output power level at 5 mm separation distance at 2457 MHz according to table is: 9.99 mW The product is exempt from SAR Evaluation/Testing because the output power of 0.4677 mW is below the exemption limit of 9.99 mW. Worldwide Testing Services (Taiwan) Co., Ltd. Page 17 of 32

of Applicant: CATEYE Co., Ltd. Address: 2-8-25, Kuwazu, Higashi-Sumiyoshi- Ku, Osaka 546-0041, Japan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22004-19822-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Optical Heart Rate Sensor Model No.: OHR-30 FCC ID: ON5-OHR30 Registration number: W6M22004-19822-C-1 FCC ID: ON5-OHR30 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES ...................................................................................................................................................................... 2 1.2 TESTING LABORATORY ............................................................................................................................................. 3 1.2.1 Location .............................................................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ............................................................................................................................... 3 1.4 APPLICATION DETAILS .............................................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ..................................................................................................................... 4 1.6 TEST STANDARDS ..................................................................................................................................................... 5 2 TECHNICAL TEST ........................................................................................................................................................ 6 2.1 SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 2.2 TEST ENVIRONMENT ................................................................................................................................................. 6 2.3 TEST EQUIPMENT LIST .............................................................................................................................................. 7 2.4 GENERAL TEST PROCEDURE ................................................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ............................................................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ................................................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) ............................................................................................... 16 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ................................................................................ 18 3.5 SPURIOUS EMISSIONS (TX) ...................................................................................................................................... 19 3.6 RADIATED EMISSION ON THE BAND EDGE ............................................................................................................... 21 3.7 MINIMUM 6 DB BANDWIDTH .................................................................................................................................. 24 3.8 PEAK POWER SPECTRAL DENSITY .......................................................................................................................... 27 3.9 RADIATED EMISSION FROM RECEIVER PART .......................................................................................................... 30 3.10 POWER LINE CONDUCTED EMISSION ...................................................................................................................... 31 Worldwide Testing Services (Taiwan) Co., Ltd. Page 1 of 32 Registration number: W6M22004-19822-C-1 FCC ID: ON5-OHR30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio freq…
