ON5-SPD30CDC30Magnet-less Speed & Cadence Sensors

Copyright© 2020 CATEYE Co,.Ltd. SPD-30 Speed sensor 3. How to install the unit on your bicycle 2. Pairing 1. Before use: Battery replacement Handling and Support 1. Before use: Battery replacement Before use Insert the included lithium battery (CR2032) so that the (+) side is visible, and then close the battery cover securely. • Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. • Keep new and used batteries away from children. • If the battery compartment does not close securely , stop using the product and keep it away from children. • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Warning!!! • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. • Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas. • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. •A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Caution! SPD-30 Copyright© 2020 CATEYE Co,.Ltd. Change the sensor’s battery if the computer’s current speed display starts flashing. Battery replacement When using this sensor with a CATEYE computer, the speed display will flash when it is time to replace the battery. Important CloseOpen Battery cover 2. Pairing 1. Before use: Battery replacement SPD-30 Smartphone 1. Verify that [Connect] is set to ON in the (MENU), and then tap [Device]. Pairing via Bluetooth This section explains how to pair the smart computer and the sensor using the “Cateye Cycling™” smartphone app. To pair the sensor directly to the computer without a smartphone, refer to your computer’s online manual or instruction manual. Important The Cateye Cycling™ smartphone app (free) must be installed on the smartphone to be used in advance. * For the latest information on the smartphones that are compatible with Cateye Cycling™ operations, see “Cateye Cycling™ Recommended Devices”. If using an iPhoneIf using an Android smartphone 3. Set the tire circumference to the sensor. Tap [Device], and then tap the newly paired [SPD-A#] > [Tire Circumference] (the length of the outer circumference of the tire) > number field, and change the tire circumference. Select the tire circumference according to the tire size written on the side of the tire. Detail on how to determine the tire circumference * Default value: 2096 mm (700x23c) * Requires to set tire circumference for each sensor . Sensor pairing is now complete. * If you want to pair another sensor, repeat the same procedure again. *You can also change sensor names and cancel pairing from this screen. 2. Shake the sensor, or rotate the tire where it is mounted to transmit the signal. When Cateye Cycling™ detects the sensor signal, a message will be displayed on the smartphone. Tap [Pair to Device]. The verified sensor (CATEYE SPD-30) is displayed under [Device] and pairing is completed. * When pairing a sensor with the Cateye Cycling™ app an “A” is displayed after the sensor name (SPD). When using ANT+ to perform pairing or pairing with a commercial computer Refer to the instruction manual for your computer. When using the smart computer in Sensor Direct Mode: Connect the smart computer to Cateye Cycling™, and then transmit the paired sensor information. STRADA SMART/PADRONE SMART: Connecting smart computer and smartphone PADRONE SMART+: Connecting smart computer and smartphone Important 1. Before use: Battery replacement 3. How to install the unit on your bicycle 1. Attach the rubber pad to the sensor. This sensor can measure speed just by installing the sensor to the hub spindle of the bicycle. The sensor can be installed to either the front or rear wheel. SPD-30 Sensor rubber pad 2. Pairing Copyright© 2020 CATEYE Co,.Ltd. 2. Install the sensor to the hub spindle of the wheel. * The nylon ties can be used for holding in place more securely. Check periodically to ensure that the unit is attached securely. Do not use a damaged rubber band. Warning!!! Rubber band Handling and Support Speed sensor SPD-30 Specifications Batteries usedLithium battery (CR2032) x1 Battery lifeApprox. 10 months (If used for 1 hour a day.) *As the included battery is for monitor use, battery life may be shorter than that indicated above. * Battery life may be shortened depending on the usage conditions. Transmission/receptionBluetooth 4.1 / ANT+ Signal rangeApprox. 30 m (The range will vary depending on weather and surroundings.) SensorAcceleration sensor Temperature range32°F – 104°F (0°C – 40°C) WaterproofIPX7 *This device is rated IPX7 based on JIS C0920. Dimensions/weight1-23/64" x 1-1/2" x 7/16" (34.4 x 38 x 11.3 mm) / 0.36 oz (10.3 g) (Unit only) * Specifications and design are subject to be changed without notice. Warning!!! / Caution! Warning!!! • If a battery is swallowed accidentally, consult a doctor immediately. • Check periodically to ensure that the unit is attached securely. Do not use a damaged rubber band. Product warranty 2-year guarantee Sensor unit (Accessories and battery consumption excluded) CatEye cycle computers are warranted to be free of defects from materials and workmanship for a period of two years from original purchase. If the product fails to work due to normal use, CatEye will repair or replace the defect at no charge. Service must be performed by CatEye or an authorized retail…

Text truncated - open the document above for the full version.

CATEYECo.9Ltd. 2-8-25,Kuwazu,Higashi-Sumiyoshi-Ku,Osaka546-0041Japan FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 74350aklandMillsRoad Columbia,MD21046 Date:2020-04-27 Towhomitmayconcern: We,theundersigned,herebyauthorizeWorldwideTestingServices(Taiwan)Co.,Ltdtoactonour behalfinallmattersrelatingtoapplicationsbrequipmentauthorizationFCCID:ON5-SPD30CDC30 includingthesigningofalldocumentsrelatedtothesematters. AnyandallactscarriedoutbyWorldwideTestingServices(Taiwan)Co.,Udonourbehalfshallhave thesameefbctasactsofourown. WeaIsoherebycertifythatnopartytothisapplicationissumecttoadenialofbenefits,includingFCC

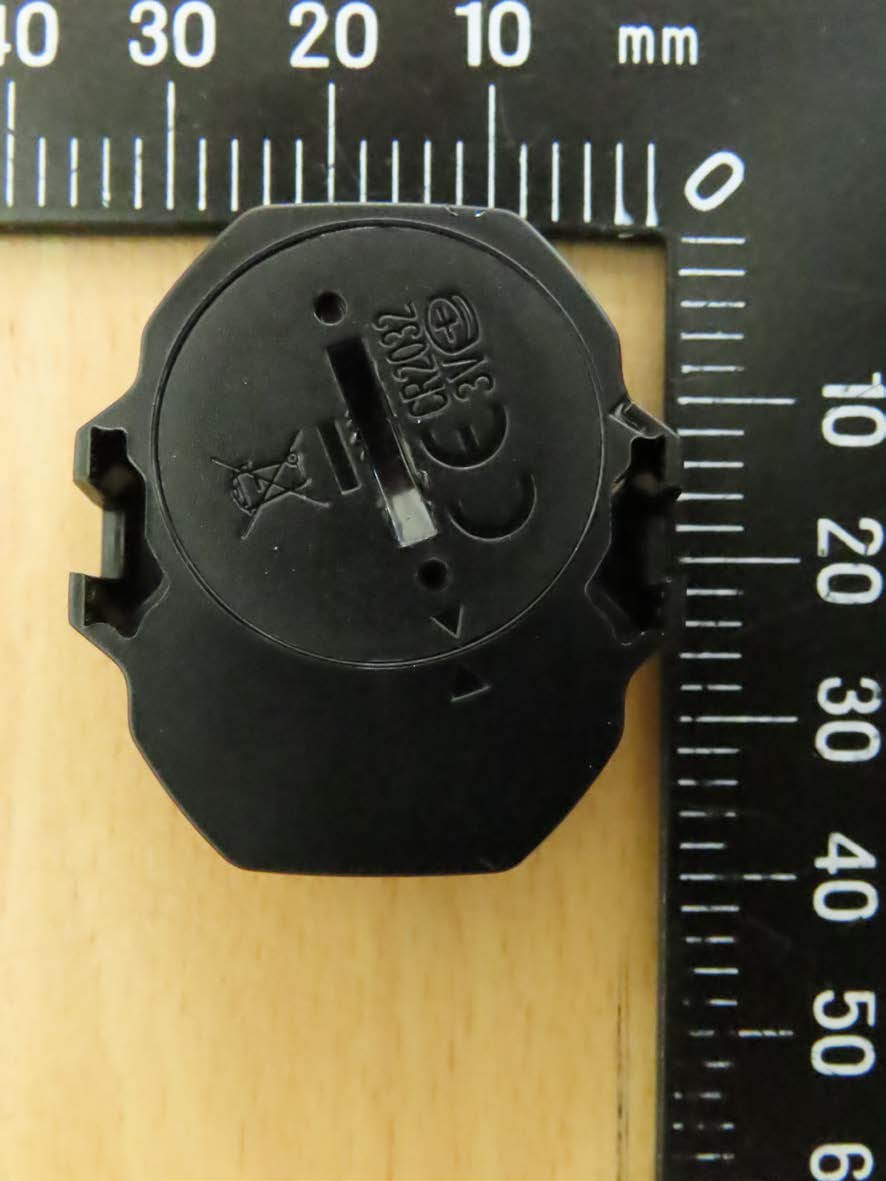

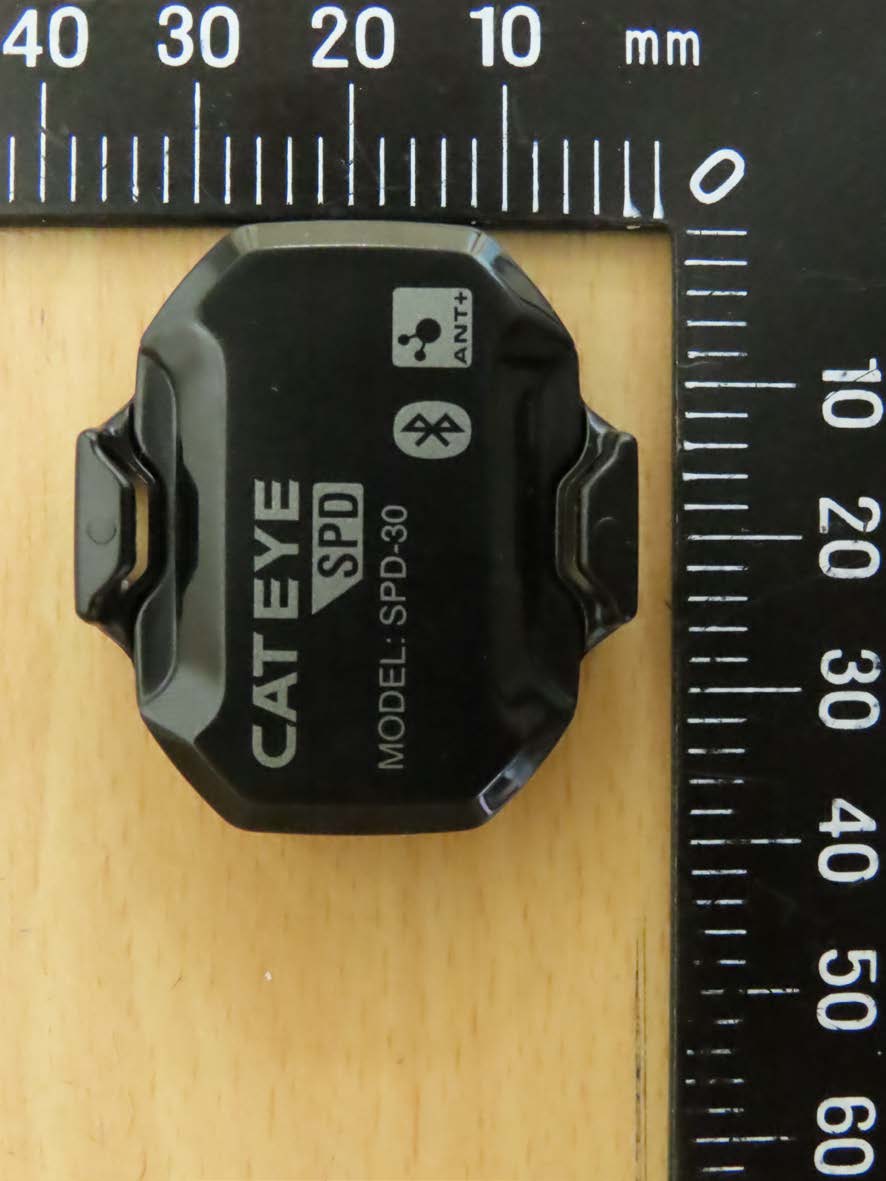

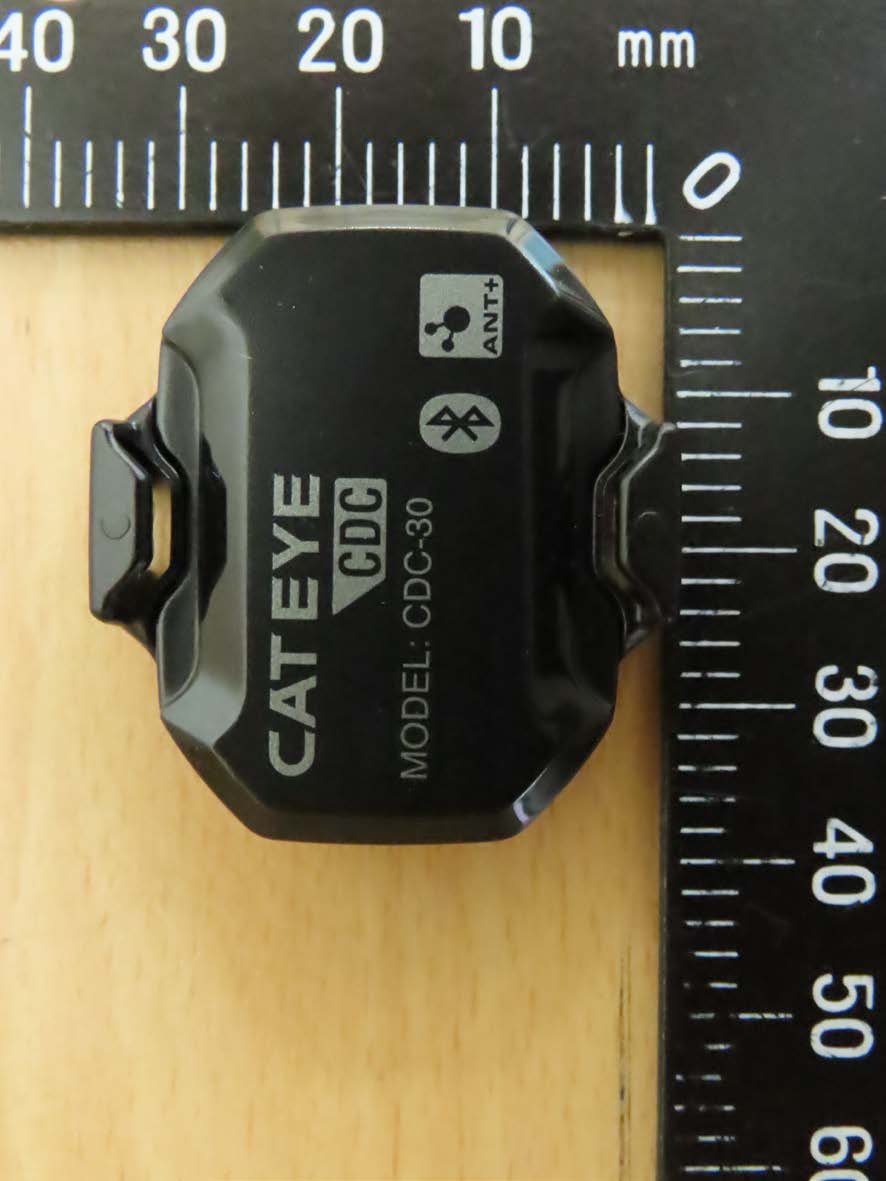

Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Multi-listing Model No.: CDC-30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 26

FCCID: ON5‐SPD30CDC30 FCCID: ON5‐SPD30CDC30 IC: 5672A‐SPD30CDC30 IC: 5672A‐SPD30CDC30

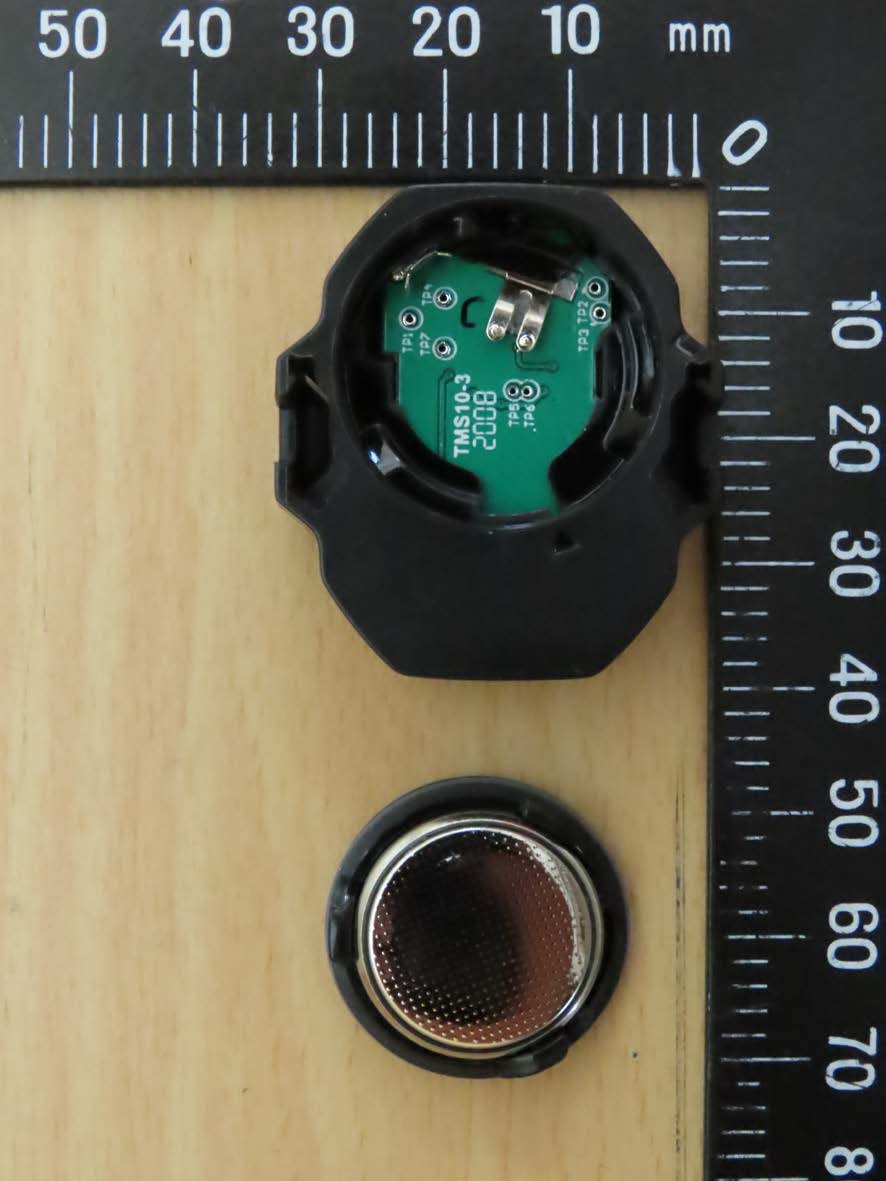

Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 26

Registration number: W6M22004-19821-C-1 FCC ID: ON5-SPD30CDC30 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) BLE EIRP = max. conducted output power + antenna gain EIRP = - 0.85 dBm + (0 dBi [antenna gain claimed by manufacturer] = -0.85 dBm = 0.82 mW ANT+ EIRP = max. conducted output power + antenna gain EIRP = - 2.59 dBm + (0 dBi [antenna gain claimed by manufacturer] = -2.59 dBm = 0.55 mW Test equipment used: ETSTW-RE 055 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation distance BLE MHz 5 10 15 20 25 mm 2402 10.09 19.26 29.35 38.52 48.52 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2402 57.70 67.79 77.87 87.05 97.13 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz Max. output power level at 5 mm separation distance at 2402 MHz according to table is: 10.09 mW The product is exempt from SAR Evaluation/Testing because the output power of 0.82 mW is below the exemption limit of 10.09 mW. Worldwide Testing Services (Taiwan) Co., Ltd. Page 16 of 31 Registration number: W6M22004-19821-C-1 FCC ID: ON5-SPD30CDC30 ANT+ MHz 5 10 15 20 25 mm 2457 9.99 18.98 28.97 37.96 47.95 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2457 56.94 66.93 76.91 85.91 95.90 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2457 MHz Max. output power level at 5 mm separation distance at 2457 MHz according to table is: 9.99 mW The product is exempt from SAR Evaluation/Testing because the output power of 0.55 mW is below the exemption limit of 9.99 mW. Worldwide Testing Services (Taiwan) Co., Ltd. Page 17 of 31

of Applicant: CATEYE Co., Ltd. Address: 2-8-25, Kuwazu, Higashi-Sumiyoshi- Ku, Osaka 546-0041, Japan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 Industry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22004-19821-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Magnet-less Speed & Cadence Sensors Model No.: SPD-30 FCC ID: ON5-SPD30CDC30 Registration number: W6M22004-19821-C-1 FCC ID: ON5-SPD30CDC30 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES ...................................................................................................................................................................... 2 1.2 TESTING LABORATORY ............................................................................................................................................. 3 1.2.1 Location .............................................................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ............................................................................................................................... 3 1.4 APPLICATION DETAILS .............................................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ..................................................................................................................... 4 1.6 TEST STANDARDS ..................................................................................................................................................... 5 2 TECHNICAL TEST ........................................................................................................................................................ 6 2.1 SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 2.2 TEST ENVIRONMENT ................................................................................................................................................. 6 2.3 TEST EQUIPMENT LIST .............................................................................................................................................. 7 2.4 GENERAL TEST PROCEDURE ..................................................................................................................................... 7 3 TEST RESULTS (ENCLOSURE) ............................................................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ................................................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) ............................................................................................... 16 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS ................................................................................ 18 3.5 SPURIOUS EMISSIONS (TX) ...................................................................................................................................... 19 3.6 RADIATED EMISSION ON THE BAND EDGE ............................................................................................................... 21 3.7 MINIMUM 6 DB BANDWIDTH .................................................................................................................................. 24 3.8 PEAK POWER SPECTRAL DENSITY .......................................................................................................................... 27 3.9 RADIATED EMISSION FROM RECEIVER PART .......................................................................................................... 30 3.10 POWER LINE CONDUCTED EMISSION ...................................................................................................................... 31 Worldwide Testing Services (Taiwan) Co., Ltd. Page 1 of 31 Registration number: W6M22004-19821-C-1 FCC ID: ON5-SPD30CDC30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC su…

Text truncated - open the document above for the full version.

Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Set Up Photo of Radiated Emission EMI Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 RF Below 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 26 Registration number: W6M22004-19821-FCC FCC ID: ON5-SPD30CDC30 Above 1 GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 26
