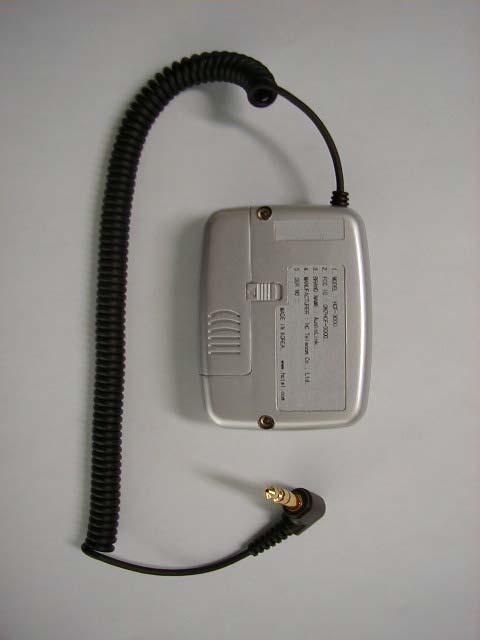

ON7HCF-3000FM TRANSCEIVER

HC Telecom Co Ltd

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Feb 26, 2004
Application Purpose: Original Equipment
Date of Application: Feb 26, 2004
Equipment Note: FM TRANSCEIVER
Frequency Range: 88.00000000 - 108.00000000
Company: HC Telecom Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

HC Telecom Co., Ltd. e-mail : [email protected] fax : +82 32 663-4489 Wireless Audio Sender - FM band Features FM Band full channels (88.0 ~ 108.0MHz) available Channel selection Up (1 or 0.1MHz) / Down (0.1MHz) Excellent sound by wireless solution LCD display (Frequency, Low Battery) Back Lighting Max. 8 hours play with one 1.5V AAA battery TX power : less than 0.1mW Allowable distance : 3m User’s guide 1. Plug the Audio Sender’s plug into your portable music player. 2. Turn on the power by pressing button (1) for at least 2 seconds. (Insert a 1.5V AAA battery before turning on the power.) 3. Turn on your car or home radio. 4. Select and save your car or home radio’s frequency to a channel that has no broadcasting on it. 5. Match the Audio Sender’s frequency with your radio’s frequency by pressing button (1) or (2). (Frequency goes up by 1MHz by long pressing the button (2).) 6. Turn on your portable music player (i.e. portable CD player, MP3 player, etc.,) and play the music. (Due to the characteristics of FM, for better quality sound, you should adjust the volume level by your radio’s volume switch while leaving your portable player’s volume to lower than medium level.) ** Change the frequency of your portable music player and car or home radio if you hear interferences. ** The Audio Sender’s wire performs as Antenna, so do not make the wire is rolled. Button (2) Channel Up (1 / 0.1MHz) Button (1) Channel Down (0.1MHz) Power On / Off mjjGuv{pjlG G FG jGGkjG G G G G G G G G G G G G G G G {GGGGGGGG GGGGGGjGiGGSGGG G X\G G G mjjG yUG {G G G G G G G G G G G G G G UG {G G SG G G G G G G GSGGGGGGGGGGSG GGGGG G UG oSG G G G G G G G G G G G G UGpGGGGGGGGGGGSGGGG G G G G G G G SG G G G G G G GG G G G GGGGGGGGaG G TGyGGGGGUG G TGpGGGGGGGUG G TGjGGGGGGGGGGG G G G GGGGGGUG G TGjGGGGGGV{}GGGUG G G uv{lG aG {G G G G G G G G G {}G G G G ¡G G G G UG zG G G G G NG G G G G UG G G G G G {opzGkl}pjlGjvtwsplzG~p{oGwhy{GX\GvmG{olGmjjGy|slzUGGG vwlyh{pvuGpzGz|iqlj{G{vG{olGmvssv~punG{~vGjvukp{pvuzaG OXPG{opzGkl}pjlGthGuv{Gjh|zlGohytm|sGpu{lymlylujlSGhukG OYPG{opzGkl}pjlGt|z{Ghjjlw{GhuGpu{lymlylujlGyljlp}lkSG pujs|kpunGpu{lymlylujlG{oh{GthGjh|zlG|uklyzpylkGvwlyh{pvuU G

Block Diagram

! " "# $ % &&& #$ &&'& & (% # " # $ # ) ( #

ID Label/Location Info

G Labbal Location

ID Label/Location Info

G mjjGthyrpunVshilsGmvyGwhy{GX\ G G G G G G G G ! "# $% & ' ()))*"% !"#

Operational Description

CIRCUIT DESCRIPTION 1. Power part a. Voltage from 1.5V battery makes it increased to 3.6V at D-D converter (U5) after passing L7. b. The voltage increased to 3.6V is provided to Logic Part and switched to Q1 and then provided to RF Part. 2. Reset Part When power comes in the circuit, MCU is reset by R16 and C28. 3. Low Battery Part In case of the battery voltage becoming 1.1V and less, U6 checks it and makes the MCU to display it on the LCD. 4. Audio Part a. Audio signal separated from right and left by Audio Jack comes in U1 (FM Sender). b. The signal is mixed to Stereo signal inside of U1 and it makes FM modulation at D1. 5. RF Part Channel data is sent to U1 from MCU and it makes Frequency at PLL circuit and related frequency is radiated without wire through the ground line (Antenna) at Audio Jack.

Parts List/Tune Up Info

LOGIC 1 PCB,,HCF3000,LOGIC,REV 0 1 2 LCD1LCD1 3 IC,S3P9228,OTP,SOP1U3SAMSUNG 4 IC,24C02,EEPROM,2.7V,SOP1U4ATMEL 5 IC,RN5RK361A,D-D CONVERTER,SOP1U5RICOH 6 IC,R3111Q111A,SOP,VD1U6RICOH 7 TR,CHIP,KTA1505Y2Q1,Q3KEC 8 DIODE,CHIP,RB411D1D2ROHM 9 DIODE,CHIP,KDS1811D4KEC 10 CHIP LED SIDE VIEW, HT-110YG-CT1LED2 11 X-TAL,32.768Khz1X2 12 SWITCH,TACT, 2.5mm SMD2SW1,SW2 13 COIL,CHOCK,100uH,BK,AX,LA36-101K1L7 14 RES,CHIP,472,J,1608,1/16W2R23,R24 15 RES,CHIP,474,J,1608,1/16W9 R15,R16,R17,R18,R19,R20,R22,R45, R46 16 RES,CHIP,561,J,1608,1/16W1R43 17 CAP,CHIP,104,Z,1608,50V/Y5V2C29,C32 18 CAP,CHIP,120,J,1608,50V/COG2C26,C27 19 CAP,CHIP,334,Z,1608,50V/Y5V1C28 20 CAP,TANTAL,10UF,A SIZE,6.3V1C31DAEWOO 21 CAP,TANTAL,33UF,B SIZE,6.3V1C30DAEWOO 22 CONN' MAIL,6PIN1CON2 23 CONN' MAIL,3PIN1CON4 RF 1 PCB,,HCF3000,RF,REV 0 1 2 IC,BH1415F,SOP1U1ROHM 3 TR,CHIP,2SD2142K1Q2ROHM 4 DIODE,VARICAP,KV1471E1D1TOKO 5 X-TAL,7.6Mhz1X1 6 COIL,CHIP,FBEAD,1.2uH,16084L1,L2,L5,L6 7 COIL,CHIP,68nH,LMC2012T-680J1L3 8 RES,CHIP,000,J,1608,1/16W1L4 9 RES,CHIP,101,J,1608,1/16W1R11 10 RES,CHIP,102,J,1608,1/16W2R10,R48 11 RES,CHIP,103,J,1608,1/16W2R9,R12 12 RES,CHIP,180,J,1608,1/16W4R1,R2,R6,R7 13 RES,CHIP,203,J,1608,1/16W1R8 14 RES,CHIP,224,J,1608,1/16W1R13 15 RES,CHIP,474,J,1608,1/16W3R3,R4,R5 16 CAP,CHIP,103,K,1608,50V/X7R1C22 17 CAP,CHIP,104,Z,1608,50V/Y5V6C1,C2,C8,C13,C33,C53 18 CAP,CHIP,105,Z,2012,50V/Y5V2C11,C34 19 CAP,CHIP,120,J,1608,50V/COG2C26,C27 20 CAP,CHIP,150,J,1608,50V/COG1C15 21 CAP,CHIP,151,J,1608,50V/COG3C4,C10,C25 22 CAP,CHIP,221,J,1608,50V/COG1C5 VENDORREMARKSPECIFICATIONQ'TY PART LIST No.SPECIFICATIONQ'TYLOCATIONREMARKVENDOR No.LOCATION 1 OF 2 PAGES HC Telecom Co., Ltd. VENDORREMARKSPECIFICATIONQ'TYNo.LOCATION 23 CAP,CHIP,330,J,1608,50V/COG2C6,C7 24 CAP,CHIP,331,J,1608,50V/COG1C17 25 CAP,CHIP,392,K,1608,50V/X7R2C3,C9 26 CAP,CHIP,473,Z,1608,50V/Y5V1C19 27 CAP,TANTAL,33UF,B SIZE,6.3V1C20DAEWOO 28 CAP,TANTAL,47UF,B SIZE,6.3V1C53DAEWOO 29 CONN' FEMAIL,6PIN1CON1 30 CONN' FEMAIL,3PIN1CON3 31 EAR-PHONE CURL-CORD, JACK 3.5pie1 1 BATTERY TERMINAL "+"1 2 BATTERY TERMINAL "-"1 3 FRONT1 4 BACK1 5 BATTERY COVER ROCK KNOB1 6 BATTERY COVER1 7 LCD WINDOW1 8 KEY KNOB1 9 TOP PLATE1 10 NAME PLATE1 11 SCREW, MACHINE, BH) 2x62 12 BATTERY,1.5V1BATT 1 BLASTER1 2 BOX, OUTER CARTON1 3 PAD(PRINTED)1 REMARKLOCATIONVENDOR VENDORREMARKLOCATION Q'TYNo.SPECIFICATION No. PACKING MECHANICAL Q'TYSPECIFICATION 2 OF 2 PAGES HC Telecom Co., Ltd.

Schematics

SCHEMATIC_LOGIC (3296x4677x2 tiff) SCHEMATIC_RF (3296x4677x2 tiff)

Test Report

THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA TEL 81-2-2109-5059 FAX 81-2-2109-5056 email:[email protected] APPLICANT :HC Telecom Co., Ltd. FCC ID : ON7HCF-3000 REPORT :THRU-402004 COVER SHEET Test Report Product Name: FM Tranceiver FCC ID: ON7HCF-3000 Applicant: HC Telecom Co., Ltd 5F.,Chookhyup Blgd, #577 Songnae-Dong,Sosa Puchon,Kyunggi,Korea Date Receipt: 18/Feb/2004 Date Tested: 20/Feb/2004 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA TEL 81-2-2109-5059 FAX 81-2-2109-5056 email:[email protected] APPLICANT :HC Telecom Co., Ltd. FCC ID : ON7HCF-3000 REPORT :THRU-402004 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: HC Telecom Co., Ltd FCC ID: ON7HCF-3000 TEST REPORT CONTAINING: PAGE 1..............TEST EQUIPMENT LIST PAGE 2..............TEST PROCEDURES PAGE 3-6............RADIATION INTERFERENCE TEST DATA PAGE 7..............OCCUPIED BANDWIDTH DATA PAGE 8-10...........OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA TEL 81-2-2109-5059 FAX 81-2-2109-5056 email:[email protected] APPLICANT :HC Telecom Co., Ltd. FCC ID : ON7HCF-3000 REPORT :THRU-402004 Pages: 1of 12 Page 1 of 10 APPLICANT: HC Telecom Co., Ltd FCC ID: ON7HCF-3000 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2004.04.25. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2004.03.17 Spectrum Display 85662A Hewlett Packard 2542A12429 2004.03.17 Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2004.03.17 RF Preselector 85685A Hewlett Packard 2648A00504 2004.03.17 Pre- Amplifier 8449B Hewlett Packard 3008A00375 2004.03.17 Pre- Amplifier 8447F Hewlett Packard 3113A05367 2004.03.17 Spectrum Monitor EZM Rohde & Schwarz 862304/007 2004.03.17 Bico- Antenna 94455-1 Eaton 977 2004.03.17 Log- Periodic Antenna 3146 EMCO 2051 2004.03.17 Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2004.03.17 Horn Antenna SAS-571 A.H Systems 414 2004.03.17 Spectrum Analyzer R3261C Advantest 71720189 2004.04.26 LISN KNW-242 Kyoritsu 8-923-2 2004.07.12 LISN 8012-50-R-24 Solar 8379121 2004.07.12 Loop Ant 6507 EMCO 1435 2004.10.06 THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA TEL 81-2-2109-5059 FAX 81-2-2109-5056 email:[email protected] APPLICANT :HC Telecom Co., Ltd. FCC ID : ON7HCF-3000 REPORT :THRU-402004 Pages: 2of 12 Page 2 of 10 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & Engineering.. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 63 degrees with a humidity of 49%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the spectrum analyzer meter reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1 m by 1.5 m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1 m to 4 m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable battery operated. THRUlab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA TEL 81-2-2109-5059 FAX 81-2-2109-5056 email:[email protected] APPLICANT :HC Telecom Co., Ltd. FCC ID : ON7HCF-3000 REPORT :THRU-402004 Pages: 3of 12 Page 3 of 10 APPLICANT: HC Telecom Co., Ltd FCC ID: ON7HCF-3000 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.239(b) REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 48.0 dBuV/m AT 3M. TEST DATA: Frequency (MHz) Value dBuv/m PK Value dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv/m PK Result dBuv/m AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 88.1 33.5 31.8 H 2.8 10.0 1.5 45.0 43.3 68 48 -23 -4.7 88.1 24.8 20.0 V 2.60 10.0 1.5 36.3 31.5 68 48 -31.7 -16.5 Frequency (MHz) Value dBuv/m PK Value dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv/m PK Result dBuv/m AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 97.7 35.5 34.0 H 2.8 11.0 1.6 48.1 46.6 68 48 -19.9 -1.4 97.7 26.4 22.7 V 2.60 11.0 1.6 39 35.3 68 48 -29 -12.7 Frequency (MHz) Value dBuv/m PK Value dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv/m PK Result dBuv/m AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 107.2 34.3 31.2 H 2.8 11.1 1.7 47.1 44.0 68 48 -20.9 -4.0 107.2 24.1 19.6 V 2.60 11.1 1.7 36.9 32.4 68 48 -31.1 -15.6 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the ma…
