OOQ-M250RFID Reader

PORTABLE READER MODEL M250 OPERATOR’S MANUAL 1 FCC Statement PORTABLE RFID READER MODEL M250 RFID SOLUTIONS S.L. Parque Tecnológico de Andalucía Severo Ochoa 37, Campanillas, Malaga, Spain, 29590 FCC ID: OOQ-M250 Industry Canada Registration IC: 10547A-M250 This device complies with part 15 of the FCC rules, Operation is subject to the following conditions (1) This device may not cause harmful interference, and (2) This device must accept any interference, including Interference that may cause undesired operation of the device. Cet appareil est conforme a la partie 15 de la reglementation FCC. Son functionnement est soumis aux conditions suivantes; (1) Cet appareil ne doit pas provoquer d’interferences nuisibles, et (2) Cet appareil doit accepter toutes interferences, y compris celles qui pourraient provoquer un functionnement indesirable DECLARATION OF CONFORMITY We, RFID Solutions, hereby declare the Product listed above, to which this DECLARATION OF CONFORMITY relates, adheres to the provisions below and is in conformity with essential requirements and other relevant requirements of R &TTE Directive (1995/5/EC. The product is compliant with the following Standards and other Normative Documents: EMC (art.3.1.b): ETSY 300683 Radio Equipment and Systems (RSE) Radio telephone transmitters and receivers for the Marine Mobile Service operation in the VHF bands used on inland waterways, technical characteristics and methods of measurements. SPECTRUM (art.3.2.b) EN 300 330 Electromagnetic compatibility and Radio Spectrum Matters (ERM), Short Range Devices (SRD); Technical characteristics and test methods for radio equipment in the Frequency range of 9KHz. to 30MHz. VOLTAGE (art.3.1.a) 73/23/EEC, Low Voltage Directive (LVD) PRODUCT DESCRIPTION: Portable RFID Reader PRODUCT NAME/MODEL: Portable RFID Reader- Model 250 INTENDED USE: Radio Frequency Identification Device . CAUTION! Any change or modification to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment ATTENTION! Tout changement ou modification non expressement approuve par le service de certification pourraient annuler le droit de l’utilisateur a faire fonctionner cet equipement 2 INDEX FCC statement 2 DECLARATION OF CONFORMTIY 2 BATTERY INSTALLATION 4 OPERATION 4-5 TROUBLE SHOOTING 5 SPECIFICATIONS 6 WARRANTY INFORMATION 6 YOUR NEW PORTABLE RFID READER Congratulations on your new RFID Reader. Before using read the entire manual to understand all features and operation TEST READER Before scanning to find a microchip it is important to test the reader. Use the provided Test Chip to verify if the RFID Reader is functioning properly. 3 BATTERY INSTALLATION Batteries do not come installed in reader Battery: 2 X 1.5V- Type AAA Standard Dry Cell alkaline batteries To install the batteries, first remove the battery door located at the back lower end of the reader by pressing and sliding downwards. Insert the 1.5V batteries into each slot making sure that each battery polarity is in the right orientation by observing that the spring coils in the battery slots are for the negative side of the batteries (flat end of battery) or by observing the direction indicators inside the battery compartment, then replace the battery compartment door by inserting it back to the reader. OPERATION GENERAL INFORMATION The portable reader Model M250 is a compact, battery powered unit that read radio frequency identification microchips or tags. The device allows you to identify the selected microchip type that belongs to a particular company by displaying the information in its 16 X 2 LCD display. Other RFID microchips that may have other different identifier numbers will not activate the reader; therefore the reader will be silent. PREPARING FOR OPERATION Remove the Portable Reader from the shipping package and install the two 1.5 volts (AAA) batteries supplied with the reader. See section for battery installation instructions. HOW RFID IDENTIFICATION WORKS The portable Reader generates and electromagnetic field which is used to energized the glass encapsulated microchip programmed with a unique ID number. The electromagnetic field provides the energy needed for the microchip to transmit its ID number back to the Portable Reader. The Portable Reader decodes the information and displays the programmed message in the LCD display. The operating frequency of the Portable Reader is 134.2 KHz. 4 READING WITH THE PORTABLE READER When you turn on the Portable Reader by pressing the ON button Located at the front center of the reader, the reader will be in reading Mode: The LCD display will show the message “Reading” followed by a beep sound. In this mode the reader will be active for 10 second and shut off automatically if the microchip into the Medcomp Power Port is not within the range of the reader. If the reader detect a microchip within the 10 seconds period, it will beep constantly displaying the following message “MEDCOMP POWER PORT” but if the microchip Is moved away from the reader and out of its range, the beep sound will stop but LCD display will remain with the same message for the period of 10 seconds after that event. READING RANGE The reading range of the Portable Reader is 3 centimeters and the reading procedure should be accomplished by moving the reader in a circular motion around the microchip target. TROUBLE SHOOTING Performance can be affected by metal objects and computer equipment. These items can cause a reduce read range for identifying microchips. Operate this unit clear of these devices for optimal performance. Microchip is not detected. Verify the Reader with test microchip Reader does not start Verify if batteries were installed correctly and are fully charged Reader turns off quickly Change batteries 5 SPECIFICATIONS Case size L: 12 cm W: 7.5 cm H: 2.2 cm Weight 91g Color White Material ABS plastic Operating temperature 0° to 50° C Temperature Storage -20° to…

Text truncated - open the document above for the full version.

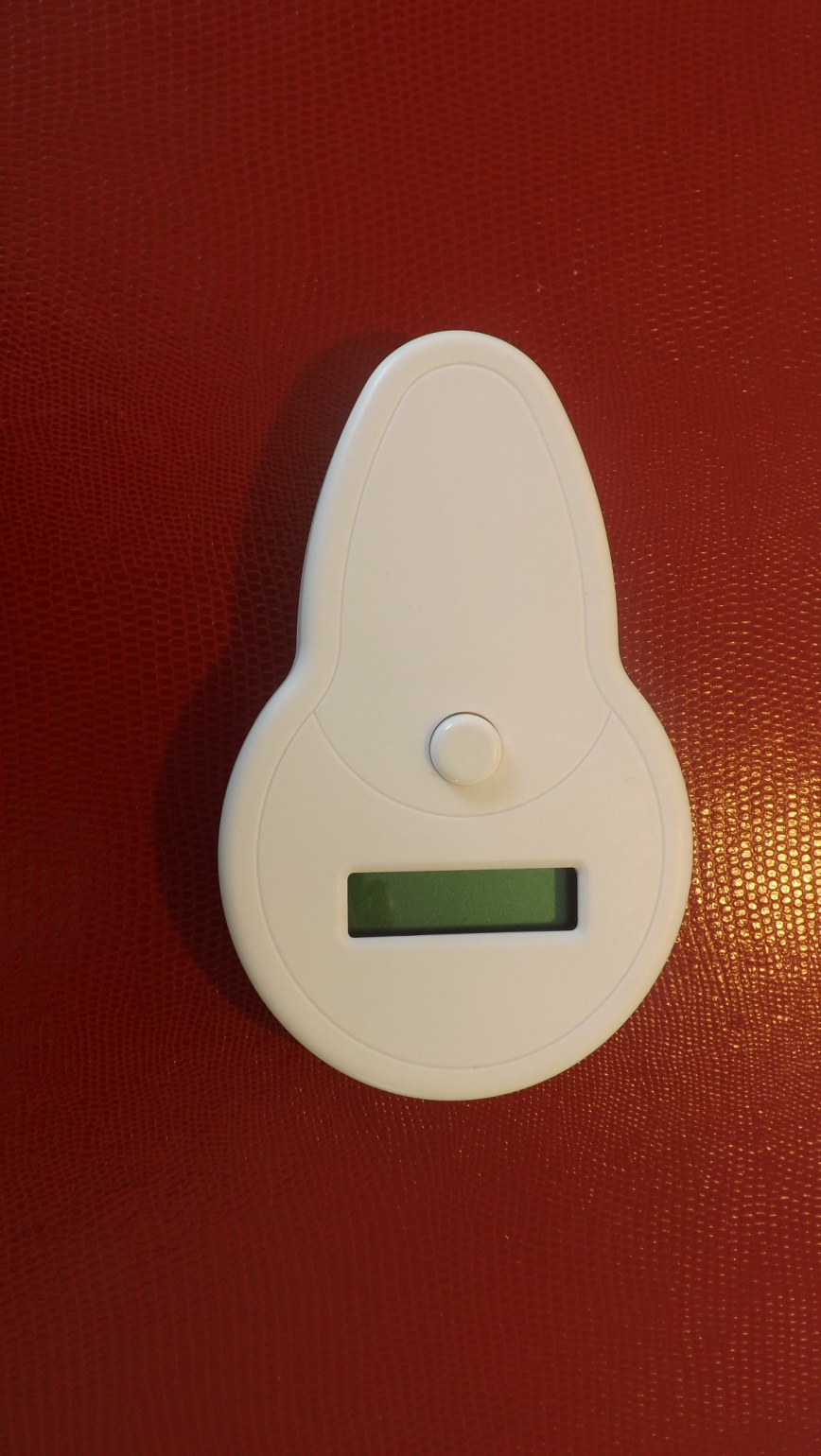

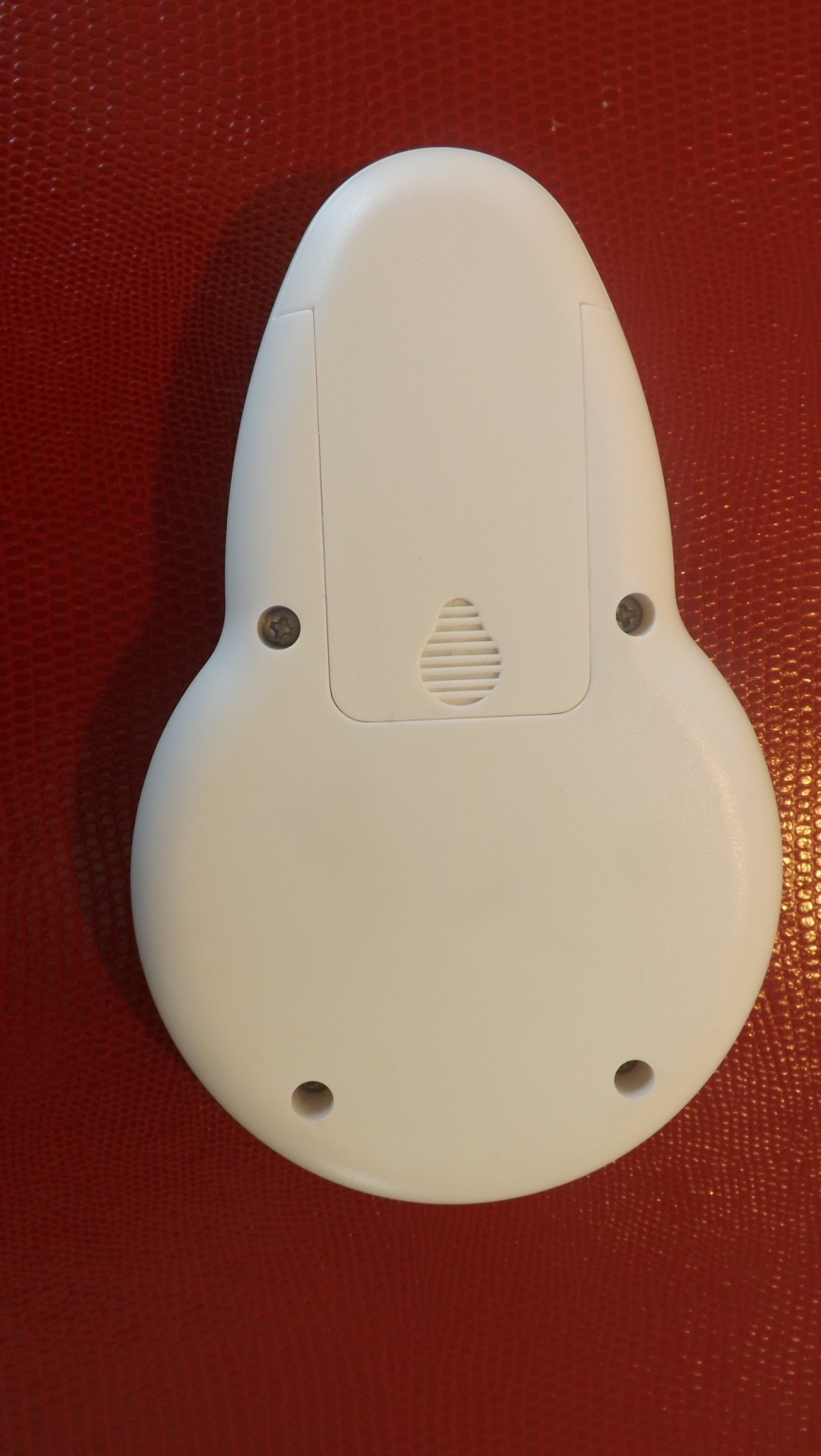

External Photos FRONT VIEW ALTERNATE FRONT VIEW BACK VIEW TOP VIEW BOTTOM VIEW SIDE VIEW ALTERNATE SIDE VIEW

Photo shows location of the label only, see next page for full label details. RFID SOLUTIONS S.L. Document N0. 7000-202 Rev.1 Date: May 5 th 2013 RFID Reader Model M250 ID Label RFID SOLUTIONS S.L. Portable RFID Reader Model M250 FCC ID: OOQ-M250 IC: 10547A-M250 This Device complies with part 15 of FCC rules, operation is subject to the followings conditions (1) this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. S/N: Date:

INTERNAL PHOTO COVER OFF – TWO BOARDS IN READER TOP BOARD – TOP VIEW TOP BOARD BACK VIEW TOP BOARD BACK VIEW CLOSEUP TOP BOARD BACK VIEW ALTERNATE VIEW BOTTOM BOARD – TOP VIEW BOTTOM BOARD BACK VIEW

12 June 2013 RE: Declaration of Compliance to RF Exposure Limits for Humans Measurement Specialties FCC ID: OOQ-M250 RF Exposure Statement 1. Standard Applicable According to FCC 1.1307 (b)(1) and IC RSS-102, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. The 134.2 kHz rfid device: . Measurement Result: MPE calculations S = PG / 4r 2 S = power density = 4.5 x 10 -10 mw/cm 2 P = transmitter conducted power in milliwatts = .0000023 mW G = antenna numeric gain = 1 R = distance to radiation center in centimeters = 20 This is less than general population/uncontrolled exposure guideline of 1 mW/cm 2 . Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV SUD America Tel: 651 604 4582 [email protected]

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST REPORT FCC Part 15 Subpart C Section 15.209 IC RSS-210 Issue 8 IC RSS-Gen Issue 3 MANUFACTURER'S NAME RFID Solutions S.L. Severo Ochoa 33/35-Parque Tecnologico Campanillas (Malaga) Spain 29590. PRODUCT NAME Radio Frequency Identification Reader -(RFID Reader) MODEL NUMBER(S) TESTED M250 SERIAL NUMBER(S) TESTED n/a PRODUCT DESCRIPTION Radio Frequency Identification Reader -(RFID Reader) TEST REPORT NUMBER WC1207035 TEST DATE(S) 31 July – 01 August, 2012 TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 15 Subpart C Section 15.209 “Radiated emission limits; general requirements” and Industry Canada RSS-210 Issue 8 “Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment” and Industry Canada RSS-Gen Issue 3 “General Requirements and Information for the Certification of Radio Apparatus”. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. Date: 22 August 2012 Location: Taylors Falls MN Joel T Schneider Robert J Behringer USA Senior EMC Engineer EMC Engineer Not Transferable Test Report WC12070351 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REPORT Test Report No. WC1207035 Date of issue: 22 August 2012 Product Name Radio Frequency Identification Reader -(RFID Reader) Model(s) Tested M250 Serial No(s) Tested n/a Product Description Radio Frequency Identification Reader -(RFID Reader) Manufacturer RFID Solutions S.L. Severo Ochoa 33/35-Parque Tecnologico Campanillas (Malaga) Spain 29590. Test Result  Positive  Negative TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC12070352 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 25 22 August 2012 Initial Release Test Report WC12070353 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 D I R E C T O R Y Contents Revision Record 3 Directory 4 Test Regulations 5 Environmental Conditions 5 Power Supply 5 Test Equipment Traceability 5 Test Information General Field Strength Limits 0.009 – 30 MHz FCC 15.209(a), (c). IC RSS-210 2.5, RSS-GEN 7.2.5 6 - 7 Radiated Emissions 30 - 1000 MHz FCC 15.209(c), (f). IC RSS-210 2.5 8 - 9 Occupied Bandwidth RSS-Gen 4.6.1 10 - 12 Test area diagram 13 Test-setup Photos 14 - 16 Equipment Under Test Information 17 General Remarks, Deviations, Summary 18 Appendix A EMC Test Plan and Constructional Data Form 19 - 25 Test Report WC12070354 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REGULATIONS: The tests were performed according to the following regulations: FCC Part 15 Subpart C §15.209 IC RSS-210 Issue 8 IC RSS-Gen Issue 3 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 20-21°C Atmospheric pressure : 99kPa Relative Humidity : 50-87% POWER SUPPLY UTILIZED Power supply system : 3 VDC TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. MEASUREMENT UNCERTAINTY The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system has a measurement uncertainty of ±1.8 dB. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. The test system has a measurement uncertainty of ±4.8 dB. All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. SIGN EXPLANATIONS  - not applicable  - applicable Test Report WC12070355 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 General field strength limits 0.009 – 30 MHz FCC 15.209(a), FCC 15.209(c), IC RSS-210 2.5, RSS-Gen 7.2.5 Test summary The requirements are:  - MET  - NOT MET Testing was performed in accordance with the test procedure of ANSI C63.4 2009, clause 8.2.2. Maximum field strength of the fundamental is 1 dBV/m or 1.122 V/m at 300 meters at 134.2 kHz. Minimum margin of compliance of the fundamental is 24 dB. Maximum field strength of spurious …

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Small Test Site (STS) EUT 180 270 90 0 60 Hz 50 Hz Turntable is 1.2 meters in diameter Enlarged View of Shelter (4 meters square) STS Building Shelter 3 meter antenna 10 meter antenna 30 meter antenna Turntable Control Cable Ground Screen (34 meters long x 12 meters wide) 8 meters Test Report WC120703513 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC120703514 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC120703515 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC120703516 of 25 FCC ID: OOQ-M250 IC ID: 10547A-M250
