Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
PORTABLE READER MODEL M350 OPERATOR’S MANUAL FCC Statement PORTABLE RFID READER MODEL M350 RFID SOLUTIONS S.L. Parque Tecnológico de Andalucía Severo Ochoa 37, Campanillas, Malaga, Spain, 29590 FCC ID: OOQ-M350 This device complies with part 15 of the FCC rules, Operation is subject to the following conditions (1) This device may not cause harmful interference, and (2) This device must accept any interference, including Interference that may cause undesired operation of the device. CAUTION! Any change or modification to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment 2 INDEX FCC statement 2 BATTERY INSTALLATION 4 OPERATION 4-5 PROGRAMMING DUNCTIONS 5,6,7 BATTERY CHARGING 7 READING RANGE 7 TROUBLE SHOOTING 8 SPECIFICATIONS 8 WARRANTY INFORMATION 8 YOUR NEW PORTABLE RFID READER Congratulations on your new RFID Reader. Before using read the entire manual to understand all features and operation TEST READER Before scanning to find a tag it is important to test the reader. Use any Test Disc Tag to verify if the RFID Reader is functioning properly. 3 BATTERY INSTALLATION Batteries do not come installed in the reader Battery: 8 X 1.2V- Type AA Rechargeable Nickel Metal Hydrate batteries To install the batteries, first remove the battery door located at the back end of the reader by removing four screws. Insert the 1.2V rechargeable batteries into each slot making sure that each battery polarity is in the right orientation by observing that the spring coils in the battery slots are for the negative side of the batteries (flat end of battery) , then replace the battery compartment door by inserting it back, then securing with the four screws removed initially. OPERATION GENERAL INFORMATION The portable reader Model M350 is a compact, battery powered unit that read radio frequency identification microchips or tags. The device allows you to identify the selected microchip type that belongs to a particular company by displaying the information in its 16 X 2 LCD display. Other RFID microchips that may have other different identifier numbers may activate the reader if they are in the same frequency range giving a sound only (Locator) but may not give the particular ID number. PREPARING FOR OPERATION Remove the Portable Reader from the shipping package and install the eight 1.2 volts (AA) rechargeable batteries supplied with the reader. See section for battery installation instructions. HOW RFID IDENTIFICATION WORKS The portable Reader generates and electromagnetic field which is used to energize the microchip programmed with a unique ID number. This microchip is packaged in different formats but main as a disc type in general. The electromagnetic field provides the operating energy needed for the microchip to transmit its ID number back to the Portable Reader. The Portable Reader decodes the information and displays the programmed message in the LCD display. The operating frequency of the Portable Reader is 125 KHz. 4 READING WITH THE PORTABLE READER When you turn on the Portable Reader by pressing for 1 sec. the POWER button located at the bottom left side of the reader, the reader will go to Reading Mode. Now a green LED light will illuminate indicating the power in on, then the LCD display will show the message “Portable Reader Model M350” with a message at the bottom right of the display giving the software issue in use followed by a beep sound. This message will remain only for 1 sec. then it will change to display a number with a percentage value and then the letter M: also with a percentage value. The first number with a percentage value, is the indication of the noise level of the Detector for reading the tags. For the percentage value with the letter M indicates the amount of memory space left for recording the tag numbers in the Detector. In this mode the Detector will remain for 150 sec. (programmable values) and if no tag was read the Detector will shut off automatically followed by a beep. But if a tag was read or detected, the shut off time is reset and the time count will start at zero value and shut off automatically at the preset value150 sec. or other value selected. The Portable Reader “Detector” will read two types of tags: Type one, the LID tags and Type two, the Transensor tags When any of these two tags comes within range of the Detector, a beeping will start with a low rate interval and as the tag comes closer to the antenna the beeping sound rate will increase and the red Read light should illuminate with LCD display showing the tag number. As the antenna gets closer to the tag the beeping sound should increase the rate indicating the tags in below the antenna. This type of the reader indication will be the same for the two types of tags with the transensor tag in a non-activity state. If the transensor tag has been disturbed by the termites or active, the display will flash intermittently between the number of the tag and the word “Active”. PROGRAMMABLE FUNCTIONS The Reader “Detector” has some programmable functions and are Performed via the yellow key called AUX -Volume -Back light -Shut Down time -Signal level -Send tags -Erase tags -BT Pairing . 5 Volume The volume function will allow changing the volume of the buzzer from OFF state to seven steps upward volume level. To change the volume, press momentary the AUX button and the display will indicate the volume level set in the reader. To continue changing, keep toggling the AUX switch until the desired level then stop. The volume has now being changed to the level selected. The reader will leave the programming state in about 2 sec. Back Light This function allows turning off the back light of the LCD display in order to minimize power consumption. To turn off the LCD back light press momentary the AUX button, the LCD display will show the volume level, then press and hold the AUX button until the back light function appears, release th…
Text truncated - open the document above for the full version.

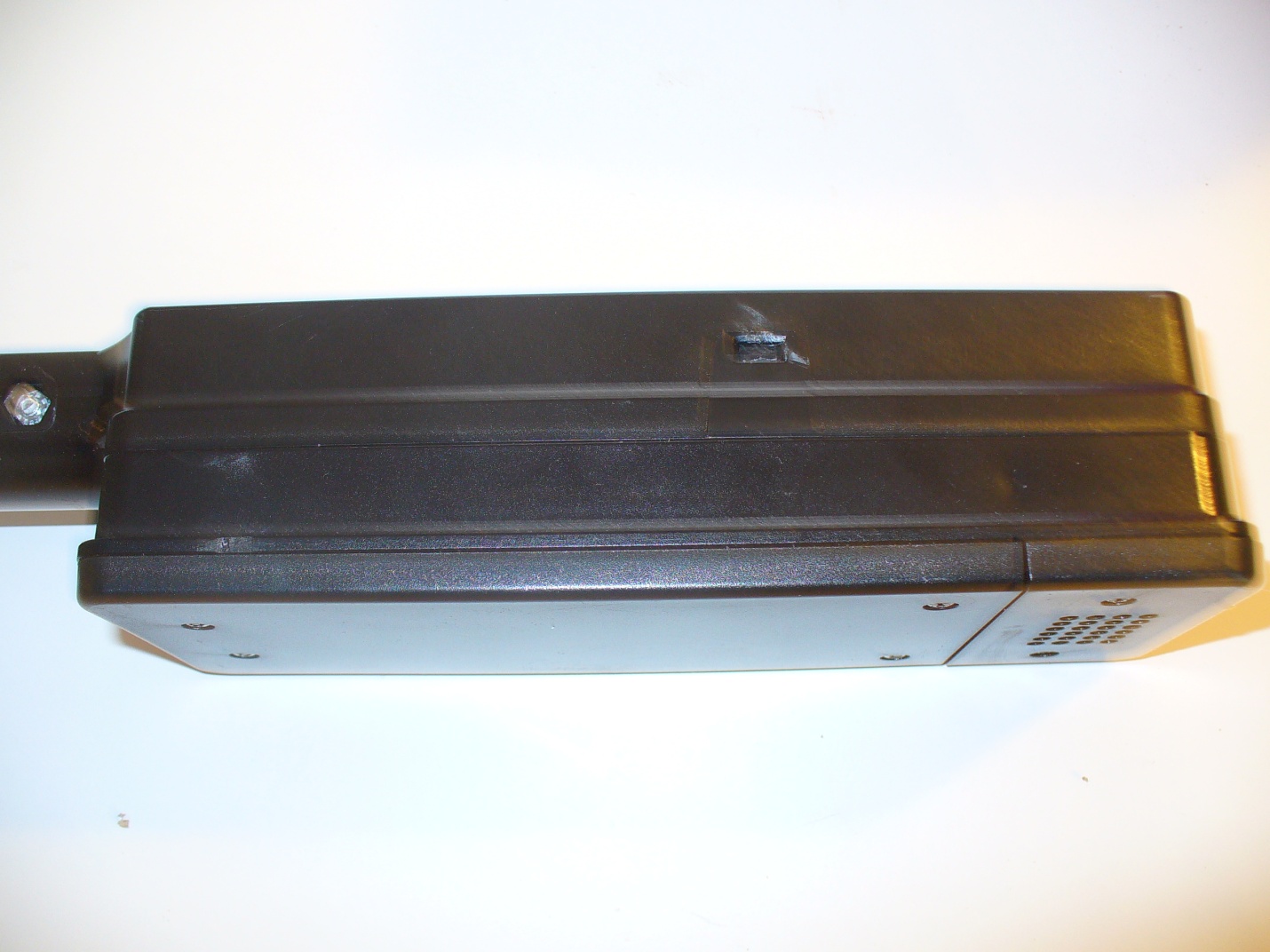

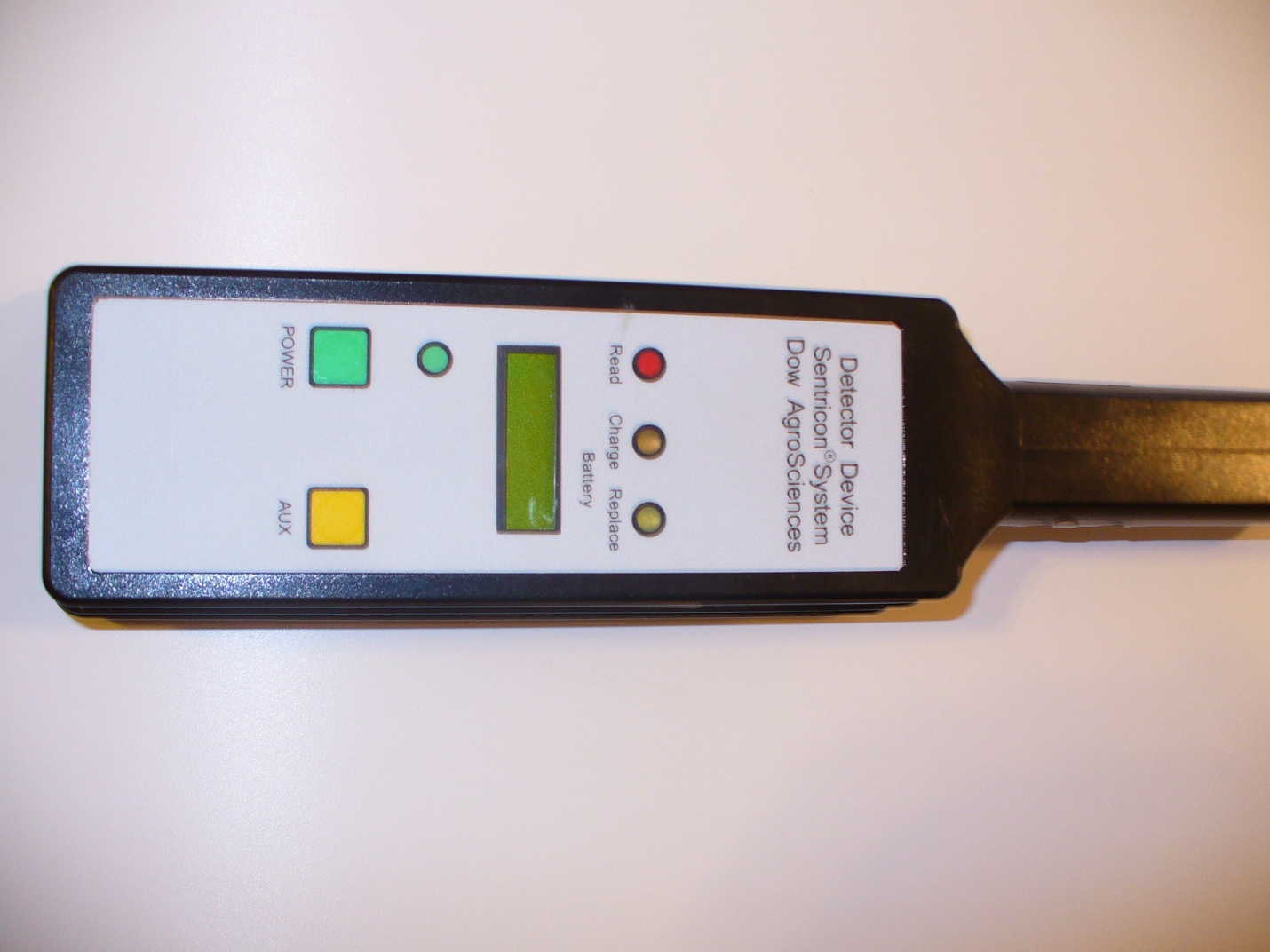

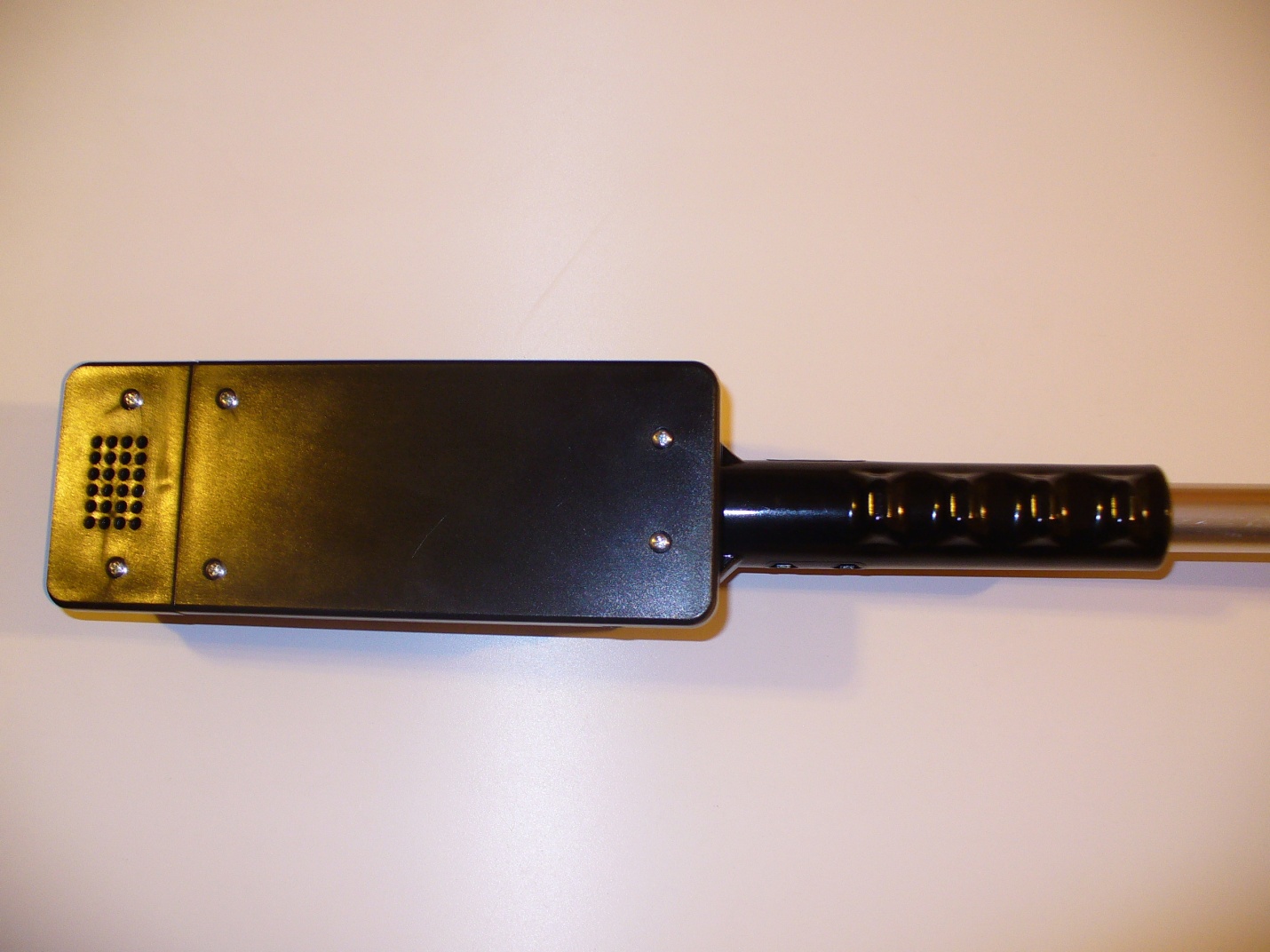

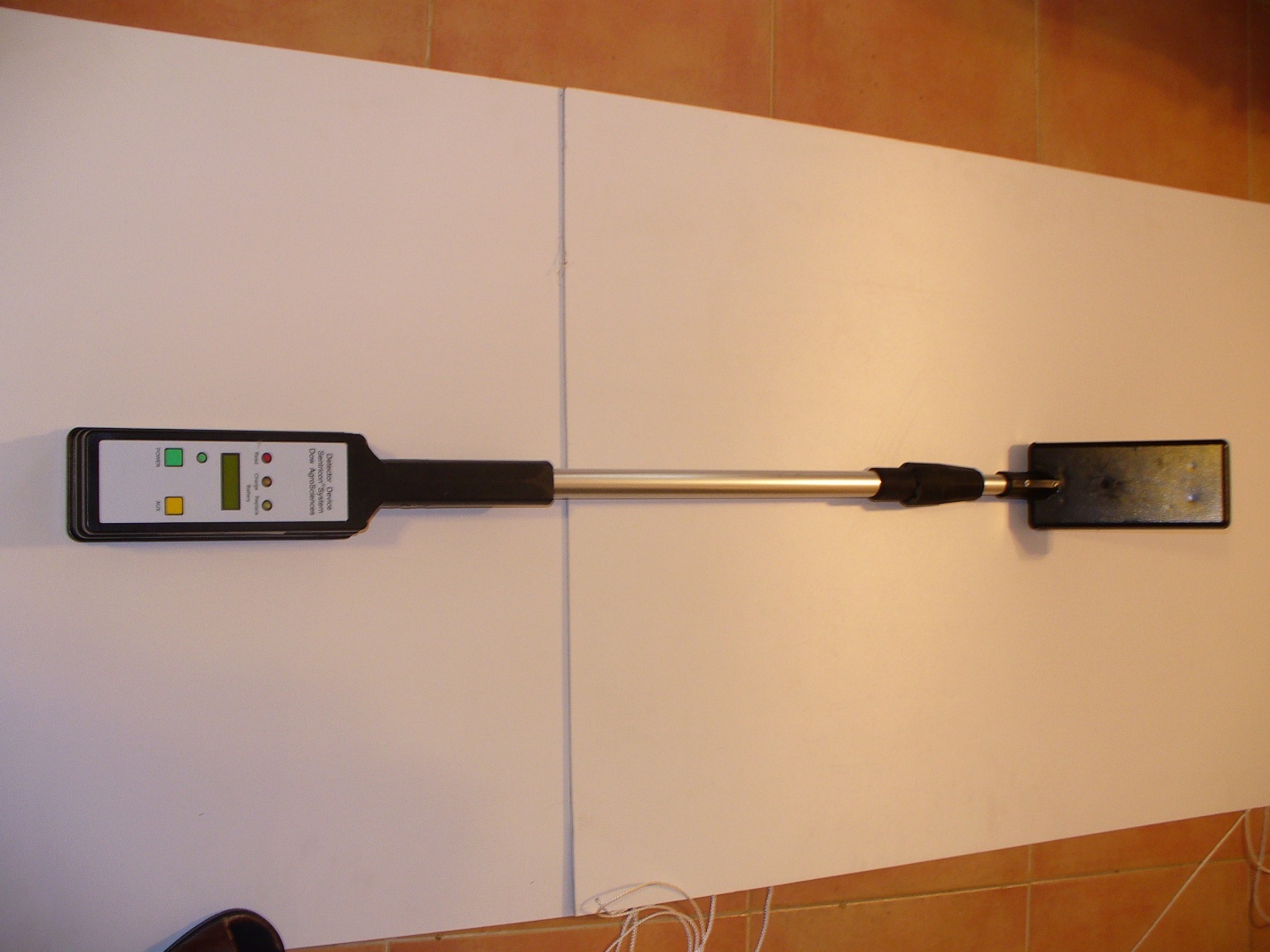

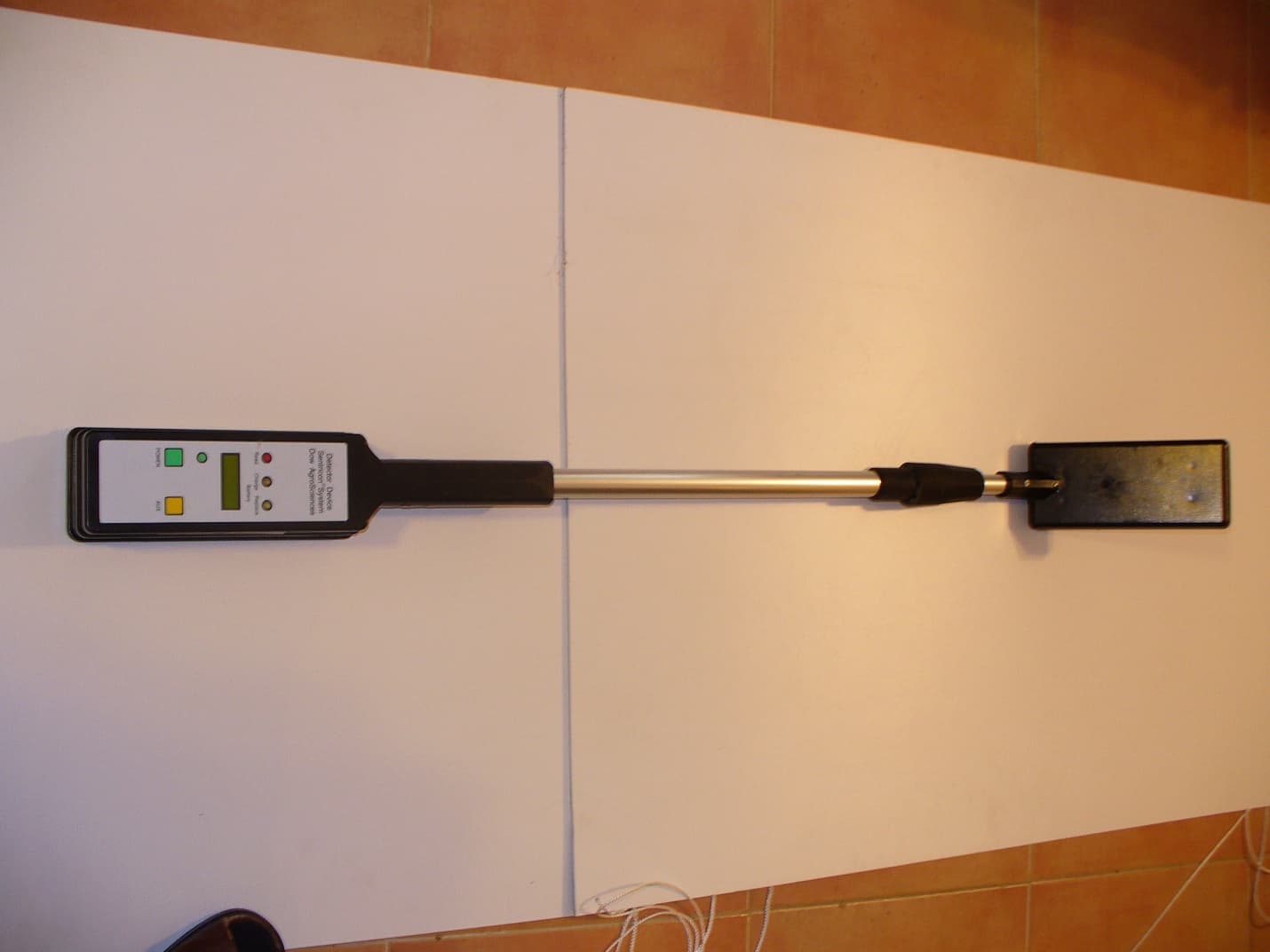

RFID Solutions S.L. M350 Utility RFID Wand Front Back Control Unit Front Control Unit Back Side Alternate Side with Label
RFID SOLUTIONS S.L. Document N0. 7000-203 Date: June 25 th , 2013 RFID Reader Model M350 ID Label RFID SOLUTIONS S.L. S/N: This Device complies with part 15 of FCC Portable RFID Reader rules, operation is subject to the following Model M350 conditions (1) this device may not cause FCC ID: OOQ-M350 harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
RFID Solutions S.L. M350 Utility RFID Wand Internal Photos Board inside Top view with LCD Top view with no LCD Bottom
December 17, 2013 TUV SUD BABT Octagon House, Concorde Way Segensworth Rd N, Fareham PO15 5RL Subject: SAR Evaluation Exemption Compliance information FCC KDB 447498 D01v05 Clause 4.3.1.1 SAR test exemption criteria FCC ID: OOQ‐M350 Portable Exposure SAR Exemption Per FCC KDB 447498 D01 RF Exposure v05r01 Maximum e.r.p. power = 14.53 mW f(GHz) = 0.0001251 A test separation distance of 5 mm has been applied to the SAR test exclusion calculation. [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ∙[√f (GHz)] ≤ 3.0 f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation17 The result is rounded to one decimal place for comparison [Ref: Clause 4.3.1.1] [(14.53mW)/(5, mm)] ∙[√0.0001251 (GHz)] ≤ 3.0 0.033 ≤ 3.0 Therefore, the device meets the FCC SAR exemption requirements . Sincerely, Name: Joel Schneider Title: Senior EMC Engineer
TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST REPORT FCC Part 15 Subpart C Section 15.209 IC RSS-210 Issue 8 IC RSS-Gen Issue 3 MANUFACTURER'S NAME RFID Solutions S.L. Severo Ochoa 33/35-Parque Tecnologico Campanillas (Malaga) Spain 29590. PRODUCT NAME Utility RFID Wand MODEL NUMBER(S) TESTED M350 SERIAL NUMBER(S) TESTED n/a PRODUCT DESCRIPTION Utility RFID Wand TEST REPORT NUMBER WC1207039 Rev A TEST DATE(S) 31 July – 01 August 2012 and 12 September 2013 TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 15 Subpart C Section 15.209 “Radiated emission limits; general requirements” and Industry Canada RSS-210 Issue 8 “Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment” and Industry Canada RSS-Gen Issue 3 “General Requirements and Information for the Certification of Radio Apparatus”. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. Radiated emissions were retested on 12 September 2013. Original values were verified with the addition of a certified wireless module. Date: 25 September 2013 Location: Taylors Falls MN Joel T Schneider Robert J Behringer USA Senior EMC Engineer EMC Engineer Not Transferable FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REPORT Test Report No. WC1207039 Rev A Date of issue: 25 September 2013 Product Name Utility RFID Wand Model(s) Tested M350 Serial No(s) Tested n/a Product Description Utility RFID Wand Manufacturer RFID Solutions S.L. Severo Ochoa 33/35-Parque Tecnologico Campanillas (Malaga) Spain 29590. Test Result Positive Negative TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC1207039 Rev APage 1 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 28 13 September 2012 Initial Release A 27 23 September 2013 Deleted incorrect Test Set-up photo. Page 4 and corresponding Test Result Summary (TRS): Added statement “Radiated emissions were retested on 12 September 2013. Original values were verified with the addition of a certified wireless module.” Test Report WC1207039 Rev APage 2 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 D I R E C T O R Y Contents Revision Record 2 Directory 3 Test Regulations 4 Environmental Conditions 4 Power Supply 4 Test Equipment Traceability 4 Test Information General Field Strength Limits 0.009 – 30 MHz FCC 15.209(a), (c). IC RSS-210 2.5, RSS-GEN 7.2.5 5 - 6 Radiated Emissions 30 - 1000 MHz FCC 15.209(c), (f). IC RSS-210 2.5 7 - 8 Occupied Bandwidth RSS-Gen 4.6.1 9 - 11 Conducted emissions –AC Power Line FCC 15.207(a), 15.107(b), IC RSS-Gen 7.2.4 12 - 13 Test area diagram 14 Test-setup Photos 15 - 18 Equipment Under Test Information 19 General Remarks, Deviations, Summary 20 Appendix A EMC Test Plan and Constructional Data Form 21 - 27 Test Report WC1207039 Rev APage 3 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REGULATIONS: The tests were performed according to the following regulations: FCC Part 15 Subpart C §15.209 IC RSS-210 Issue 8 IC RSS-Gen Issue 3 Radiated emissions were retested on 12 September 2013. Original values were verified with the addition of a certified wireless module. ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 20-21°C Atmospheric pressure : 99kPa Relative Humidity : 50-87% POWER SUPPLY UTILIZED Power supply system : 110/230VAC / 60/50Hz – 1 phase TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. MEASUREMENT UNCERTAINTY The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system has a measurement uncertainty of ±1.8 dB. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. The test system has a measurement uncertainty of ±4.8 dB. All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. SIGN EXPLANATIONS - not applicable - applicable Test Report WC1207039 Rev APage 4 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (65…
Text truncated - open the document above for the full version.
TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Small Test Site (STS) EUT 180 270 90 0 60 Hz 50 Hz Turntable is 1.2 meters in diameter Enlarged View of Shelter (4 meters square) STS Building Shelter 3 meter antenna 10 meter antenna 30 meter antenna Turntable Control Cable Ground Screen (34 meters long x 12 meters wide) 8 meters Test Report WC1207039 Rev APage 14 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC1207039 Rev APage 15 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC1207039 Rev APage 16 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC1207039 Rev APage 17 of 27 FCC IC: OOQ-M350 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC1207039 Rev APage 18 of 27 FCC IC: OOQ-M350
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.125 MHz - 0.125 MHz | - |

RFID Reader
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
