OP5PL55522.4G 2403.5-2477.3MHz, mode operation.

Akiko User’s GuidePL5552 Akiko Transmitter for analog audio Model: PL5552 Works WithDevices with a 3.5 mm analog jack (sometimes referred to as AUX ports) RequirementsThe device must support analog audio in NotesSee page 3 for details on the IR learning feature. Akiko User’s GuidePL5552 Akiko User’s GuidePL5552 IR Learning Control volume on Akiko using your existing remote Akiko offer a feature called IR learning. This feature allows you to teach your transmitter to use your existing TV remote to adjust the volume on your SKAA speakers. To setup IR Learning with your existing remote: Within 14 seconds of plugging the transmitter into a USB power source, press the Volume (+) button, on your desired remote, while aiming it at the IR sensor on the transmitter. A brief flash of the transmitter’s LED will indicate that it has received the Volume (+) signal from the remote. Next, press the Volume (-) button, on your remote. Another brief flash of the LED will indicate that the transmitter has received the Volume (-) signal, from the remote Finally, press the Mute button on your remote. If successful, the transmitter’s LED will turn on for two seconds to indicate that it has successfully learned which volume buttons you will be using on your desired remote. Plug your audio cable into your transmitter’s jack. You may begin using your remote with your transmitter. If any errors were detected, during the IR learning process, the LED will blink rapidly, four consecutive times. In this case, unplug the transmitter from the USB power source and restart the IR learning process. Plug your transmitter into a USB port, for power. (Make sure nothing is plugged into the transmitter’s jack during this stage.) To Unlearn a remote control, simply press any button on the remote, flashes of the LED indicate a successful Unlearn. Akiko User’s GuidePL5552 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Akiko User’s GuidePL5552 IC Warning This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device Le présent appareil est conforme aux CNR d' Industrie Canada applicables aux appareils radio exempts de licence. L' exploitation est autorisée aux deux conditions suivantes: (1) l' appareil ne doit pas produire de brouillage, et (2) l' utilisateur de l' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet équipement est conforme aux limites d'exposition au rayonnement ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Tr This radio transmitter [IC:3534A-PL5552] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Antenna TypesMaximum gain (dBi)Impedance Printed Inverted-F PCB Antenna3.2950

Eleven Engineering Incorporated Section 2.911(d)(5)(i) Certification – Equipment Type Company name:Eleven Engineering Incorporated Address:10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Product Name:Akiko FCC ID:OP5PL5552 Model(s):PL5552 2.911(d)(5)(i) Equipment Type We, [Eleven Engineering Incorporated] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Date:2023-12-21 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm? switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- Yours sincerely, Name:Lyle Aumuller Title and Company name:QA Lead/Eleven Engineering Incorporated NOTE 1 communications-supply-chain-through-the 2.911 (d)(5)(i) Equipment Type A6esta9on v1.2

Eleven Engineering Incorporated Section 2.911(d)(5)(ii) Certification – Applicant (Covered List) Company name:Eleven Engineering Incorporated Address:10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Product Name:Akiko FCC ID:OP5PL5552 Model(s):PL5552 2.911(d)(5)(ii) Applicant filing We, [Eleven Engineering Incorporated] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Date:2023-12-21 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm? switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- Name:Lyle Aumuller Title and Company name:QA Lead/Eleven Engineering Incorporated NOTE 1 Delete option not applicable to this application. NOTE 2 communications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant A2esta5on v1.3

Eleven Engineering Incorporated Section 2.911(d)(7) USA Agent for Service of Process NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against- Company name:Eleven Engineering Incorporated Address:10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Product Name:Akiko FCC ID:OP5PL5552 Model(s):PL5552 2.911(d)(7) USA Designated Agent for Service of Process We, [Eleven Engineering Incorporated] (“the applicant”) designate [Dillinger Labs Incorporated] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. national-security-threats-to-the-communications-supply-chain-through-the USA Agent Company name:Dillinger Labs Incorporated Address:150 3rd Avenue South Suite 1100 Nashville, TN 37201 USA Signature: Title: QA Lead Applicant Company name:Eleven Engineering Incorporated. Address:10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 FRN：0020398772 FCC Grantee Code:OP5 Contact Name:Lyle Aumuller Telephone No: +1-780-425-6511242 FRN:0034602409 Contact Name:Samantha Porter Te l e p h o n e N o :( 7 8 0 ) 4 2 5 - 6 5 1 1 Email:[email protected] Email:[email protected] Signature: Title:COO Date:2023-12-21Date:2023-12-21 2.911 (d)(7)USA Agent v1.3

Eleven Engineering Incorporated We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Agent Authorization Company:Eleven Engineering Incorporated Address:10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Product Name:Akiko Model Number(s):PL5552 Product Description:2.4G 2403.5-2477.3MHz, mode operation. MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature:Date:2023-12-21 Name: Lyle Aumuller Title: QA Lead Company: Eleven Engineering Incorporated

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Eleven Engineering Incorporated USA Date: 2023-12-21 Subject; Request for Confidentiality FCC ID: OP5PL5552 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly Schematic Diagram Block Diagram Operational Description Tune-up Procedure authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Lyle Aumuller Title:QA Lead

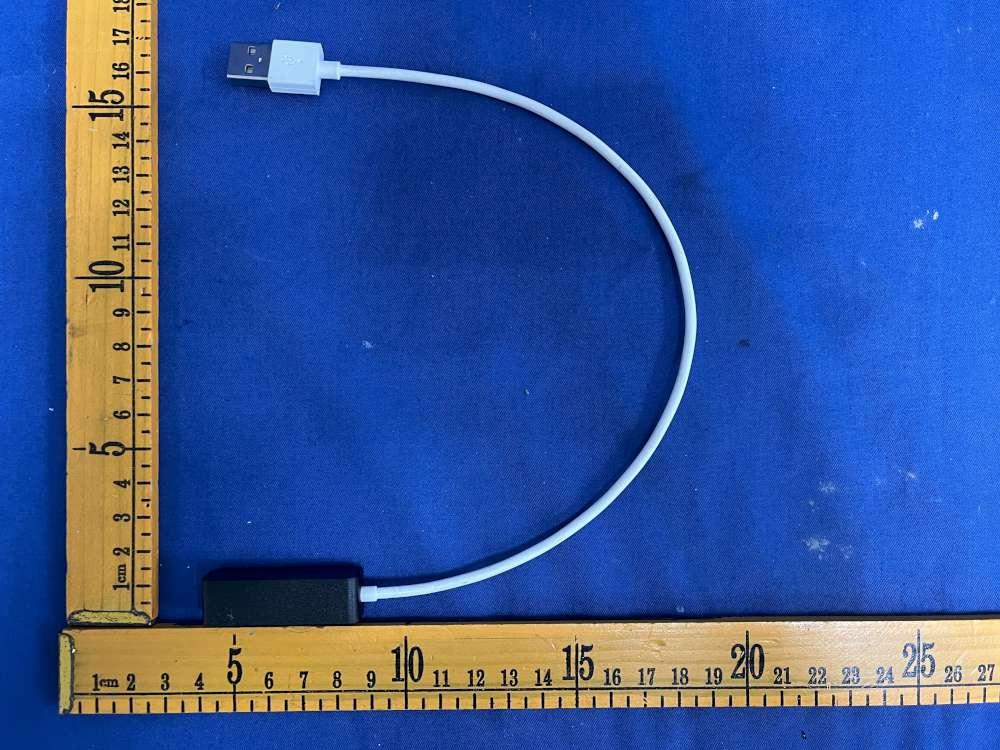

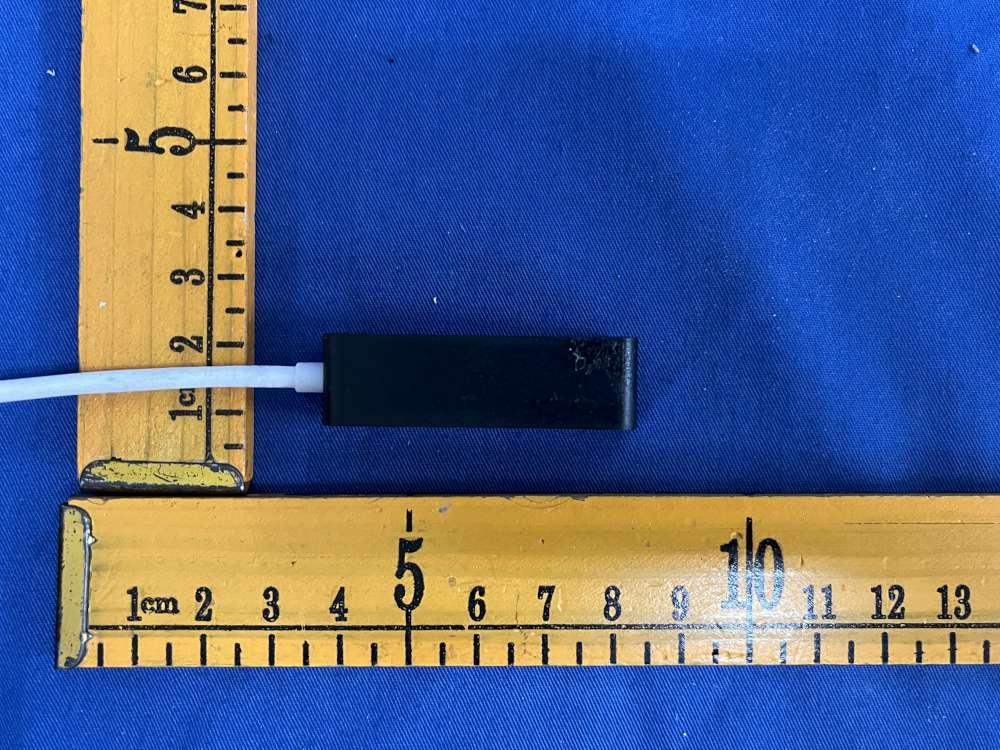

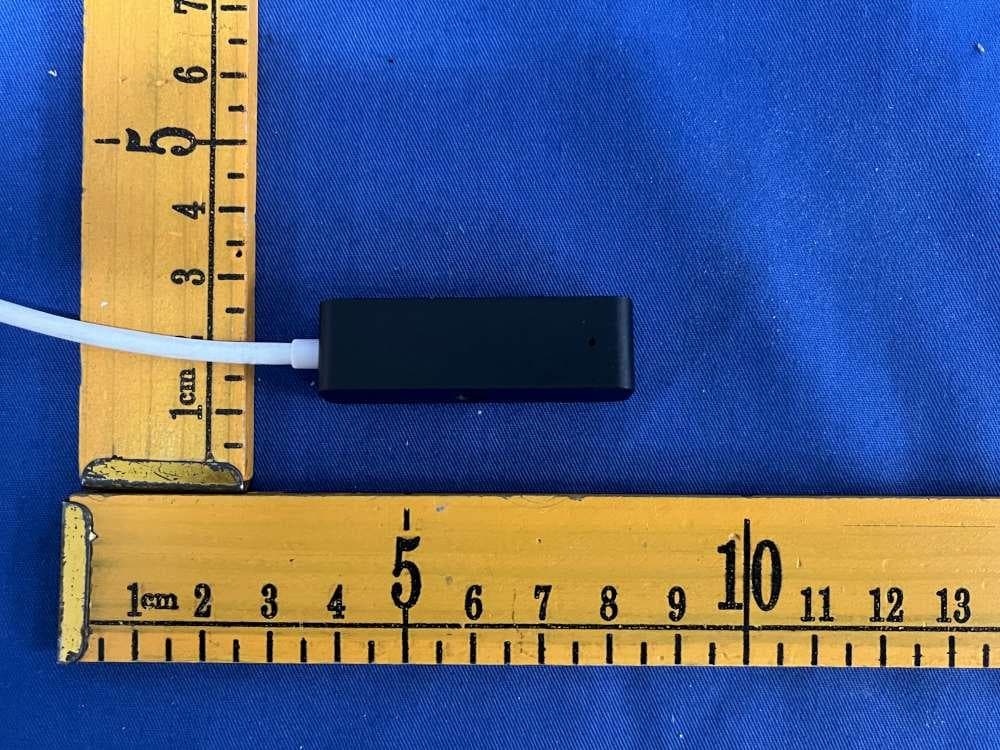

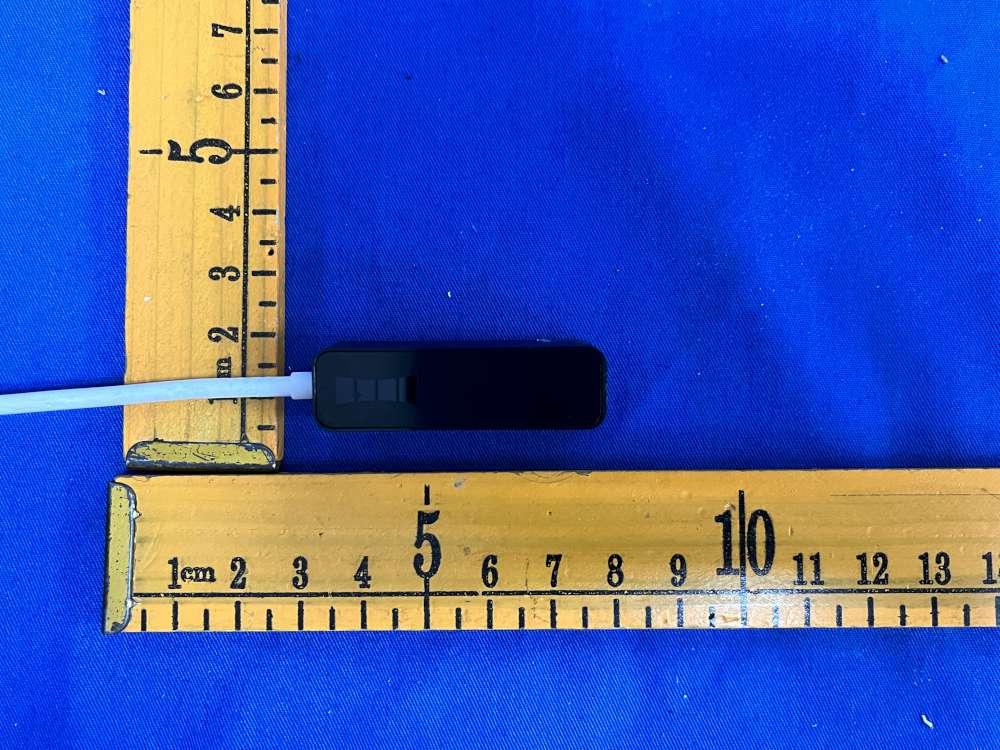

FCCID:OP5PL5552 IC:3534A-PL5552 FCCID:OP5PL5552 IC:3534A-PL5552 FCCID:OP5PL5552 IC:3534A-PL5552 FCCID:OP5PL5552 IC:3534A-PL5552

FCCID:OP5PL5552 IC:3534A-PL5552 FCCID:OP5PL5552 IC:3534A-PL5552 FCCID:OP5PL5552 IC:3534A-PL5552

RFExposureevaluation Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice ReferStandard:KDB447498D01GeneralRFExposureGuidancev06 FCCPart2§2.1091 FCCID:OP5PL5552 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.06141.63(100)*6 3.0–301842/f4.89/f(900/f 2 )*6 30–30061.40.1631.06 300–1500//f/3006 1500–100,000//56 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.06141.63(100)*30 3.0–30824/f2.19/f(180/f 2 )*30 30–30027.50.0730.230 300–1500//f/150030 1500–100,000//1.030 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation useantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification AntennaIdentification inInternalphotos Antennatypeand antennanumber Operatefrequencyband Maximum antennagain Antenna2.4G PrintedInverted-F PCBAntenna 2403.5-2477.3MHz3.29dBi 5.Result AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedPrinted Inverted-FPCBAntennais3.29dBi,theRFpowerdensitycanbeobtained. 2.4G Freq. (MHz) Output Power (dBm) Targetpower W/tolerance (dBm) Maxtuneup power tolerance (dBm) Outputpower toantenna (mW) Ant Gain (dBi) Power Densityat R=20cm (mW/cm2) Limit (mW/c m2) Result FSK 2403.512.43712±1.01319.9533.29 0.008467 1Pass 2440.4 12.89013±1.01425.1193.29 0.010659 1Pass 2477.3 12.71113±1.01425.1193.29 0.010659 1Pass Note:Theestimationdistanceis20cm 6.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice.

Page 1 of 47 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn FCCPart15C&RSS-247TESTREPORT FCCID:OP5PL5552 IC:3534A-PL5552 Product:Akiko ModelName:PL5552 Brand:SKAA ReportNo.:NCT23045037 Preparedfor ElevenEngineeringIncorporated 10150-100Street,Suite800Edmonton,AB,CanadaT5J0P6 Preparedby ShenzhenNCTTestingTechnologyCo.,Ltd. A101&2FB2,Fuqiao6thArea,XintianCommunity,FuhaiStreet,BaoanDistrict, Shenzhen,People’sRepublicofChina TEL:400-8868-419 FAX:86-755-27790922 ReportNo:NCT23045037 Page 2 of 47 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 1TESTRESULTCERTIFICATION Applicant’sname:ElevenEngineeringIncorporated Address:10150-100Street,Suite800Edmonton,AB,CanadaT5J0P6 Manufacture'sname:ElevenEngineeringIncorporated Address:10150-100Street,Suite800Edmonton,AB,CanadaT5J0P6 Productname:Akiko Modelname:PL5552 Additionalmodel:N/A Modeldifference :N/A Standards: FCCCFR47Part15Section15.247 RSS-247Issue3:August2023 Testprocedure: ANSIC63.10:2013 RSS-GEN,Issue5:March2019 Dateoftest:Oct.18,2023toMar.08,2024 DateofIssue:Mar.08,2024 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyNCT,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicable onlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofNCT,this documentmaybealteredorrevisedbyNCT,personalonly,andshallbenotedintherevision ofthedocument. TestEngineer: HughZhang/Engineer TechnicalManager: HenryWang/Manager ReportNo:NCT23045037 Page 3 of 47 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 3TESTFACILITY.............................................................................................................................................................6 4GENERALINFORMATION..........................................................................................................................................7 4.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 4.2CHANNELLIST.....................................................................................................................................................8 4.3TESTSETUPCONFIGURATION............................................................................................................................9 4.4TESTMODE.........................................................................................................................................................9 5EQUIPMENTDURINGTEST....................................................................................................................................10 5.1EQUIPMENTSLIST.............................................................................................................................................10 5.2MEASUREMENTUNCERTAINTY.........................................................................................................................12 5.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 6CONDUCTEDEMISSION..........................................................................................................................................13 6.1E.U.T.OPERATION............................................................................................................................................13 6.2EUTSETUP.......................................................................................................................................................13 6.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 6.4MEASUREMENTPROCEDURE:...........................................................................................................................14 6.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 6.6MEASUREMENTDESCRIPTION..........................................................................................................................14 6.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................14 7RADIATEDSPURIOUSEMISSIONS......................................................................................................................17 7.1EUTOPERATION...............................................................................................................................................17 7.2TESTSETUP......................................................................................................................................................18 7.3SPECTRUMANALYZERSETUP..........................................................................................................................19 7.4TESTPROCEDURE.............................................................................................................................................20 7.5SUMMARYOFTESTRESULTS...........................................................................................................................21 8MAXIMUMPEAKOUTPUTPOWERTEST............................................................................................................28 8.1TESTSTANDARDANDLIMIT..............................................................................................................................28 8.2TESTSETUP...........................................…

Text truncated - open the document above for the full version.

Printed Inverted-F PCB Antenna Printed Inverted-F PCB Antenna

FCCID:OP5PL5552 IC:3534A-PL5552 RadiatedEmission (Below1G) RadiatedEmission (Above1G) FCCID:OP5PL5552 IC:3534A-PL5552 ConductedEmission
