OP5PL5564SKAA Lightning connector Tx

SKAA USER’S GUIDE for SKAA OS v2.1 Lightning connector Tx, Model PL5564-S Each SKAA® receiver uses a Green List to keep track of your favorite transmitters. Using a favorite transmitter as well as hunting through your favorite transmitters is signaled by a Green LED. Your receiver can also explore to find new, unknown transmitters. Exploring is signaled by an Amber LED. If your product has two or more wireless receivers—for example, a left speaker and a right speaker—that’s called a Cluster and all of its pieces act as one. The SKAA Button on your receiver lets you control which transmitter you’re listening to (button with logo). Essentials CommandLED Meaning ClickFavorites Hunt for your favorite transmitters ... Click again to switch between hunting for all transmitters on your Green List and only the current one (dim) = Hunting (flash) = Next one (solid) = Bonded 2 ClicksExplore Hunt for new, unknown transmitters (not favorites) (dim) = Hunting (solid) = Bonded Hold (a few seconds) Add / Delete Manually add / delete the current transmitter to / from your Green List to = Added (flash) = Deleted -Auto Add SKAA adds the current Amber transmitter to your Green List if you listen to it for 30 minutes to = Added More Commands CommandLED Meaning 3 ClicksPlay / Pause Sends /command to the source device (example: computer or iPod ® ) or (1 flash) = command sent 4 ClicksSwing Mode Bond to any transmitter on your Green List (hint: have just one powered on) (dim) = Hunting (solid) = Bonded 6 ClicksClear the Green List Start over! (flash) = Green List cleared Hold during power on Make a Cluster of receivers: 1.Make sure the transmitter is powered off 2.Power on the Master receiver while holding down its SKAA Button—hold the button down until the Red LED begins to flash 3.With the remaining receivers within 3 meters of the Master receiver, power on the first one, wait for its Red LED to flash and then power on the second one. Continue until all of them are powered on. 4.Once all of the LEDs stop flashing (turn solid Red), power off all of the receivers (flash) = Master receiver has entered ‘Cluster Up’ mode (solid) = The Cluster has been successfully made QUESTIONS AND ANSWERS QuestionAnswer How does the Green List work? Every time you add a transmitter, it is automatically assigned the first open spot on the Green List—so if you already have two transmitters on your Green List, the next one you add will go in Green List spot #3. The receiver can hunt through the Green List much like a car radio hunts for radio stations when you press “seek”. If you see the Green LED flash, the receiver is automatically moving through your Green List, checking for each favorite transmitter as it goes. For example if you have 3 transmitters on your Green List, your receiver will hunt for them in order 1, 2 then 3, then back to 1 and so on (the Green LED will flash every time it advances from one to the next). The receiver looks for each transmitter for about 3 seconds and then moves on to the next one if it doesn’t find it. If it does find it, it stops there, bonds with it and starts playing its audio. If you don’t see the Green list flash, the receiver is just sitting, waiting for one particular favorite transmitter to show up. Click the SKAA button once to flip back and forth between these two modes (hunting through your whole Green List, and sitting waiting for one particular transmitter to show up). You can store up to 10 favorite transmitters on your Green List. How do I choose a specific transmitter? If you have a dim Green LED (you aren’t hearing any audio), click the SKAA button once. The Green LED will flash once every 3 seconds as the receiver moves through your Green List, stopping at each spot and hunting for the associated transmitter. Once it finds one, it will bond to it and play its audio. If that isn’t the transmitter you want, click the SKAA button once more. Repeat until you find the transmitter you want. How to I delete a transmitter from my Green List? Let’s start by saying that the 6-click command (delete everything and start over) is very handy. The author uses it. All the time. If however, you’d like to surgically remove just one transmitter from your Green List, read on. First you must get your receiver to sit on the proper spot on the Green List—the spot holding the offending transmitter. The easiest way to do this is to bond your receiver to the transmitter you want to delete (see How do I choose a specific transmitter? above). Next, hold the SKAA button down for a few seconds (until you see the Red LED flash to indicate the transmitter is gonzo). What is the Master receiver? In any Cluster, there is a single Master receiver, and all of the other receivers in the Cluster follow its behavior. The Master has a working SKAA Button and you can control the entire Cluster with that one button. Can any receiver become the Master of a Cluster? No. A receiver must have a physical SKAA Button in order to be made the Master of a Cluster. If a receiver has no SKAA Button it can only operate as a subordinate part of a Cluster—it cannot be the Master of that Cluster and it cannot operate independently. How do I “uncluster” several receivers? Do the Make a Cluster of receivers procedure once for each receiver, omitting step 3. This will give each of the receivers a functioning SKAA Button, and each of them will thereafter operate independently. What are some tips for making Clusters? Each step in the Make a Cluster of receivers procedure has a 10 second time limit. For example, when you see the Master’s LED start to flash, you have up to 10 seconds to power on the next receiver. When that receiver’s LED starts flashing, you have 10 more seconds to power on the next one, and so on. Why does only one of my SKAA Buttons work? If you’ve made a Cluster from several receivers, the first one powered on in the Make a Cluster of receivers procedure is the Master of the Cluster. Only the Master’s SKAA Button will…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Eleven Engineering Inc. Address: 10150 - 100 Street, Suite 800 City: Edmonton Country: Canada Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s), including the signing of the 731 forms: Product description: SKAA Lightning connector Tx Model: PL5564-S Trademark: SKAA; Diz on our behalf. Date: 2013-9-18 City: Edmonton Name: Ryan Baron Function: Manager R&D, Asia Signature: ............................... RF_160, Issue 02

FCC, Request for non-disclosure Date: 10-AUG-09 RF_501, Issue 5 Page 1 of 1 Company Name: Eleven Engineering Inc. Address: 10150 - 100 Street, Suite 800 City: Edmonton, Alberta Country: Canada To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: OP5PL5564 Reference number: Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2013-9-18 Name and signature of applicant: Ryan Baron Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Neutron Engineering Inc. Project No.: 1309C128 Page 2 of 5

Label and Label Location FCC ID and IC ID SKAA Diz Tx - PL5564-S Label: Label Location: SKAA Diz Tx Label Location MODEL:PL5554 FCCID:OP5PL5554 IC:3534A-PL5554 MODEL: PL5564-S SKAA.com FCC ID: OP5PL5564 IC: 3534A-PL5564 20mm 10mm 26 mm 20mm

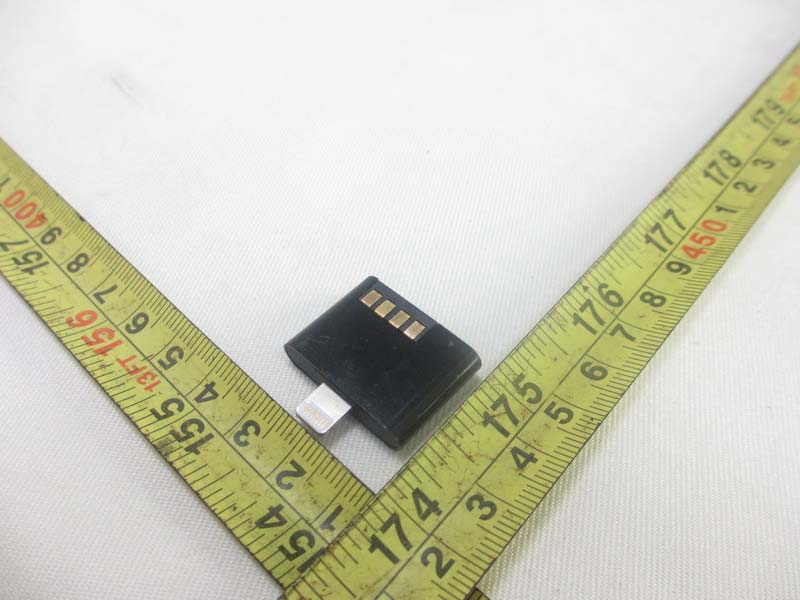

Neutron Engineering Inc. Project No.: 1309C128 Page 3 of 5 Neutron Engineering Inc. Project No.: 1309C128 Page 4 of 5 Neutron Engineering Inc. Project No.: 1309C128 Page 5 of 5

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: OP5PL5564 Project No. : 1309C128 Equipment : SKAA Lightning connector Tx Model : PL5564-S Applicant : Eleven Engineering Inc. Address : 10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Canada According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A -3.57 TEST RESULTS EUT： SKAA Lightning connector Tx Model Name ： PL5564-S Temperature： 25 °C Relative Humidity： 58 % Pressure： 1009 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH01/ CH24 /CH49 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -3.57 0.4395 10.88 12.2462 0.001071401 Complies -3.57 0.4395 10.48 11.1686 0.000977131 Complies -3.57 0.4395 10.79 11.9950 0.001049421 Complies

Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 1 of 66 FCC&IC Radio Test Report FCC ID: OP5PL5564 IC: 3534A-PL5564 This report concerns (check one): Original Grant Class II Change Issued Date : Sep. 18, 2013 Project No. : 1309C128 Equipment : SKAA Lightning connector Tx Model Name : PL5564-S Applicant : Eleven Engineering Inc. Address : 10150 - 100 Street, Suite 800 Edmonton, AB, Canada T5J 0P6 Canada Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Sep. 16, 2013 Date of Test: Sep. 16, 2013~ Sep. 17, 2013 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 2 of 66 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 3 of 66 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . NUMBER OF HOPPING CHANNEL 43 5.1 APPLIED PROCEDURES / LIMIT 43 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 43 5.1.2 TEST PROCEDURE 43 5.1.3 DEVIATION FROM STANDARD 43 5.1.4 TEST SETUP 43 5.1.5 EUT OPERATION CONDITIONS 43 5.1.6 TEST RESULTS 44 Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 4 of 66 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 45 6.1 APPLIED PROCEDURES / LIMIT 45 6.1.1 MEASUREMENT INSTRUMENTS LIST 45 6.1.2 TEST PROCEDURE 45 6.1.3. TEST SETUP LAYOUT 45 6.1.4. TEST DEVIATION 45 6.1.5. EUT OPERATION DURING TEST 45 6.1.6. TEST RESULTS 46 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 48 7.1 APPLIED PROCEDURES / LIMIT 48 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 48 7.1.2 TEST PROCEDURE 48 7.1.3 DEVIATION FROM STANDARD 48 7.1.4 TEST SETUP 48 7.1.5 EUT OPERATION CONDITIONS 48 7.1.6 TEST RESULTS 49 8 . BANDWIDTH TEST 51 8.1 APPLIED PROCEDURES / LIMIT 51 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 51 8.1.2 TEST PROCEDURE 51 8.1.3 DEVIATION FROM STANDARD 51 8.1.4 TEST SETUP 51 8.1.5 EUT OPERATION CONDITIONS 51 8.1.6 TEST RESULTS 52 9 . PEAK OUTPUT POWER TEST 54 9.1 APPLIED PROCEDURES / LIMIT 54 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 54 9.1.2 TEST PROCEDURE 54 9.1.3 DEVIATION FROM STANDARD 54 9.1.4 TEST SETUP 54 9.1.5 EUT OPERATION CONDITIONS 54 9.1.6 TEST RESULTS 55 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 57 10.1 APPLIED PROCEDURES / LIMIT 57 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 57 10.1.2 TEST PROCEDURE 57 10.1.3 DEVIATION FROM STANDARD 57 10.1.4 TEST SETUP 57 10.1.5 EUT OPERATION CONDITIONS 57 10.1.6 TEST RESULTS 58 Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 5 of 66 Table of Contents Page 11 . EUT PHOTOS 64 Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 6 of 66 1. CERTIFICATION Equipment : SKAA Lightning connector Tx Brand Name : SKAA; Diz Model Name : PL5564-S Applicant : Eleven Engineering Inc. Manufacturer : AML Industrial Electronic Ltd. Address : 15/F., Block B, Veristrong Industrial Centre 34-36 Au Pui Wan Street Fotan, Shatin, N.T. HONG KONG Factory : AML Industrial Electronic Ltd. Address : Po Shan Industrial Estate, Zhangmutou Town, Dongguan Cit y, Guangdong, CHINA, 523622 Date of Test : Sep. 16, 2013~ Sep. 17, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4 - 2009 FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210:2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 64 of 66 11. EUT PHOTOS Radiated Measurement Photos 9KHz~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 65 of 66 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1309C128 Page 66 of 66 Radiated Measurement Photos Above 1000MHz
