VBLASTER-2400 OWNER’S MANUAL K&A Wireless, LLC 2617 Juan Tabo, NE Suite A Albuquerque, NM 87112 Phone(505) 338-2380 Fax(505) 338-2382 URL:www.ka-wireless.com E-mail:[email protected] A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC TABLE OF CONTENTS TABLE OF CONTENTS............................................................................................................2 SAFETY NOTICES...........................................................................................................................3 PARTS LIST...............................................................................................................................................4 PRODUCT DESCRIPTION..................................................................................................5 Transmitter.......................................................................................................................................................5 Receiver..............................................................................................................................................................6 TURN-ON PROCEDURES.....................................................................................................8 Receiver..............................................................................................................................................................8 SPECIFICATIONS............................................................................................................................9 Specifications for the VBLASTER-2400...............................................................................9 General................................................................................................................................................................9 Transmitter.......................................................................................................................................................9 Receiver..............................................................................................................................................................9 Installation procedure for CUSTOMER’S NAME AND MODEL OF CAMERA.........................................................................................................................................................10 TROUBLESHOOTING.............................................................................................................11 VBLASTER-2400 Users Manual...DRAFT3 . 2617 JUAN TABO NE, SUITE A, ALBUQUERQUE, NM 87112 PHONE 338-2380 FAX 338-2382 [email protected] SAFETY NOTICES 1. THIS DEVICE IS FOR LICENSED USE ONLY 2. THIS IS NOT AN INTRINSICALLY SAFE DEVICE. DO NOT TAKE INTO AREA WHERE INTRINSIC SAFETY IS REQUIRED. BODILY HARM MAY RESULT IF WARNING IS IGNORED. 3. DO NOT OPERATE TRANSMITTER WITHOUT ANTENNA CONNECTED TO ANTENNA PORT. FAILURE TO DO SO WILL RESULT IN DAMAGE TO THE UNIT AND VOID THE WARRANTY. 4. THE TRANSMITTER IS FCC APPROVED UNDER FCC ID: OPH- VBLAST2400. ANY CHANGES OR MISUSE OF THE PRODUCT MAY VOID THE USER’S AUTHORITY TO OPERATE THIS PRODUCT. 5. THIS PRODUCT MUST BE PROFESSIONALLY INSTALLED. THE RADIO AND ITS ANTENNA IS REQUIRED TO BE MOUNTED AT LEAST 20 CM AWAY FROM THE HEAD/BODY OF THE USER AND 2CM AWAY FROM THE HANDS OF THE USER. 6. ONLY QUALIFIED TECHNICAL PERSONELL SHOULD PERFORM THE INSTALLATION OF THE TRANSMITTER MODULE . ANY CHANGES TO THE DESIGN AND/OR LOCATION OF THE MODULE AND ANTENNA WILL VOID THE FCC LICENSE. 7. ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL. VBLASTER-2400 Users Manual...DRAFT4 2617 JUAN TABO NE SUITE A, ALBUQUERQUE, NM 87112 PHONE 338-2380 FAX 338-2382 [email protected] PARTS LIST The VBLASTER-2400 Analog Video Transmission system comes complete with the following items: 1. VBLASTER-2400 transmitter with integrated antenna 2. VBLASTER-2400 portable receiver 3. High-gain antenna for receiver 4. Wall outlet power cord for receiver 5. Cigarette lighter adaptor for receiver 6. Cables The video output of the receiver can be displayed on any NTSC compatible monitor or television receiver. In addition, the receiver output can be displayed on a personal computer (PC) or laptop through the purchase of a converter available through K&A Wireless, LLC. Additional accessories available through K&A Wireless: 1. Dipole antenna for receiver 2. 12-dB panel antenna for receiver 3. 5-dB vehicle-mounted antenna with magnetic base for receiver 4. 7-dB vehicle mounted antenna for receiver 5. 9-dB vehicle-mounted antenna for receiver 6. 11-dB vehicle mounted antenna for receiver 7. NTSC to PC converter to display receiver image on PC or laptop 8. NTSC compatible 5” monitors VBLASTER-2400 Users Manual...DRAFT5 ____________________________________________________________________________________________________________ 2617 JUAN TABO NE SUITE A, ALBUQUERQUE, NM 87112 PHONE 338-2380 FAX 338-2382 [email protected] PRODUCT DESCRIPTION The VBLASTER-2400 is a two-channel analog FM, video transmission system operating in the 2.4 GHz ISM band. The VBLASTER-2400 provides a cost effective solution to long-range transmission available for law enforcement or government applications. The ISM band is an unlicensed band allocated by the FCC, however, the transmitter is designated for PART 90 use and requires a license to be obtained by the end user. In addition to the enhanced performance, the VBLASTER-2400 provides a rudimentary security feature, which decreases the ability of unwanted parties from receiving and re- broadcasting the transmitted signal. This feature is built into the transmitter and receiver. Keep in mind that with the addition of the security feature, the receiver will not work with off-the-shelf transmitter systems. Transmitter The VBLASTER-2400 transmitter is shown in Figure 1. The transmitte…

Text truncated - open the document above for the full version.

1 A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC K&A Wireless, LLC Memorandum To:Tri Luu – Ultratech, Inc From:Kamil Agi – President-CEO K&A Wireless, LLC CC:Steve Dayhoff – Federal Communications Commission Date:11/19/01 Re:FCC ID OPH-VBLAST2400 This memorandum is in response to correspondence reference number 21068 for 731 Confirmation number EA101939 dated 26 October 2001. Table 1 shows the available cameras in the firefighting market that are used by the fire departments. Table 1. Table of available manufacturers of thermal imaging cameras used by fire departments Cairns Advanced Technology, LLCwww.cairnsiris.com ISG Thermal Systems USA, Inc.www.isgfire.com Mine Safety Appliances Corporationwww.msanet.com Bullard, Inc.www.bullard.com FLIR Systems, Inc.www.fireflir.com Scott Technologies, Inc.www.scottaviation.com Infrared Components Corporationwww.infraredcomponents.com International Safety Instruments, Inc.www.intsafety.com Fire Research Corporationwww.fireresearch.com In this group of manufacturers, we are currently targeting Cairns Advanced Technology, LLC and ISG Thermal Systems USA, Inc. These two companies are currently key customers of K&A Wireless, and we would like to provide them the analog system referenced in this response. We would like the option to market the system to other camera manufacturers as well in the firefighting market. For any new integration, we will work closely with the manufacturer to insure that the RF exposure conditions are met. I have also provided correspondence with the ISG Thermal Systems USA and Cairns Advanced Technology as reference. l Page 2 13.5cm 33cm 18cm Cairns Advanced Technology Figure 1 shows the camera in the typical configuration in the fireman’s hands. We believe that this is the worse case scenario for the exposure criterion. Figure 2 is the outside dimensions of the camera with the antenna located under a radome. The red button is an on/off switch. This location was chosen for mechanical stability and reliability in a fire scene. The length Figure 1. Indicates the outer dimensions of the camera. The antenna is located 21.5 cm away from the edge of the camera maintaining the RF exposure limit. l Page 3 Figure 2. A photo indicating the location of the integrated transmitter. Note that the antenna is placed 22 cm away from the edge of the edge of the camera. l Page 4 of the camera is 33 cm and the width across the antenna is 18 cm and 13.5 cm across the LCD. As shown the antenna is placed inside a radome with the edge of the radome approximately 21.5 cm away from the edge of the camera near the LCD. Keep in mind that the facemask of the firefighter will add an additional 3cm (minimum) distance to the actual body/head of the firefighter. Note that the radome for this camera system will be made of Ultem ® , which has a dielectric constant of approximately 3 (www.cuflon.com/ultem.htm). This will further decrease the radiated power of the transmitter. Bystanders, we believe, will always be further than 20 cm. Figure 3 shows the location of the integrated transmitter inside the camera. Note that the antenna is placed in the center of the radome. In this configuration, the 20 cm distance will be met. Please find the correspondence with Mr. Kerry Gordon at Cairns Advanced Technology. From: Kerry Gordon [[email protected]] Sent: Thursday, November 15, 2001 1:45 PM To: [email protected] Subject: FCC Compliance Mr. Agi: I have reviewed the material that you are preparing for the submission of the internal FM transmitter for the CairnsVIPER thermal imager and find that the material represents what we have agreed in our previou meetings. The images and the dimensions agree with what Cairns beleives to be the requirements of the FCC for this class of product and we are confident that K&A has taken all the necessary precautions to make a function and safe product for the market. Cairns is prepared to assist K@A in every way possible to achieve certification of this product with the FCC as well as getting the product certified for EMI/RFI as soon as possible. If there is anything that we can do to assist you as our tranmitter development specialist contact me directly at 1-800-230-1600. Regards, Kerry W. Gordon Vice President of Technology l Page 5 ISG Thermal Systems USA, Inc. The worse case exposure condition of the thermal imager currently available at ISG is shown in Figure 4. In this application, the firefighter is surveying a fire scene prior to entering a burning building. His gear is on, but his face shield is not down. Although this is the worse case configuration from an exposure standpoint, it is not considered normal use since typically the transmitter will be off. However, there is a possibility that it may be on. The dimensions of the Talisman are shown in Figure 5. The distance from the antenna to the LCD display is approximately 25cm. Keep in mind that the camera is internally shielded against electromagnetic interference (EMI). This will also provide additional safety from RF exposure. The proposed location of the antenna is shown Figure 3. ISG Thermal Systems USA Talisman line of thermal imagers shown in its typical application. Figure 4. The dimensions of the Talisman are shown above. The antenna will be placed on the end of the camera with the detector and lens, opposite the display. 27 cm 8.5 cm l Page 6 in Figure 6 (a). The antenna will be located on the tip of the camera furthest away from the LCD. An internal photograph of the antenna is shown in Figure 6(b). The transmitter module is installed once the camera electronics are in place. Therefore, the photos do not include the module. With the antenna placed at that location, the minimum distance of 20cm will be met. Below is the correspondence with Mr. John Baker at ISG Thermal Systems USA, Inc: ********************************************************************** From: John Baker [[email protected]] Sent: Thursday, November 15, 2001 2:02 P…

Text truncated - open the document above for the full version.

2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs Nov. 16, 2001 FEDERAL COMMUNICATIONS COMMISSION Attention: Mr. Steve Dayhoff Subject:K & A Wireless LLC FCC ID: OPH-VBLAST2400 731 Confirmation No.: EA101939 Correspondence No.: 21067 Dear Mr. Dayoff, Attached in the "Users Manual" folder please find the revised Users' Manual with revised RF Exposure Warning and Radio Installation Instruction and the Applicant's Statement with Pictures of Specific Cameras (for use by Fire Department) with the K&A VBLAST2400 Radio Module to ensure the RF Exposure Compliance per your request in the Correspondence # 21067. The following our answers and explanation about the SAR Test Report: Q1: pg 10 - FYI Suppl C target permittivity and conductivity are 52.7 and 1.95 Q2: pg 17 - 23% overestimate is incorrect - please correct this to 11% (from Kuster/Balzano theory). A1 & A2) Target tissue parameter had been changed and new parameter was ratified recently in the SCC-34 IEEE Standards and the revised OET 65 supplement C. And back then, we were told to use parameters that would overestimate SAR to ensure compliance. Q3: In the SAR vs depth plots, the second measured point from the surface is consistently off the curve-fit. In addition, in many plots the measured data falls below the curve-fit in the 10-20 mm range. This appears to create an underestimate of peak SAR. The curve-fit should fit the 2 nd point and the data in 10-20 mm better. Please explain and/or re-calculate. A3: Due to the surface detection mechanism of the system, The Second and succeeding point measurements were taken at slightly closer distance from the surface of the phantom than it supposed to be. Therefore this will result in SAR overestimating while the integration over the 1-gram volume is calculated. This will not happen with using the flat phantom. The value in the 10-20mm range are being measured of the system's noise flows and so a higher error is expected on levels close to the system's noise flows where signal fidelity is poor. Q4: In the SAR vs depth plots, is a boundary-effect correction applied to the measured point first from the surface? A4: Our system doesn't compensate in boundary-effect at the moment but we are using the probe which diameter is as small as 4mm (half the probe diameter : 2 mm) to minimize the boundary-effect. Please feel free to contact us if you have any questions Best Regards Tri Luu, P.Eng. Vice President of Engineering Ultratech Engineering Labs Inc.

July 18, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transmitters Operating in the frequency bands 2450-2483.52 MHz. Applicant:K&A Wireless, LLC Product:VideoBlaster Model:VBLAST2400 FCC ID:OPH-VBLAST2400 Dear Sir/Madam, As appointed agent for K&A Wireless, LLC, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs

2617 JUAN TABO NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX 505-338-2382 [email protected] A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC ANNEX 5B - Authorization for Ultratech to act as an Agent Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Authority to Act as an Agent to FCC Applicant:K&A Wireless, LLC Product:VideoBlaster Model:VBLAST2400 FCC ID:OPH-VBVLAST Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs, Inc (UltraTech) to act as my agent in preparation of this application to F.C.C for authorization of equipment under F.C.C Rules and Regulations. I also certify that the information provided, properly described the device or system for which authorization is required. With my best regards, Kamil Agi President

2617 JUAN TABO NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX 505-338-2382 [email protected] A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC ANNEX 5C - Confidentiality Letter Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant:K&A Wireless, LLC Product:VideoBlaster Model:VBlast2400 FCC ID:OPH-VBLAST2400 Dear Sir/Madam, We, K&A Wireless, LLC, would like to request that the schematic diagrams and system block diagrams, labeled Exhibit 6, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No.TitleDrawing No./Sheet No. 1Block Digram 2Schematic Diagram If you have any queries, please do not hesitate to contact us: (505) 338-2380 With my best regards, Kamil Agi

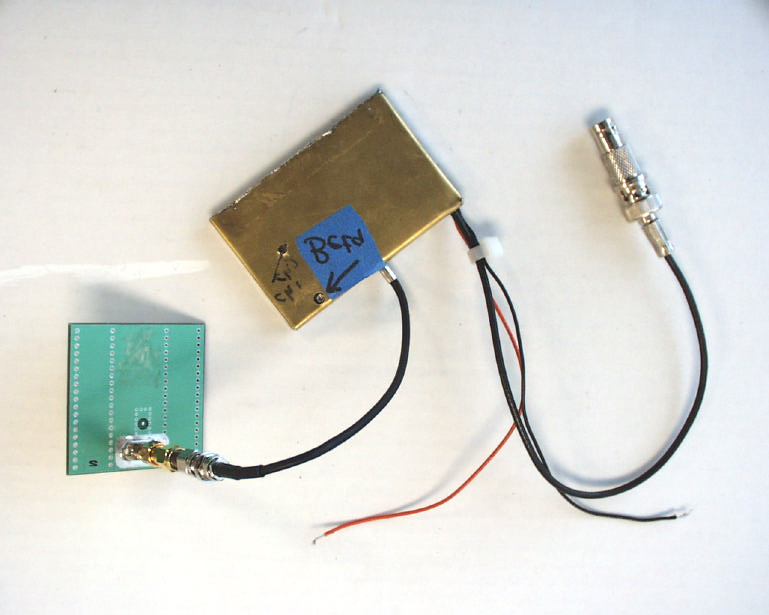

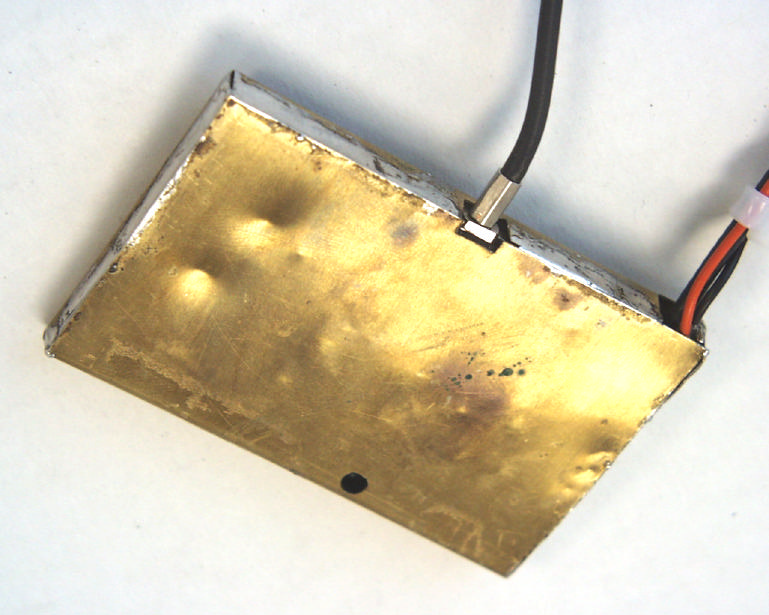

ANNEX 3 - EXTERNAL PHOTOS OF THE EUTPHOTO # 1 K & A WIRELESS VideoBlaster, Model VBLAST2400 Antenna Modular Radio Transmitter DC Input Port NTSC video input port ANNEX 3 - EXTERNAL PHOTOS OF THE EUTPHOTO # 2 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 3 - EXTERNAL PHOTOS OF THE EUTPHOTO # 3 K & A WIRELESS VideoBlaster, Model VBLAST2400

2617 JUAN TABO NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX 505-338-2382 [email protected] A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC ANNEX 7 - FCC ID Label & ITS LOCATION Transmitter Brass Enclosure AK & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC VideoBlaster Model No.: VBLAST2400 FCC ID: OPH-VBLAST2400 Made in USA AK & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC VideoBlaster Model No.: VBLAST2400 FCC ID: OPH-VBLAST2400 Made in USA

ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 1 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 2 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 3 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 4 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 5 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 6 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 7 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 8 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 9 K & A WIRELESS VideoBlaster, Model VBLAST2400 ANNEX 4 - INTERNAL PHOTOS OF THE EUTPHOTO # 10 K & A WIRELESS VideoBlaster, Model VBLAST2400

2617 JUAN TABO NE, SUITE A ALBUQUERQUE NM 87112 PHONE 505-338-2380 FAX 505-338-2382 [email protected] A K & W I R E L E S S, L L C A subsidiary of ASSA Industries, LLC ANNEX 11 - Technical Description The transmitter requesting certification is an integration of an FM transmitter module purchased through Matco and a power amplifier. The power amplifier is used to increase the output power. In order to control spurious emissions, we have incorporated an output RF filter and a video buffer section on the front end. The power amplifier consists of a bias circuit with switching regulators to maintain constant gain on the amplifier. The video buffer circuit consists of an operational amplifier that has a variable gain stage. The variable gain is used to maintain control of the video level into the transmitter module. In addition, to comply with the frequency limitation of the Part 90 regulation (2450-2483 MHz), we have limited the channel selection to channels 3 and channel 4 on the transmitter subsystem. Channel 3 on the subsystem is labeled as Channel 1 (2459 MHz) in the overall system, and Channel 4 on the subsystem is labeled as Channel 2 (2470 MHz) in the overall system. The channel is selected through a switch that will be made available to the end user. The antenna is an omni-directional, board-mounted disk antenna with 4 dBi gain. The operation of the transmitter will consist of attaching a video source through the video connector, attaching the RF antenna and providing voltage through the power port and turning the external switch on.

2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 August 02, 2001 K & A WIRELESS, LLC 2617 Juan Tabo, NE, Suite A Albuquerque, NM USA, 87112 Attn.: Mr. Kamil Agi Subject: Verification Testing in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in: IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C) Industry Canada RSS-102 (Issue 1) ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Product: VideoBlaster Model: VBLAST2400 FCC ID: OPH-VBLAST2400 Dear Mr. Agi The product sample has been tested in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1)and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1), and the results and observation were recorded in the engineering report, Our File No.: K & A-003-SAR Enclosed you will find a copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs August 02, 2001 File No.: K & A-003-SAR K & A Wireless, LLC Albuquerque, NM USA, 87112 NOT TRANSFERABLE This Verification Certificate is hereby issued to the named GRANTEE and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below: GRANTEE'S NAME: K & A WIRELESS, LLC PRODUCT UNDER TEST: VideoBlaster MODEL NO.: VBLAST2400 FCC ID: OPH-VBLAST2400 OPERATING FREQUENCY RANGE: 2450 – 2483.5 MHz NOMINAL RF OUTPUT POWER: 0.71 Watts (Conducted) or 3.5 Watts (EIRP) MAXIMUM S.A.R.: 0.935 Watts/Kg APPLICABLE STANDARDS: SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA ) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST Technology (NIST) Approved by: Tri M. Luu, P.Eng. V.P. – Engineering UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] VideoBlaster Model No.: VBLAST2400 FCC ID: OPH-VBLAST2400 Tested For K & A WIRELESS, LLC 2617 Juan Tabo, NE, Suite A Albuquerque, NM USA87112 In Accordance With SAR (…
