OPLQ5CQuantum EZ Q5C Subsurface Imaging Systems

© Copyright 2015 No part of this document may be photocopied or otherwise reproduced without the prior permission in writing of US Radar, Inc. Q5C Manual Page 2 of 17 CERTIFICATE OF WARRANTY US Radar warrants under the following conditions that new equipment products are free of defects in material and workmanship and that only appropriate materials were used. The warranty period for hardware is two (2) years from the date of purchase, this excludes battery packs. The warranty period for battery packs is one (1) year from the date of purchase. US Radar’s obligation under this warranty is to either repair or replace parts and assembly groups which have been determined, upon inspection, to have been defective. US Radar will not accept any claims for a reduction of the purchasing price or a replacement of the purchased object. US Radar shall not be liable for subsequent damage such as downtime costs, compensation, rentals, costs for replacement equipment, lost profit, or any other damages resulting from any equipment failures during the warranty period. In the case of any warranty claims, an appropriate period of time must be granted for the performance of the necessary work and the supply of spare parts. Parts which have been replaced under warranty become the property of US Radar Inc. Repairs and work during the warranty period which were not performed by US Radar Inc. or Subsurface Imaging Systems Inc. or by personnel authorized by US Radar Inc. will lead to the loss of all warranty claims. Systems that have been opened, or otherwise tampered with will lead to the loss of warranty and will not be repaired. Damage caused by accelerated wear and tear, this includes also the continuation of operation after the detection of a defect; improper handling, maintenance, and storage; and non-observance of the operating instructions, are not covered by this warranty. The same applies to damage resulting from normal wear and tear. In the case of any warranty claims, US Radar assumes responsibility for domestic ground freight charges in one (1) direction only. It is the responsibility of the customer to transport any equipment needing repairs to an authorized repair facility. Page 3 of 17 Safety and Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. US Radar Inc. assumes no liability for any injuries or damage caused by proper or improper operation of its equipment, regardless of any system defects. Systems that have been opened, or otherwise tampered with will lead to the loss of warranty and will not be repaired. This Ground Penetrating Radar shall only be used when in contact with the ground. Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research institutes, commercial mining companies, and construction companies. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator to serious legal penalties. N OTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Page 4 of 17 STEP 1: TURN Power ON 1. Press the illuminating switch on back of the antenna. 2. Turn on the controller PC. STEP 2: From the Main Menu, touch Settings Page 5 of 17 STEP 3: Set Up the Antenna 1. From the Settings menu, touch Antenna 2. Touch the Auto Config button. Page 6 of 17 3. When complete the following message will display. If a valid Pulse Position is not set, please redo Step 2. Note: It is a good idea to perform Auto Configuration before commencing work at each new site. 4. Touch the OK button. Page 7 of 17 5. Touch the OK button to return to the Settings Menu. 6. Touch the Back button to return to the Main Menu. Page 8 of 17 STEP 4: Set Radar Survey Parameters 1. From the Main Menu, touch New Survey Page 9 of 17 2. The Survey Settings screen will display. A This field indicates the filename that will be assigned to this survey file if you choose to record the data. B Under Mode, if you have a choice of Single Line and Multi Line (Area), make sure that the Single Line option is selected. Note: Multi-Line is used for acquiring 3D surveys, and requires a license from US Radar. C Vertical Settings affects vertical measurements. For most applications, default values are acceptable and do not need to be changed. D Horizontal Settings affects horizontal measurements. For most applications, default values are acceptable and do not need to be changed. 3. Press OK to begin Surveying. A D C B Page 10 of 17 2 STEP 5: Starting and Stopping a Radar Survey Primary Functions 1. Recording Controls 2. Flat Gain 3. Depth Scales 4. Dotted Lines representing surface of…

Text truncated - open the document above for the full version.

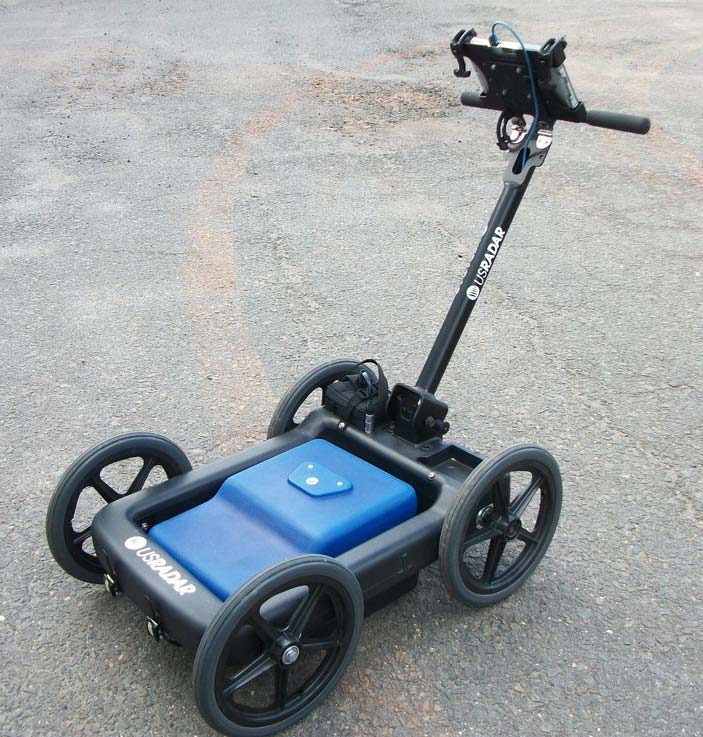

EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 53 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Q5C Full Assembly Cart -- Front EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 54 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Q5C Full Assembly Cart --Rear EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 55 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Q5C Main Unit-- Front EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 56 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Q5C Main Unit-- Rear

EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 48 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 5. FCC ID Labeling FCC ID Label (The statement may be shown in its User Manual) FCC Label Location (back of EUT) FCC ID: OPLQ5C This device complies with Part 15, Subpart F of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID Label

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Quantum EZ Q5C Applicant U.S. Radar Inc. In Accordance With FCC Part 15, Subpart F Tested by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date April 24, 2015 AC Lab Report Number 0048-150121-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Table of Contents Section 1. Summary of Test Results .................................................................................. 3 Section 2. General Equipment & Test Configuration ........................................................ 6 Section 3. Test Methodology & Facilities ......................................................................... 8 Section 4. Measurement Data ............................................................................................ 9 Section 5. FCC ID Labeling............................................................................................. 49 Section 6. Setup Photos.................................................................................................... 50 Section 7. EUT Photos ..................................................................................................... 53 EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: U.S. Radar Inc. Product Name: Quantum EZ Model/Parts No. : Q5C S/N: PT001 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Sub Part F. New Submission Production Unit Class I Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advanced Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advanced Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data Compliance Requirement FCC Rule Part Test No. in Section 4 Result Cross Reference 15.505 1 Complies Marketing of UWB Equipment 15.507 2 Complies Pulse Repetition Frequency(PRF) 15.509 3 Complies UWB Bandwidth 15.509(a) 15.503(a) 4 Complies General Operational Requirements for LF Imaging System 15.509(b) 5 Complies Spurious Radiated Emissions≤960MHz 15.509(d) 15.209 6 Complies Spurious Radiated Emissions>960MHz 15.509(d) 7 Complies Radiated Emissions in GPS Bands 15.509(e) 8 Complies Highest Radiated Emission at f M 15.509(f) 9 Complies Technical Requirements Applicable to All UWB Devices 15.521 10 Complies Coordination Requirement 15.525 11 Complies Antenna Requirement 15.203 12 Complies Radio Frequency Exposure FCC OET Bulletin 65 13 Complies Conducted Emissions 15.207 14 * Transmission Duration 15.509(c) 15 ** * NOT APPLICABLE to the EUT as it is a battery-powered device; ** NOT APPLICABLE to the EUT as it is not a handheld device. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Wei Li Date: April 24, 2015 Lab Manager Advanced Compliance Lab EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 6 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment & Test Configuration 2.1. EUT Specification EUT Quantum EZ, Model No. Q5C, manufactured by U.S. Radar Inc., is an ultra-wide band ground penetrating radar (GPR) intended for geophysical surveying and non-destructive testing. Supply Voltage 12V(extended: 13V-17V) DC, provided by Rechargeable Battery Operating Frequency Nominal 500MHz UWB Bandwidth 295.6MHz to 767.2MHz ( -10dB BW) Modulation Type 120ns Impulse, 0.5MHz Pulse Repetition Frequency (PRF) Peak Emissions in a 50 MHz Bandwidth <960MHz Antenna internal, non-user replaceable Dipole Antenna Hardware Version .001 Software Version .001 2.2. Description of Operation The system performs time domain reflectometry by radiating a radio frequency impulse with a repetition frequency of 1 MHz from a transmitting dipole (TX dipole). Transitions between materials exhibiting different wave impedances through which the electromagnetic wave travels cause the wave to be reflected. These reflections are received by the receiving dipole (RX dipole) and sampled by the instrument. Results may EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 7 Advanced Compliance Laboratory, Inc. 6 Ra…

Text truncated - open the document above for the full version.

EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 49 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 6. Setup Photos Radiated Emissions in OATS Under 960MHz Above 1GHz EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 50 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Radiated Emissions in OATS EUT Positions with 45 Degree Interval EUT: Quantum EZ Model: Q5C FCC ID: OPLQ5C Report Number: 0048-150121-01 Page 51 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Radiated Emissions in Anechoic Chamber
