OPMHC20026002Radio Control Toys - Turbo Twister

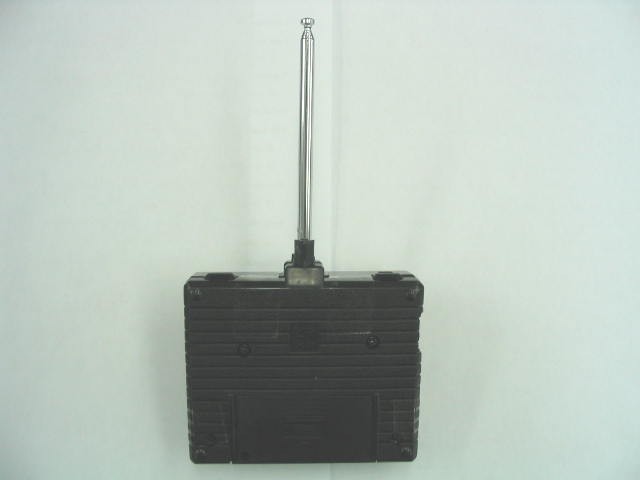

Operation Description of transmitter for Radio Control Toys ñ Turbo Twister Tx The Turbo Twister Tx is a transmitter operating at 49.860 MHz which is controlled by a crystal. It is powered by 9V battery. There are two control sticks on the front side of the transmitter. When the left and right control stick is pushed once, it will transmit a radio frequency for receiver forward, backward, turn left and turn right. Refer to the circuit design, the circuit description is listed as follows: - X1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier - IC1 and associated circuit act as encoder

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006208-1 Date : 2004 June 08 Applicant : High Champion Limited Room 1901, 19/F., Block A, Kailey Ind. Centre, 12 Fung Yip Street, Chai Wan, Hong Kong. Buyer : Westminster Inc. Sample Description : Three(3) submitted samples stated to be : Item Name Model No. Radio Control Toy ñ Turbo Twister 0980 Radio Control Toy ñ R/C EX-2 / Stunt Vehicle 0986 Radio Control Toy ñ R/C EX-1 / Stunt Vehicle 0987 Rating : 1 x 9 V size battery No. of sample(s) : Seven(7) pieces *** Date Received : 2004 April 22. 2004 May 19. Test Period : 2004 April 22 ñ 2004 May 10. 2004 May 19 ñ 2004 May 24. 2004 May 25 ñ 2004 June 01. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All three models are the same in circuitry and components; and therefore model 0980 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : OPMHC20026002 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006208-1 Date : 2004 June 08 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : OPMHC20026002 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE006208-1 Date : 2004 June 08 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Turbo Twister operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by 9 V battery. There are two control sticks on the front side of the transmitter. When the left and right control stick is pushed once, it will transmit a radio frequency for receiver forward, backward, turn left and turn right. The brief circuit description is listed as follows : - X1 and associated circuit act as oscillator - Q2 and associated circuit act as amplifier - IC1 and associated circuit act as encoder Models 0986 and 0987 are the same as model 0980 in circuitry and components. The difference in these three models are plastic bodies only. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 11 FCC ID : OPMHC20026002 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by th…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE006208-1 Bandwidth Plot Bandwidth 1 Bandwidth 2 Nil

CMA Testing and Certification Laboratories P. of Report No.: AE006208-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE006208-1 Duty Cycle 2 Duty Cycle 3
