OQA-FSARTBAU1Transceiver radio module

fsartbau1_instruction_manual-rev2 1 Instruction Manual for FSARTBAU1 radio module Original instructions fsartbau1_instruction_manual-rev2 2 INDEX 1. Description FSARTBAU1 radio module ..............................................................................3 1.1 Identification ................................................................................................................................3 1.2 Technical data .............................................................................................................................3 1.3 Photos .........................................................................................................................................3 2. Applications .........................................................................................................................5 3. Functional description ........................................................................................................6 4. Frequencies groups .............................................................................................................7 4.1 Frequencies group “A” .................................................................................................................7 4.2 Frequencies group “B” .................................................................................................................7 4.3 Frequencies group “C” ................................................................................................................8 4.4 Frequencies group “D” .................................................................................................................8 5. Approval for US ..................................................................................................................10 5.1 FCC ...........................................................................................................................................10 5.2 FCC End Product Labeling ........................................................................................................10 6. Approval for Canada ..........................................................................................................11 6.1 ISED ..........................................................................................................................................11 6.2 ISED ..........................................................................................................................................11 6.3 ISED End Product Labeling .......................................................................................................11 6.4 ISED Étiquetage du produit final ...............................................................................................11 fsartbau1_instruction_manual-rev2 3 1. Description FSARTBAU1 radio module 1.1 Identification Equipmentradio module Radio moduleFSARTBAU1 Used frequency band915-928 MHz Manufacturer AUTEC srl Via Pomaroli, 65 36030 CALDOGNO (VI) 1.2 Technical data Used frequency band915 - 928 MHz Type of modulation19300 Baud RC-FSK Channel spacing50 kHz Duplex directionhalf duplex Hamming distance>=16 Probability of non-recognition of error<10 exp-15 Dimensions(67x67x9) mm Power supply3,3Vdc (+/- 10%) Transportation range temperature-40°C to +70°C (-40°F to +158°F) Storage range temperature-40°C to +85°C (-40°F to +158°F) Use range temperature -25°C to +55°C (-13°F to +130°F) for remote stations -25°C to +70°C (-13°F to +158°F) for base stations 1.3 Photos Front view fsartbau1_instruction_manual-rev2 4 Back view fsartbau1_instruction_manual-rev2 5 2. Applications The use of FSARTBAU1 radio module is limited to remote and base stations of Autec Dynamic series. In addition to the above, this radio module cannot be installed: -inside equipment that is portable by user -in equipment that are intended for the use in environments requiring explosion-proof features or in any usage situation that may pose the risk of explosion. -in equipment for moving, raising and transporting people, if the Machine’s characteristics and their re- lated risks and/or the risks related to the use of a Radio Remote Control do not make it possible for the Machine Manufacturer to ensure that all the safety requirements are met. Such requirements must be taken into account when designing and manufacturing the Machine, also bearing in mind that a radio module will be used. The Machine Manufacturer may allow the installation and use of the radio module on such applications under their own responsibility. -in equipment that create or can create dangerous situations if they stop due to the loss of radio link. -in equipment that do not allow a risk-free installation of a radio module, due to their functions or features and/or to the risks related to their use. -if the applicable safety-related laws in the country where the Machine is used, regulations and stan- dards (even local ones), even concerning safety in the workplace, do not allow the use of radio module to control the Machines. INSTALLATION OF FSARTBAU1 RADIO MODULE IN THE ABOVE MENTIONED EQUIPMENT AND SITUATIONS MAY CAUSE SERIOUS INJURY OR DEATH OR PROPERTY DAMAGE. 2.1 Integration in the host The module is installed in the remote stations according to the following instructions: Host Radio module 12 Antenna connector 34 fsartbau1_instruction_manual-rev2 6 The module is installed in the base stations according to the following instructions: Antenna connector 1 Radio module Host 2 The connection between the radio module and the antenna is made through the coaxial cable inside the base station or the remote station.. fsartbau1_instruction_manual-rev2 7 3. Functional description The FSARTBAU1 radio transceiver module is used in both Autec’s Transmitting Units (TU) and Receiving Units (RU); it is based on the commercial RFIC (Radio Frequency Integrated Circuit) ADF7021 made by Analog Devices, which encompasses all the circuits and functio…

Text truncated - open the document above for the full version.

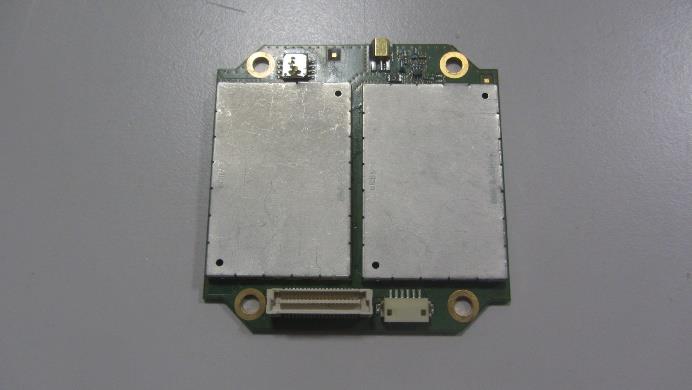

EUT on expansion board of a receiver unit EUT on expansion board of a transmitter unit

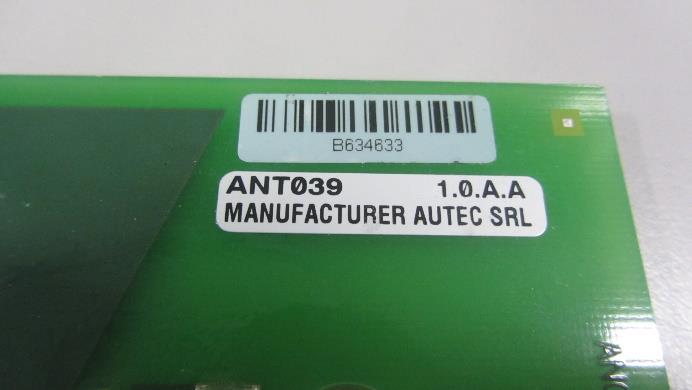

Model FSARTBAU1 label Model FSARTBAU1 position plate position Label_and_position_fsartbau1_rev0

EUT on expansion board of a receiver unit EUT on expansion board of a transmitter unit

DEKRA Testing and Certification S.r.l. Sede Operativa: Via della Fisica 20, 36016 Thiene (VI), Tel. +39 0445 367702 - [email protected] TRF No. 15-247_HoppingDEKRA Page 1 of 21 Test Report No. R23162901 rev.1.0 TEST REPORT Nr. R23162901 Federal Communication Commission (FCC) Report Reference No. ............... : R23162901 Date of issue: .............................. : 28.11.2023 Total number pages: ................... : 21 Customer name ......................... : Autec S.r.l. Address ....................................... : Via Pomaroli, 65 – 36030 Caldogno (VI) – Italy Test specification: Standards .................................... : KDB 447498 D01 General RF Exposure Guidance v06 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-247_HoppingDEKRA Test Report Form(s) Originator ... : DEKRA Testing and Certification S.r.l. Master TRF ................................. : 2023-11 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of DEKRA Testing and Certification S.r.l. (*) Test item description ........... : Transceiver radio module (*) Trademark .............................. : Autec (*) Manufacturer .......................... : Autec S.r.l. (*) Model / Type reference .......... : FSARTBAU1 (*) FCC ID ................................... : OQA-FSARTBAU1 (*) Rating(s) ................................. : 3,3 Vdc Report Tested by (name + signature) ..... : G. Gandini ............................................................. Approved by (name + signature) .................................... : F. Marenda ............................................................. (*) information provided by the customer TRF No. 15-247_HoppingDEKRA Page 2 of 21 Test Report No. R23162901 rev.1.0 1 Summary 1 Summary........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of tested item and testing condition(s) ............................................................. 5 6.1 Photos of the test item ................................................................................................................. 6 6.2 Verdict summary section ........................................................................................................... 13 7 Test conditions ................................................................................................................................ 15 7.1 General ...................................................................................................................................... 15 8 Test results ..................................................................................................................................... 16 8.1 RF Exposure Analysis ............................................................................................................... 16 TRF No. 15-247_HoppingDEKRA Page 3 of 21 Test Report No. R23162901 rev.1.0 2 Reference standard KDB 447498 D01 General RF Exposure Guidance v06 RF exposure procedures and equipment authorization policies for mobile and portable devices 3 List of attachments Attachment 1: Measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location DEKRA Testing and Certification S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 28.11.2023 TRF No. 15-247_HoppingDEKRA Page 4 of 21 Test Report No. R23162901 rev.1.0 Testing and sampling: Date of receipt of test item .......................................... : 03.08.2023 Testing start date ........................................................ : 28.11.2023 Testing end date ......................................................... : 28.11.2023 Sampling procedure .................................................... : Sample used for testing chosen by the customer; DEKRA Testing and Certification S.r.l. cannot be considered responsible for the selection of the sample Internal identification ................................................... : Adhesive label with the product number P230748 General remarks: This report shall not be reproduced, except in full, without the written approval of DEKRA Testing and Certification S.r.l. The test results presented in this report relate only to the object tested. “(see appended table)": refers to a table appended to the report. Throughout this report a comma is used as the decimal separator. Possible test case verdicts: Test case does not apply to the test object: N/A (Not Applicable) Test object meets the requirement: P (Pass) Test object does not meet the requirement: F (Fail) Test object was not evaluated for the requirement: N/E (Not Executed) Definition of symbols used in this test report: ☒ Indicates that the listed condition, standard or equipment is applicable for this report. ☐ Indicates that the listed condition, standard or equipment is not applicable for this report. TRF No. 15-247_HoppingDEKRA Page 5 of 21 Test Report No. R23162901 rev.1.0 6 General description of tested item and testing condition(s) Description ................................. : Transceiver radio module Mod…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification S.r.l. Sede Operativa: Via della Fisica 20, 36016 Thiene (VI), Tel. +39 0445 367702 - [email protected] Accredited by ACCREDIA according to UNI CEI EN ISO/IEC 17025 accreditation n. 0168 L TRF No. 15-247_Hopping_DEKRA Page 1 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TEST REPORT Nr. R23154801 Federal Communication Commission (FCC) Report Reference No. ............... : R23154801 Date of issue: .............................. : 28.11.2023 Total number pages: ................... : 86 Customer name ......................... : Autec S.r.l. Address ....................................... : Via Pomaroli, 65 – 36030 Caldogno (VI) – Italy Test specification: Standards .................................... : FCC Rules & Regulations, Title 47:2021 Part 15 paragraph(s): 203, 204, 205, 207, 209, 215 and 247 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-247_Hopping_DEKRA Test Report Form(s) Originator ... : DEKRA Testing and Certification S.r.l. Master TRF ................................. : 2023-11 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of DEKRA Testing and Certification S.r.l. (*) Test item description ........... : Transceiver radio module (*) Trademark .............................. : Autec (*) Manufacturer .......................... : Autec S.r.l. (*) Model / Type reference .......... : FSARTBAU1 (*) FCC ID ................................... : OQA-FSARTBAU1 (*) Rating(s) ................................. : 3,3 Vdc Report Tested by (name + signature) ..... : G. Gandini ............................................................. Approved by (name + signature) .................................... : F. Marenda ............................................................. (*) information provided by the customer TRF No. 15-247_Hopping_DEKRA Page 2 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 1 Summary 1 Summary........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of tested item and testing condition(s) ............................................................. 5 6.1 Photos of the test item ................................................................................................................. 6 7 Verdict summary section ................................................................................................................ 13 8 Test conditions ................................................................................................................................ 15 8.1 General ...................................................................................................................................... 15 9 Test results ..................................................................................................................................... 16 9.1 Antenna requirements ............................................................................................................... 16 9.2 Conducted emission .................................................................................................................. 17 9.3 Emissions in restricted frequency bands and in unrestricted frequency bands ........................ 27 9.4 20 dB bandwidth ........................................................................................................................ 63 9.5 Channel separation ................................................................................................................... 66 9.6 Number of hopping channels ..................................................................................................... 69 9.7 Time of occupancy .................................................................................................................... 73 9.8 Band edge ................................................................................................................................. 76 9.9 Peak Output Power ................................................................................................................... 80 TRF No. 15-247_Hopping_DEKRA Page 3 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 2 Reference standard FCC Rules and Regulation Title 47 part 15:2021 -- 3 List of attachments Attachment 1: Measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location DEKRA Testing and Certification S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 28.11.2023 -- TRF No. 15-247_Hopping_DEKRA Page 4 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Testing and sampling: Date of receipt of test item .......................................... : 03.08.2023 Testing start date ........................................................ : 07.09.2023 Testing end date ......................................................... : 28.11.2023 Sampling procedure .................................................... : Sample used for testing chosen by the customer; DEKRA Testing and Certification S.r.l. cannot be considered responsible fo…

Text truncated - open the document above for the full version.

TRF No. 15-247_Hopping_DEKRA Page 27 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 9.3 Emissions in restricted frequency bands and in unrestricted frequency bands Tested by .................................... : G. Gandini Test date ..................................... : 07.11.2023 Test location (stand) ................... : Semi-anechoic chamber (CMC A070) Reference standards ................... : FCC Rules and Regulation; Titles 47 Part. 15.209 ANSI C63.10 cl. 6.3, 6.4, 6.5 and 6.6 Test set-up description ................ : ☒ Table top equipment set-up (80 cm above the reference ground plane) ☐ Floor standing equipment set-up (insulating material up to 12 mm thick) ☐ False floor installation equipment set-up (insulating material up to 34 cm above the reference ground plane) Supplementary test set-up description ................................... : -- Test method applied ................... : OATS or SAC with measurement distance [m]: 10 m for frequencies below 1 GHz 3 m for frequencies above 1 GHz Supplementary information ......... : -- Acceptance limits Acceptance limits for emissions in restricted frequency bands (f < 1000 MHz) Frequency range (MHz) Test distance (m) Limits [dB(μV/m)] 0,009 to 0,490 300 20log(2400/F(kHz)) 0,490 to 1,705 30 20log(24000/F(kHz)) 1,705 to 30 30 20log(30) 30 to 88 3 20log(100)** 88 to 216 3 20log(150)** 216 to 960 3 20log(200)** Above 960 3 20log(500) **: except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this section shall not be located in the frequency bands 54 – 72 MHz, 76 – 88 MHz, 174 – 216 MHz or 470 – 806 MHz. However, operation within these frequency bands is permitted under other sections of this part, e.g., §§ 15.231 and 15.241. Perimeter protection systems may operate in the 54 – 72 MHz and 76 – 88 MHz bands under the provisions of this section. The use of such perimeter protection systems is limited to industrial, business and commercial applications. Remarks: the emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector except for the frequency bands 9 – 90 kHz and 110 – 490 kHz. Radiated emission limits in these two bands are based on measurements employing an average detector. The results have been extrapolated to the specified distance using an extrapolation factor Acceptance limits for emissions in restricted frequency bands (f ≥ 1000 MHz) Frequency (MHz) Test distance (m) AV limits [dB(μV/m)] Peak limits [dB(μV/m)] > 1000 3 54 74 TRF No. 15-247_Hopping_DEKRA Page 28 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L The restricted frequency bands are listed in the following table MHz MHz MHz GHz 0,090 – 0,110 16,42 – 16,423 399,9 – 410 4,5 – 5,15 0,495 – 0,505 16,69475 – 16,69525 608 – 614 5,35 – 5,46 2,1735 – 2,1905 16,80425 – 16,80475 960 – 1240 7,25 – 7,75 4,125 – 4,128 25,5 – 25,67 1300 – 1427 8,025 – 8,5 4,17725 – 4,17775 37,5 – 38,25 1435 – 1626,5 9,0 – 9,2 4,20725 – 4,20775 73 – 74,6 1645,5 – 1646,5 9,3 – 9,5 6,215 – 6,218 74,8 – 75,2 1660 – 1710 10,6 – 12,7 6,26775 – 6,26825 108 – 121,94 1718,8 – 1722,2 13,25 – 13,4 6,31175 – 6,31225 123 – 138 2200 – 2300 14,47 – 14,5 8,291 – 8,294 149,9 – 150,05 2310 – 2390 15,35 – 16,2 8,362 – 8,366 156,52475 – 156,52525 2483,5 – 2500 17,7 – 21,4 8,37625 – 8,38675 156,7 – 156,9 2690 – 2900 22,01 – 23,12 8,41425 – 8,41475 162,0125 – 167,17 3260 – 3267 23,6 – 24,0 12,29 – 12,293 167,72 – 173,2 3332 – 3339 31,2 – 31,8 12,51975 – 12,52025 240 – 285 3345,8 – 3358 36,43 – 36,5 12,57675 – 12,57725 322 – 335,4 3600 – 4400 Above 38,6 13,36 – 13,41 Acceptance limits for emissions in non-restricted frequency bands In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. TRF No. 15-247_Hopping_DEKRA Page 29 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Test setup Frequency ≤ 30 MHz Test setup PE004_01 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S353 Rohde & Schwarz ESW26 101492 Emi Test Receiver December 2022 December 2023 1 CMC S127 Schaffner HLA6120 1191 Loop Antenna 9kHz - 30MHz May 2023 May 2024 Frequency ≤ 1 GHz Test setup PE004_02 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S353 Rohde & Schwarz ESW26 101492 Emi Test Receiver December 2022 December 2023 1 CMC S271 Schwarzbeck BBA 9106 + VHBB 9124 831 Broadband Antenna August 2022 August 2025 TRF No. 15-247_Hopping_DEKRA Page 30 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Test setup PE004_03 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S353 Rohde & Schwarz ESW26 101492 Emi Test Receiver December 2022 December 2023 1 CMC S287 Schwarzbeck VUSLP 9111B 9111B- 203 Broadband Antenna August 2022 August 2025 Frequency > 1 GHz Test setup PE004_04 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 4 CMC S353 Rohde & Schwarz ESW26 101492 Emi Test Receiver December 2022 December 2023 3 CMC S108 Emco 3115 9811- 5622 Waveguide antenna August 2022 August 2025 Test setup PE004_05 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 4 CMC S353 Rohde & Schwarz ESW26 101492 Emi Test Receiver December 2022 December 2023 3 CMC S290 Schwarzbeck BBHA 9170 733 Horn Antenna October 2021 October 2026 TRF No. 15-247_Hopping_DEKRA Page 31 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Result – EUT on expansion board of a re…

Text truncated - open the document above for the full version.

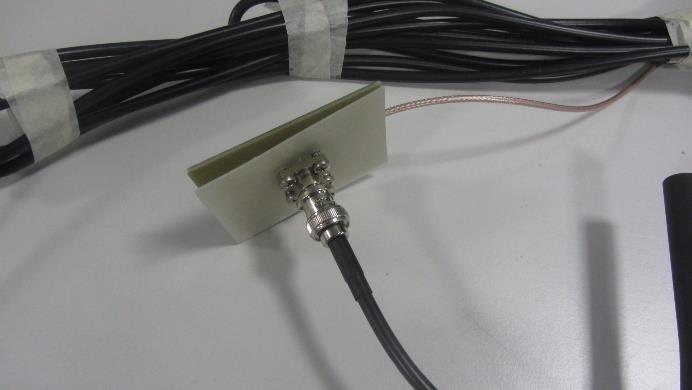

TRF No. 15-247_Hopping_DEKRA Page 55 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 56 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 57 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 58 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 59 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 60 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 61 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 62 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 63 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 9.4 20 dB bandwidth Tested by .................................... : G. Gandini Test date ..................................... : 08.11.2023 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part. 15.215 (c) ANSI C63.10 cl. 7.8.7 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S295 Rohde & Schwarz FSW43 104059 Spectrum Analyzer 43GHz January 2023 January 2026 1 -- -- -- -- Cable + attenuator Calibrated before the test Calibrated before the test Result Frequency (MHz) Graphs 20 dB bandwidth (kHz) 915,075 G23154820 22,08 921,425 G23154824 21,68 927,875 G23154816 22,08 TRF No. 15-247_Hopping_DEKRA Page 64 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Graphs TRF No. 15-247_Hopping_DEKRA Page 65 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L TRF No. 15-247_Hopping_DEKRA Page 66 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 9.5 Channel separation Tested by .................................... : G. Gandini Test date ..................................... : 08.11.2023 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part. 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 cl. 9 b) ANSI C63.10 cl. 7.8.2 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Acceptance limits Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S295 Rohde & Schwarz FSW43 104059 Spectrum Analyzer 43GHz January 2023 January 2026 1 -- -- -- -- Cable + attenuator Calibrated before the test Calibrated before the test TRF No. 15-247_Hopping_DEKRA Page 67 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Result Frequency band (MHz) Graphs Channel separation (kHz) Minimum channel separation required (kHz) Results 902 – 928 G23154828 199,8 25 Complies TRF No. 15-247_Hopping_DEKRA Page 68 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Graphs TRF No. 15-247_Hopping_DEKRA Page 69 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L 9.6 Number of hopping channels Tested by .................................... : G. Gandini Test date ..................................... : 08.11.2023 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part. 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 cl. 9 b) ANSI C63.10 cl. 7.8.3 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Acceptance limits For frequency hopping systems operating in the 902 – 928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0,4 seconds within a 20 second period; if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0,4 seconds within a 10 second period. The maximum allowed 20 dB bandwidth of the hopping channel is 500 kHz. Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Serial number Description Last calibration date Calibration expiration 2 CMC S295 Rohde & Schwarz FSW43 104059 Spectrum Analyzer 43GHz January 2023 January 2026 1 -- -- -- -- Cable + attenuator Calibrated before the test Calibrated before the test TRF No. 15-247_Hopping_DEKRA Page 70 of 86 Test Report No. R23154801 rev.1.0 LAB N° 0168 L Result Frequency band (MHz) Graphs Number of hopping channels Minimum number of hopp…
