OQA-TC02B04DHandheld Transmitter TC02B04D

Transmitter System USER’S MANUAL Modular Series Follow the indications and warnings given by the machine producer regarding the machine controlled by the radio remote control. The information contained in this manual considers a representative configuration of the radio remote control: please find radio remote control real configuration in the technical data sheet (attached to the manual). If this manual is lost or damaged, ask for a copy from AUTEC. Please specify the serial number of the relative radio remote control. Contact AUTEC if any of the instructions and/or warnings given in this manual are not clear. The information contained in this manual is subject to modification without notice and is not binding. No parts of this manual may be reproduced by any means without the written permission of AUTEC (including recording and photocopying). LIMKPNA0 Page 1 Index and Conventions Introduction to Modular series MK10, MK12 transmitting unit Warnings for use Warnings for maintenance MK10, MK12 operation transmitting unit Frequencies Programming MK10, MK12 transmitting unit diagnostic 1 2 5 8 9 10 12 13 14 1 2 3 4 5 6 7 8 9 THIS MANUAL REFERS EXCLUSIVELY TO THE TRANSMITTING UNIT: THE INSTALLATION WARNINGS ARE GIVEN IN THE RECEIVING UNIT MANUAL. BEFORE INSTALLING, STARTING AND USING THE RADIO REMOTE CONTROL, THIS MANUAL MUST BE READ AND UNDERSTOOD CAREFULLY BY ALL PEOPLE WHO INSTALL, USE AND CARRY OUT MAINTENANCE ON THE RADIO REMOTE CONTROL. 1 abcd. . . ! INDEX INDEX AND CONVENTIONS Page CONVENTIONS In this manual, all important information is indicated using the following symbols and conventions: : TECHNICAL DATA : IMPORTANT TEXTS abcd. . . abcd. . . : WARNINGS : INSTRUCTIONS abcd. . . Page 2 Each Modular series radio remote control complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LIMKPNA0 Industrial radio remote controls of the Modular series are used to command machines from a distance. Each industrial radio remote control is made up of a portable transmitting unit, from which the user can remotely control the machine, and a receiving unit installed on board the machine itself. The transmitting unit uses radio frequencies to transmit a coded message which contains a value called address. Each receiving unit can only decode the messages coming from a transmitting unit with the same address. This excludes the possibility of an interference activating any system function. If the radio frequency transmission is disturbed, incorrect or interrupted, the receiving unit autonomously stops the whole system. 2 INTRODUCTION TO MODULAR SERIES Receiving unit Transmitting unit Autec cannot be held responsible if the radio remote control is installed on applications that are different from those permitted PERMITTED USES Material lifting machines (construction cranes, industrial bridge cranes, machines for moving material in general, . . . ) FORBIDDEN USES Machines installed in areas where equipment with explosion-proof characteristics are being used. Machines for moving, raising and transporting people. : . ! Page 3 Alll machines must undergo a risk analysis; therefore it is necessary to evaluate, within the limits of this analysis, if the machine can be radio remote controlled. The machine producer and/or the person who decides upon radio remote control use and installation is responsible for this analysis. Autec cannot be held responsible if the risk analysis is not carried out correctly. To guarantee correct radio remote control operation, all current regulations regarding safety at work and accident prevention should be respected. All current user country national laws regarding the use of both the machine and the radio remote control MUST ALWAYS be respected. Autec cannot be held responsible if the radio remote control is used in unlawful working conditions. System must be installed by a licensed technician and in accordance with all relevant local, state/provincial and federal regulations, including but not limited to NEC, OSHA, CE etc. ! In any cases of emergencies, faults or damaged parts, ALWAYS stop the “machine + radio remote control” system until the problem has been solved. Any damaged parts can ONLY be replaced by authorised Autec personnel or service representative, and only using original Autec spare parts. LIMKPNA0 Page 4 902 - 928 MHz 32 ≥ 8 <10 exp-11 100 m <100 ms <100 ms * 0,35 / 1 sec. Frequency band Programmable radio channel Hamming distance Probability of non-recognition of error Typical working range Time of reply to commands Time of reply to STOP Passive emergency time * refer to paragraph “Programming” in the receiving unit manual, DIP nr. 1 settings. The following minimum documentation is supplied with each radio remote control: - transmitting unit manual - receiving unit manual - battery charger manual - a guarantee certificate - the radio remote control technical data sheet. Make sure that the following documents have been supplied: if they are not, request them from Autec. Please specify the radio remote control serial number. The conditions of the radio remote control guarantee are given in the “Certificate of Guarantee”. The technical data sheet shows the wiring system between the receiving unit and the machine. It should be compiled and checked by the installer, who has the responsibility of correct wiring. Once all necessary checks have taken place the installer must sign the technical data sheet, which must be kept with the user's manual (always keep a copy of this data sheet in case it is needed for administrative purposes). The radio remote control identification and approval data is given on plates that are…

Text truncated - open the document above for the full version.

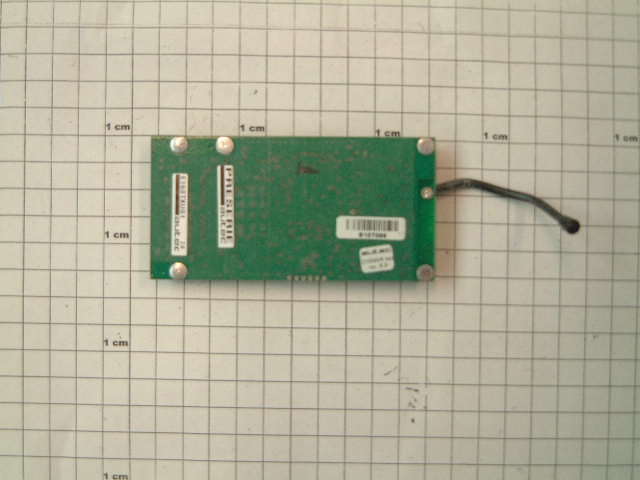

RADIO MODULE.............................................E16STXUS1 FREQUENCY RANGE....................................902-928MHz POWER SUPPLY................................MBM06MH 7,2V PROTECTION DEGREE..............................................IP65 TYPE TC02MODEL B04D Technical Data TRANSMITTER TA903/0 - A0TARG01P0665 ------ FCC ID: OQA-TC02B04D This radio device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1 Operational Description for Type TC02 Model B04D transmitting unit Operational Description for Type TC02 Model B04D transmitting unit 1Identification of the unit where: TYPE: it contains the references about the type of unit (transmitting, receiving or transceiving), the type of casing and the electronic technology. MODEL: it contains the references about the power supply, the type of actuators and the radio frequency band CONFIGURATION: it contains the references about the specific set of components and acces- sories of the unit TRADE NAME: it’s a commercial reference 2Operational description Industrial radio remote controls are used to command machines from a distance. Each industrial radio remote control is made up of a portable transmitting unit, from which the user can remotely control the machine, and a receiving unit installed on board the machine itself. The MK12 transmitting unit is a handheld unit. Ty p eTC02 ModelB04D ConfigurationP02 Equipmentremote control transmitting unit Trasmitting radio moduleE16STXUS1 Used frequency band902 - 928 MHz Trade nameMK12 FCC IdentifierOQA-TC02B04D Manufacturer AUTEC srl Via Pomaroli, 65 I-36030 CALDOGNO (VI) Receiving unit Transmitting unit 2 Operational Description for Type TC02 Model B04D transmitting unit The transmitting unit uses radio frequencies to transmit a coded message which contains a value called address. Each receiving unit can only decode the messages coming from a trans- mitting unit with the same address. This excludes the possibility of an interference activating any system function. If the radio fre- quency transmission is disturbed, incorrect or interrupted, the receiving unit autonomously stops the whole system.

FCC.TR. TEST REPORT 04.198 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : MK12 Handheld transmitting unit (12 keys) Type TC02 Model B04D Configuration P02 REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: AUTEC S.r.l. • Mr.: Sig.: BIANCHIN STEFANO • Address: Indirizzo: VIA POMAROLI, 9 - 36030 CALDOGNO (VI) - ITALY • Tel. : Telefono : ++39 0444 901000 • Telefax Fax : ++39 0444 901080 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 26/05/04 Date of start test: 26/05/04 Data ricevimento campioni: Data inizio prove: Date of end test: 07/06/04 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Nobody / Nessuno ......................................................... .......................................................... F. Barbierato .......................................................... R. Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio Edition: 1.1 Issue date: 13/07/04 sheet 1 of 25 FCC.TR. TEST REPORT 04.198 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 0. CONTENTS Page RevDate 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 1 0 0 0 0 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 13/07/04 0. CONTENTS..............................................................................................2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT).....3 1.1 Identification......................................................................................3 1.2 Technical data...................................................................................3 1.3 Transmitter technical data................................................................4 1.4 Modifications incorporated in E.U.T...................................................4 1.5 Ports identification.............................................................................5 1.6 Auxiliary equipment...........................................................................5 2. TEST CONDITIONS.................................................................................6 2.1 Operating test modes and test conditions.........................................6 2.2 Test overview....................................................................................6 3. REFERENCE STANDARD FOR PERFORMED TESTS..........................7 4. Summary of test results............................................................................8 4.1 Tests..................................................................................................8 4.2 Emission limits...................................................................................9 5. TEST RESULTS.....................................................................................10 6. EUT TECHNICAL DOCUMENTATION...................................................22 6.1 Wiring diagrams...............................................................................22 6.2 Technical manual............................................................................22 6.3 Photographic documentation...........................................................23 Edition: 1.1 Issue date: 13/07/04 sheet 2 of 25 FCC.TR. TEST REPORT 04.198 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: AUTEC Equipment : MK12 handheld unit (12 keys) Model name or No. : Type TC02 Model B04D Serial number : prototype FCC ID : OQA-TC02B04D Country of manufacturer: ITALY 1.2 Technical data FCC class: Intentional Radiators TX module type : E16STXUS1 Supply voltage: Custom NiMH Battery pack 7,2 Vdc 750mAh model MBM06MH Typical usage : Portable radio remote control used to command Industrial machines EUT single or system: Single EUT dimensions : 270 x 95 x 50 mm Edition: 1.1 Issue date: 13/07/04 sheet 3 of 25 FCC.TR. TEST REPORT 04.198 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 1.3 Transmitter technical data T T R R A A N N S S M M I I T T T T E E R R • Working Frequency : 9 9 0 0…
