OQSECIST4120Irridium telephone set

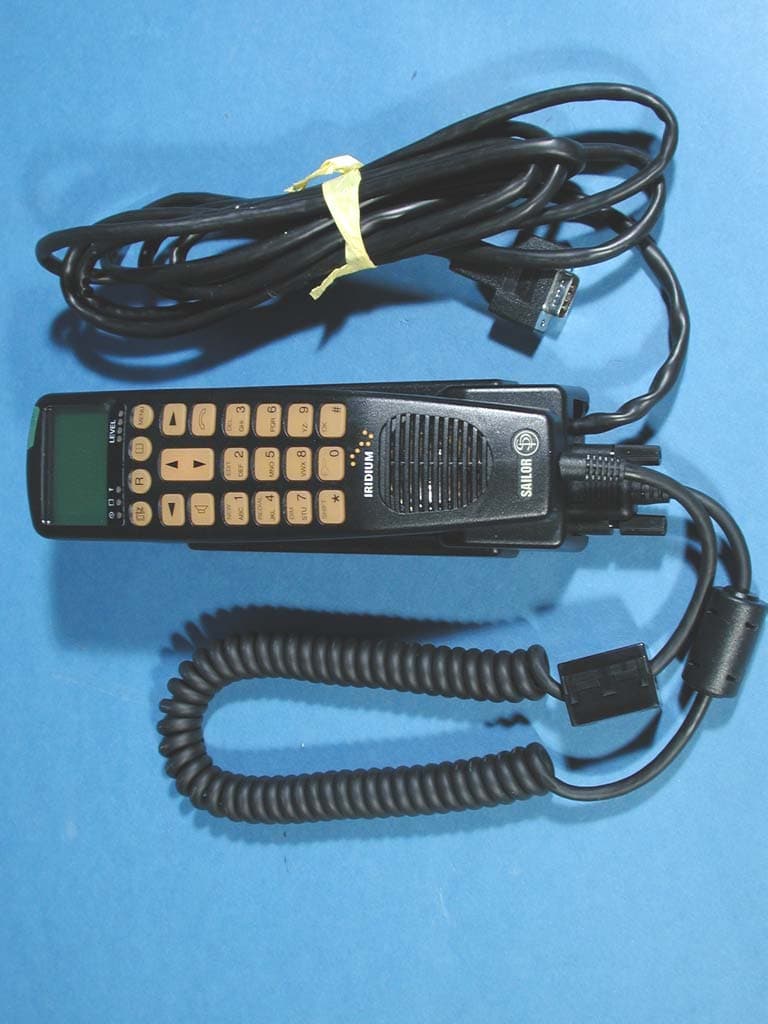

SAILOR SC4150 Installation Manual Single-channel Unit Introduction Congratulations on your new Iridium handset or PSTN (Public Switched Telephone Network) telephone. Your Iridium system is a modular system that consists of an antenna, transmitter/receiver, handset and/or desk unit, and optional PSTN telephone/PBX (Private Branch Exchange) switchboard. You can operate the Iridium system in voice mode from a handset, desk unit, and/or PSTN telephone. To the system you can connect up to five handsets or desk units and one PSTN telephone or PBX switchboard. Sailor marine equipment is specially designed for the extremely rugged conditions on board a ship, based on more than 50 years of experience with all kinds of boats, from small pleasure crafts, over fishing boats working under all climatic conditions, to the biggest ships. S.P. Radio A/S is one of Europe’s leading manufacturers of maritime radio communication equipment, a position which has been main- tained by means of constant and extensive product development. We have a worldwide network of dealers with general agencies in more than fifty countries. All our dealers are specially trained to service all your Sailor products. Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is furnished for informa- tional use only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Doc. no.: M4150GB0Issue: C/9931 1 Installation SC4150 9931 Contents 1Configuration of Single-Channel Unit .............................................................................................................. 2 2Installation .......................................................................................................................................................... 2 2.1Cable Overview .................................................................................................................................................... 2 2.2Where to Place the Satellite Transceiver Box ..................................................................................................... 4 2.3How to Mount the Satellite Transceiver Box ........................................................................................................ 5 2.4How to Put on the Finishing Cover ...................................................................................................................... 6 2.5How to Insert the SIM Card .................................................................................................................................. 7 2.6How to Remove the Finishing Cover ................................................................................................................... 8 2.7How to Change the Antenna Cable Position ....................................................................................................... 9 2.8Installation of the Antenna .................................................................................................................................... 11 2 Installation SC4150 9931 1 Configuration of Single-Channel Unit L1 35423C 10 - 32V DC PABX Phone DTE 2 3 41 Antenna Unit Max. cable loss 3dB Iridium L1 + L2 < 100 metres L2 Box Connection 5 1 Handset Control Handset Transceiver Unit Control Unit 2 Installation 2.1Cable Overview Cable 1 Scanbus Cable:9*0.22 mm 2 shielded shield connected to ground Cable connector type:9 pole sub-d male 3 Installation SC4150 9928 TransceiverDescriptionHandsetColour 1NC1 2data+2whiteTwisted 3data-3brownpairs 4AF+4greenTwisted 5AF-5yellowpairs 6GND6greyTwisted 7+24V DC7 pinkpairs 8RX_AF+8blue Twisted 9RX_AF-9 redpairs shieldGNDshield 2 3 4 5 6 7 8 9 1 10 36088 Cable 2 Phone Cable connector type: RJ 11 TransceiverDescriptionVeritas 1NC1 2phone1+2 3phone1-3 4NC4 Cable 3 Data Cable:9*0.22 mm 2 shielded shield connected to ground Cable connector type:9 pole sub-d male TransceiverDescriptionVeritas 1DCD1 2received data2 3transmitted data3 4data terminal ready4 5serial GND5 6data set ready6 7request to send7 8clear to send8 9RI9 shieldGNDshield 4 Installation SC4150 9931 Cable 4 Power supply Front view Pin no.DescriptionColour 110-32V DCred 2NCblue 30V DCblack 4GNDyellow/green 3 2 4 1 4-0-36662 Cable 5 Description of connections to T-connection H4196 The wire terminal blocks are connected in parallel. 36090 2.2Where to Place the Satellite Transceiver Box Mount the satellite transceiver box in a place where it is sheltered from the wind, protected from the salty and humid sea atmosphere. The temperature must not exceed 55° C. To ensure that the SIM card is easily accessible, do not place the satellite transceiver box higher than 1.5 m above the floor. 5 Installation SC4150 2.3How to Mount the Satellite Transceiver Box Fix the satellite transceiver box to the wall using the four screws included in the package. The screws are positioned as shown below: First tighten three of the screws. The wall surface should be plane. If there is a discrepancy in planeness exceeding 1 mm, level the discrepancy up by shims or washers under the fourth screw before this is tightened. 9927 6 Installation SC4150 Inside of finishing cover: 2.4How to Put on the Finishing Cover When the satellite transceiver box has been mounted on the wall, put on the finishing cover. The small lid in the finishing cover should be shut. Press the hooks inside the finishing cover down on the two thin edges of the satellite transceiver box. While pressing, let the two plastic spears inside the finishing cover into the two square holes of the satellite transceiver box.
 Press hard on the spots shown in the picture below until a loud click is heard.  When putting on the finishing cover, do not use any tools – only your hands. 9927 7 Installation SC4150 9927 2.5How to Inse…

Text truncated - open the document above for the full version.

ii IMPORTANT! Even though a GPS can be connected to the unit, pressing ‘ALERT’ will NOT automatically transmit your GPS-based position. ALERT The ‘ALERT’ button is placed in the hook: Press ‘ALERT’ for 3 seconds to start the following sequence: 1. A call for Iridium’s ® special service will be issued from the Iridium terminal, even if another user has occupied the line. 2. Any other user of the Iridium system onboard will be cut off immediately. 3. The display will show ‘ALERT’. 4. The Iridium Network will route your call to the nearest Rescue Coordination Centre. 5. Valid subscription status is mandatory. If the user is in debt and the account is barred, “ALERT” will not work. Inform the RCC of: 1. Your name. 2. The identity of the vessel originating the call. 3. If possible, your position. 4. The reason for the call. 5. What needs to be done Future GMDSS Approval ‘ALERT’ will connect you directly to a Rescue Coordination Centre because the Iridium system as such has agreements with all separate RCC’s. In Japanese A1 and A2 areas Iridium has gained acknowledgement as a GMDSS partner. When Iridium gains its global GMDSS approval, which is expected to take place in 2003, you can have your equipment rebuilt so as to: • download new software enabling GMDSS distress calls and automatic transmission of a GPS-based position, and • replace the yellow ‘ALERT’ button by a red ‘DISTRESS’ button. Furthermore, a new operator’s manual will be issued including a description of the ‘DISTRESS’ functionality. Alert Call, see page ii. List of contents, see page 1. SAILOR SC4150 Operating Instructions iii Handset What Is What? 1. Display 2. Indicator lamps Power Call In use 3. Escape key 4. Call transfer key 5. Loudspeaker on/off key 6. Shift key 7. Lock on/off key (not yet implemented) 8. On/off button 19 9. Earpiece 10. Signal level 11. Opens menu 12. Opens address book 13. Volume control 14. Hook on/off key 15. Keypad 16. OK key 17. Loudspeaker 18. Microphone 19. ALERT button 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Telephone What Is What? 1 2 1. Handset 2. Keypad iv About this Manual This manual is for the daily user of the system. It provides instructions on how to operate both a telephone and a handset. Basically, the manual consists of two main parts: The first deals with simple operation, which includes e.g. making and answering calls. The second part describes the more advanced functions of the system. We recommended that you read the manual before using the equipment. Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is furnished for informa- tional use only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Doc. no.: B4150GB0Issue: A/9921 Introduction Congratulations on your new Iridium handset or PSTN (Public Switched Telephone Network) telephone. Your Iridium system is a modular system that consists of an antenna, transmitter/receiver, handset and/or desk unit, and optional PSTN telephone/PBX (Private Branch Exchange) switchboard. You can operate the Iridium system in voice mode from a handset, desk unit, and/or PSTN telephone. To the system you can connect up to five handsets or desk units and one PSTN telephone or PBX switchboard. Sailor marine equipment is specially designed for the extremely rugged conditions on board a ship, based on more than 50 years of experience with all kinds of boats, from small pleasure crafts, over fishing boats working under all climatic conditions, to the biggest ships. S.P. Radio A/S is one of Europe’s leading manufacturers of maritime radio communication equipment, a position which has been main- tained by means of constant and extensive product development. We have a worldwide network of dealers with general agencies in more than fifty countries. All our dealers are specially trained to service all your Sailor products. 1 Contents ALERT ................................................................................... ii Handset ................................................................................ iii What Is What?............................................................................. iii Telephone ............................................................................ iii What Is What?............................................................................. iii Introduction ......................................................................... iv About this Manual .............................................................. iv Iridium Satellite System ...................................................... 1 Using a Telephone ............................................................... 2 Making a call................................................................................. 2 Answering a Call........................................................................... 2 Handset Simple Operation ................................................. 3 Handset States............................................................................. 3 Handset on/off............................................................................... 3 Call Functions............................................................................... 3 Making a Manual Call................................................................... 4 Answering a Call........................................................................... 5 Handset Advanced Operation ............................................ 5 Address Book................................................................................ 5 Setting Dimmer and Contrast....................................................... 7 Tone Signalling.............................................................................. 7 Menus .............…

Text truncated - open the document above for the full version.

October 4, 1999 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA Dear Sir/Madam:Our File Ref. KTL Arnhem FCC ID: OQSECIST4120 Applicant: ECI Satellite Communication A/S Equipment: Maritime Irridium Telephone FCC Confirmation no.: EA95557 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 25 on the above mentioned equipment, October 4, 1999. Enclosed, please find a cheque in the amount of $520.00 US, a copy of FCC Remittance Form 159, a copy of the FCC Grantee Registration Confirmation, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. Please contact Mr. Henry Rutjes at KTL Arnhem 011-31-263 780 780 with any questions regarding this application or e-mail him at [email protected] Sincerely, Ruby Dulmage Administrative Clerk KTL Ottawa Encl.

Type label ECI ST4120 1:1 ITEM DRAW. SCALE MATERIALDATE INIT. FINISH SUBJECT CORRECTION NO. N0. 07.05.99 PC 53.992 and 96.659 1.00 0.00 31.50 25.00 18.00 14.50 11.00 1.00 0.00 7.50 Font ARIAL, FED, 2.8mm, 100% Grafikfil - symbol_X.eps Font ARIAL, 2.8mm, 100% Font CS SYMBOL 2, FED, 4.20mm, 100% 3.50 7.0017.50 No specified font = TRIUMVIRATE, 3.05mm, 100%. 1.50 All fonts are specified for the codesoft program. Font ARIAL, 4.20mm, 100% FCC ID: OQSECI ST4120 S/N XXXXXXXX S/N XXXXXXXX ECI Sat Com A/S Denmark Type ECIST4120 S/N XXXXXXXX S/N XXXXXXXX FCC ID: OQSECI ST4120 Satellite Transceiver Unit Satellite Transceiver Unit 0560 0560 Type ECIST4120 ECI Sat Com A/S Denmark

Location of Type Label ECI Sat Com A/S Denmark Type ECIST4120 FCC ID: OQSECI ST4120 Satellite Transceiver Unit 0560

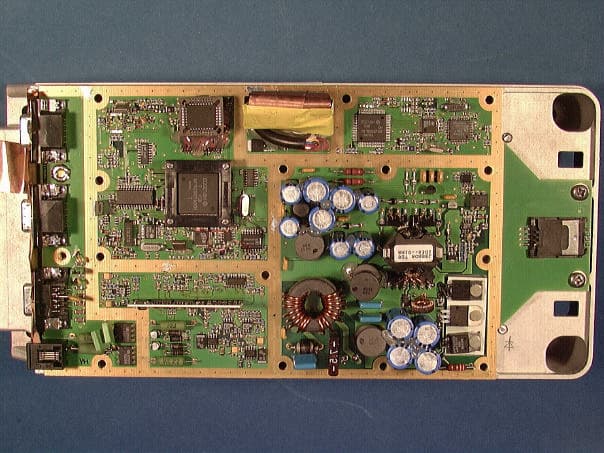

02.jpg 12.jpg 13.jpg 14.jpg 15.jpg 17.jpg 18.jpg 19.jpg 20.jpg 21.jpg 22.jpg 23.jpg 24.jpg 25.jpg

-------------------------------------------------------------------------------- Parts List for module 630497 Cadstar Design Viewer Version 2.4 Design: M:\E-CAD\SOURCE~1\30497\30497E50F40\30497F40.scm Design Title: 630497 Date: 23. september 1999 Time: 13:31 -------------------------------------------------------------------------------- Part Name/Number Description Qty. Comps. ---------------- ----------- ---- ------ 328.348 100nF 10% X7R 25VDC 2 C3-4 328.336 10nF 10% X7R 50VDC 2 C1 C5 333.079 10uF 20% 16VDC 1 C2 351.105 NE555D, SINGLE PREC.TIMER 1 D1 PCB SKIP MARK SQ3MM 1 E1 PCB AFLASTNING 10X30MM PT 1 H15 PCB HUL PCB 8.5MM NP 2 H19-20 PCB HUL TIL HVIDBLIK 1.3MM 12 H3-14 PCB SKRUE HUL 3.0/3.2MM PT,AN=6.5 2 H17-18 74101600 100uH 10%, CHOKE FIXED 1 L1 351.056 LM2574M-5.0, 5V/0.5A, REG. 1 N1 302.072 100k OHM 5% 0.1W 1 R2 302.060 10k OHM 5% 0.1W 1 R3 302.037 120 OHM 5% 0.1W 1 R6 302.053 2k7 OHM 5% 0.1W 1 R4 302.031 39 OHM 5% 0.1W 1 R1 302.055 3k9 OHM 5% 0.1W 1 R5 345.048 BC848B, TRANS. AF SMALL SIGNAL 2 V1 V3 340.252 PRLL 5817, SCHOTTKY 1A/20V 1 V2 14.917 330uF 20% 6,3VDC 1 C8 65274701 47uF -20/+50% 40V 2 C6-7 20.248 CHOKE FIXED, 470uH 10%/0.4ADC 1 L2 78.323 3 POLES CC=1/10" 1 S1 43.524 KEYSWITCH MINI SPST 7.4x7.4mm 1 S2 25.658 LED SUB MIN YELLOW,3.6mCd/10mA 2 V4-5 81.017 TERMINAL BLOCK 10 POLES 1.5mm2 1 X1 78.729 SOCKET 90 DEG. 4-40B W/O SCR. 1 X2 -------------------------------------------------------------------------------- End of report -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- Parts List for module 630498 Cadstar Design Viewer Version 2.4 Design: m:\e-cad\source~1\30498\30498I50E40J10\30498E40.scm Design Title: 630498 Date: 23. september 1999 Time: 13:32 -------------------------------------------------------------------------------- Part Name/Number Description Qty. Comps. ---------------- ----------- ---- ------ 328.348 100nF 10% X7R 25VDC 23 C1 C3-4 C7 C10 C13 C16 C18-19 C32-34 C36 C41 C48 C50-52 C56-57 C65 C75 C96 328.648 100nF 10% X7R 50VDC 5 C78 C88 C90 C92 C94 328.336 10nF 10% X7R 50VDC 7 C20 C28-31 C66 C70 328.324 1n0F 10% X7R 50VDC 4 C35 C38-39 C49 328.327 1n8F 10% X7R 50VDC 4 C44-47 328.806 1u0F -20/80% Y5V 16VDC 17 C21-27 C53-54 C58 C61-63 C69 C74 C76-77 323.090 220pF 5% NPO 50VDC 14 C64 C79-87 C89 C91 C93 C95 328.328 2n2F 10% X7R 50VDC 5 C8 C11 C14 C17 C73 328.330 3n3F 10% X7R 50VDC 2 C71-72 328.332 4n7F 10% X7R 50VDC 4 C6 C9 C12 C15 67700300 10uF 10% 25VDC 1 C68 334.007 1u5F 20% 16VDC 4 C40 C55 C59-60 67701300 47uF 10% 16VDC 1 C67 67701100 4u7F 10% 10VDC 3 C37 C42-43 355.205 74HC04, HEX INVERTERS 1 D2 85870000 MC34119, LOW POWER AUDIO AMP. 1 N5 355.066 4066BC, QUAD BILATERAL SWITCH 3 N2-3 N8 85810500 LM1458, DUAL OPAMP GEN.PURPOSE 1 N10 350.049 LM317L, POS. VOLTAGE REG. 1 N12 350.525 LM358, DUAL LOW POW. OP AMP 1 N1 350.675 LM4860, AF POWER AMPLIFIER 1W 1 N11 350.601 LMC6482, DUAL.OPAMP.RAIL-RAIL 3 N6-7 N9 302.072 100k OHM 5% 0.1W 5 R6-7 R55 R98 R118 302.060 10k OHM 5% 0.1W 15 R1-4 R15-16 R59 R61 R64 R66 R68 R77 R100 R116 R119 302.474 11k0 OHM 1% 50mW 1 R90 302.073 120k OHM 5% 0.1W 1 R57 302.061 12k OHM 5% 0.1W 1 R123 302.038 150 OHM 5% 0.1W 2 R18 R121 302.491 16k5 OHM 1% 50mW 1 R102 302.492 16k9 OHM 1% 50mW 4 R82-85 302.494 17k8 OHM 1% 50mW 1 R76 302.075 180k OHM 5% 0.1W 1 R56 302.063 18k OHM 5% 0.1W 2 R17 R69 302.048 1k0 OHM 5% 0.1W 2 R70-71 57001800 1k0 OHM 5% 0.25W 1 R60 302.376 1k15 OHM 1% 50mW 1 R89 302.392 1k69 OHM 1% 50mW 1 R75 302.028 22 OHM 5% 0.1W 2 R80-81 302.064 22k OHM 5% 0.1W 1 R79 302.607 243k OHM 1% 50mW 1 R105 302.041 270 OHM 5% 0.1W 2 R19-20 302.065 27k OHM 5% 0.1W 1 R5 302.052 2k2 OHM 5% 0.1W 7 R40-46 302.053 2k7 OHM 5% 0.1W 2 R9 R122 302.524 36k5 OHM 1% 50mW 1 R88 302.526 38k3 OHM 1% 50mW 4 R48 R50 R52 R54 302.043 390 OHM 5% 0.1W 1 R96 302.067 39k OHM 5% 0.1W 1 R117 302.054 3k3 OHM 5% 0.1W 2 R72 R97 302.422 3k48 OHM 1% 50mW 1 R87 302.055 3k9 OHM 5% 0.1W 1 R95 302.531 43k2 OHM 1% 50mW 1 R108 302.080 470k OHM 5% 0.1W 3 R63 R65 R67 302.032 47 OHM 5% 0.1W 2 R11-12 302.068 47k OHM 5% 0.1W 1 R8 302.535 47k5 OHM 1% 50mW 1 R107 302.056 4k7 OHM 5% 0.1W 1 R10 302.437 4k99 OHM 1% 50mW 1 R109 302.541 54k9 OHM 1% 50mW 1 R110 302.069 56k OHM 5% 0.1W 3 R58 R78 R120 302.057 5k6 OHM 5% 0.1W 1 R124 302.082 680k OHM 5% 0.1W 1 R101 302.455 7k68 OHM 1% 50mW 1 R104 302.559 84k5 OHM 1% 50mW 1 R103 302.560 86k6 OHM 1% 50mW 1 R73 302.059 8k2 OHM 5% 0.1W 3 R62 R86 R99 302.458 8k25 OHM 1% 50mW 4 R47 R49 R51 R53 302.460 8k66 OHM 1% 50mW 1 R74 302.562 90k9 OHM 1% 50mW 1 R125 342.026 LED SMD YELLOW, 5mCd/20mA 12 V9-20 342.040 LED SMD YELLOW, 15mCd/20mA 7 V33-39 83710000 PMLL4148, DIODE SWITCH H.SPEED 2 V7-8 84760300 SST112,MMBFJ112, N-CH. J-FET 1 V45 25.699 LIGHT BAR YELLOW 1.2x19.2mm 2 V40-41 -------------------------------------------------------------------------------- ----- Sheet Sub B Error: Item 'DHD66712' not found in Parts Library Error: Item 'VLCD-342.502' not found in Parts Library Error: Item 'VLL101/' not found in Parts Library ----- Sheet Sub A Error: Item 'D74HC4017' not found in Parts Library Error: Item 'D74HC4040' not found in Parts Library Error: Item 'N74HC4051' not found in Parts Library Error: Item 'VBC847B/' not found in Parts Library ----- Sheet Main Error: Item 'KSKQDPA' not found in Parts Library Error: Item 'KSWITCH TACT 160G' not found in Parts Library Error: Item 'N78L12A' not found in Parts Library Error: Item 'VBC847B/' not found in Parts Library Error: Item 'VBC857B/' not found in Parts Library Error: Item 'X2POL-M ZH SM3-SIDE' not found in Parts Library Error: Item 'X50POL-F 5078' not found in Parts Library Error: Item 'X5POL-M PH SM-SIDE' not found in Parts Library Error: Item 'X7POL-M PH SM-SIDE' not found in Parts Library Error: Item 'ZBLM31A700S' not found in Parts Library -------------------------------------------------------------------------------- End of report ------------------------------------------------------------…

Text truncated - open the document above for the full version.

About this Manual This manual is for the daily user of the system. It provides instructions on how to operate both a telephone and a handset. Basically, the manual consists of two main parts: The first deals with simple operation, which includes e.g. making and answering calls. The second part describes the more advanced functions of the system. We recommended that you read the manual before using the equipment. Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is furnished for informa- tional use only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Document no.: B4155GB8C/9940 Introduction We thank you for choosing SKANTI LEISURE MIP2000 for your Iridium ® communication. We are convinced that the Maritime Iridium Phone 2000- MIP2000 will serve you and fulfil your need for communication for many years to come. If, against our expectations, you experience any problems with the system, please contact your dealer, who will assist you or help you through our service partners. You are also more than welcome to visit our homepage which, among other information, contains product news and updates, new accessories and service information. The MIP 2000 is a single-channel Iridium ® satellite system designed for the harsh environment on board a leisure craft travelling around the world. The MIP 2000 complies with all relevant international requirements. The MIP 2000 consists of a compact Iridium Transceiver Unit (ITU 2000), a small Iridium Antenna Unit (IAU 2000), and one of two types of control units: an Iridium Control Unit Handset (ICUH 2000) or an Iridium Control Unit for Desk mounting (ICUD 2000). The Control Unit ICUH 2000/ICUD 2000 with display and splash- proof keypad is used for controlling the “black box” Transceiver Unit and the remote Antenna Unit facilitating easy installation. The MIP 2000 Iridium telephone offers both telephony and data transmission at 2,400 bit/s. Service is expected to open in the first quarter of the year 2000. Please complete and send the register form to Skanti Leisure, and we will keep you informed of this and other news regarding Iridium. A dedicated ‘Alert’ button for emergency situations is integrated in the Control Unit for dialling the nearest Iridium Gateway, which will route the call to any RCC (Rescue Co-ordination Centre) selected. The MIP 2000 system provides flexible installation: ·Up to 50 m between the Control Unit and the Transceiver Unit ·Up to 100 m between the Handset Control Unit and extra Handset Control Units ·Up to 30 m between the Transceiver Unit and the Antenna Unit, depending on cable type. The MIP 2000 standard power supply is 10-32V DC, optionally 110- 230V AC (external adaptor). Important! For FCC RF exposure compliance, the antenna must be installed with a minimum distance of 20 cm away from all persons.

Installation MIP 2000 2.8Installation of the Antenna One of the advantages of this equipment is the easy-to-handle, lightweight and rugged antenna. Because the IRIDIUM ® system is characterised by a good link margin, the antenna is a passive quadrifillar helix type, requiring no external power supply and consisting of only nonmoving parts. The following figures show the antenna and the two different mounting accessories available: The mounting bracket in fig. 1 can be used in two different ways - mounted on either a rail or a pole. The fitting in fig. 2 can be used at the top of a tube. Please note that it is necessary to mount the cable, and seal this connection securely before the antenna and fitting are mounted on the tube. Important! For FCC RF exposure compliance, the antenna must be installed with a minimum distance of 20 cm away from all persons. 2" pipe Four M4x10 Four M4 serrated lock washers Angle mounting bracket Four M4 washers Antenna Four M8 lock nuts and M8 washers Pipe clamp Two M8 U-bolts Four M4 serrated lock washers Four M8 lock nuts and M8 washers Four pieces M4x10 Angle mounting bracket Four M4 washers 2" pipe Two M8 U-bolts Antenna Pipe clamp 36623A Fig. 1Fig. 2

Test report 98471231 Part 1 of 1 Equipment:Maritime Iridium Telephone Manufacturer:ECI Satellite Communication A/S Trade marks:ECI; Sailor; Skanti; Skanti Leisure; STN-ATLAS; Kelvin Hughes; Litton Marine; DEBEG; Nordcontrol Type designations:ST4120 SC4150 SA4110 H4196 Variant:ITU 7701 ICUH 7701 IAU 7701 Report number:98471230 Contents 1.Introduction.................................................................................................................3 2.Product ......................................................................................................................... 4 3.Test schedule................................................................................................................5 4.Product documentation .............................................................................................. 6 5.Observations and comments...................................................................................... 6 6.Summary......................................................................................................................7 7.Conclusions ..................................................................................................................8 8.Test Results Module Index ........................................................................................ 9 Section 1. Summary of Test Results ................................................................................. 11 Section 2. General Equipment Specification .................................................................... 13 Section 3. RF Power Output.............................................................................................. 15 Section 4. Occupied Bandwidth........................................................................................ 17 Section 5. Spurious Emissions at Antenna Terminals...................................................... 19 Section 6. Field Strength of Spurious Emissions ............................................................. 26 Section 7. Frequency Stability .......................................................................................... 35 Section 8. Protection of Radionavigation/Satellite Service ............................................. 35 Section 9. Test Equipment List ......................................................................................... 37 Annex A. Test Diagrams .................................................................................................. 38 Para. No. 2.1046 - R.F. Power Output ........................................................ 38 Para. No. 2.1049 - Occupied Bandwidth .................................................... 38 Para. No. 2.1051 - Spurious Emissions at Antenna Terminals .................. 38 Para. No. 2.1053 - Field Strength of Radiation........................................... 39 Para. No. 2.1055 - Fre quency Stability....................................................... 40 Page:3 - 40 Report number:98471231 1. Introduction This report contains the result of tests performed and/or conducted by KTL-Arnhem KTL-Arnhem Utrechtseweg 310 6812 AR Arnhem The Netherlands KTL-Arnhem complies with the accreditation criteria for laboratories as described in the STERLAB Criteria which contains all of the criteria from EN 45001 and ISO/IEC guide 25 and the relevant criteria from ISO 9001. The accreditation covers the quality system of the laboratory as well as the specified activities described in the accreditation certificate bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). An extended procedure for performing tests outside their permanent premises has been accepted by the board of STERLAB for accreditation. KTL-Arnhem is thereby allowed to conduct tests on any suitable site by regular KTL-Arnhem staff, using suitable equipment that is property of KTL-Arnhem or of a second party. Ordering party: Company name: ECI Satellite Communication A/S Address: Porsvej 2 Postcode: 9200 City/town: Aalborg Sv Country: Denmark Date of order: 28 January 1999 References: None Page:4 - 40 Report number:98471231 2. Product A sample of the following product was submitted for testing: Maritime Iridium Telephone Manufacturer: ECI Satellite Communication A/S Trade marks : ECI; Sailor; Skanti; Skanti Leisure; STN-ATLAS; Kelvin Hughes; Litton Marine; DEBEG; Nordcontrol Type designation: ST4120; transceiver unit (ECI, Sailor) SC4150; handset (ECI, Sailor) SA4110; antenna (ECI, Sailor) H4196: T-connection (ECI, Sailor) Variants: ITU 7701; transceiver unit (Skanti) ICUH 7701; handset (Skanti) IAU 7701; antenna (Skanti) Hardware version: Not provided Serial number: Not provided Software release: Not provided Page:5 - 40 Report number:98471231 3. Test schedule Tests were carried out in accordance with the specification detailed in chapter 6 "Summary" of this report. - The following tests have been performed at KTL-Arnhem: - RF Power Output tests - Occupied Bandwidth - Spurious Emissions at Antenna Terminals - Field Strength of Spurious (> 1 GHz) - Frequency Stability - Protection of Radionavigation/Satellite Service - The following tests have been performed at Open Area Test Site KRQ (H44) FCC-KRQ/EMC99-4248 Utrechtseweg 310 6812 AR Arnhem The Netherlands: - Field Strength of Spurious (< 1 GHz) - The following test has been conducted at Motorola Space and Systems Technology Group 8201 East McDowell Road Scottsdale, AZ 85252-1417 United States of America: - Spurious Emissions at Antenna Terminals Tests were carried out on the following dates: - RF Power Output: 01 April 1999 - Occupied Bandwidth: 30 March 1999 - Spurious Emissions at Antenna Terminals:30 March 1999 (at KTL-Arnhem) 24 September 1998 (at Motorola) - Field Strength of Spurious: 09 September 1999 - Frequency Stability: 12 April …
