BLU NOTE + CHAT TM PORTABLE CONFERENCING + WIRELESS SPEAKER Stream Music Wirelessly From Any Bluetooth® Device + Have High Quality Conference Calls Anywhere USER GUIDE English Only 1. BluNote + Chat™ 2. AC power adapter 3. 3.5 mm jack for non-Bluetooth® devices 4. User Guide 5. Registration sheet Back View 2. Aux In jack 3.5mm 3. DC Adapter jack BluNote + Chat™ Design Package Contents 1 3 2 2 Front View 1. Power On / O 2. Phone 3.Bass Boost 4. Volume Up 5. Volume Down 6. Fast Forward/Next Track 7. Pause/Play 8. Back/Previous Track 9. Phone Number ID BluNote + Chat™ Design 1 3 2 6 7 8 9 4 5 ⚠ Safety Precautions • Please read the operating instructions and safety precautions carefully before using. • Explain the content and the hazards associated with using the device/accessories to your children. • Remember to comply with legal requirements and local restrictions when using the device, for example: in airplanes, gas stations, hospitals or while driving. • The functioning of medical devices such as hearing aids or pacemakers can be impaired. Keep at least 9 inches/20cm between the device and the pacemaker. For more information consult your doctor. • Do not throw the device into an open fire. • Do not exceed the voltage specified on the power supply unit (5V). Exceeding the voltage may destroy the device. • If you use the BluNote + Chat™ for wireless mobile phone calls in your car, please obey all cell phone and driving laws in your area. • Do not open the unit. Doing so will invalidate the guarantee. • Permanent hearing loss may occur if you use the device at high volume. You can adapt over time to a higher volume, which may Precautions 4 • Do not use the BluNote + Chat™ near water, such as a sink or bath tub, or in a wet area. • Do not use the BluNote + Chat™ during an electrical storm or near a gas leak or vapors that could be ignited. Please Note: Improper use will invalidate the guarantee! In some countries there may be restrictions to the use of Bluetooth® devices. Please make enquiries with the authorities responsible. 1. Powering your BluNote + Chat™ Before you can pair your BluNote + Chat™ to a Bluetooth® device, you must power it either by plugging in the AC power adapter or by using Precautions 5 the rechargeable Li Ion Battery. In order to run on the battery, you must first charge it. This will take about 3 hours the first time; subsequent charging times will vary on the battery life left. • Use only original accessories. This will avoid potential damage to health or property and ensure compliance with all relevant regulations. sound normal but can be damaging to your hearing. Set your volume to a safe level. If you experience ringing in your ears, reduce the volume or discontinue use of your system. 2. Powering On/Off There is an main On/Off switch at the back of the unit. When you turn the switch to the On position The BluNote + Chat will automatically be in pairing mode. Pairing is the process of two Bluetooth® compatible devices linking or communicating with one another. A mobile phone identifies a Bluetooth® device and uses a password or PIN to establish pairing. This process allows only a verified device to connect to your mobile phone, ensuring security. The pairing process is described below. The is a Power Icon on the top of the unit. Touching this icon puts the unit in the equivalent of "sleep mode". The lights on the top will dim but there will be a red line that flashes every 5 seconds to remind you it's in Stand By mode. You'll be able to resume playing music just by touching any Icon on the top of the unit. Keep in mind that this mode will discharge your battery more rapidly, if you are running from battery and not plugged in. 3. Pairing the BluNote + Chat™ with a Bluetooth® enabled Mobile Phone or other device IMPORTANT: When pairing the BluNote + Chat™ to a Bluetooth® device, pair as "speaker" or "wireless speaker". Your device may list different pairing options: choose the one that most closely fits "speaker". If your Bluetooth® enabled device does not list a speaker option, please make sure your device is: 1) A2DP compatible, and, 2) has the latest Bluetooth® driver available for your device installed. You may need to check with your device's manufacturer for compatibility. The only exception is the MacBook Pro which only has the "Headset" option available. Check the Spracht website for more information. If you need assistance with pairing, please User Guide 6 call Spracht Customer Service at +1 650-215-7500, Monday to Friday 9AM-6PM Pacific time, or email [email protected]. • Turn the switch at the back of the BluNote + Chat™ to On. • Power on your Bluetooth® enabled mobile phone or other device. • Activate Bluetooth® on your Bluetooth® enabled device and search for Bluetooth® devices (if in doubt please refer to your device's user manual for details on activating Bluetooth). • Follow your device’s instruction guide to connect to a Bluetooth® device. Typically, you will click on a Bluetooth® icon and click “Discover device.” • Your A2DP Bluetooth® device should give you an option to choose to pair your BluNote + Chat™ as a "Headset" or a "Speaker". The preferred pairing option is "Speaker". NOTE: Choosing the "Headset" option will enable you to accept calls, however, it may make your music sound distorted. If you do not see a "Speaker" option, please check with your device's manufacturer for compatibility. • Your mobile phone should find the BluNote + Chat™ which is displayed as “BluNote + Chat”. • Click on “BluNote + Chat” and click “OK” if your phone prompts you to confirm. • If your device then prompts you to enter a PIN or password, enter: 0000 • If the pairing is successful, your device will indicate a successful pair and "Pair On" will scroll through the LED display for 5 seconds. • Depending on the software concerned, your device may then CONNECT automatically to the BluNote + Chat™. You will then see the message CONNECTED on your device's display. In…

Text truncated - open the document above for the full version.

RF IN RF OUT 2.4 Ghz Radio Block Diagran

Global Certification Corp. Report No.: F12080104 GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTEST GTES CERTIFICATE OF COMPLIANCE For the following equipment : Equipment Under Test : Portable Conferencing + Wireless Speaker Model Name: BS669, BLU NOTE + CHAT, WS-4012 Applicant: Spracht 2672 Bayshore Parkway, Bldg 900 Mountain View, CA 94043,USA Manufacturer: Shenzhen Adition Audio Science &Technology CO., LTD. Mingzhuo Industry Park, Guangming Main Street, Guangming New District, Shenzhen, China Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart B and CISPR PUB. 22 and the measurement procedures were according to ANSI C63.4-2009. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart B Class B The test was carried out on July 24, 2012 at Global Certification Corp. Taipei, Taiwan July 24, 2012 Alex Chou / Manager (Place) (Date) (Signature) Designation Number: TW1030

Spracht FCC ID: OSF-BS669 POWER OF ATTORNEY Date:July 23,2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on July 23,2013 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Spracht, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Spracht ................................................... [Signature] Rich Slevin ................................................... President

Spracht Date: July 31, 2012 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: OSF-BS669 To Whom It May Concern: This letter is to ascertain that Spracht, Portable Conferencing + Wireless Speaker has been the units used for conducting FCC compliance testing, the DoC part was tested by Global Certification Corp. (Test Report No.:F12080104 ). If you have any question or concerns, pls. contact us. Sincerely, ----------------------------------------[signature] Rich Slevin / President Spracht E-mail: [email protected] Phone: +1 650-318-8050 Fax: +1 650-318-8060 Address: 2672 Bayshore Parkway, Bldg 900, Mountain View, CA 94043,USA

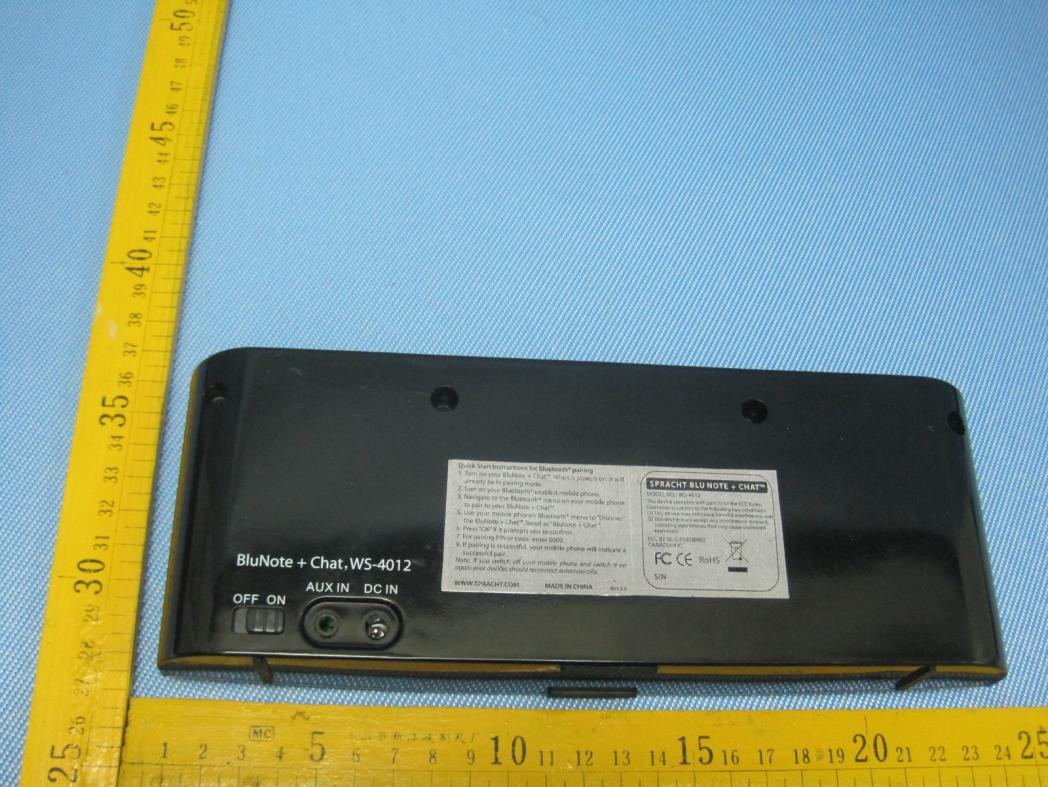

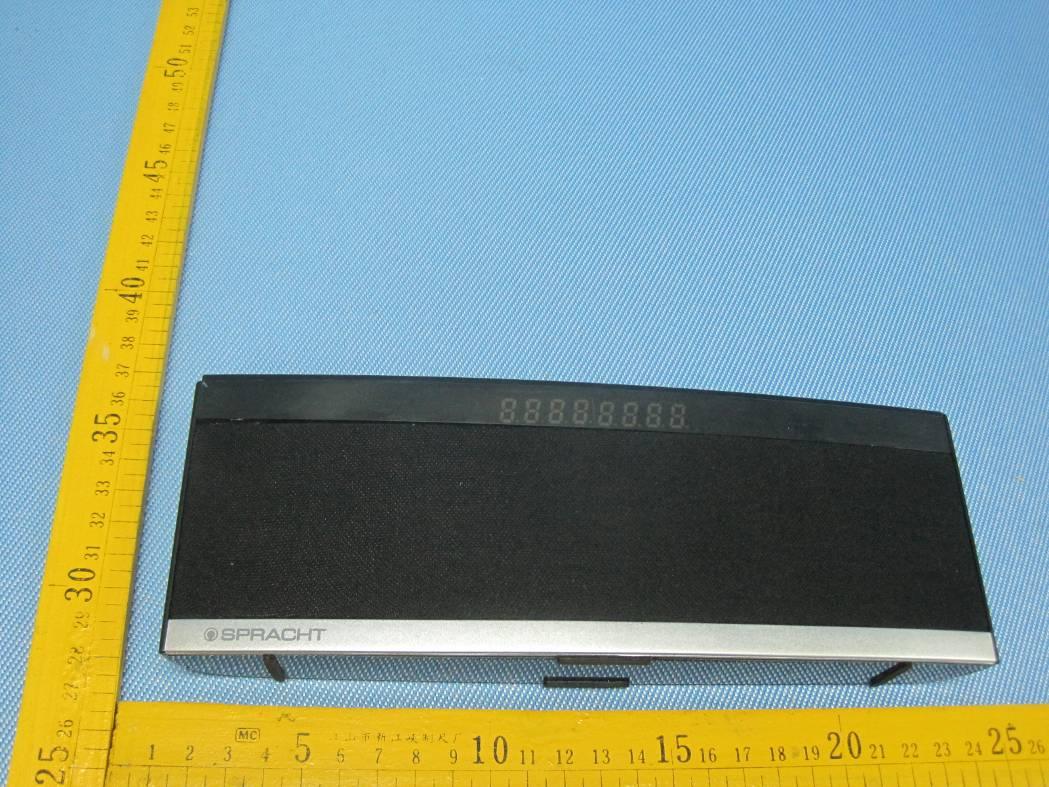

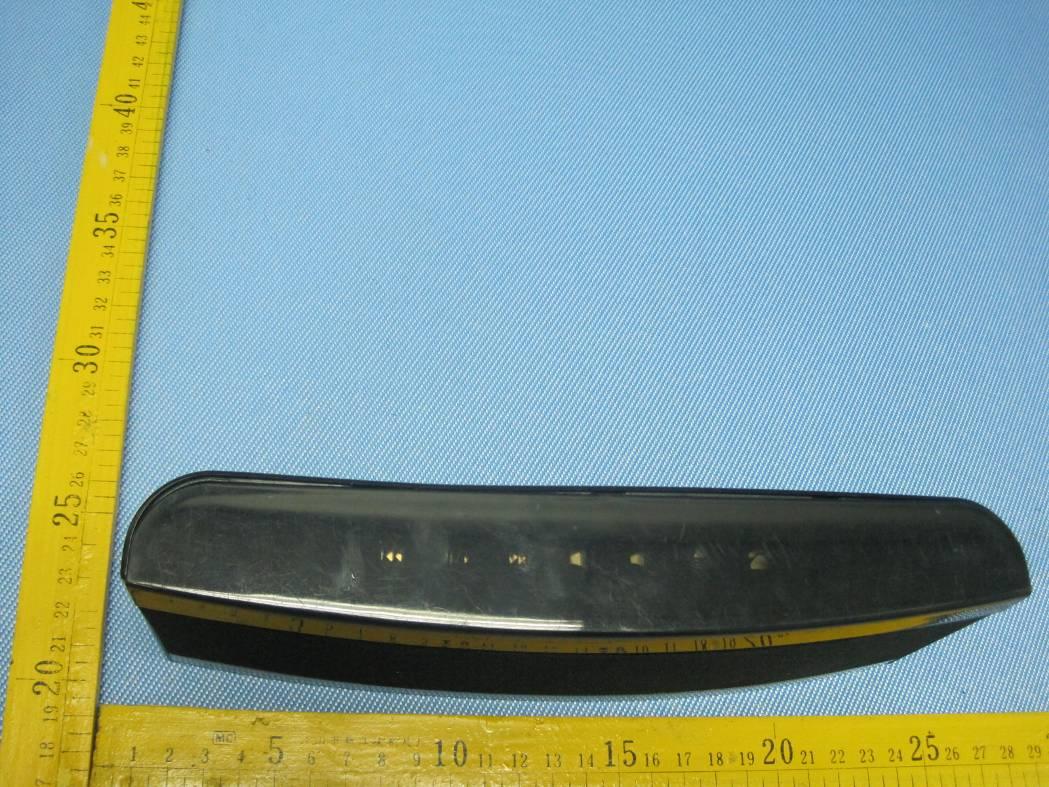

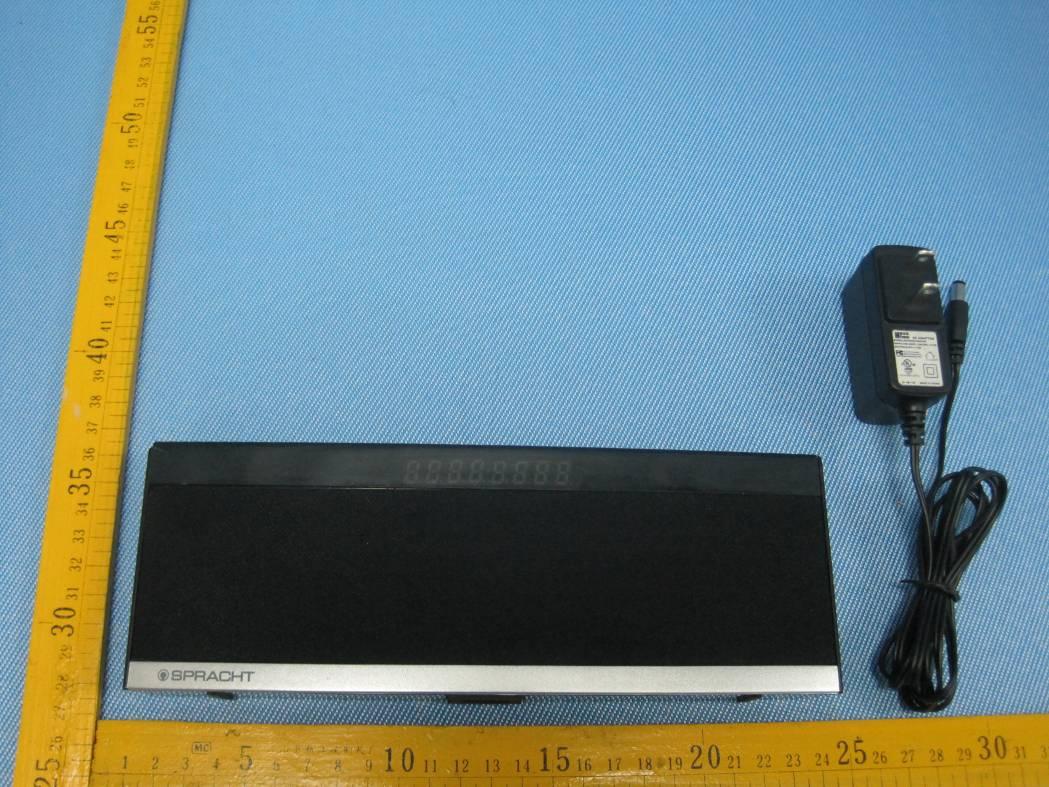

Page: 48 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17 Photographs - Constructional Details 17.1 EUT – Appearance View Page: 49 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F Page: 50 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F

Page: 56 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 18 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: OSF-BS669 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Model: BS669, BLU NOTE + CHAT,WS-4012 FCC ID: OSF-BS669 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page: 51 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17.2 EUT- Open View Battery placement ANT placement Page: 52 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17.3 EUT – PCB1 View Page: 53 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17.4 EUT – PCB2 View Page: 54 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17.5 EUT – PCB3 View Page: 55 of 56 The results shown in this test report refer only to the sample(s) tested, This Test report cannot be reproduced, except in full, without prior written permission of the company. WALTEK SERVICES Reference No.: WT12064436-D-S-F 17.6 EUT – PCB4 View

YG-209M module consist of Bluetooth chip BC57E687,8MB Flash and 16MHz crystal, after external power working, IO controlling drive Bluetooth chip. The software stored in flash control the bluetooth chip transmitting or receiving data. When the device paired with other wireless devices,they could communicate with each other following the Bluetooth protocol. The working frequency range of RF module YG-209M is setted from 2402MHz to 2480MHz, the sepeartion is 1MHz and there are 79 channels in total. The working procedures are: a. When power on, the Bluetooth speaker will loop scan the whole frenquency until a connection command from the transmitter is received. b. The Bluetooth speaker transmit a response signal. c. The transmitter receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the transmitter and Bluetooth speaker will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. The Bluetooth speaker conform to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the Bluetooth speaker, which is set to a fixed width by the software, match the hopping channel bandwidth of their corresponding transmitter.

1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---１ Product Specification CLASS II BC05 Flash MODULE DRAWN BY ： FuLiQuan MODEL : YG-209M CHECKED BY ： Raymond Mok DESCRIPTION : BC05+16M Flash Module APPD. BY： HuangZhiMing REV : 1.0 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---２ Contents 1. Product Photo 2. Feature 3. Summary of Benefit 4. Device Terminal Function 5. Block Diagram 6. Electrical Specification: 7. Schematic Diagram 8. Testing Block Diagram Fig 1 Programming and Freq. Alignment Test Procedure Fig 2 RF Parameter Test procedure Fig 3 Assemble/Alignment/Testing Flow Chart 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD 1. Product Photo Issue Date :9/23/2008 12---３ 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---４ 2．Feature z Radio Transceiver ¾ Typical –82dBm sensitivity ¾ Up to +2dBm RF transmit power with power level control z Baseband ¾ Fully Qualified Bluetooth V2.0+EDR ¾ Integrated Audio CODEC in one chip ¾ Built-in link controller, link manager protocol and flash ¾ Low Power 3.3V Operation ¾ Full speed USB interface, compliant with USB 1.1 ¾ Integrated Battery Charger With Programmable Current ¾ PIO control ¾ Standard HCI(UART or USB)l ¾ UART interface with programmable baud rate ¾ Basic module without antenna ¾ Basic module as SMD type ¾ With Audio Out & Audio in z Package option ¾ Edge connector 3．Summary of Benefit z Complete Bluetooth Solution ¾ Complete 2.4GHz radio transceiver and baseband ¾ CSR Bluecore 05- BT MultiMedia, single chip bluetooth system with CMOS technology ¾ Adaptive frequency hopping feature (AFH) ¾ Smallest footprint, 21mmX13.7mm ¾ Simplify overall design/development cycle ¾ Full speed Class 2 bluetooth operation ¾ Class I support using external power amplifier z Low power standby modes to enable high efficient power management z High performance radio transceiver z Low overall system cost 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---５ z Application ¾ Stereo Headphone ¾ Automotive Hands-Free Kits ¾ Handsfree headset ¾ Stereo (AV) Transmitter ¾ Bluetooth Sound Box z Software ¾ Support CSR bluetooth stack ¾ Design for Client 4．Device Terminal Function PIN Name PIN # Pad type Description Note GND 1.21.32.40 43.4856.5 8 VSS Ground pot 1.8V 39 VDD1.8V Integrated 1.8V (+) supply with On-chip output within 1.7-1.9V 3.3V 31 VDD3.0V Integrated 3.3V (+) supply with On-chip l output within 3.0.-3.3V BATT 41 Battery terminal+ve Lithium ion/polymer battery positiveterminal. CHG 42 Charger input Lithium ion/polymer battery charger input VREN 38 Analogue High-voltage linear regulator and switch-moderegulator AIO0 5 Bi-Directional Programmable input/output line AIO1 4 Bi-Directional Programmable input/output line PIO0 54 Bi-Directional RX EN Programmable input/output line, control output for LNA(if fitted) PIO1 55 Bi-Directional TX EN Programmable input/output line, control output for PA(if fitted) 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---６ PIO2 3 Bi-Directional Programmable input/output line PIO3 2 Bi-Directional Programmable input/output line PIO4 22 Bi-Directional Programmable input/output line PIO5 23 Bi-Directional Programmable input/output line PIO6 24 Bi-Directional Programmable input/output line PIO7 18 Bi-Directional Programmable input/output line PIO8 19 Bi-Directional Programmable input/output line PIO9 14 Bi-Directional Programmable input/output line PIO10 12 Bi-Directional Programmable input/output line PIO11 16 Bi-Directional Programmable input/output line RET 25 CMOS Input with weak intemal pull-down RESET UART_RT S 11 CMOS output, tri-stable with weak internal pull-up UART request to send, active low UART_CT S 10 CMOS input with weak internal pull-down UART clear to send, active low UART_R X 8 CMOS input with weak internal pull-down UART Data input UART_TX 9 CMOS output, Tri-stable with weak internal pull-up UART Data output SPI_MOSI 35 CMOS input with weak internal pull-down Serial peripheral interface data input SPI_CSB 30 CMOS input with weak internal pull-up Chip select for serial peripheral interface, active low SPI_CLK 33 CMOS input with weak internal pull-down Serial peripheral interface clock SPI_MISO 34 CMOS input with weak internal pull-down Serial peripheral interface data Output 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---７ USB_DN 6 Bi-Directional USB USB_DP 7 Bi-Directional USB MIC_A_P 51 Analogue input Microphone input L positive pot Microphone Left Positive MIC_A-N 52 Analogue input Microphone input L negative pot Microphone Left Negative MIC_B_P 49 Analogue input Microphone input R positive pot Microphone Right Positive MIC_B_N 50 Analogue input Microphone input R negative pot Microphone Right Negative SPK_A_P 46 Analogue output Speaker output L negative Left Negative SPK_A_N 47 Analogue output Speaker output L positive Left Positive SPK_B_P 44 Analogue output Speaker output R negative Right Negative SPK_B_N 45 Analogue output Speaker output R positive Right Positive PCM_IN 26 Synchronous PCM data input PCM_SY NC 28 Synchronous PCM data strobe PCM_CL K 27 Synchronous PCM data clock PCM_OU T 29 Synchronous PCM data output ANT 57 Analogue RF In/Out LED0 37 Open drain output LED driver LED1 36 Open drain output LED driver MIC_BAI S 53 Analogue Microphone bia 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD 5. Block Diagram 6. Electrical Specification: z Eecommended Operating condition Issue Date :9/23/2008 12---８ 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---9 Issue Date :9/23/2008 12---１０ 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD 7. Schematic Diagram 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD 8. Testing Block Diagram Fig 1 Programming and Freq. Alignment Test Procedure Fig 2 RF Parameter Test procedure Issue Date :9/23/2008 12---１１ 1/21/2008 SHENZHEN YECON INDUSTRY Co., LTD Issue Date :9/23/2008 12---１２
