OSHPTIFMDUMT00001Cell Phone Hands Free Adapter

Priority Tech Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jan 23, 2000
Application Purpose: Original Equipment
Date of Application: Dec 12, 1999

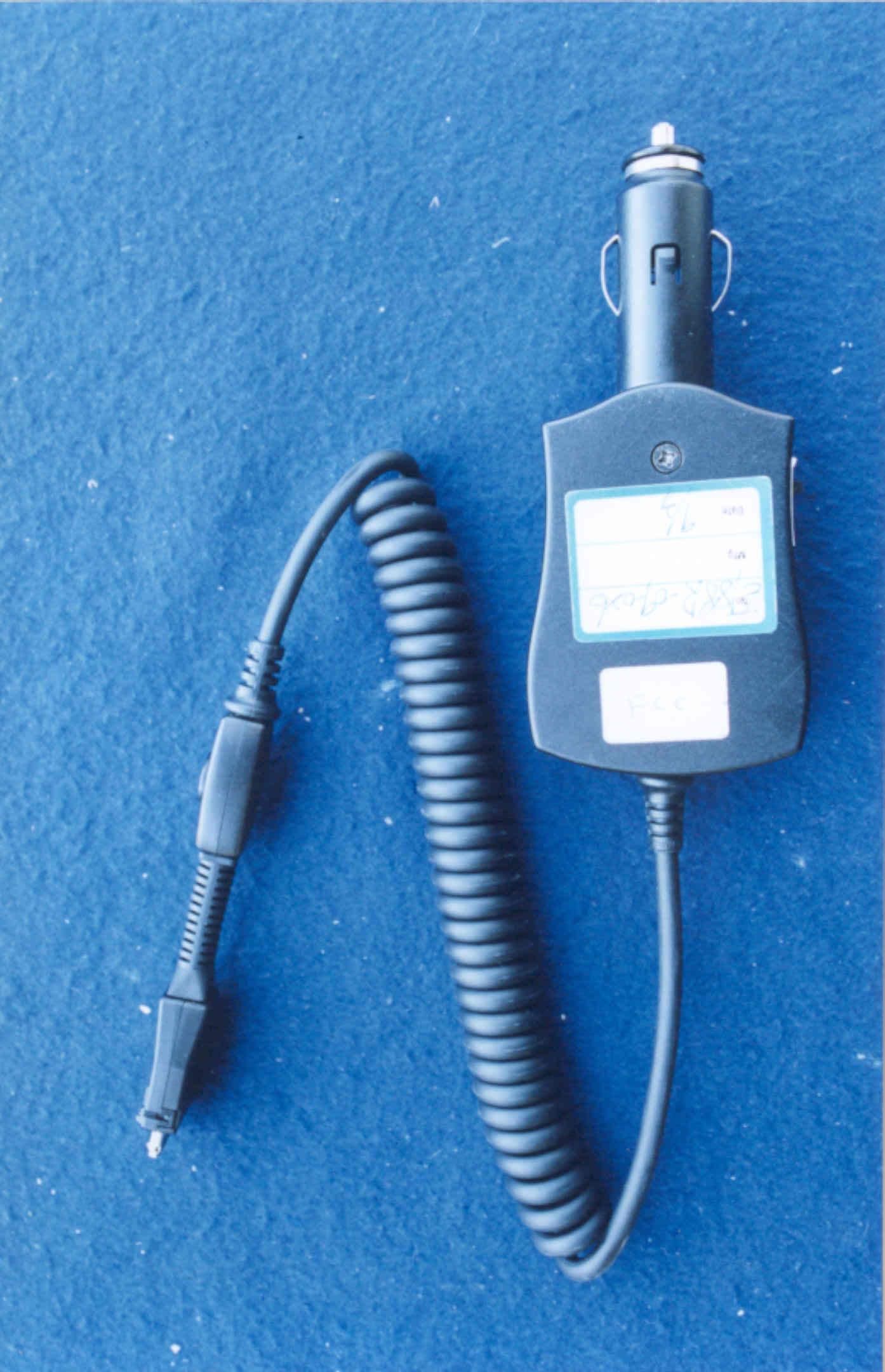

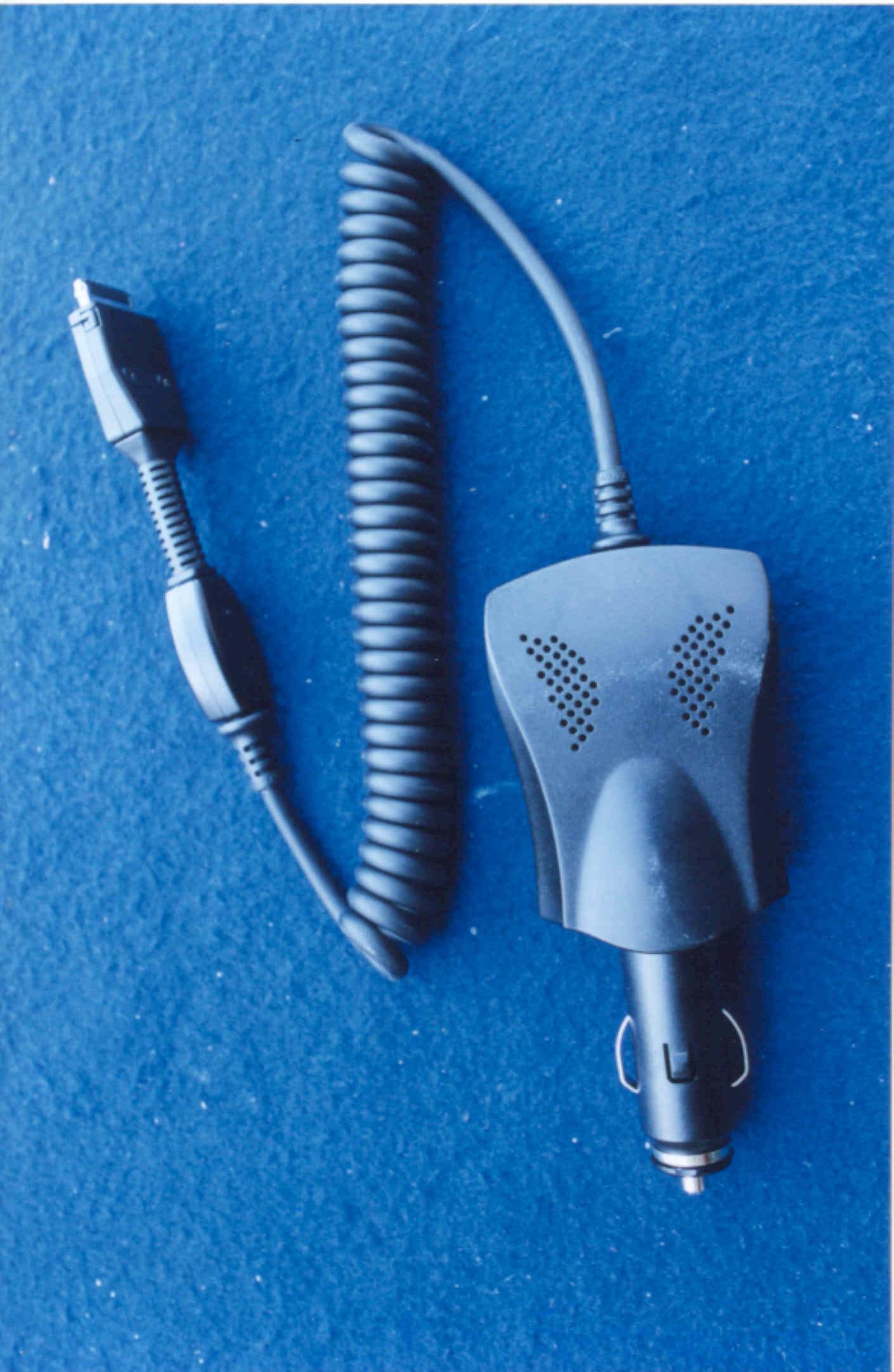

Equipment Note: Cell Phone Hands Free Adapter
Frequency Range: 88.78600000 - 88.78600000
Company: Priority Tech Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Dear Customer, Congratulation!!! You have just bought one of the best FM Hands-Free Kits in the market, and we at Priority Tech Inc. hope that you enjoy the product. With the purchase of the FM Hands- Free Kit you can now relax, enjoy your phone conversation, and drive safely without the worry, or inconvenience, of having to hold on to your cell phone. To help you properly use the hands-free kit, please follow the following simple set up procedure: I. Making a call: 1. Turn on the ignition of your car 2. Plug one end of the kit into the bottom of your phone (make sure your phone is on) 3. Turn on your radio and manually set it to the FM 88.7 frequency (we recommend that you permanently set this frequency to one of your preset stations for future use) 4. Turn the volume to your desired level (it is normal to hear static at this point) 5. Plug the other end of the kit into cigarette lighter socket 6. Make sure the indicator switch, on the left side of the kit, is up toward the direction of car panel (you will notice the background static is instantly muted after you do that) 7. Place the cellular phone down on a holder if applicable, or somewhere safe 8. You are now ready to place a call 9. Dial a desired phone number as normal 10. Begin talking when the other side picks up (conversation should be loud and clear through the FM radio) 11. In some area you will experience bad reception, don’t worry, you can still use the kit by turning the indicator switch down, which will activate the built-in speakers for normal hand-free function (please make sure to turn off the radio to ensure the best performance) 12. After the conversation, hang up as usual and you can go back to your favorite FM radio station or CD II. Receiving a call: 1. When phone is ringing, activate your phone as usual 2. Push the preset station you’ve selected to use with the FM kit 3. You can now speak freely through the FM connection 4. Hang up as usual when finished III. Bonus feature: the kit will charge your battery while the phone is not in use IV. Special note for Motorola StarTac phone owners: if your service provider uses a CDMA system, after dialing a number you might have to flip the cover of the phone down and up again to activate the hands-free feature (the LCD panel will tell you when you are in hands-free mode) Thank you for using our FM Hands-Free Kit and we hope that you are happy with our product. If you have any questions or concern, please feel free to contact our technical support team at 510- 226-7390, or email us at www.priorityusa.com. We are at your service. And, as always, please drive safely. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. MODEL: HFK-DDB-MTOOSTARBK FCC ID: OSHPTIFMDUMT00001 THES DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MADE IN TAIWAN

ID Label/Location Info

30 mm Model: HFK-DDB-MTOOSTARBK FCC ID: OSHPTIFMDUMT00001 15 mm MADE IN TAIWAN Note : This statement will be placed in the User’s Manual. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPTY ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CUASE UNDESIRED OPERATION.

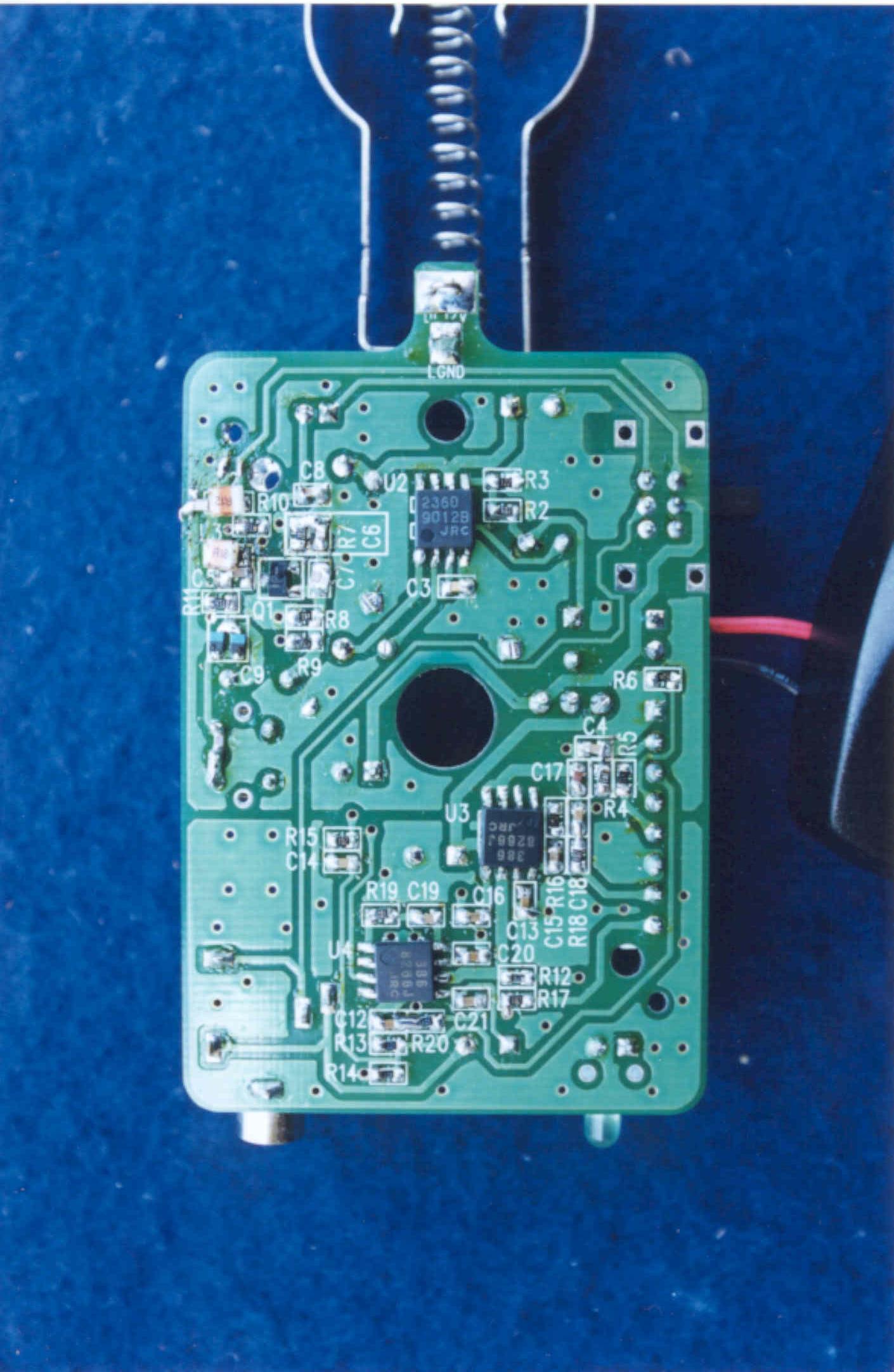

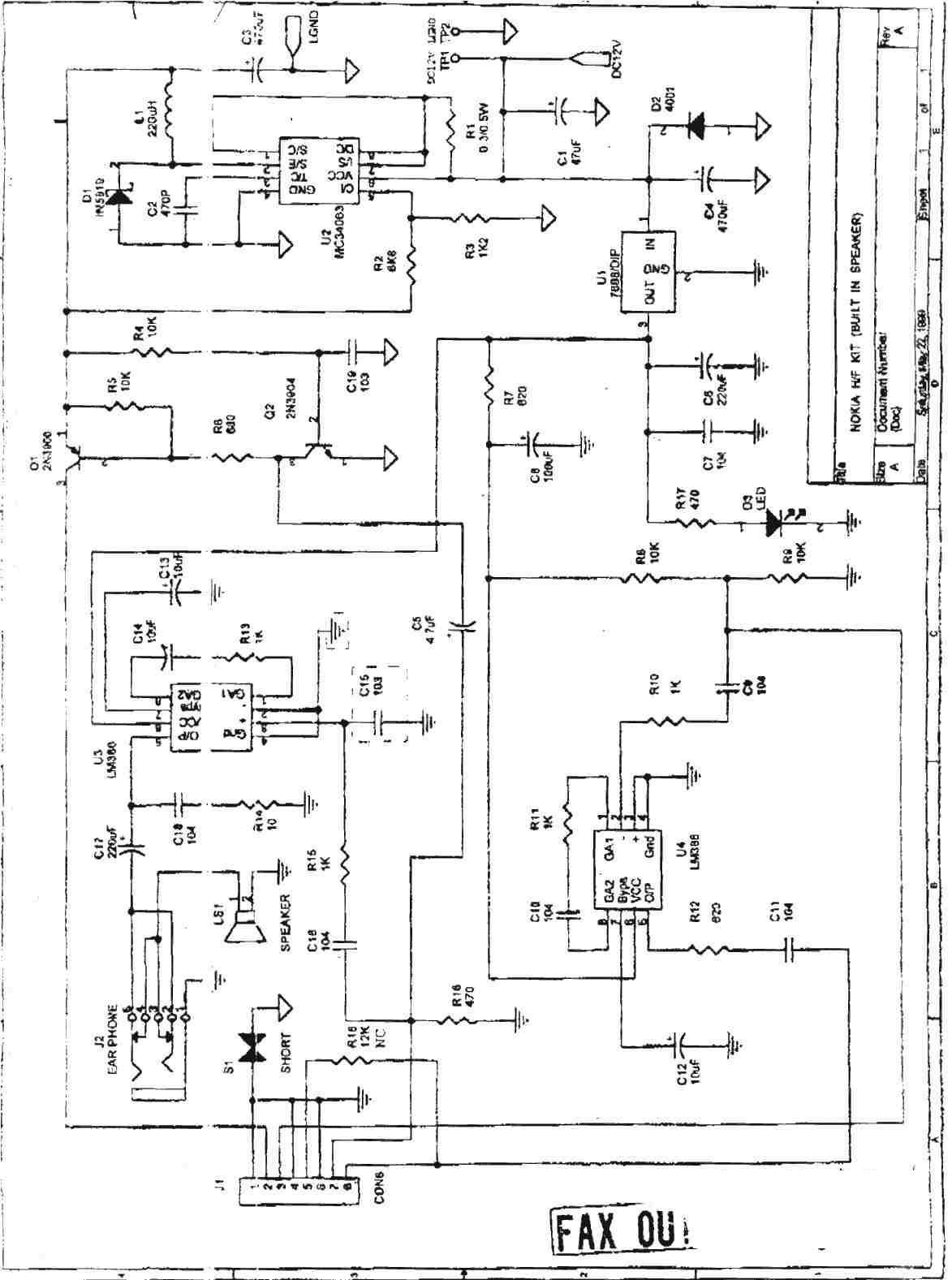

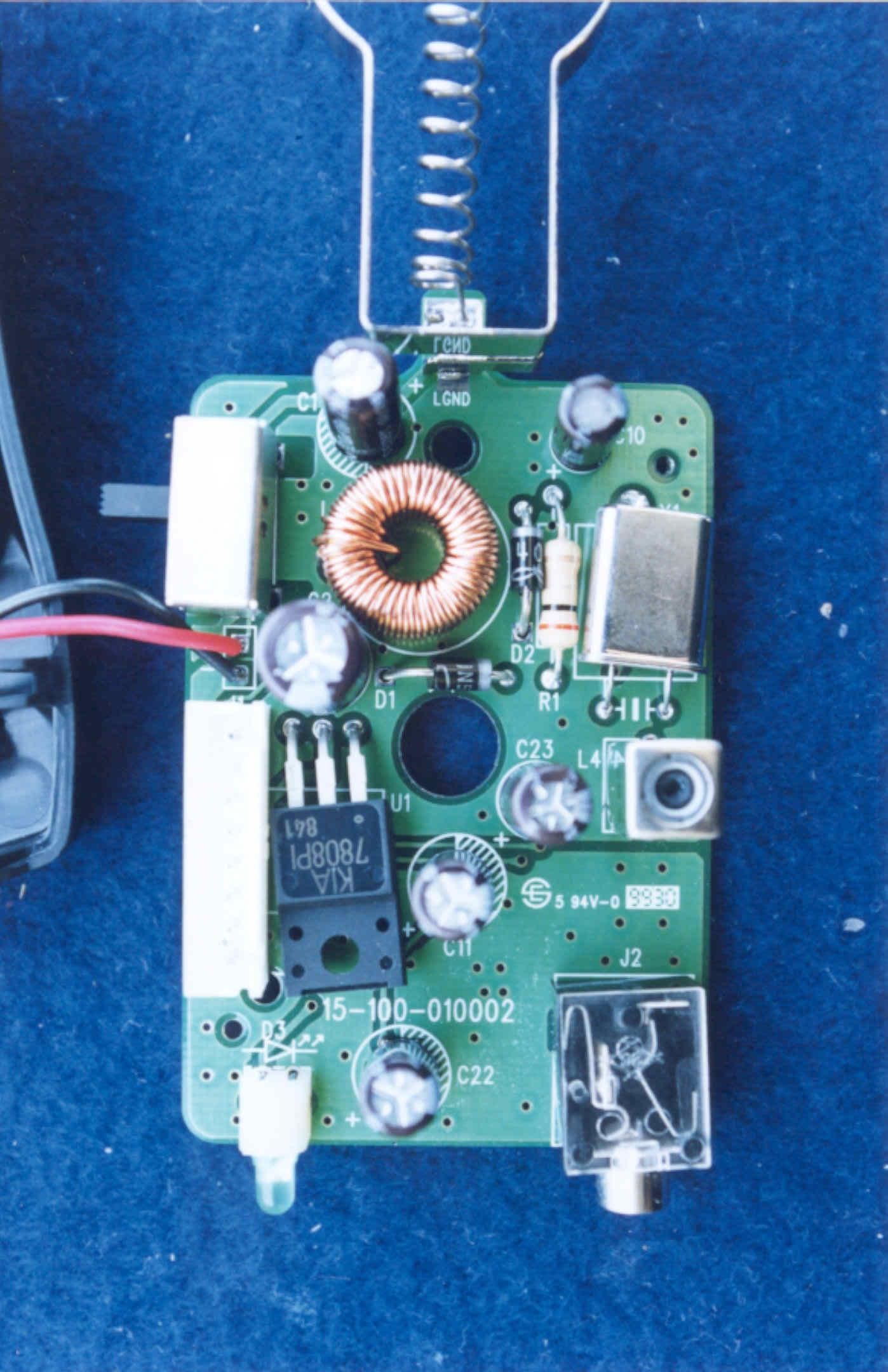

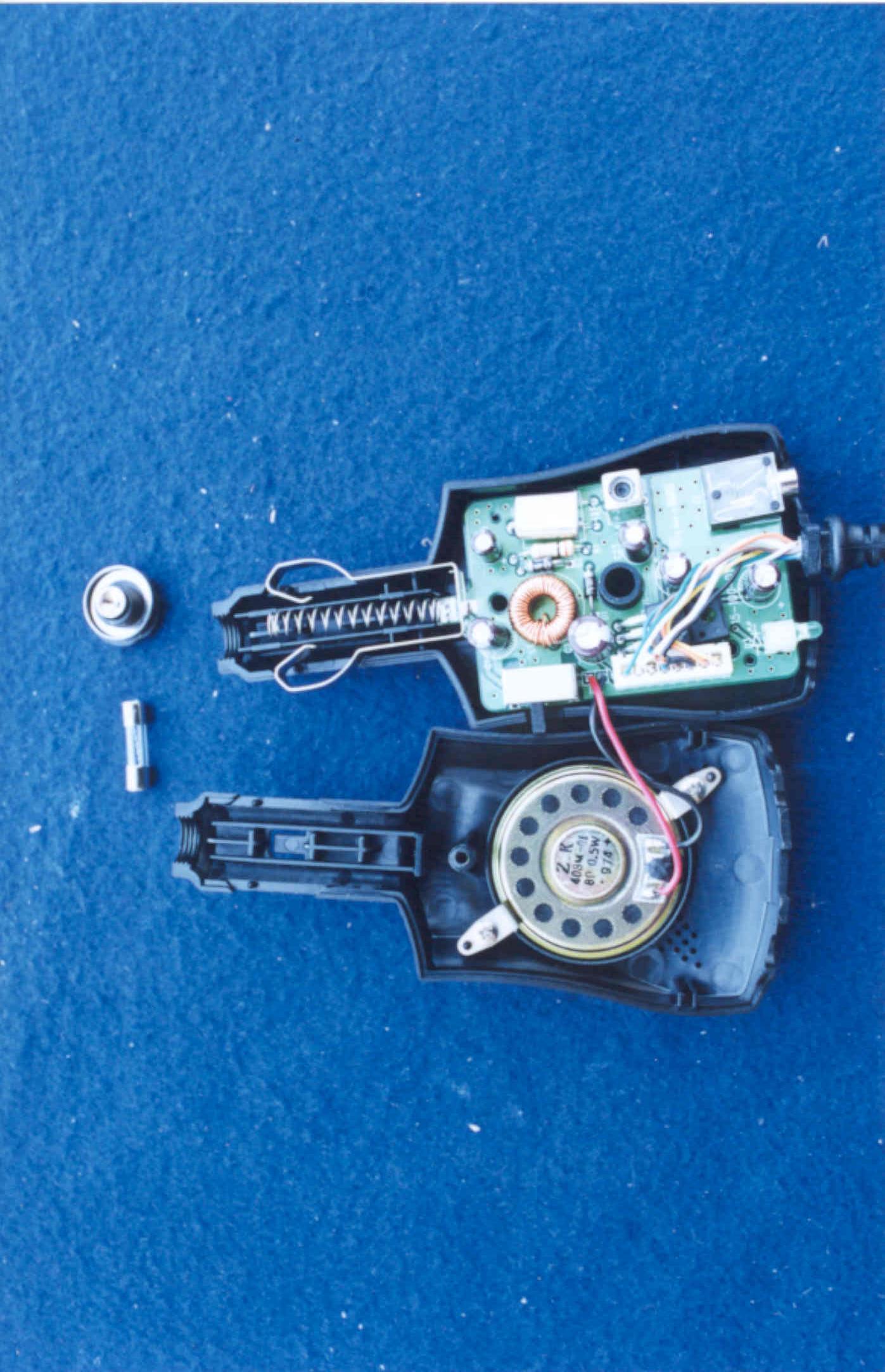

Operational Description

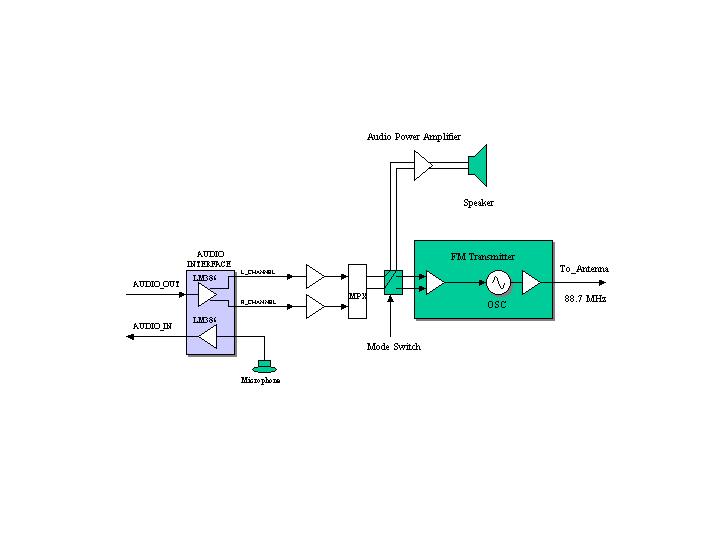

The Hands Free Car Kit Dianond Series/Dual Mode is a four-in-one device incorporating a cellular phone battery charger, battery saver, Hands Free Car Kit and speakerphone using built-in speaker/car stereo speaker via a FM preset channel.

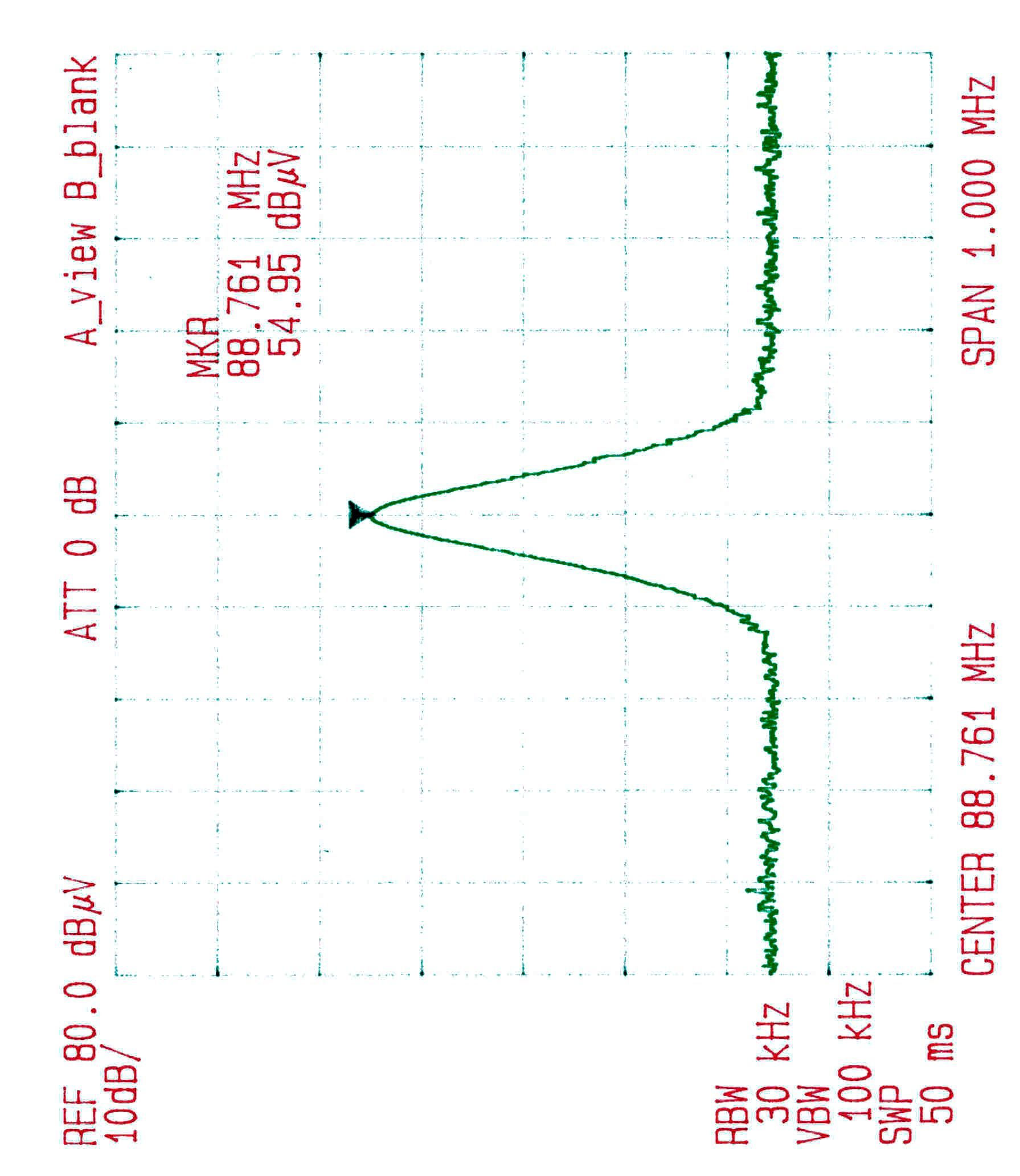

Test Report

FCC ID.: OSHPTIFMDUMT00001 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Hands Free Car Kit FCC ID. : OSHPTIFMDUMT00001 MODEL : HFK-DDB-MTOOSTARBK Working Frequency : 88 MHz - 108 MHz for APPLICANT : PRIORITY TECH., INC. ADDRESS: 46771 Fremont Blvd, Fremont, CA 94538 U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-09-026 ETC Report No.:ET88R-09-026FCC ID.: OSHPTIFMDUMT00001 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: PRIORITY TECH., INC. 46771 Fremont Blvd, Fremont, CA 94538 U.S.A. Manufacturer: Comtech Technology Co., Ltd. 2F, No. 42, Sec. 3, Chung-yang Rd., Tu-cheng, Taipei Hsien, Taiwan, R.O.C. Description of EUT: a) Type of EUT: Hands Free Cat Kit b) Trade Name: Priority (PTI) c) Model No.: HFK-DDB-MTOOSTARBK d) The data also apply to model : HFK-DDB-NK006190BK e) FCC ID: OSHPTIFMDUMT00001 f) Working Frequency: 88 MHz - 108 MHz g) Power Supply: DC 12V Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1998) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date :NOV. 24, 1999 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET88R-09-026FCC ID.: OSHPTIFMDUMT00001 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION........................................................................................................................................1 1.1 P RODUCT DESCRIPTION..................................................................................................................................................1 1.2 C HARACTERISTICS OF DEVICE:.......................................................................................................................................1 1.3 T EST METHODOLOGY.....................................................................................................................................................1 1.4 T EST FACILITY...............................................................................................................................................................1 2. DEFINITION AND LIMITS .........................................................................................................................................2 2.1 D EFINITION.....................................................................................................................................................................2 2.2 R ESTRICTED BANDS OF OPERATION...............................................................................................................................2 2.3 L IMITATION....................................................................................................................................................................2 2.4 L ABELING REQUIREMENT...............................................................................................................................................3 2.5 U SER INFORMATION.......................................................................................................................................................3 3. RADIATED EMISSION MEASUREMENT ...............................................................................................................4 3.1 A PPLICABLE STANDARD.................................................................................................................................................4 3.2 M EASUREMENT PROCEDURE..........................................................................................................................................4 3.3 T EST DATA.....................................................................................................................................................................6 3.3.1 Fundamental Frequency.........................................................................................................................................6 3.3.2 Harmonics And Spurious........................................................................................................................................6 3.4 F IELD STRENGTH CALCULATION....................................................................................................................................7 3.5 R ADIATED TEST EQUIPMENT..........................................................................................................................................7 3.6 M EASURING INSTRUMENT SETUP...................................................................................................................................7 3.7 R ADIATED MEASUREMENT PHOTOS...............................................................................................................................8 4 CONDUCTED EMISSION MEASUREMENT...........................................................................................................9 4.1 C ONDUCTED TEST RESULTS...........................................................................................................................................9 5 ANTENNA REQUIREMENT .....................................................................................................................................10 5.1 S TANDARD APPLICABLE...............................................................................................................................................10 5.2 A NTENNA CONSTRUCTION...........................................................................................................................................10 6 EMISSION BAND ME…

Text truncated - open the document above for the full version.

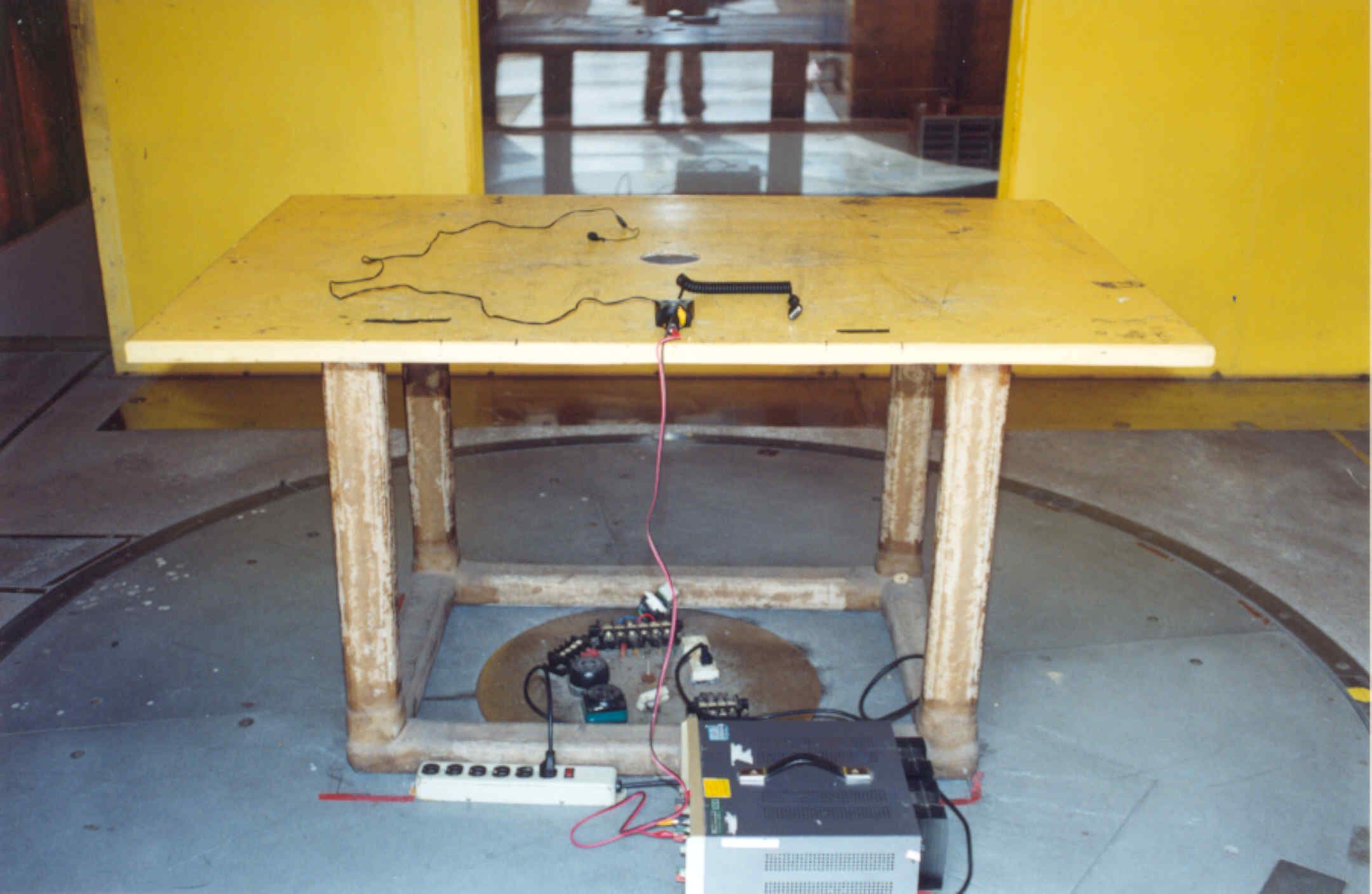

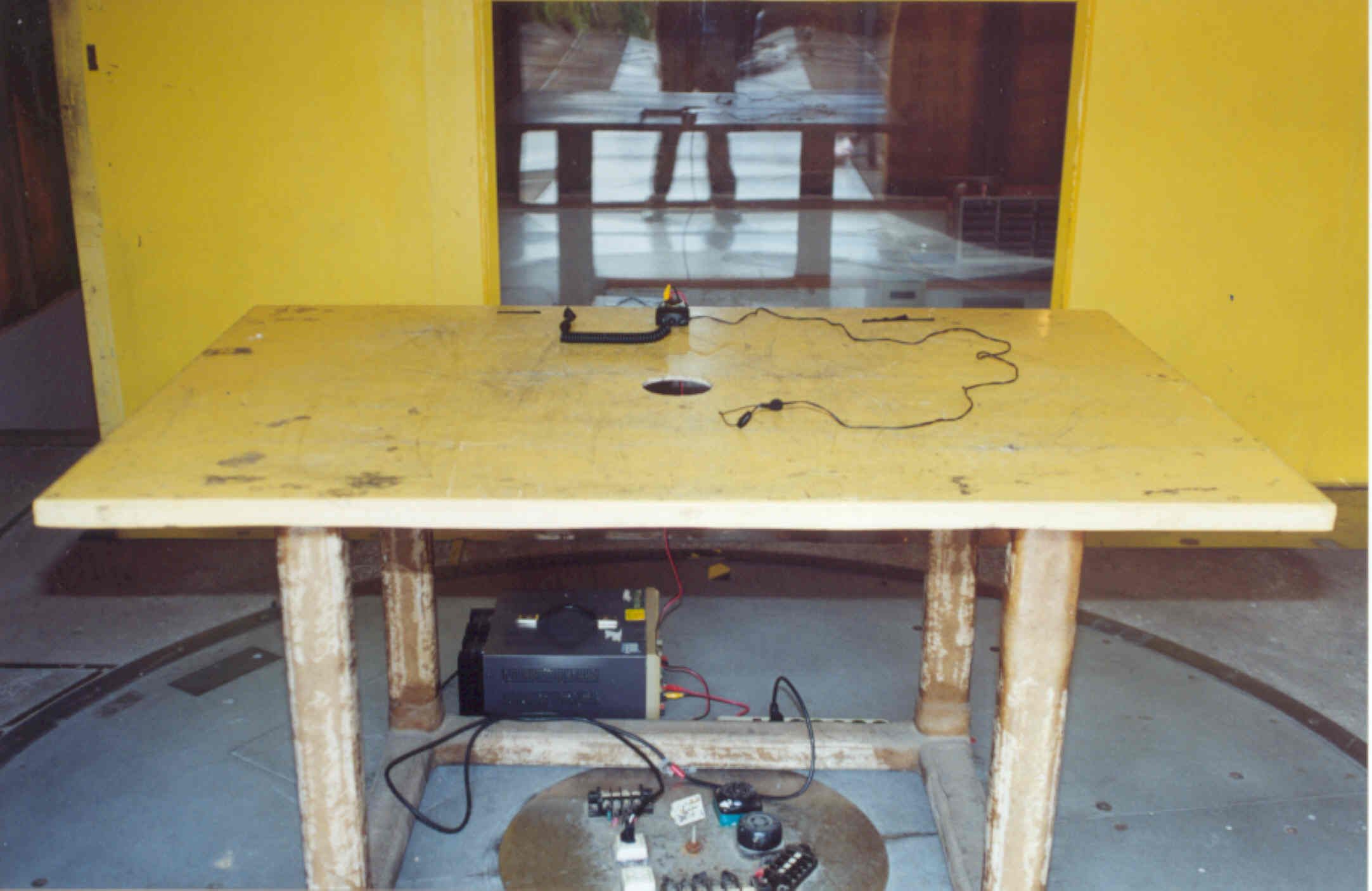

Test Setup Photos
