OT8RFMRHand Held RF Module

Exhibit M – User Manual Information FCC ID: OT8RFMR Information to be included in the user manuals: This equipment contains the device which complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received including interference that may cause undesired operation. FCC ID: OT8RFMR CAUTION: Changes or modifications not expressly approved by the manufacturer could void the user authority to operate the equipment. The following Label must be placed on the equipment this module is installed within: Contains FCC ID: OT8RFMR

Exhibit A – Agent Authorization Letter FCC ID: OT8RFMR

Exhibit F – Modular Approval Letter FCC ID: OT8RFMR NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 April 17, 2000 Dear Application Examiner: MTH Electric Trains, Inc., Hand-held Module Transmitter, FCC ID: OT8RFMR is seeking FCC authorization as a modular transmitter. The EUT meets the requirements for modular approval as detailed in FCC Public Notice DA00-1407. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see Exhibit B for photos of the shielding. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see Exhibit I for schematics of the module. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Exhibit I for schematics of the module. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Exhibit J for the technical report, Exhibit B for photographs of the antennas. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration. Please see Exhibit J for the Technical report and Exhibit L for the test setup photos. Please note that the EUT was also tested for AC Powerline Conducted Emissions (see Exhibit K). 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see Exhibit C for a drawing of the label and its location on the device. Since the FCC ID number will not be visible when the module is installed inside a host device, there are instructions given to the OEM on how to apply the exterior label. Please see the User Guide insert (Exhibit M). 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. There are no limitations in 15.249. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in Section 4.5 of the technical report (see Exhibit J). Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Dean Ghizzone, President Northwest EMC, Inc.

Exhibits for the FCC application of MTH Electric Trains, Inc. Hand Held Modular Transmitter FCC ID: OT8RFMR Exhibit Description File Name Confidential Exhibit A Agent Authorization Letter Agent Authorization Letter Exhibit B External Photos External Photos Exhibit C FCC ID Label FCC ID Label Exhibit D Frequency Block Diagram Frequency Block Diagram X Exhibit E Internal Photos Internal Photos Exhibit F Modular Approval Letter Modular Approval Letter Exhibit G Description of Operation Description of Operation X Exhibit H Request for Confidentiality Request for Confidentiality Exhibit I Schematics Schematics X Exhibit J Technical Report Technical Report Exhibit K Test Data Test Data Exhibit L Test Setup Photos Test Setup Photos Exhibit M User Manual Info User Manual Info

Exhibit H – Request for Confidentiality FCC ID: OT8RFMR April 17, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematic • Operational Description • Frequency Block Diagram Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Dean Ghizzone, President Northwest EMC, Inc. Authorized Agent for MTH Electric Trains, Inc.

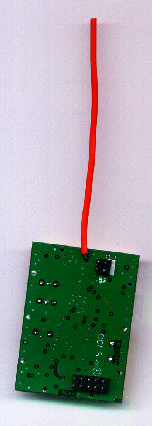

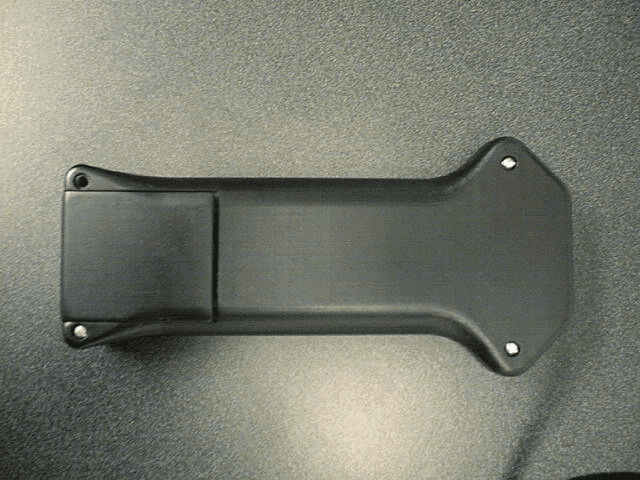

Exhibit B – External Photos FCC ID: OT8RFMR

Exhibit C – FCC ID Label FCC ID: OT8RFMR Contains FCC ID: OT8RFMR FCC ID: OT8RFMR

Exhibit E – Internal Photos FCC ID: OT8RFMR

Exhibit J – Technical Report FCC ID: OT8RFMR Measurement/Technical Report MTH Electric Trains Hand Held RF Module FCC ID: OT8RFMR March 6, 2001 This report concerns (check one): Original Grant X Class II Change____ Equipment Type: Remote Control Data Transceiver Rule Part: 47 CFR 15.249 Deferred grant requested per 47 CFR 0.457 (d)(1)(ii)? Yes_____ No X If yes, defer until: ______N/A______ date MTH Electric Trains agrees to notify the Commission by: ______N/A______ date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Northwest EMC, Inc. 22975 NW Evergreen Pkwy., Ste 400 Hillsboro, OR 97124 Ph: (503) 844-4066 fax: (503) 844-3826 Report No. SEIT0047 FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 2 Table of Contents Section Description Page 1.0 General Information 3 1.1 Product Description 3 1.2 Related Submittals/Grants 5 1.3 Tested System Details 5 1.4 Test Methodology 6 1.5 Test Facility 6 3.0 System Test Configuration 7 3.1 Justification 7 3.2 EUT Exercise Software 7 3.3 Special Accessories 7 3.4 Equipment Modifications 7 Figure 3.1 Configuration of Tested System 8 4.0 Antenna Requirement 9 4.1 Antenna Information 9 4.2 RF Exposure Compliance Requirements 9 4.3 AC Powerline Conducted Emissions 10 4.4 Spurious Radiated Emissions 10 4.5 Fundamental Emissions 11 4.6 Field Strength Calculations 11 4.7 Measurement Bandwidths 12 5.0 Measurement Equipment 12 FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 3 1.0 General Information 1.1 Product Description Manufactured By..........................................................................................MTH Electric Trains Address.........................................................................3820 M-139, St. Joseph, MI 49085-9605 Test Requested By:..........................................................................................Eduard Vaynberg Model.......................................................................................................Hand Held RF Module FCC ID.....................................................................................................................OT8RFMR Serial Number(s)...............................................................................................................None Date of Test....................................................................................February 28 – March 2, 2001 Job Number................................................................................................................SEIT0047 Prepared By: Vicki Albertson, Technical Report and Documentation Manager Technical Review By: Approved By: Dean Ghizzone, President Don Facteau, IS Manager FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 4 1.1 Product Description con’t Frequency Range (center frequency of the lowest channel to the center frequency of the highest channel): 916.5 MHz How the transmitter is used: The EUT is a low power, short-range device used for remote control of devices such as toys Available Ports TXD RXD Power Control Lines Available Antennas The EUT can be configured with only one antenna that is permanently installed at the factory. There is no provision for the user to change the antenna. Other FCC Equipment Authorizations The receiver portion of this transceiver, as specified in 47 CFR 15.101 is being covered under a DoC. That DoC and report is available upon request. FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 5 1.2 Related Submittals/Grants The EUT operates in conjunction with a Base RF Module. The complete system requires both units to operate. The Base RF Module may be referenced as FCC ID: OT8RFMT. 1.3 Tested System Details EUT and Peripherals Item FCC ID Description and Serial No. EUT OT8RFMR Hand Held RF Module. Power Supply N/A CUI Stack, Model DPD090020, 9 VDC. Test Fixture N/A Seitz & Associates. Cables Cable Type Shield Length (meters) Ferrite Connection Point 1 Connection Point 2 AC Power No 1.5 No Test Fixture AC Mains Flat Cable No 0.1 No EUT Test Fixture FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 6 1.4 Test Methodology Radiated testing was performed according to the procedures in ANSI C63.4 (1992) and DA 00-705. Radiated testing was performed at an antenna to EUT distance of 3 meters, from 30 MHz to 10 GHz. 1.5 Test Facility The semi-anechoic chamber and conducted measurement facility used to collect the radiated and conducted data is located at Northwest EMC, Inc. 22975 NW Evergreen Pkwy., Ste 400 Hillsboro, OR 97124 (503) 844-4066 Fax: 844-3826 The semi-anechoic chamber, and conducted measurement facility is located in Hillsboro, OR, at the address shown above. This site has been fully described in a report filed with the FCC (Federal Communications Commission), and accepted by the FCC in a letter maintained in our files. Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. NVLAP Lab Code: 200059-0. FCC ID: OT8RFMR Northwest EMC, Inc. Report No. SEIT0047 Page 7 3.0 System Test Configuration 3.1 Justification 3.1.1 Operating Modes All operating modes of the EUT were investigated. During radiated emissions testing, the EUT was set up and configured to continuously transmit and receive. There are no provisions for frequency selection, therefore it was tested as its’ predetermined frequency of operation. Testing was performed in both the transmit and receive modes as well as battery and AC power inputs. As specified in 15.31 (e), the EUT was tested using a new battery. DC voltage supplied to the EUT is…

Text truncated - open the document above for the full version.

Exhibit K – Test Data FCC ID: OT8RFMR Rev 3.4 10/11/00 Comments: Frequency Meter ReadingDetector Antenna Factor Antenna PolarityPreamp GainCable Loss Table Azimuth Antenna Height Adjusted LevelSpec. LimitMargin (MHz)(dBuV)(dB/m)(dB)(dB)(degrees)(meters)(dBuV/m)(dBuV/m)(dB) 916.49866.3PK23.4HBLG0.01.7301.01.091.494.0-2.6 916.50264.6PK23.4VBLG0.01.7259.01.789.794.0-4.3 02/28/01 Rod Peloquin 2126 Transmit fundamental Handheld RF ModuleNone Seitz & Associates SEIT0047 Temperature (°C):% Humidity: Customer Reference Number:Software:Power: FCC 15.249 (3 Meter Limit) Northwest EMC, Inc., Radiated and Conducted Emissions Data Sheets EUT:Serial Number:Job Number:Date: Manufacturer:Test Engineer:Job Site: EV01 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 101001000 Frequency (MHz) dBuV/meter Rev 3.4 10/11/00 Comments: Frequency Meter ReadingDetector Antenna Factor Antenna PolarityPreamp GainCable Loss Table Azimuth Antenna Height Adjusted LevelSpec. LimitMargin (MHz)(dBuV)(dB/m)(dB)(dB)(degrees)(meters)(dBuV/m)(dBuV/m)(dB) 1833.00043.7PK28.5VHRN34.12.480.01.340.554.0-13.5 1833.00043.0PK28.5HHRN34.12.453.01.039.854.0-14.2 1833.00036.5AV28.5VHRN34.12.480.01.333.354.0-20.8 1833.00033.7AV28.5HHRN34.12.453.01.030.554.0-23.5 FCC Class B (3 Meter Limit) Northwest EMC, Inc., Radiated and Conducted Emissions Data Sheets EUT:Serial Number:Job Number:Date: Manufacturer:Test Engineer:Job Site: EV01 Temperature (°C):% Humidity: Customer Reference Number:Software:Power: Battery Powered 03/02/01 Rod Peloquin 2126 Receive Mode, Battery powered Handheld RF ModuleNone Seitz & Associates SEIT0047 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 100015002000250030003500400045005000 Frequency (MHz) dBuV/meter Rev 3.4 10/11/00 Comments: Frequency Meter ReadingDetector Antenna Factor Antenna PolarityPreamp GainCable Loss Table Azimuth Antenna Height Adjusted LevelSpec. LimitMargin (MHz)(dBuV)(dB/m)(dB)(dB)(degrees)(meters)(dBuV/m)(dBuV/m)(dB) 1833.00046.8AV28.5HHRN34.12.4174.01.343.654.0-10.5 1833.00049.2AV28.5VHRN34.12.4260.01.346.054.0-8.1 3666.00041.6AV33.4HHRN34.23.667.01.944.454.0-9.7 3666.00038.6AV33.4VHRN34.23.6108.01.541.454.0-12.7 4582.50033.2AV33.9HHRN34.34.3337.02.237.154.0-17.0 4582.50034.3AV33.9VHRN34.34.370.03.138.254.0-15.8 1833.00057.5PK28.5HHRN34.12.4174.01.354.374.0-19.8 1833.00059.2PK28.5VHRN34.12.4260.01.356.074.0-18.1 3666.00055.8PK33.4HHRN34.23.667.01.958.674.0-15.5 3666.00051.2PK33.4VHRN34.23.6108.01.554.074.0-20.1 4582.50044.7PK33.9HHRN34.34.3337.02.248.674.0-25.4 4582.50045.9PK33.9VHRN34.34.370.03.149.874.0-24.3 03/02/01 Rod Peloquin 2126 Transmit frequency, 916.5MHz, Battery powered Handheld RF ModuleNone Seitz & Associates SEIT0047 Temperature (°C):% Humidity: Customer Reference Number:Software:Power: Battery Powered FCC 15.249 (3 Meter Limit) Northwest EMC, Inc., Radiated and Conducted Emissions Data Sheets EUT:Serial Number:Job Number:Date: Manufacturer:Test Engineer:Job Site: EV01 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 100015002000250030003500400045005000 Frequency (MHz) dBuV/meter Rev 3.4 10/11/00 Comments: FrequencyDetector Adjusted LevelMargin (MHz)(dBuV)(dB) 2.353Peak29.6-18.4 4.412Peak29.1-18.9 29.796Peak29.0-19.0 20.026Peak28.9-19.1 28.375Peak28.9-19.1 3.303Peak28.9-19.1 22.462Peak28.8-19.2 21.219Peak28.8-19.2 15.477Peak28.8-19.2 23.680Peak28.6-19.4 22.970Peak28.6-19.4 18.492Peak28.6-19.4 11.734Peak28.5-19.5 8.597Peak28.5-19.5 0.626Peak28.5-19.5 25.482Peak28.4-19.6 29.390Peak28.4-19.6 27.842Peak28.4-19.6 23.452Peak28.3-19.7 18.668Peak28.3-19.7 Meter ReadingCorrection FactorSpecification Limit (dBuV)(dB)(dBuV) 8.920.748.0 8.320.848.0 7.721.348.0 7.721.248.0 7.621.348.0 8.120.848.0 7.621.248.0 7.621.248.0 7.721.148.0 7.421.248.0 7.421.248.0 7.421.248.0 7.421.148.0 7.521.048.0 8.520.048.0 7.121.348.0 7.121.348.0 7.121.348.0 7.121.248.0 7.121.248.0 FCC Part 15 Class B Conducted Emissions Limits - High Line Northwest EMC, Inc., Radiated and Conducted Emissions Data Sheets EUT:Serial Number:Job Number:Date: Manufacturer:Test Engineer:Job Site: EV01 Temperature (°C):% Humidity: Run #14 Customer Reference Number:Software:Power: 120 VAC/60 Hz 03/02/01 Rod Peloquin 2130 Receive Mode, 120VAC/60Hz mains Handheld RF ModuleNone Seitz & Associates SEIT0047 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 0.1001.00010.000100.000 Frequency (MHz) dBuV Rev 3.4 10/11/00 Comments: FrequencyDetector Adjusted LevelMargin (MHz)(dBuV)(dB) 11.030Peak30.0-18.0 28.349Peak29.6-18.4 2.126Peak29.2-18.8 20.534Peak28.9-19.1 29.593Peak28.8-19.2 8.122Peak28.7-19.3 25.406Peak28.7-19.3 19.472Peak28.6-19.4 28.095Peak28.4-19.6 27.030Peak28.4-19.6 20.178Peak28.3-19.7 8.756Peak28.3-19.7 7.353Peak28.3-19.7 28.476Peak28.3-19.7 1.425Peak28.3-19.7 28.958Peak28.3-19.7 8.054Peak28.3-19.7 2.760Peak28.2-19.8 0.498Peak28.2-19.8 6.154Peak28.2-19.8 Meter ReadingCorrection FactorSpecification Limit (dBuV)(dB)(dBuV) 8.921.148.0 8.321.348.0 8.520.748.0 7.721.248.0 7.521.348.0 7.721.048.0 7.421.348.0 7.421.248.0 7.121.348.0 7.121.348.0 7.121.248.0 7.321.048.0 7.321.048.0 7.021.348.0 7.720.648.0 7.021.348.0 7.321.048.0 7.520.748.0 8.220.048.0 7.320.948.0 FCC Part 15 Class B Conducted Emissions Limits - Low Line Northwest EMC, Inc., Radiated and Conducted Emissions Data Sheets EUT:Serial Number:Job Number:Date: Manufacturer:Test Engineer:Job Site: EV01 Temperature (°C):% Humidity: Run #15 Customer Reference Number:Software:Power: 120 VAC/60 Hz 03/02/01 Rod Peloquin 2130 Receive Mode, 120VAC/60Hz mains Handheld RF ModuleNone Seitz & Associates SEIT0047 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 0.1001.00010.000100.000 Frequency (MHz) dBuV Rev 3.4 10/11/00 Comments: FrequencyDetector Adjusted LevelMargin (MHz)(dBuV)(dB) 10.201Peak29.1-18.9 20.838Peak29.1-18.9 17.915Peak29.0-19.0 18.693Peak28.9-19.1 0.621Peak28.9-19.1 27.004Peak28.8-19.2 22.564Peak28.7-19.3 24.416Peak28.7-19.3 13.819Peak28.6-19.4 14.297Peak28.6-19.4 14.372Peak28.4-19.6 29.770Peak28.4-19.6 22.031Peak28.3-19.7 27.486Peak28.3-19.7 27.766Peak28.3-19.7 26.446Peak28.3-19.7 17.387Peak28.2…

Text truncated - open the document above for the full version.

Exhibit L – Test Setup Photos FCC ID: OT8RFMR Radiated Test Setup Radiated Test Setup Radiated Test Setup Radiated Test Setup Radiated Test Setup Test Fixture Conducted Test Setup Conducted Test Setup
