OU8-SP1PLUSBluetooth Stereo Speaker

User Manual SP1 Plus EN EN Please fully charge your SP1 Plus before initial use. Connect the included Micro-USB cable to your SP1 Plus and a USB slot of any PC/Mac or USB wall charger to charge. The RED LED will turn on while charging and will turn off when finished. If you own two SP1 Plus you may use the Dual Pairing functionality to play music from two units simultaneously. Connect your primary SP1 Plus to your music device via Bluetooth as instructed in the Paring Mode section. Primary - Left Channel Enter Dual Paring mode by holding down the FUNCTION and volume up “+” button for three seconds until the indicator switch flashes RED and WHITE. Secondary - Right ChannelOn your second SP1 Plus hold down the FUNCTION button and the volume down “-“ button for three seconds. The indicator switch flashes RED and WHITE as it is pairing and becomes a solid WHITE when successfully paired.Note: Volume can be adjusted from either SP1 Plus AUX mode does not support dual paring Push and hold the FUNCTION button for 6-8 seconds until the WHITE LED flashes. If your device supports tap-to-pair NFC (Near Field Communication) please enable Bluetooth and NFC on your phone and tap the NFC pairing logo. Getting Started Dual Pairing Pairing ModeNFC Connections You may connect to your device via Bluetooth or 3.5 mm stereo input cable. EN EN LED IndicatorSocializing Troubleshooting LED Color Description Flashing Red Low Battery Alternating Red and White Charging Solid White Fully Charged Flashing White Pairing Mode The SP1 Plus can be used as a wireless speakerphone. The built-in microphone will only function under wireless connectivity via Bluetooth.Answer/End CallsPress the center button to answer and end calls. To Make a CallUse your phone to dial. Your SP1 Plus will then function as a speakerphone. The device is malfunctioning›8cnXpjZ_\Zb]figifg\iZ_Xi^\Xe[dXb\jli\k_Xkk_\[\m`Z\ `jFe The device is creating distortion or the sound quality is poor›Cfn\ik_\mfcld\fek_\ SP1 Plus and increase the volume on your phone or device›:fee\Zkk_\ SP1 Plus directly to your device using the 3.5 mm cable Notice: Avoid placing SP1 Plus near the edge of surfaces since it may shift during use and fall over. Warranty does not cover physical damages as a result of such falls and other mishaps. ›:_\Zbk_\Z_Xi^\f]k_\ SP1 Plus and your mobile audio device and recharge if necessary›I\$gX`ik_\[\m`Z\jlj`e^k_\`ejkilZk`fejc`jk\[le[\ik_\È GX`i`e^ Mode” sectionThe SP1 Plus fails to pair with Bluetooth enabled device ›:fe]`idk_Xkpfli[\m`Z\`j9cl\kffk_ZfdgXk`Yc\Xe[k_Xkk_\ 9cl\kffk_ setting is enabled›I\$gX`ik_\[\m`Z\j]fccfn`e^k_\`ejkilZk`fejc`jk\[le[\ik _\ÈGX`i`e^ Mode” sectionThe signal drops or connection fails in Bluetooth mode›Dfm\k_\ SP1 Plus closer to your mobile device ›<ejli\k_\ SP1 Plus is fully charged ›Klief]]k_\ SP1 Plus, wait one minute, power it back on and reconnect to the Bluetooth-enabled device using the instructions listed under the “Pairing Mode” section ES ES Por favor, cargue el SP1 Plus antes de su uso. Conecte el Micro-USB del cable a su SP1 Plus y al USB de cualquier PC o Mac para cargar. El LED se alternará entre el rojo y blanco mientras se está cargando y se apagará cuando esté completamente cargado. Si usted es dueño de dos SP1 Plus además, usted puede utilizar la funcionalidad de doble emparejamiento para reproducir música desde dos unidades simultáneamente. Conecte sus SP1 Plus primario a su dispositivo de música a través deBluetooth como se indica en la sección Modo de Emparejamiento .Primario - Canal izquierdo Entre en el modo de Emparejamiento Dual manteniendo presionado el botón “Función” y botón de volumen “+ “ durante tres segundos hasta que el interruptor indicador parpadea en rojo y blanco.Secundario - Canal derechoEn su segundo SP1 Plus mantenga presionado el botón “Función” y el volumen “-” botón durante tres segundos. El interruptor indicador parpadea en ROJO y BLANCO , durante el proceso y se convierte en un sólido de color blanco cuando se combina con éxito.Nota: El volumen se puede ajustar desde cualquiera SP1 PlusEl modo AUX no soporta emparejamiento dual Mantenga pulsado el botón de función durante 6-8 segundos hasta que el LED blanco parpadea.Si su dispositivo es compatible con tap-to - pair NFC (Near Field Communication ), por favor habilite Bluetooth y NFC del teléfono y toque el logo Emparejamiento NFC . Primeros Pasos Emparejamiento Dual Modo de EmparejamientoNFC Conexiones Usted puede conectarse a su dispositivo de forma inalámbrica a través de Bluetooth o utilizando un cable de entrada de 3,5 mm. ES ES LED IndicadorSocializar Solución de problemas El dispositivo está funcionando mal›:fdgil\Y\j`_Xpe`m\c[\ZXi^XX[\ZlX[XpXj\^’i\j\[\hl\\ c dispositivo está encendido. Nota: Evite colocar la unidad próxima a los bordes de la superficie de apoyo, podría moverse durante su uso y caer. La garantía no cubre daños por caídas u otro tipo de accidentes. El dispositivo está creando distorsión o la calidad del sonido es pobre›9Xa\\cmfcld\e\e\c SP1 Plus y aumente el volumen de su teléfono o dispositivo de transmisión.›:fe\Zk\\c SP1 Plus directamente a su dispositivo mediante el cable de 3,5 mm.›:fdgil\Y\cXYXk\iˆX[\c SP1 Plus y del dispositivo móvil de audio y recargue si es necesario.›Ml\cmXXm`eZlcXicfj[`jgfj`k`mfjj`^l`\e[fcXj`ejkilZZ`fe\ jhl\]`^liXe en el “Modo dúo”.El SP1 no asocia a un dispositivo compatible con Bluetooth›:fe]`id\hl\jl[`jgfj`k`mf\jZfdgXk`Yc\Zfe9cl\kffk_phl\ \c Bluetooth está activado.›Ml\cmXXm`eZlcXicfj[`jgfj`k`mfjj`^l`\e[fcXj`ejkilZZ`fe\ jhl\]`^liXe en el “Modo dúo”.Se cae la señal o la conexión falla en el modo Bluetooth›Dl\mX\c SP1 Plus más cerca de tu dispositivo móvil. ›8j\^’i\j\[\hl\\c SP1 Plus está completamente cargado. ›8gX^l\\c SP1 Plus, espere un minuto, vuelva a encenderlo y a conectar el Bluetooth siguiendo las instrucciones que fi…

Text truncated - open the document above for the full version.

FCC INFORMATION (additional) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna.

Antec Inc. 9F.,No.179,Sec.2, Tiding Blvd., Neihu District, Taipei City 114, Taiwan FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Antec Inc. Addresss 9F.,No.179,Sec.2, Tiding Blvd., Neihu District, Taipei City 114, Taiwan City Taipei Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: OU8 -SP1PLUS of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Operational Description √ Block Diagrams √ Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Taipei Taiwan 2014-07-10 Circle Hsieh Product Manager

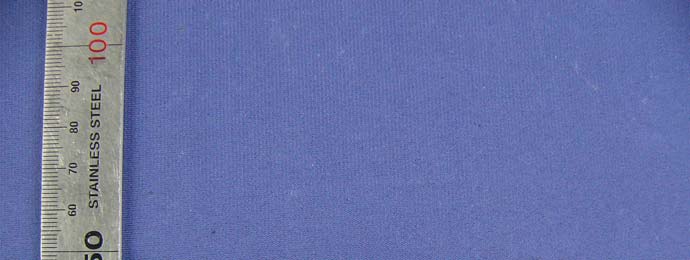

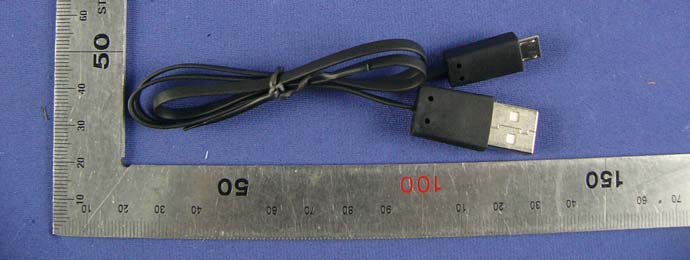

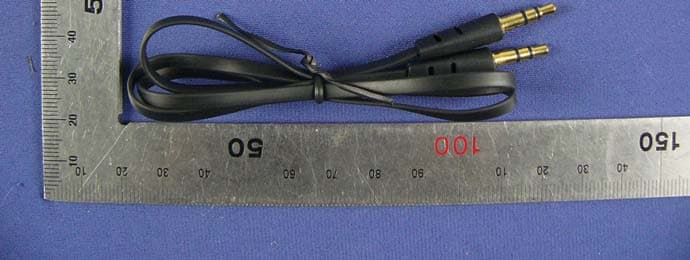

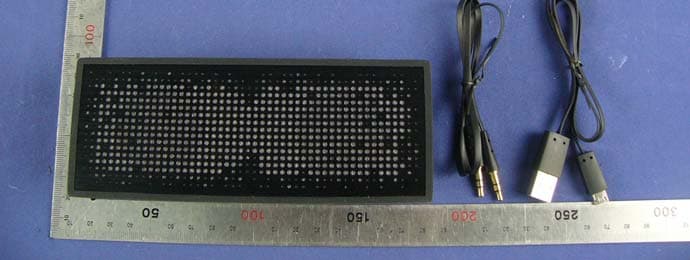

Report No.: C131203Z02-RP1 Page 1/3 External Photos of EUT Report No.: C131203Z02-RP1 Page 2/3 Report No.: C131203Z02-RP1 Page 3/3

Report No.: C131203Z02-RP1 Page 1 / 6 Internal Photos of EUT Report No.: C131203Z02-RP1 Page 2 / 6 Report No.: C131203Z02-RP1 Page 3 / 6 Report No.: C131203Z02-RP1 Page 4 / 6 Report No.: C131203Z02-RP1 Page 5 / 6 Report No.: C131203Z02-RP1 Page 6 / 6

Compliance Certification Services Inc. Report No: C131203Z02-RP1_MPE FCC ID: OU8-SP1PLUS Date of Issue: December 20, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Bluetooth Stereo Speaker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Bluetooth: 2.402GHz~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.06dBm (1.61mW) Antenna gain (Max) 0dBi (Numeric gain:1.00) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 2.06dBuV/m (1.61mW) at 2402MHz (with 0dBi numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C131203Z02-RP1_MPE FCC ID: OU8-SP1PLUS Date of Issue: December 20, 2013 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=1.61mW Numeric antenna gain=1.00 Substituting the MPE safe distance using d=20 cm into Equation 1 : Fields The power density S = 1.61 × 1.00/ (4∏ × 400) cm 2 =3.20462e -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C131203Z02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID:OU8-SP1PLUS Page 1 / 60 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Stereo Speaker Model: SP1 Plus Brand: Antec Test Report Number: C131203Z02-RP1 Prepared for Antec Inc. 9F., No.179, Sec.2, Tiding Blvd., Neihu District, Taipei City 114, Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: December 20, 2013 Report No.: C131203Z02-RP1 FCC ID: OU8-SP1PLUS Page 2 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C131203Z02-RP1 Initial Issue ALL Sinphy Xie Report No.: C131203Z02-RP1 FCC ID: OU8-SP1PLUS Page 3 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.............................................................................................. 4 2. EUT DESCRIPTION..................................................................................................................... 5 3. TEST METHODOLOGY.............................................................................................................. 6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS..................................................................................... 7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS....................................................................................... 9 6.1 20DB BANDWIDTH .......................................................................................................9 6.2 PEAK POWER.............................................................................................................13 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................15 6.4 BAND EDGES MEASUREMENT ................................................................................16 6.5 FREQUENCY SEPARATION ......................................................................................26 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................29 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................32 6.8 SPURIOUS EMISSIONS .............................................................................................39 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................58 Report No.: C131203Z02-RP1 FCC ID: OU8-SP1PLUS Page 4 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Bluetooth Stereo Speaker Model: SP1 Plus Brand: Antec Tested: December 3~19, 2013 Applicant: Antec Inc. 9F., No.179, Sec.2, Tiding Blvd., Neihu District, Taipei City 114, Taiwan Manufacturer: Sunitec Enterprise Co., Ltd No.2, Qilin Road 2, RunTang Ind, Dan-Keng Village Fu Min Community, Guan-Lan Town, BaoAn District, Shenzhen Guangdong China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C131203Z02-RP1 FCC ID: OU8-SP1PLUS Page 5 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Bluetooth Stereo Speaker Model Number SP1 Plus Brand Antec Model Discrepancy N/A Identify Number C131203Z02-RP1 Power Supply DC5V supplied by the notebook or DC3.7V supplied by the battery DC Cable Unshielded, 0.50m AUX Cable Unshielded, 0.52m Received Date December 3, 2013 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 2.06dBm 8DPSK : 2.05dBm Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Numb…

Text truncated - open the document above for the full version.

Report No.: C131203Z02-RP1 FCC ID: OU8-SP1PLUS Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C131203Z02-RP FCC ID: OU8-SP1PLUS Page 2/2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
