OUC6000083D6000083 Remote Control Transmitter

GM Holden RFA User Manual FCC ID: OUC6000083 IC: 850K6000083 This keyless entry system operates on a radio frequency subject to Federal Communication Commission (FCC) rules and Industry Canada rules. This device complies with Part 15 of FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions 1.) This device may not cause harmful interference. 2.) This device must accept any interference received, including interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. FCC Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

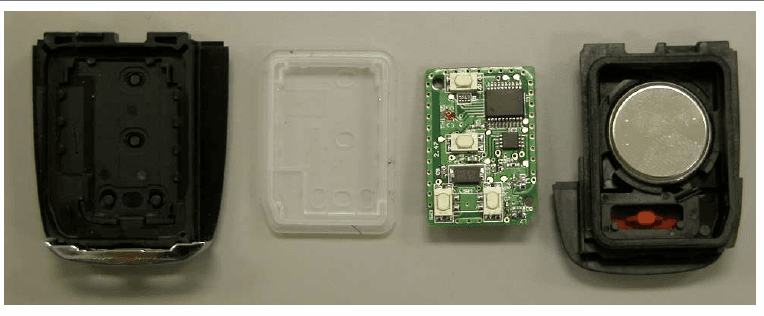

Figure 7. Mechanical Explosion of Case Figure 8 Individual pieces of final assembly Figure 9 Water seal installed on PCB Figure 10 Water seal, PCB, and Upper Case assembled Figure 11. Final assembly lower case

Figure 5. Topside of five-button PCB Figure 6. Bottom side of PCB

Engineering Test Report No. 38490-01 Measurement of RF Interference from a Model D6000083 Holden HP Transmitter For : Omron Automotive Electronics 3709 Ohio Avenue St. Charles, IL 60174 P.O. No. : 55261N Date Received : June 14, 2007 Date Tested : June 15, 2007 Test Personnel : Daniel Crowder Specification : FCC "Code of Federal Regulations" Title 47 Part 15, Subpart C : Industry Canada RSS-210 : Industry Canada RSS-GEN Test Report By : Daniel Crowder Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 38490-01 Page 2 of 16 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1 INTRODUCTION ................................................................................................................................................. 4 1.1 Scope of Tests .......................................................................................................................................... 4 1.2 Purpose .................................................................................................................................................... 4 1.3 Deviations, Additions and Exclusions....................................................................................................... 4 1.4 EMC Laboratory Identification .................................................................................................................. 4 1.5 Laboratory Conditions .............................................................................................................................. 4 2 APPLICABLE DOCUMENTS .............................................................................................................................. 4 3 TEST ITEM SETUP AND OPERATION .............................................................................................................. 4 3.1 General Description .................................................................................................................................. 4 3.1.1 Power Input .......................................................................................................................................... 4 3.1.2 Peripheral Equipment........................................................................................................................... 5 3.1.3 Interconnect Cables ............................................................................................................................. 5 3.1.4 Grounding............................................................................................................................................. 5 3.2 Operational Mode ..................................................................................................................................... 5 3.3 Test Item Modifications............................................................................................................................. 5 4 TEST FACILITY AND TEST INSTRUMENTATION ............................................................................................ 5 4.1 Shielded Enclosure................................................................................................................................... 5 4.2 Test Instrumentation ................................................................................................................................. 5 4.3 Calibration Traceability ............................................................................................................................. 5 4.4 Measurement Uncertainty ........................................................................................................................ 5 5 TEST PROCEDURES ......................................................................................................................................... 6 5.1 Powerline Conducted Emissions .............................................................................................................. 6 5.1.1 Requirements ....................................................................................................................................... 6 5.2 Duty Cycle Factor Measurements ............................................................................................................ 6 5.2.1 Procedures ........................................................................................................................................... 6 5.2.2 Results.................................................................................................................................................. 6 5.3 Radiated Measurements .......................................................................................................................... 6 5.3.1 Requirements ....................................................................................................................................... 6 5.3.2 Procedures ........................................................................................................................................... 6 5.3.3 Results.................................................................................................................................................. 7 5.4 Occupied Bandwidth Measurements........................................................................................................ 7 5.4.1 Requirement ......................................................................................................................................... 7 5.4.2 Procedures ........................................................................................................................................... 7 5.4.3 Results.................................................................................................…

Text truncated - open the document above for the full version.

Figure 2 Test Setup for Radiated Emissions – Horizontal Polarity Test Setup for Radiated Emissions – Vertical Polarity
