OUC644M-KEY-NSecurity Remote Control Transmitter

G8D-644M-KEY-N_technical date.doc -4- - 㧟.User’s manual (Function) The functions of KOS are as below.  1. Keyless operation function 1) Door entry function (unlock) By touching a door sensor on DR/AS door or pressing Unlock SW of a tail gate while bringing a FOB, KOS and FOB performs authentication by two-way communication and all doors are unlocked. 2) Door entry function (lock) By pressing Lock SW on DR/AS/Tail gate door while bringing a FOB, KOS and FOB performs authentication by two-way communication and all doors are locked 3) Engine start function By pressing IG Push SW on a key cylinder while bringing a FOB, KOS and FOB performs authentication by two-way communication and stereing handle lock is released. After that, engine start is permitted when rotating IG knob up to RUN position. 2. Keyless entry function By pressing Lock button on a FOB, all doors are locked. By pressing Unlock button, all doors are unlocked. 3. Immobilizer function FOB has a mechanical key. At IG ON (engine start), it avoids the unauthorized start-up like theft by performing the authentication of mutual communication between KOS and Transponder. [FCC WARNING] Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with RSS-GEN of Industry Canada”

G8D-644M-KEY-N_technical date.doc -16- - 8. Photographs Figure 8.1 G8D-644M-KEY-N appearance (front view) Figure 8.2 G8D-644M-KEY-N appearance (back view)

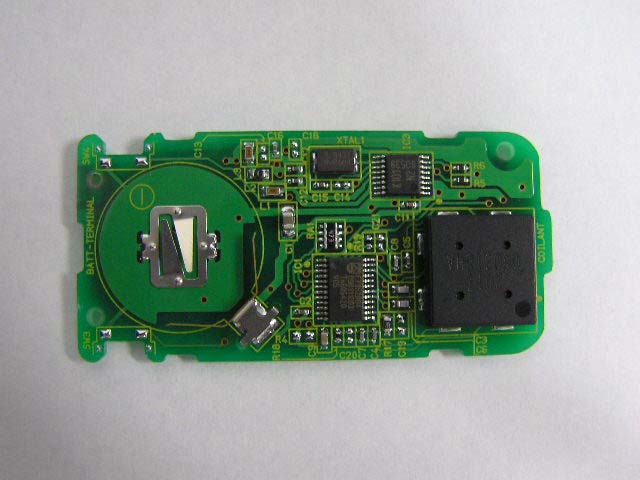

G8D-644M-KEY-N_technical date.doc G8D-644M-KEY-N PCB assy (front view) G8D-644M-KEY-N PCB assy (back view)

Test report No. : 26KE0229-HO-A Page : 2 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 7 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 8 APPENDIX 1: Photographs of test setup........................................................................................ 9 Radiated emission......................................................................................................................................... 9 Worst case position .................................................................................................................................... 10 APPENDIX 2: Data of EMI test ..................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 11 -20dB Bandwidth........................................................................................................................................ 12 Automatically deactivate ........................................................................................................................... 13 99% Occupied Bandwidth......................................................................................................................... 14 Duty Cycle................................................................................................................................................... 15 APPENDIX 3:Test Instruments...................................................................................................... 16 Test report No. : 26KE0229-HO-A Page : 3 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) SECTION 1: Client information Company Name : OMRON Corporation Address : 6368, NENJO-ZAKA, OKUSA KOMAKI, AICHI, 485-0802 JAPAN Telephone Number : +81-568-78-6174 Facsimile Number : +81-568-78-6179 Contact Person : Daisuke Kurata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Transmitter, KEYLESS OPERATION KEY(FOB) Model No. : G8D-644M-KEY-N Serial No. : 1, 2 Country of Manufacture : Japan Rating : DC3.0V(Lithium Battery (CR2032)) Receipt Date of Sample : July 13, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab 2.2 Product Description Model No: G8D-644M-KEY-N (referred to as the EUT in this report) is the Transmitter, KEYLESS OPERATION KEY(FOB). - KEYLESS OPERATION KEY(hereinafter referred to as FOB) is a component of “Keyless operation system” (hereafter referred to as KOS). - FOB has a transponder built-in and performs UHF transmission when the button is pressed and it receives LF from KOS. It also has a mechanical key. The device performs mutual communication with KOS at IGON (engine start). -KOS is a system to lock/unlock (door entry function) a door /trunk by pressing Lock/Unlock SW on each door with holding the registered KEYLESS OPERATION KEY and start up an engine (engine starter function) without using an existing mechanical key. These operations can be done without pulling FOB from a pocket or bag. Tx section Equipment Type : Transmitter Clock frequnecy : 2MHz and Xtal 9.84375MHz Frequency of Operation : 315MHz Type of modulation : FSK Antenna Type : Pattern Antenna Test report No. : 26KE0229-HO-A Page : 4 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 26KE0229-HO-A Page : 5 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst marginResults 1 Automatically Deactivate <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(a)(1) <IC> RSS-210 A1.1.1 N/A - Complied 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.6 <FCC> Section 15.231(b) <IC> RSS-210 A1.1.2 N/A 1.2dB 315.05MHz Horizontal, QP Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Mea…

Text truncated - open the document above for the full version.

Test report No. : 26KE0229-HO-A Page : 9 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 26KE0229-HO-A Page : 10 of 16 Issued date : July 24, 2006 FCC ID : OUC644M-KEY-N UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Worst case position (Horizontal: X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis
