OUCCGF-H002UNIT ASSY ANT MOD (BID R/C)

Climate SW ANT MODULE FOB 3 4 CONFIGURATION Main specifications After sales service 5 GHW-H001 MODEL: S/No.X******* FCC ID:OUCGHW-H00 1 -001 Part names Product label CN2 connector CN1 connector (antenna connector) How to use FCC WARNING OMRON Automotive Electronics Co. Ltd. 6368 nenjyozaka, Okusa, Komaki, Aichi 485-0802 JAPAN Tel: +81 568 78 6392 URL: http://www.oae.omron.co.jp Transmission frequency 926.85 MHz Output power 50 mV/m (3m) Antenna Internal loading antenna Switches Power on/off, Charge setting, Climate setting Link state acknowledgment Buzzer and LCD Battery Lithium battery (CR2032 x 2) Operation temp. range -10 C to + 70C Dimensions 83.8 x 32 x 18.4 mm (Not incl. protrusion) Weight 35 g Transmission frequency 926.85 MHz Output power 50 mV/m (3m) Power supply 5 V Current consumption 1.5 mA Antenna Printed dipole antenna Operation temp. range -30 C to + 85 C Dimensions 52 x 25 x 52 mm Weight 35 g For after sales service, contact : Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. This device complied with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause any interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Pressing the power switch for more than 0.5 seconds turn the power of the fob on (with a buzzer sound) and the fob starts transmitting a request signal to obtain vehicle information. If a response signal from the vehicle is properly received, the vehicle information will be displayed on the LCD with a buzzer sound. Turning the power of the fob on You can remotely start/stop charging with the fob. Pressing the charge switch while vehicle information is displayed on the LCD starts transmitting the setting information. *Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature. Once the setting is done and a response from the vehicle is properly received, a charging icon will be displayed (or disappeared for charging stop) on the LCD with a buzzer sound. Start/stop charging Turning the power of the fob off Turning the the air conditioner on/off Pressing the power switch for more than 0.5 seconds turn the power of the fob off. Also no button operation for more than 30 seconds automatically turns the power off. You can remotely turn the air conditioner on/off with the fob. Pressing the climate switch while vehicle information is displayed on the LCD starts transmitting the setting information. *Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature. Once the setting is done and a response from the vehicle is properly received, a climate icon will be displayed (or disappeared for air conditioning off ) on the LCD with a buzzer sound. LCD Charge SW Certification label Power SW Battery cover FOB ANTENNA MODULE 1 2

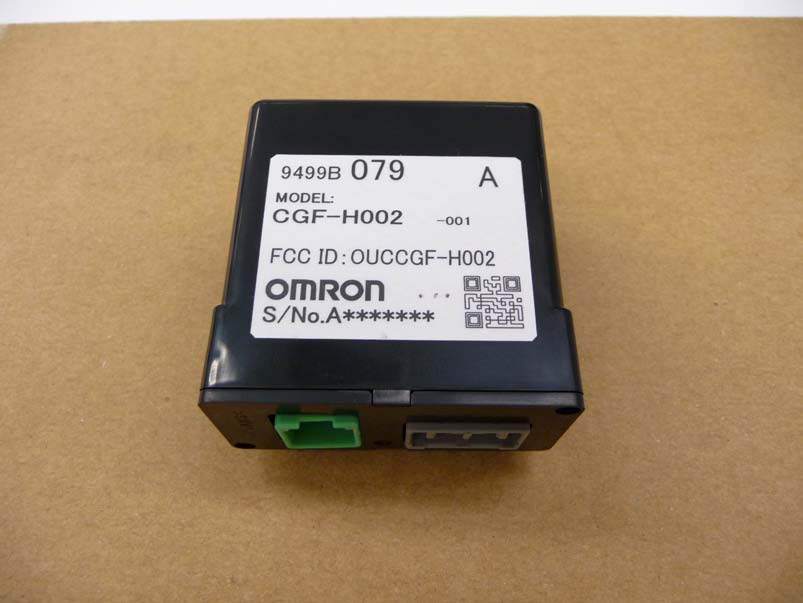

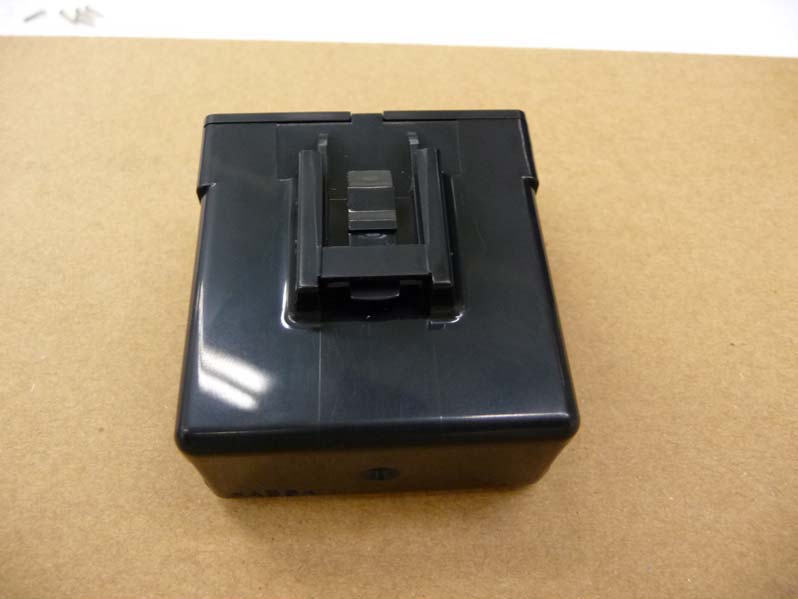

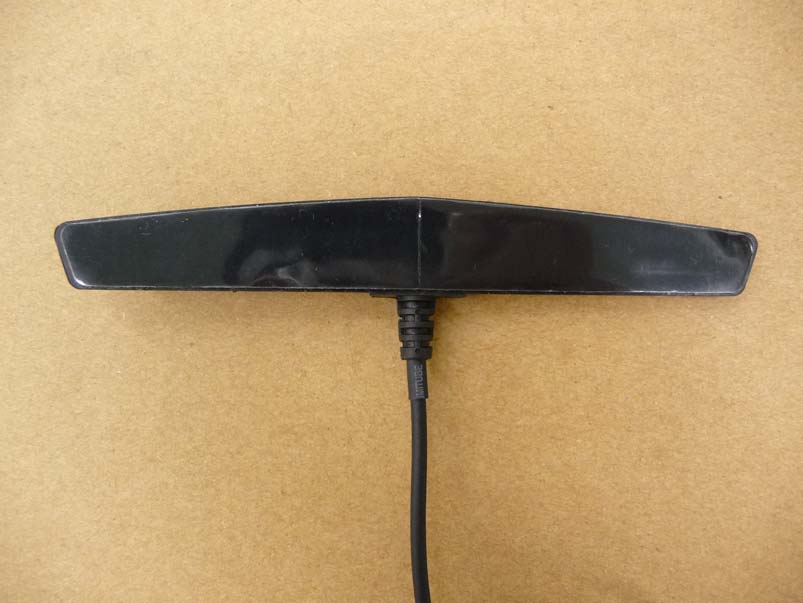

External Photo [Model: CGF-H002] Front Rear External Photo [Model: CGF-H002] Antenna Front Antenna Rear

注記 1.材料：ポリエステルフィルム(リンテック製 PET50(K2411)PST1 8LK)裏面接着剤付とする。 2.表面つや消しラミネート(リンテック製 PETSマット25)処理のこと。 3.色指示 ベース色：白 文字色：黒 4.文字書体は別途指示による。 5.本製品はRoHS対応のこと。 6.8桁シリアルNo.は X0000000～の連番とする。 001YYBF0000 英 文 字 固 定 技適、認証番号詳細 技適申請 TELECが指定する記号番号 TELECが指定する記号番号 固 定 数 字 数 字 連 番 ( ) ( ) 認証申請 英 文 字 固 定 0000000 001YY□ B 38386-TX9-J01 MODEL: CGF-H002 001YYBF0000 S/No.Y******* R 40 31.5 4 - R 1 □8 QRコード（8桁） 電波認証番号 シリアルNo. A 38386-TX9-A01 MODEL: CGF-H002 FCC ID：OUCCGF-H002 S/No.X******* A仕様 B仕様 000001～ の連番 0=量産 1=スペア 仕様 X=米 Y=日本 -001-002 部番 SPEC. シリアルNo. CGF-H002-001 X0000001～ 部番 SPEC. シリアルNo. CGF-H002-002 Y0000001～ T068B01D01の抜型を使用すること 1 2 3 4 5 x x x A B C 5 4 3 2 1 ABC MARK DATEMEMO CH. AP. COMMERCIAL TOLERANCE SCALE MATERIAL FINISHEDCHECK DRAWN DESIGN APPROV. NAME CODE NO. DATE DRAWING NO. ± ± ± ～ ～ ～ △ △ △ D SPEC. 部品名=NAME（図面名）+SPEC.（仕様） ～ ± △ x WR. 1:1 Katayama.K Katayama.K 2011.09.05 SERIAL LABEL T070B02D01 00.1 **********

52 54 A 38386-TX9-A01 M O D E L : CGF-H002 -001 S / N o . X * * * * * * * 印刷内容は仕様により異なる FCC ID：OUCCGF-H002 31 A 印刷内容は仕様により異なる 特殊ネジ 2ヶ所 仕 様 備 考 A アメリカ向け CGF-H002-001 ABC E G D 42 ACDEF 1 2345 F G 15 B SCALEMATERIALFINISHED DRAWNDESIGNCHECKAPPROV. NAME CODE NO. DATE DRAWING NO. 3 F SPEC. 部品名=NAME（図面名）+SPEC.（仕様） xxx MEMO CH. AP. DATE MARK COMMERCIAL TOLERANCE ±±± ～～～ △△△ ～ ± △ x WR. 外観図 1:1 Katayama.K Katayama.K 2011.09.05 T070B02A01

Internal Photo [Model: CGF-H002] Front Rear

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR UNIT ASSY ANT MOD (BID R/C) MODEL NUMBER: CGF-H002 FCC ID: OUCCGF-H002 REPORT NUMBER: 32AE0249-SH-A ISSUE DATE: September 26, 2011 Prepared for OMRON CORPORATION 6368 NENJOZAKA, OKUSA KOMAKI, AICHI, 485-0802, JAPAN Prepared by UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 RTL2610 13-EM-F0429 REPORT NO: 32AE0249-SH-A DATE: September 26, 2011 FCC ID: OUCCGF-H002 Page 2 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Revision History Rev. Issue Date Revisions Revised By - 09/26/11 Initial Issue M. Hosaka REPORT NO: 32AE0249-SH-A DATE: September 26, 2011 FCC ID: OUCCGF-H002 Page 3 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ......................................................................................... 4 2. TEST METHODOLOGY ............................................................................................................... 5 3. FACILITIES AND ACCREDIT AT ION ......................................................................................... 5 4. CALIBRAT ION AND UNCERTAINTY ........................................................................................ 5 MEASURING INSTRUMENT CALIBRATION ................................................................................ 5 SAMPLE CALCULATION ................................................................................................................ 5 MEASUREMENT UNCERTAINTY .................................................................................................. 5 5. EQUIPMENT UNDER TEST ........................................................................................................ 6 DESCRIPTION OF EUT................................................................................................................... 6 DESCRIPTION OF AVAILABLE ANTENNAS ................................................................................ 6 SOFTWARE AND FIRMWARE ....................................................................................................... 6 WORST-CASE CONFIGURATION AND MODE ........................................................................... 6 DESCRIPTION OF TEST SETUP................................................................................................... 7 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 9 7. ANTENNA PORT TEST RESULTS .......................................................................................... 10 20 dB AND 99% BANDWIDTH ...................................................................................................... 10 8. RADIATED TEST RESULTS .................................................................................................... 13 8.1 LIMITS AND PROCEDURE ................................................................................................ 13 8.2 TRANSMITTER BELOW 1 GHz (carrier) .............................................................................. 14 TRANSMITTER BELOW 1 GHz (Spurious) ................................................................................. 15 8.3 TRANSMITTER ABOVE 1 GHz ............................................................................................. 16 8.4 RECEIVER BELOW 1 GHz .................................................................................................... 17 8.5 RECEIVER ABOVE 1 GHz ..................................................................................................... 18 9. SETUP PHOTOS ........................................................................................................................ 19 REPORT NO: 32AE0249-SH-A DATE: September 26, 2011 FCC ID: OUCCGF-H002 Page 4 of 21 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: OMRON CORPORATION 6368 NENJOZAKA, OKUSA KOMAKI, AICHI, 485-0802, JAPAN EUT DESCRIPTION: UNIT ASSY ANT MOD (BID R/C) MODEL: CGF-H002 SERIAL NUMBER: 4 DATE TESTED: September 20 and 21, 2011 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 2.9 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Japan, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Japan, Inc based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Japan, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Japan, Inc. will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by any government agency. Approved & Released For UL Japan, Inc. By: Tested By: Go Ishiwata Mana…
