OUCG8C-930METACS

5/22 2. User’s manual Keyless Entry System Press the remote control switch, and all doors and tailgate will be locked or unlocked as desired. To l o c k Press the LOCK switch, and all doors and tailgate will be locked. To unlock Press the UNLOCK switch, and all doors and tailgate will be unlocked. ڹNOTE The indicator lamp comes on each time a switch is pressed. If the UNLOCK switch is pressed and any of the doors or the tailgate is not opened within approximately 30 seconds, relocking will automatically occur. The keyless entry system does not operate in the following conditions: The key is left in the key cylinder. The doors or tailgate is open. The remote control switch will operate within about few meters from the vehicle. However, the operating range of the remote control switch may changeif the vehicle is  located near a power station, or radio/TV broadcasting station. If either of the following problems occurs, the battery may be exhausted. The remote control switch is operated at the correct distance from the vehicle, but the doors and the tailgate are not locked/unlocked in responce. The indicator lamp is dim or does not come on. For further information, please consult your service point. UNLOCK switch LOCK switch indicator lamp 6/22 Immobilizer System The immobilizer system is designed to reduce significantly the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start attempt. A valid start attempt can only be archeived by using a key “registerd” to the immobilizer system. ڹNOTE In the following cases, the vehicle may not be able to receive the registerd ID code from the registered key and the motor may not start . When the key contacts or is close to other metallic or magnetic object. When the key grip contact metal of another key. When the key contacts or is close to other immobilizing keys( including keys of other vehicles). In cases like these, remove the object or additional key from the vehicle key and turn the key back to “ACC” or “LOCK” position. Then try again to start the motor. ڹ CAUTION Don’t make any alternations or additions to the remote control switch and immobilizer system; alternations or additions could cause failure of their. 7/22 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

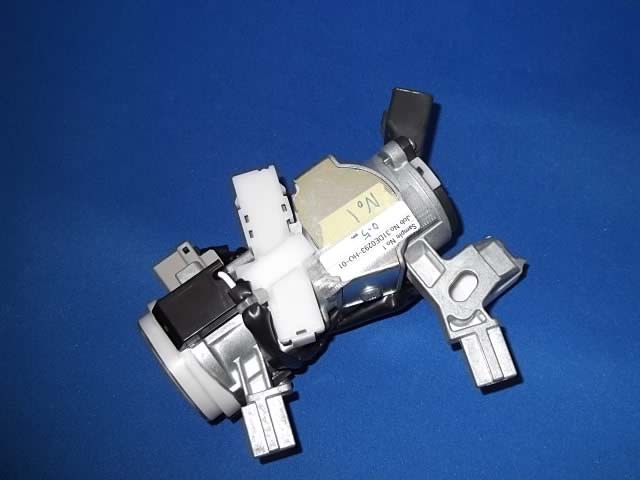

External Photo ETACS [Model: G8C-930M] Front Back External Photo ETACS [Model: G8C-930M] Top Bottom External Photo ETACS [Model: G8C-930M] Side View1 Side View2 External Photo ETACS [Model: G8C-930M] Front Side View1 External Photo ETACS [Model: G8C-930M] Side View2 Back

Internal Photo ETACS [Model: G8C-930M] Front Front close-up(Left) Internal Photo ETACS [Model: G8C-930M] Front close-up(Right) Back Internal Photo ETACS [Model: G8C-930M] Back close-up(Left) Back close-up(Right) Internal Photo ETACS [Model: G8C-930M] UHF Receiving Circuit(Front) UHF Receiving Circuit(Back) Internal Photo ETACS [Model: G8C-930M] UHF Receiving-antenna Key-cylinder

Test report No. : 31DE0293-HO-02-B Page : 2 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .......................................................................................3 SECTION 2: Equipment under test (E.U.T.) .........................................................................3 SECTION 3: Test specification, procedures & results ..........................................................5 SECTION 4: Operation of E.U.T. during testing ..................................................................7 SECTION 5: Radiated Emission .............................................................................................8 APPENDIX 1: Photographs of test setup................................................................................9 Radiated Emission ......................................................................................................................... 9 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ..................................................... 10 APPENDIX 2: Data of EMI test ............................................................................................11 Radiated Emission ....................................................................................................................... 11 APPENDIX 3: Test instruments ............................................................................................13 Test report No. : 31DE0293-HO-02-B Page : 3 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : ETACS Model No. : G8C-930M Serial No. : Please refer to Section 4 Clause 4.2 Rating : DC12V (Car Battery) Receipt Date of Sample : December 6, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is not mass-produced items.) Modification of EUT : No Modification by the test lab Test report No. : 31DE0293-HO-02-B Page : 4 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product description Model No: G8C-930M, (referred to as the EUT in this report), is the ETACS. This EUT is to lock and unlock doors (gate/trunk) by receiving RF signal output by the operation of the registered transmitter (remote transmitter, hereafter referred to as T/M). Also, the immobilizer function for antitheft and remote engine starter function to start up/stop an engine by where the key is placed to start the engine. There are following models as ETACS; -Standard type (with Immobilizer and Keyless Receiver) : G8C-930M (tested model in this report) -Type without Immobilizer /with Keyless Receiver : G8C-931M -Type with Immobilizer /without Keyless Receiver : G8C-932M General Specification Clock frequencies in the system : 8MHz and 32MHz and 13.225625MHz Power Supply : DC12V Radio Specification [Immobilizer part *] Radio Type : Transceiver Frequency of Operation : 125kHz Modulation : BPLM Antenna type : Coil Antenna Operating voltage (inner) : DC5.0V [UHF part] Equipment type : Receiver Type of Receiver : Super Heterodyne Frequency of Operation : 433.92MHz Oscillator Frequency : 13.225625MHz (Crystal) Local Oscillator Frequency : 423.22MHz (13.225625MHz * 32) Intermediate frequency : 10.7MHz Antenna type : L type Antenna (Built-in) Method of Frequency Generation : Crystal Operating voltage (inner) : DC5.0V *Immobilizer part was tested according to FCC15C standard. Please see UL Japan, Inc. test report No. 31DE0293-H-02-A. FCC15.111(b) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed (permanently attached). Therefore, Radiated emission test was performed. Test report No. : 31DE0293-HO-02-B Page : 5 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits DeviationWorst margin Result Conducted emission FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Receiver N/A *1) N/A N/A Radiated emission FCC: ANSI C63.4: 2003 8. Radiated emission measurements Receiver N/A 15.8dB 925.111MHz, QP, Vertical Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 3.5dB 5.1dB 5.2dB 4.8dB 5.1dB 4.4dB 4.3dB No.2 4.0dB 5.1dB 5.2dB 4.8dB 5.0dB 4.3dB 4.2dB No.3 4.2dB 4.7dB 5.2dB 4.8dB 5.0dB 4.5dB 4.2dB No.4 4.0dB 5.0dB 5.1dB 4.8dB 5.0dB 5.1dB 4.2dB *3m/1m/0.5m = Measur…

Text truncated - open the document above for the full version.

Test report No. : 31DE0293-HO-02-B Page : 11 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Company : OMRON Corporation Report No. : 31DE0293-HO-02 Kind of EUT : ETACS Power : DC 12.0V Model No. : G8C-932M Temp. / Humi. : 22deg.C / 39% Serial No. : Engineer : Tomotaka Sasagawa Mode / Remarks : Receiving mode LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M1G50M70M100M200M300M500M700M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 31.62022.3QP17.4-25.114.6353100Vert.40.025.4 31.89023.1QP17.4-25.115.4107100Hori.40.024.6 206.58122.7QP16.8-23.016.52100Vert.43.527.0 207.12122.8QP16.8-22.916.7356100Hori.43.526.8 285.15023.1QP18.9-22.319.7278100Hori.46.026.3 285.42023.4QP18.9-22.320.0254100Vert.46.026.0 423.22022.7QP17.9-21.419.2327100Hori.46.026.8 423.22022.6QP17.9-21.419.1132100Vert.46.026.9 846.44021.9QP23.5-18.926.5218100Hori.46.019.5 846.44021.7QP23.5-18.926.3165100Vert.46.019.7 925.11123.4QP24.8-18.329.9115100Hori.46.016.1 925.11123.7QP24.8-18.330.23100Vert.46.015.8 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Date : 2010/12/07 Test report No. : 31DE0293-HO-02-B Page : 12 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Company : OMRON Corporation Report No. : 31DE0293-HO-02 Kind of EUT : ETACS Power : DC 12.0V Model No. : Temp. / Humi. : 23deg.C / 42% Serial No. : Engineer : Tomotaka Sasagawa Mode / Remarks : Receiving mode LIMIT : FCC15.209 3m, below 1GHz:QP, above 1GHz:PK FCC15.209 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 1G2G 0 10 20 30 40 50 60 70 80 90 100 110 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 1269.66043.9PK24.9-31.637.2223100Hori.73.936.7 1269.66043.5PK24.9-31.636.8312100Vert.73.937.1 1269.66032.4AV24.9-31.625.7223100Hori.53.928.2 1269.66032.1AV24.9-31.625.4312100Vert.53.928.5 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Date : 2010/12/07 Test report No. : 31DE0293-HO-02-B Page : 13 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-04 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/02 * 12 MOS-15 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-07 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-05 Spectrum Analyzer Advantest R3273 160400285 RE 2010/11/18 * 12 MTR-07 Test Receiver Rohde & Schwarz ESCI 100635 RE 2010/10/27 * 12 MBA-05 Biconical Antenna Schwarzbeck BBA9106 1302 RE 2010/10/11 * 12 MLA-08 Logperiodic Antenna Schwarzbeck UKLP9140-AN/A RE 2010/10/11 * 12 MCC-50 Coaxial cable UL Japan - - RE 2010/03/18 * 12 MAT-51 Attenuator(6dB) Weinschel 2 AS3557 RE 2010/01/20 * 12 MPA-14 Pre Amplifier SONOMA INSTRUMENT 310 260833 RE 2010/03/05 * 12 MAEC-02 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-06902 RE 2010/09/01 * 12 MOS-22 Thermo-Hygrometer Custom CTH-201 0003 RE 2010/02/09 * 12 MJM-05 Measure PROMART SEN1955 - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2010/11/30 * 12 MHA-06 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D254 RE 2010/01/19 * 12 MPA-10 Pre Amplifier Agilent 8449B 3008A02142RE 2010/09/30 * 12 The expiration date of the calibration is the end of the expired month. All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibrations. Test Item: RE: Radiated emission

Test report No. : 31DE0293-HO-02-B Page : 9 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 31DE0293-HO-02-B Page : 10 of 13 Issued date : December 13, 2010 FCC ID : OUCG8C-930M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
