5/25 2. User’s manual Keyless Entry System Press the remote control switch, and all doors and boot will be locked or unlocked as desired. LOCK switch BOOT RELEASE switch* indicator lamp PANIC switch UNLOCK switch *OPTION To l o c k Press the LOCK switch, and all doors will be locked. To unlock Press the UNLOCK switch once, and driver’s door will be unlock. The remaining door will be unlocked when you push the button a second time. To boot release Press the BOOT RELEASE switch twice, and boot will be released. PANIC MODE When you press the PANIC button, the vehicle starts sounding the horn and flashing the headlight intermittently. These functions continue for 180 seconds unless any of the buttons on the transmitter are pressed. △ NOTE The indicator lamp comes on each time a switch is pressed. If the UNLOCK switch is pressed and any of the doors is not opened within approximately 30 seconds, relocking will automatically occur. The keyless entry system does not operate in the following conditions: • The key is left in the key cylinder. • The doors are open. The remote control switch will operate within about few meters from the vehicle. However, the operating range of the remote control switch may change if the vehicle is located near a power station, or radio/TV broadcasting station. If either of the following problems occurs, the battery may be exhausted. • The remote control switch is operated at the correct distance from the vehicle, but the doors and boot are not locked/unlocked in response. • The indicator lamp is dim or does not come on. For further information, please consult your service point. 6/25 Immobilizer System The immobilizer system is designed to reduce significantly the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start attempt. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system. △ NOTE In the following cases, the vehicle may not be able to receive the registered ID code from the registered key and the motor may not start . • When the key contacts or is close to other metallic or magnetic object. • When the key grip contact metal of another key. • When the key contacts or is close to other immobilizing keys( including keys of other vehicles). In cases like these, remove the object or additional key from the vehicle key and turn the key back to “ACC” or “LOCK” position. Then try again to start the motor. △ CAUTION Don’t make any alternations or additions to the remote control switch and immobilizer system; alternations or additions could cause failure of their. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. 7/25

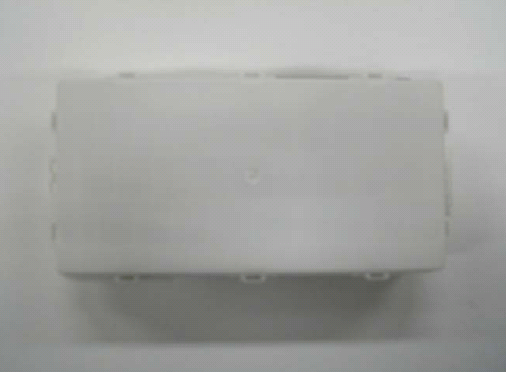

9. Photographs Figure 9.1.1 Appearance (front view) Figure 9.1.2 Appearance (back view) 21/25 Figure 9.1.3 Appearance (side view) Figure 9.1.4 Appearance (side view) 22/25 Figure 9.1.5 Appearance (side view) Figure 9.1.6 Appearance (side view) 23/25 External Photo Front Side View1 External Photo Side View2 Back

FCC ID , IC Number and statement indication back view of the equipment 64mm 64mm This device complies with Part 15 of FCCRules and RSS-Gen of IC Rules. Operationis subject to the following two conditions:(1) this device may not cause interference,and (2) this device must accept anyinterference, including interference thatmay cause undesired operation of thisdevice. FCC ID : OUCG8C-936MIC : 850G-G8C936MModel:G8C-936M Barcode Area

24/25 Figure 9.2.1 PCB ASSY (front view) Figure 9.2.2 PCB ASSY (back view) 25/25 Figure 9.2.3 RF Part (UHF receive ) PCB(front view) Figure 9.2.4 RF Part (UHF receive ) PCB(back view) Figure 9.2.5 RF Part (UHF receive ) PCB(back view) close up Internal Photo Internal Photo Coil Antenna Coil Antenna

Test report No. : 31EE0173-HO-02-A-R1 Page : 2 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 5 SECTION 4: Operation of E.U.T. during testing ................................................................................. 8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 9 SECTION 6: -26dB Bandwidth ............................................................................................................ 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Radiated Emission ............................................................................................................................. 12 Worst Case Position (ETACS: X-axis / Keycylinder: X-axis) ....................................................... 13 APPENDIX 2: Data of EMI test........................................................................................................... 15 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 15 Radiated Emission above 30MHz (Spurious Emission) ................................................................. 16 -26dB Bandwidth ............................................................................................................................... 17 APPENDIX 3: Test instruments .......................................................................................................... 18 Test report No. : 31EE0173-HO-02-A-R1 Page : 3 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : ETACS Model No. : G8C-936M Serial No. : Please refer to Section 4 Clause 4.2 Rating : DC12V (Car Battery) Receipt Date of Sample : February 15, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is not mass-produced items.) Modification of EUT : No Modification by the test lab Test report No. : 31EE0173-HO-02-A-R1 Page : 4 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product description Model No: G8C-936M, (referred to as the EUT in this report), is the ETACS. This EUT is to lock and unlock doors (gate/trunk) by receiving RF signal output by the operation of the registered transmitter (remote transmitter, hereafter referred to as T/M). Also, the immobilizer function for antitheft and remote engine starter function to start up/stop an engine by where the key is placed to start the engine. General Specification Clock frequencies in the system : 8MHz and 32MHz and 10.178125MHz Power Supply : DC12V Radio Specification [Immobilizer part] Radio Type : Transceiver Frequency of Operation : 125kHz Modulation : BPLM Antenna type : Coil Antenna Operating voltage (inner) : DC5.0V [UHF part *] Equipment type : Receiver Type of Receiver : Super Heterodyne Frequency of Operation : 315MHz Oscillator Frequency : 10.178125MHz (Crystal) Local Oscillator Frequency : 325.7MHz (10.178125MHz * 32) Intermediate frequency : 10.7MHz Antenna type : L type Antenna (Built-in) Method of Frequency Generation : Crystal Operating voltage (inner) : DC5.0V *UHF part was tested according to FCC15B standard. Please see UL Japan, Inc. test report No. 31EE0173-HO-02-C-R1. Test report No. : 31EE0173-HO-02-A-R1 Page : 5 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements 3.2 Procedures and results No. Item Test Procedure Specification RemarksDeviation Worst marginResults 1 Conducted Emission <FCC> ANSI C63.4:2003 7. AC powerline conducted emission measurements <IC> RSS-Gen 7.2.4 <FCC> Section 15.207 <IC> RSS-Gen 7.2.4 - N/A *1) N/A N/A 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.8, 4.11 <FCC> Section 15.209 <IC> RSS-210 2.5.1 RSS-Gen 7.2.5 Radiated N/A 40.7dB 0.12500MHz 0 deg. AV Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.9, 4.11 <FCC> Section 15.209 <IC> RSS-210 2.5.1 RSS-Gen 7.2.5 Radiated N/A 15.2dB 56.024MHz, Vertical, QP Complied 4 -26dB Bandwidth <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Reference data…

Text truncated - open the document above for the full version.

Test report No. : 31EE0173-HO-02-A-R1 Page : 15 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission below 30MHz (Fundamental and Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2011/02/16 Company : OMRON Corporation Report No. : 31EE0173-HO-02 Kind of EUT : ETACS Power : DC 12.0V Model No. : G8C-936M Temp./ Humi. : 23deg. C. / 30% Serial No. : 001 Engineer: Motoya Imura Mode / Remarks : Transmitting 125kHz LIMIT : FCC15.209(a) 3m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.209(a) 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP , Except for the data below : adequate margin data below the limits. CALCULATION : RESULT = READING + ANT FACTOR + LOSS( CABLE + ATTEN.)- GAIN(AMP.) Frequency[Hz] [dBuV/m]<< QP/AV/PEAK DATA >> 90 deg:C 45 deg:B 0 deg:A 30M.01M.02M.03M.05M.07M.1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 _ Freq . _ Reading _ DET _ Ant.Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna __ Table _ Comment _ Freq . _ Reading _ DET _ Ant.Fac _ Loss _ Gain _ Result _ Limit _ Margin _ Antenna __ Table _ Comment _ [MHz] _ [dBuV] _ DET _ [dB/m] _ [dB] _ [dB] _ [dBuV/m] _ [dBuV/m] _ [dB] _ [deg] __ [deg] _ Comment _ 0.12500 _ 88.1 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 81.6 _ 125.7 _ 44.1 _ 0 _ A _ 36 _ 0.12500 _ 84.3 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 77.8 _ 125.7 _ 47.9 _ 45 _ B _ 346 _ 0.12500 _ 82.0 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 75.5 _ 125.7 _ 50.2 _ 90 _ C _ 80 _ 0.12500 _ 84.5 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 78.0 _ 125.7 _ 47.7 _ 135 _ C _ 262 _ 0.12500 _ 88.0 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 81.5 _ 125.7 _ 44.2 _ 180 _ C _ 321 _ 0.12500 _ 72.8 _ PEAK _ 19.9 _ 6.0 _ 32.4 _ 66.3 _ 125.7 _ 59.4 _ Hor _ C _ 10 __ 0.12500 _ 71.5 _ AV _ 19.9 _ 6.0 _ 32.4 _ 65.0 _ 105.7 _ 40.7 _ 0 _ A _ 36 _ 0.12500 _ 64.9 _ AV _ 19.9 _ 6.0 _ 32.4 _ 58.4 _ 105.7 _ 47.3 _ 45 _ B _ 346 _ 0.12500 _ 64.6 _ AV _ 19.9 _ 6.0 _ 32.4 _ 58.1 _ 105.7 _ 47.6 _ 90 _ C _ 80 _ 0.12500 _ 68.3 _ AV _ 19.9 _ 6.0 _ 32.4 _ 61.8 _ 105.7 _ 43.9 _ 135 _ C _ 262 _ 0.12500 _ 71.3 _ AV _ 19.9 _ 6.0 _ 32.4 _ 64.8 _ 105.7 _ 40.9 _ 180 _ C _ 321 _ 0.12500 _ 58.8 _ AV _ 19.9 _ 6.0 _ 32.4 _ 52.3 _ 105.7 _ 53.4 _ Hor _ C _ 10 __ 0.25000 _ 49.2 _ PEAK _ 19.7 _ 6.1 _ 32.2 _ 42.8 _ 119.6 _ 76.8 _ 0 _ A _ 36 _ 0.25000 _ 31.0 _ AV _ 19.7 _ 6.1 _ 32.2 _ 24.6 _ 99.6 _ 75.0 _ 0 _ A _ 36 _ 0.37500 _ 54.2 _ PEAK _ 19.6 _ 6.1 _ 32.2 _ 47.7 _ 116.1 _ 68.4 _ 0 _ A _ 82 _ 0.37500 _ 38.6 _ AV _ 19.6 _ 6.1 _ 32.2 _ 32.1 _ 96.1 _ 64.0 _ 0 _ A _ 82 _ 0.50000 _ 32.6 _ QP _ 19.5 _ 6.1 _ 32.1 _ 26.1 _ 73.6 _ 47.5 _ 0 _ A _ 36 _ 0.62500 _ 40.1 _ QP _ 19.5 _ 6.1 _ 32.1 _ 33.6 _ 71.7 _ 38.1 _ 0 _ A _ 12 _ 0.75000 _ 31.5 _ QP _ 19.4 _ 6.1 _ 32.1 _ 24.9 _ 70.1 _ 45.2 _ 0 _ A _ 36 _ 0.87500 _ 35.9 _ QP _ 19.4 _ 6.1 _ 32.2 _ 29.2 _ 68.7 _ 39.5 _ 0 _ A _ 36 _ 1.00000 _ 31.0 _ QP _ 19.4 _ 6.1 _ 32.2 _ 24.3 _ 67.6 _ 43.3 _ 0 _ A _ 36 _ 1.12500 _ 34.0 _ QP _ 19.4 _ 6.1 _ 32.2 _ 27.3 _ 66.5 _ 39.2 _ 0 _ A _ 36 _ 21.51000 _ 43.2 _ QP _ 19.9 _ 6.7 _ 32.2 _ 37.6 _ 69.5 _ 31.9 _ 90 _ C _ 272 _ 28.51200 _ 43.3 _ QP _ 19.3 _ 6.9 _ 32.2 _ 37.3 _ 69.5 _ 32.2 _ 90 _ C _ 47 *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31EE0173-HO-02-A-R1 Page : 16 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission above 30MHz (Spurious Emission) DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2011/02/16 Company : OMRON Corporation Report No. : 31EE0173-HO-02 Kind of EUT : ETACS Power : DC 12.0V Model No. : G8C-636M Temp. / Humi. : 23deg.C / 30% Serial No. : 001 Engineer : Motoya Imura Mode / Remarks : Transmitting 125kHz LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 30.00027.4QP16.9-25.119.2359100Vert.40.020.8 30.00022.6QP16.9-25.114.425300Hori.40.025.6 56.02431.0QP9.3-24.715.6355277Hori.40.024.4 56.02440.2QP9.3-24.724.8108100Vert.40.015.2 71.85030.2QP6.5-24.512.214167Hori.40.027.8 72.04035.9QP6.5-24.418.0115100Vert.40.022.0 120.04529.2QP12.8-23.718.3240294Hori.43.525.2 120.04536.3QP12.8-23.725.4338100Vert.43.518.1 136.06426.0QP14.1-23.616.5212234Hori.43.527.0 136.06437.0QP14.1-23.627.53100Vert.43.516.0 328.14830.2QP15.9-21.724.458108Hori.46.021.6 328.14828.1QP15.9-21.722.37100Vert.46.023.7 344.16630.5QP16.3-21.625.2130129Hori.46.020.8 344.16628.9QP16.3-21.623.614100Vert.46.022.4 360.17230.6QP16.6-21.525.7123128Hori.46.020.3 360.16626.4QP16.6-21.521.5146100Vert.46.024.5 *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31EE0173-HO-02-A-R1 Page : 17 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -26dB Bandwidth Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31EE0173-HO-02 Date 02/16/2011 T…

Text truncated - open the document above for the full version.

Test report No. : 31EE0173-HO-02-A-R1 Page : 12 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 31EE0173-HO-02-A-R1 Page : 13 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (ETACS: X-axis / Keycylinder: X-axis) ETACS Key Cylinder X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 31EE0173-HO-02-A-R1 Page : 14 of 18 Issued date : March 3, 2011 Revised date : April 4, 2011 FCC ID : OUCG8C-936M UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position With Key Without Key (Worst)
