OUCG8D-335A-ARemote Control Transmitter

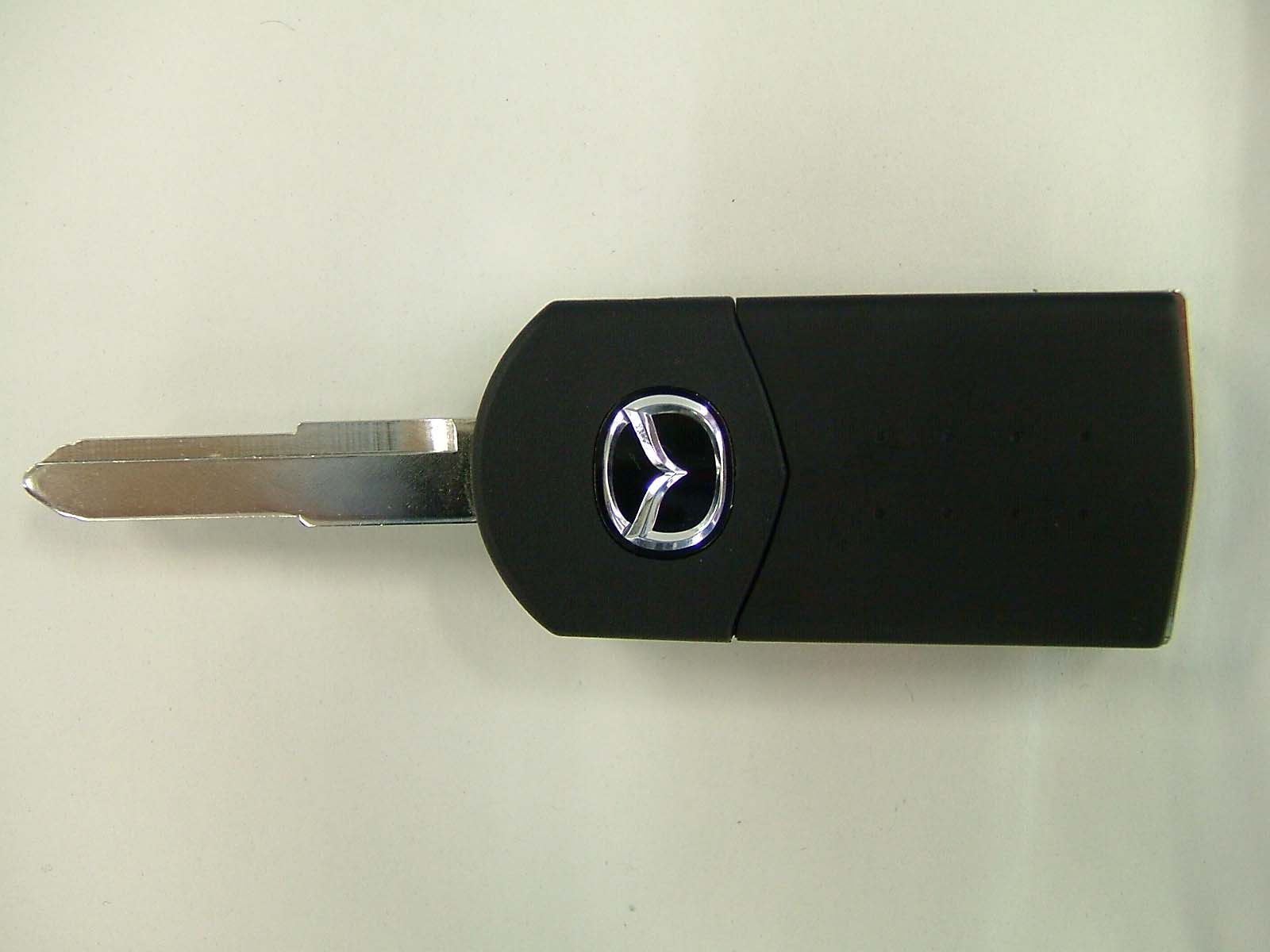

G8D-335A-A Transmitter, RF Keyless Entry System As for the undermentioned product,the amount of SW is different by the same circuit Product No. Function of SW Amount of SW G8D-335A-A-NPA LOCK,UNLOCK, SLIDE DOOR LEFT 4SW SLIDE DOOR RIGHT G8D-335A-A-NSD LOCK,UNLOCK, PANIC 3SW G8D-335A-A-NSP LOCK,UNLOCK 2SW Rough sketch G8D-335A-A G8D-335A-A-NPA G8D-335A-A-NSD G8D-335A-A-NSP 1. Constitution of the Radio Frequency Keyless Entry System with Door Lock Controller for vehicle The radio frequency keyless entry is a system that it controls locking and unlocking the door by wireless remote controller. This system consists of two components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes, unique identification code, and security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of the remote transmitter. OPERATION ACTION LOCK Lock the door UNLOCK unlock the door (the driver side first, then all doors) PANIC The horn is beeped, and the headlight and flasher are blinked SLIDE DOOR LEFT Open or close the left slide door. SLIDE DOOR RIGHT Open or close the right slide door. This receiver also controls wired operation. It is available to control the door lock status by using the silicon switch or the remote door control switch (both driver’s and passenger’s side). TRANSMITTER Assy UNLOCK button SLIDE DOOR LEFT button LOCK buttonLOCK button LED PANIC button SLIDE DOOR RIGHT button Transmitter f =313.85MHz -1- - 2. User’s manual (provisionally) TRANSMITTER Assy REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. UNLOCK When you push the UNLOCK button once, all the door s will unlock. If you unlock the doors with the remote transmitter, but do not open any of the doors within 30 seconds, the doors will automatically relocks. You cannot unlock any of the doors with the remote transmitter if the key is in the ignition switch. PANIC Panic mode allows you to remotely sound’s horn to attention. To activate this mode, press the PANIC button. Your vehicle’s horn will beep for about 150 seconds. To cancel Panic mode before 150 seconds, press any button on the remote transmitter. SLIDEDOORLEFT When you push the SILDE DOOR LEFT button. Open or close the left slide door. To activate this mode, press and hold the SLIDE DOOR LEFT button for about one second. SLIDEDOORRIGHT When you push the SILDE DOOR RIGHT button. Open or close the right slide door. To activate this mode, press and hold the SLIDE DOOR RIGHT button for about one second -2- -

3. Block diagram This is the block diagram concerning to the transmitter LOCK UNLOCK SLIDE DOOR LEFT EEPROM Data 8BIT CPU PANIC SLIDE DOOR RIGHT Antenna Figure 3.1 block diagram of the transmitter Switch combination -3- -

1 Mike Kuo From: [[email protected]] Sent: June072004Monday 7:27 PM To: Mike Kuo Subject: Re: OMRON Corporation, FCC ID: OUCG8D-335A-A, Assessment NO.: AN04T3945 335a_a_parts list.pdf Mr. Mike Kuo I send the parts list. Thank you Best regards Harumi Itatsu ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Sent: Saturday, June 05, 2004 3:11 AM Subject: FW: OMRON Corporation, FCC ID: OUCG8D-335A-A, Assessment NO.: AN04T3945 > > > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Friday, June 04, 2004 10:54 AM > Subject: OMRON Corporation, FCC ID: OUCG8D-335A-A, Assessment NO.: AN04T3945 > > > Question #1: Schematic diagram contains no value. Please provide revised > schematic diagram with component values indicated or provide parts list. > > Best Regards > > Mike Kuo > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

G8D-335A-A G8D-335A-A-NSD G8D-335A-A-NSP

1. Constitution of the Radio Frequency Keyless Entry System with Door Lock Controller for vehicle The radio frequency keyless entry is a system that it controls locking and unlocking the door by wireless remote controller. This system consists of two components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes, unique identification code, and security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of the remote transmitter. OPERATION ACTION LOCK Lock the door UNLOCK unlock the door (the driver side first, then all doors) PANIC The horn is beeped, and the headlight and flasher are blinked SLIDE DOOR LEFT Open or close the left slide door. SLIDE DOOR RIGHT Open or close the right slide door. This receiver also controls wired operation. It is available to control the door lock status by using the silicon switch or the remote door control switch (both driver’s and passenger’s side). TRANSMITTER Assy UNLOCK button SLIDE DOOR LEFT button LOCK buttonLOCK button LED PANIC button SLIDE DOOR RIGHT button Transmitter f =313.85MHz -1- -

6. PCB 6.1 Circuit diagram Figure 6.1.1 Circuit diagrams -6- -

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA APPLICATION NO.: 400-40158 Issue Date : May 27, 2004 Page 1 of 31 EMI TEST REPORT JQA APPLICATION NO. : 400-40158 Model No. : G8D-335A-A Type of Equipment : Keyless Entry System (Transmitter) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : OUCG8D-335A-A Applicant : OMRON Corporation Address : 6368 Nenjo-zaka, Okusa Komaki-city, Aichi 485-0802, Japan Manufacture : OMRON Corporation Address : 6368 Nenjo-zaka, Okusa Komaki-city, Aichi 485-0802, Japan Received date of EUT : May 24, 2004 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology(NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 2 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 – 21 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 22 – 25 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 26 – 27 3 Appendix Test instruments List 28 – 31 JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 3 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-2001. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2004) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Keyless Entry System (Transmitter) 2) Product Type : Prototype 3) Category : Security/Remote Control Transmitter 4) EUT Authorization : Certification 5) FCC ID : OUCG8D-335A-A 6) Trade Name : OMRON 7) Model No. : G8D-335A-A 8) Operating Frequency Range : 313.85 MHz 9) Highest Frequency Used in the EUT : 313.85 MHz 10) Serial No. : None 11) Date of Manufacture : None 12) Power Rating : DC 3.0V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 4 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable AMN(for EUT) AMN(for Peripheral) Termination JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 5 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Antenna AN01 Cable CA06 JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 6 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2004 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR05 Antenna AN06, AN08 Cable CA01 RF Amplifier N/A JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 7 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Above 1000 MHz) x -…

Text truncated - open the document above for the full version.

JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 20 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission JQA Application No. :400-40158 FCC ID :OUCG8D-335A-A Model No. :G8D-335A-A Issue Date :May 27, 2004 Standard :CFR 47 FCC Rules Part 15 Page 21 of 31 JAPAN QUALITY ASSURANCE ORGANIZATION
