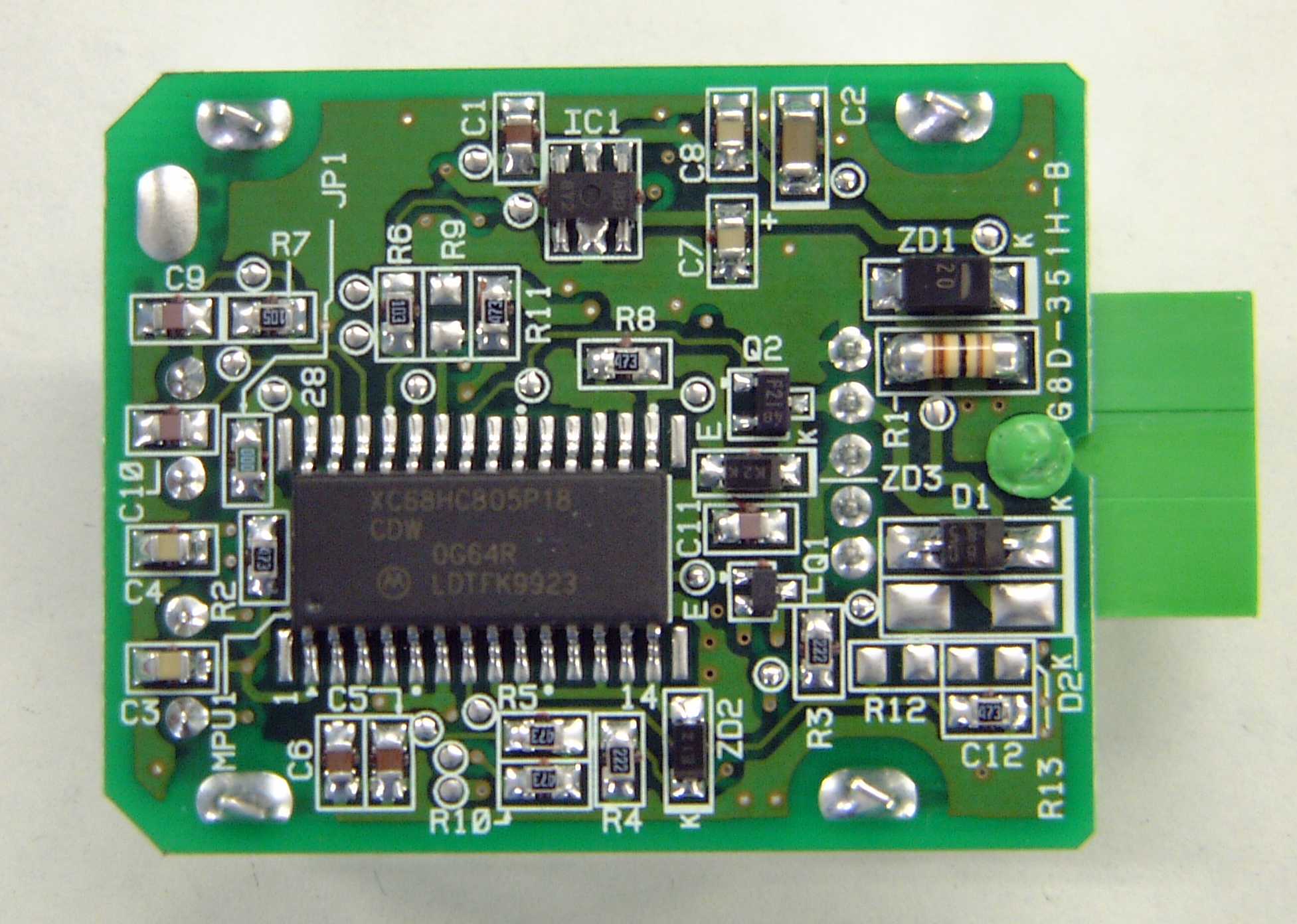

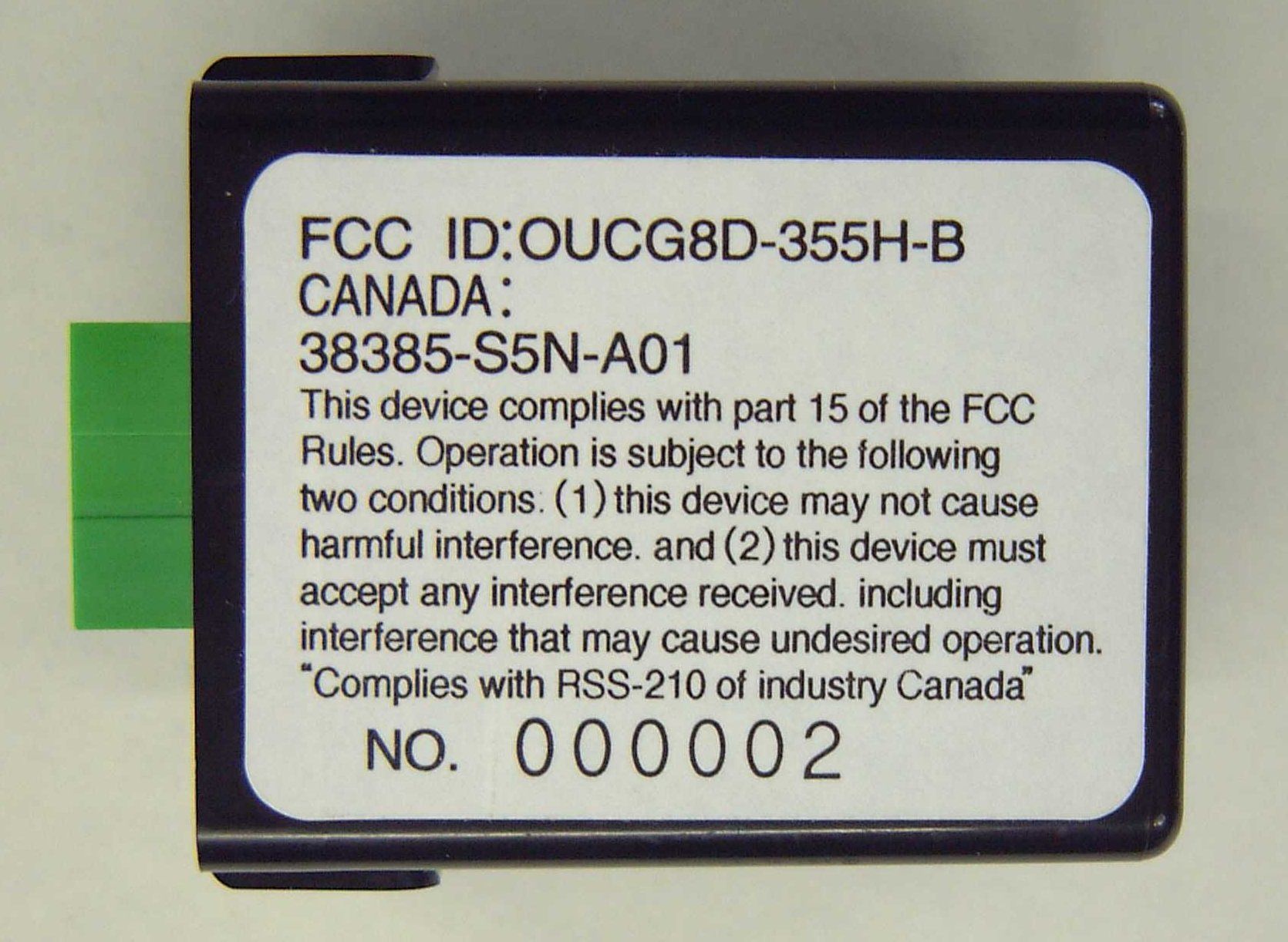

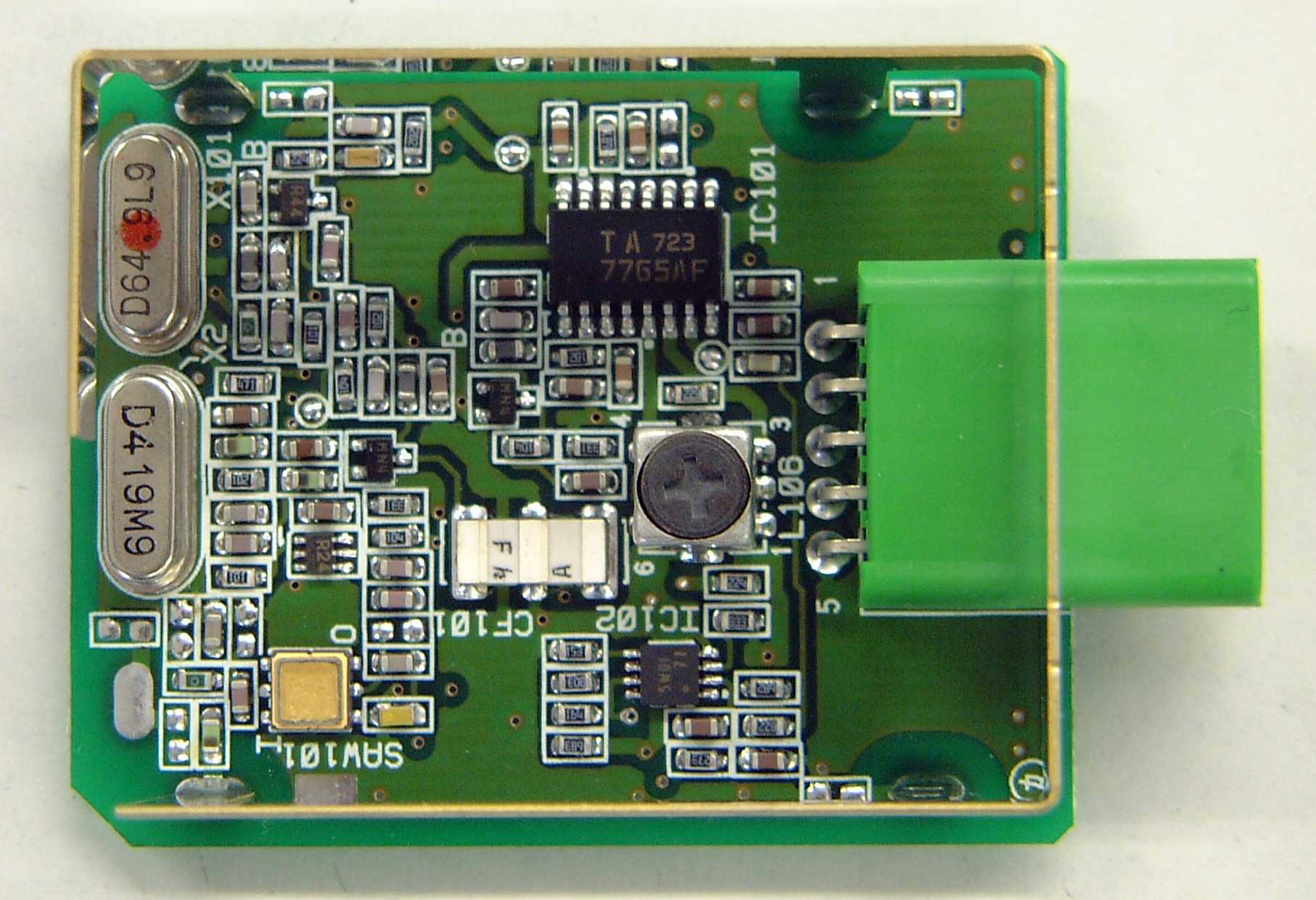

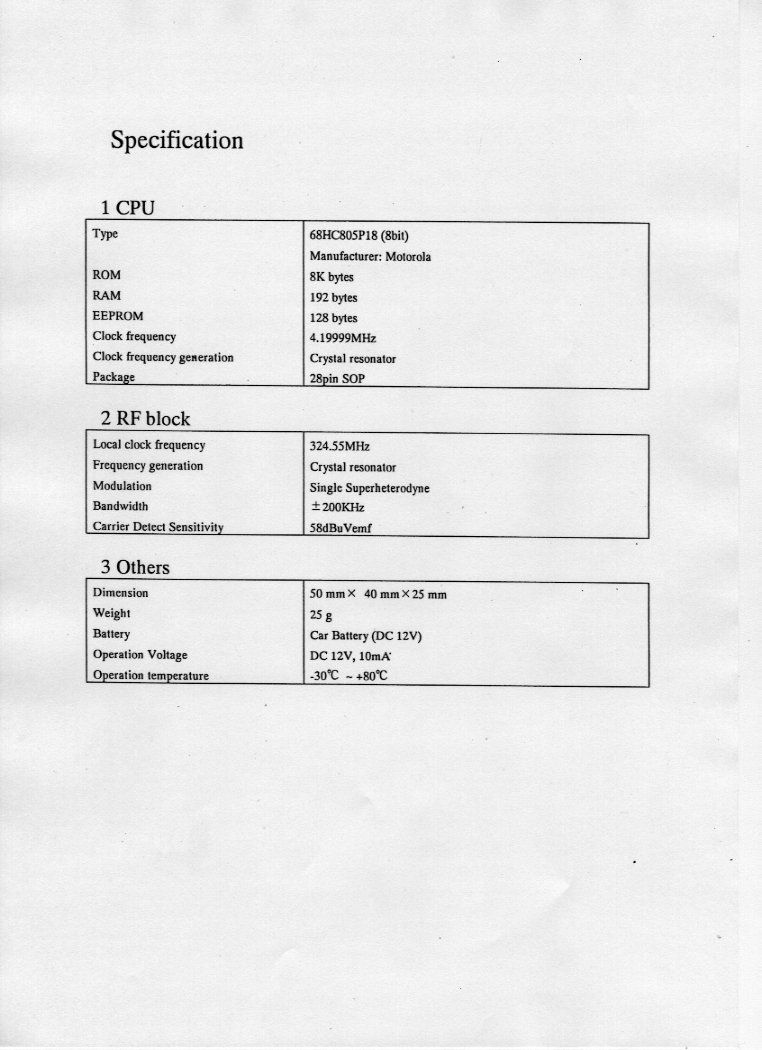

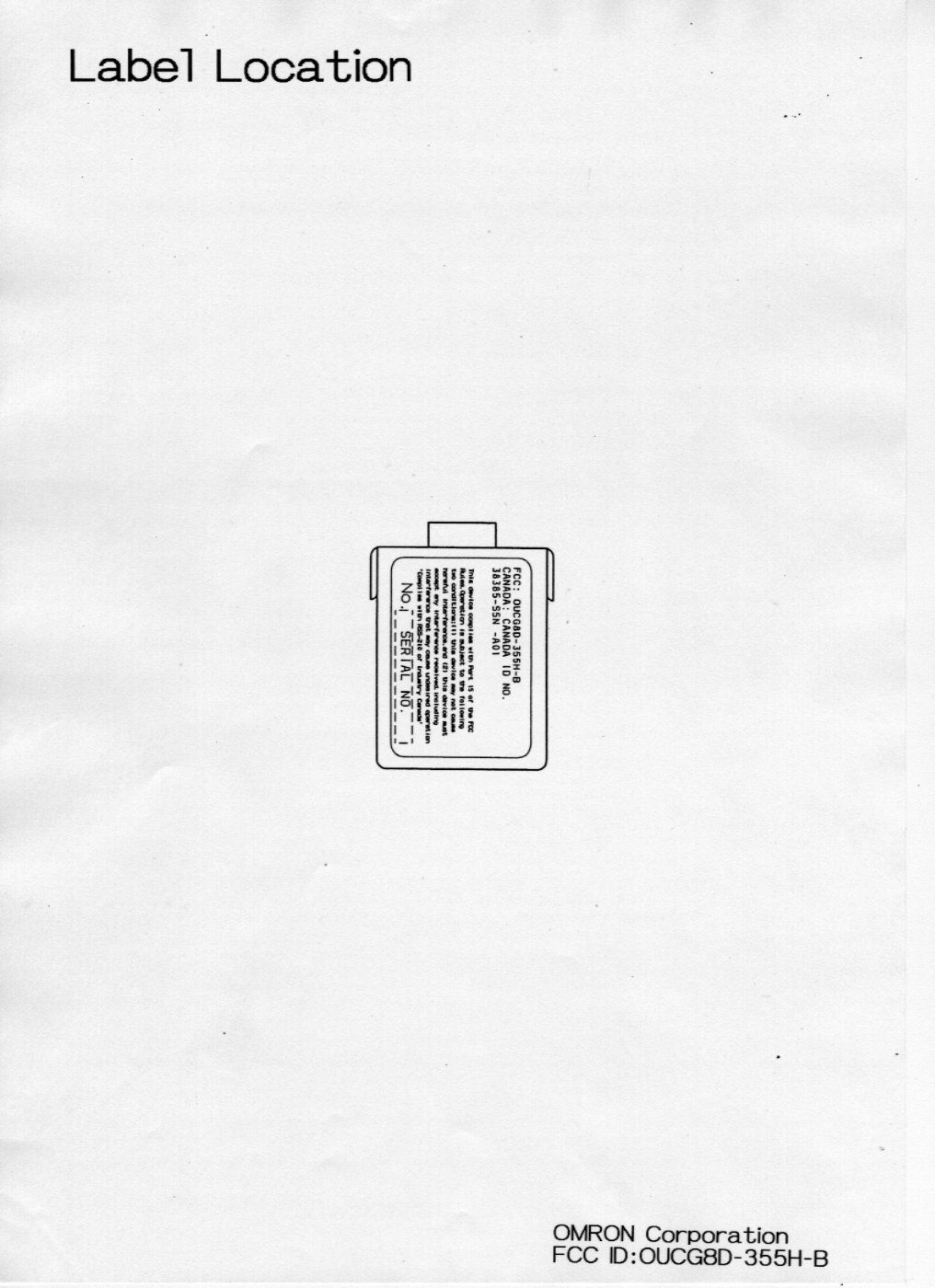

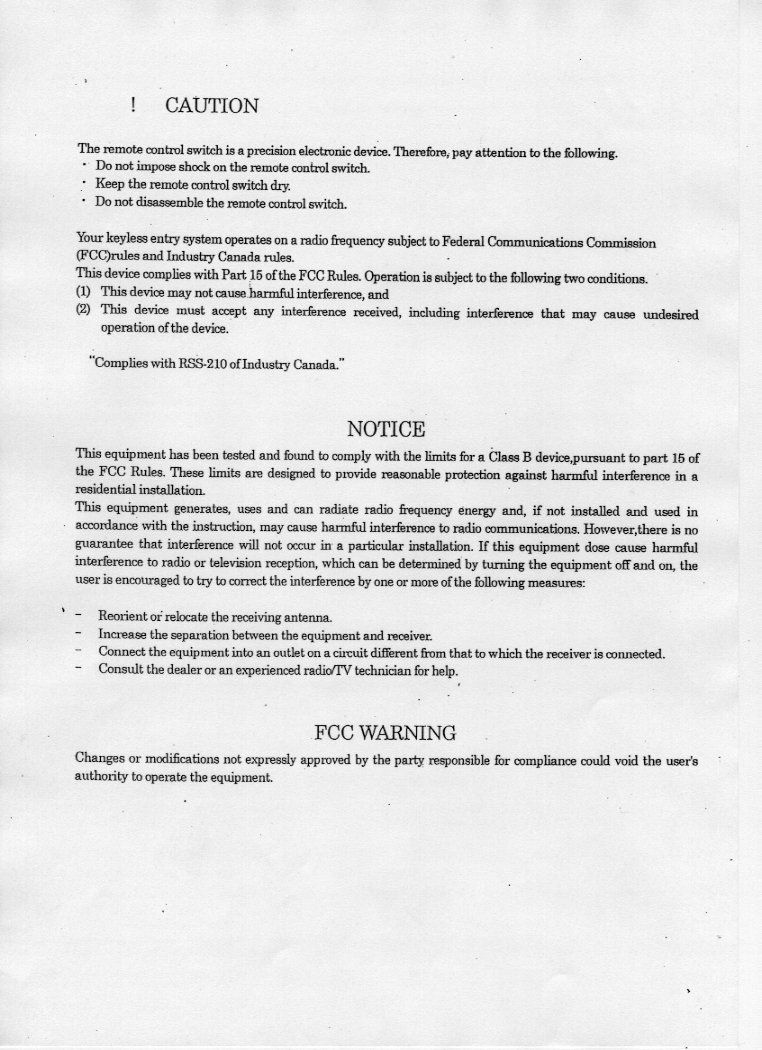

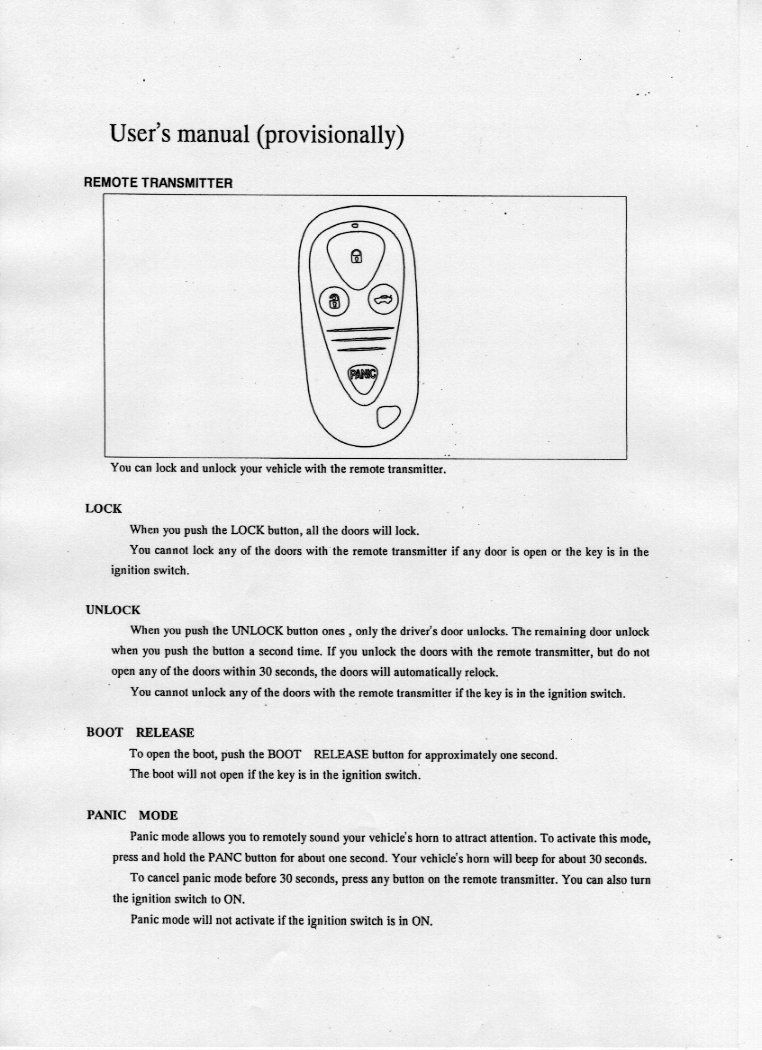

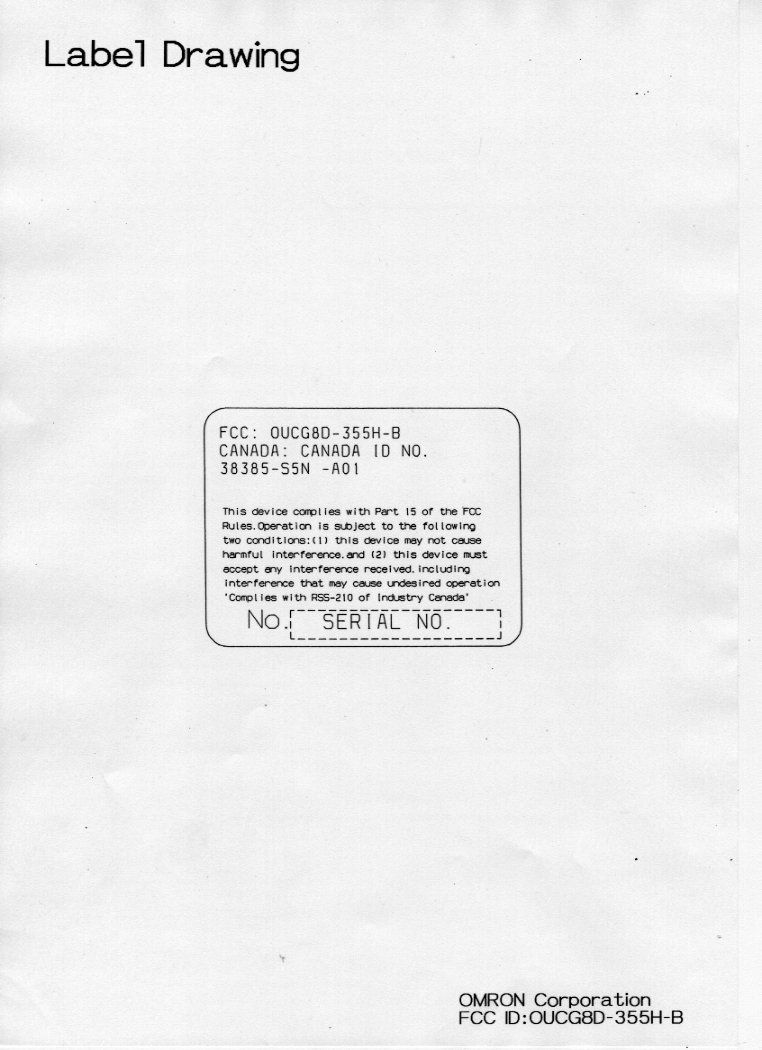

OUCG8D-355H-BKeyless Entry System Receiver

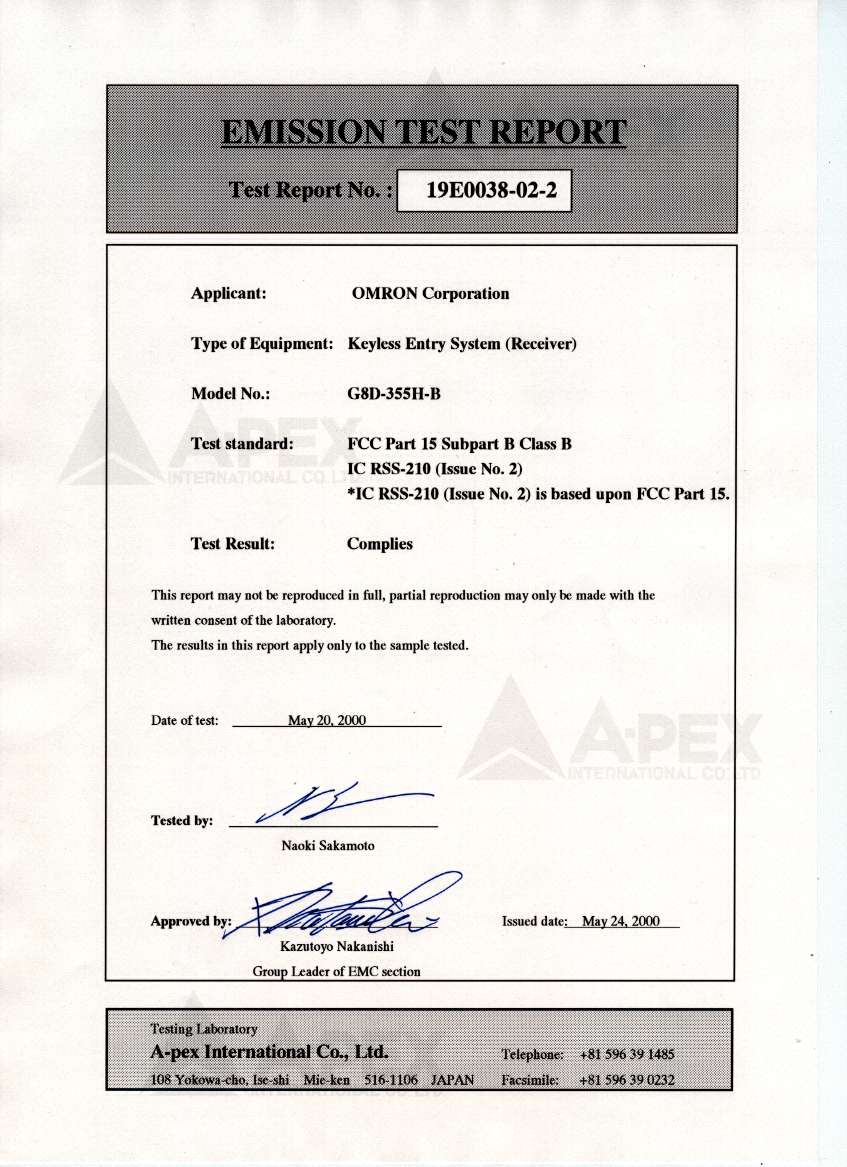

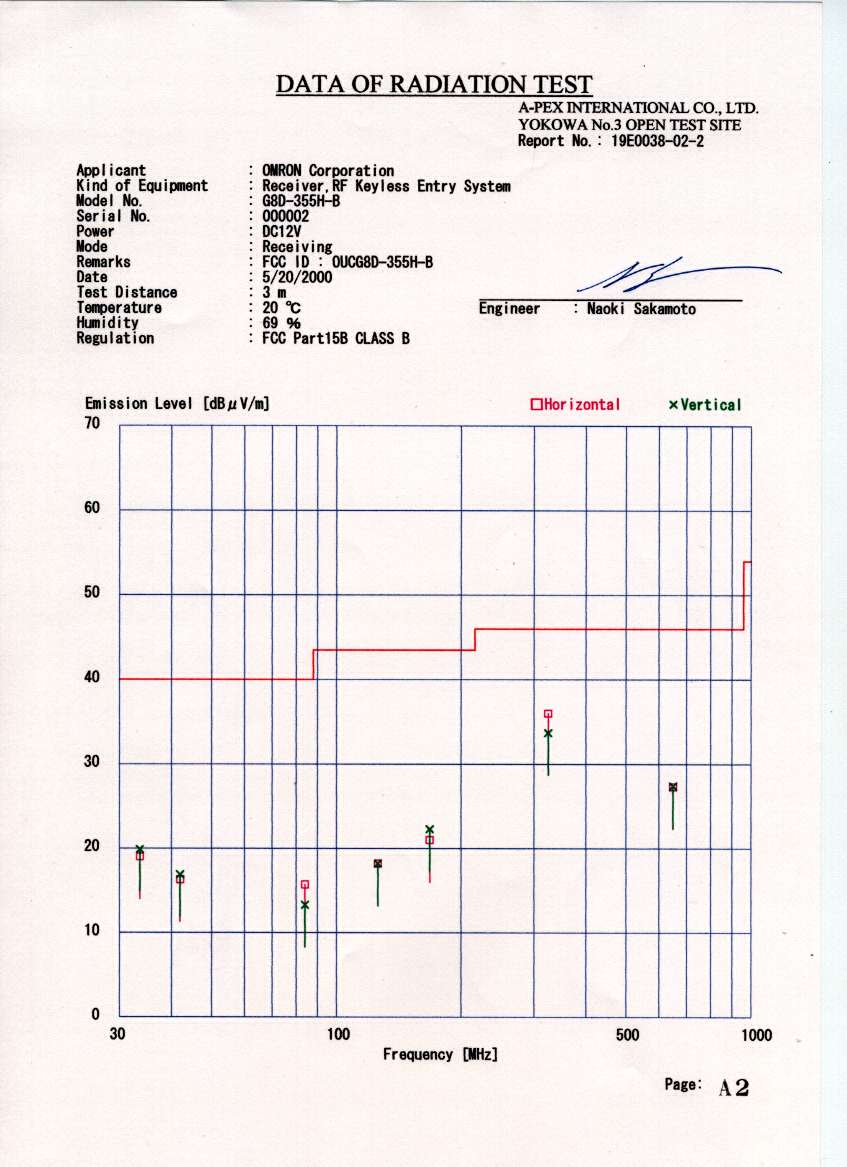

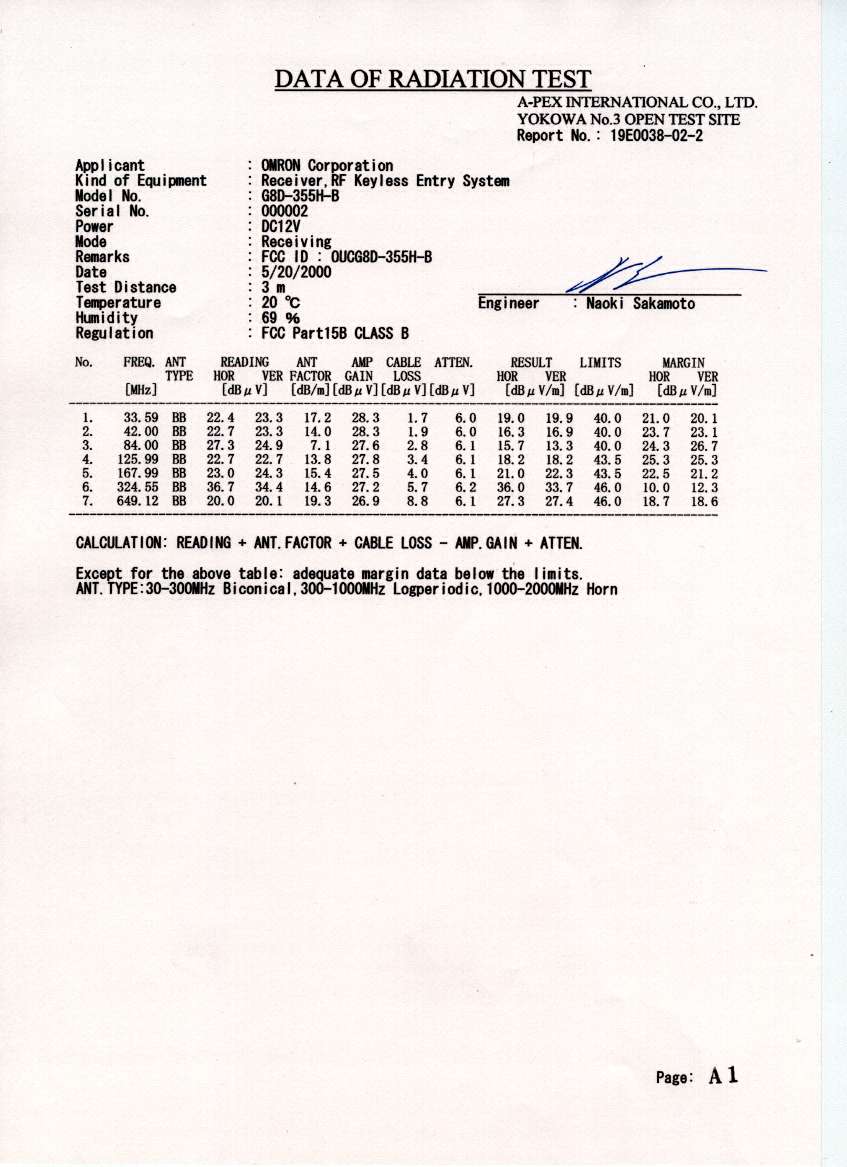

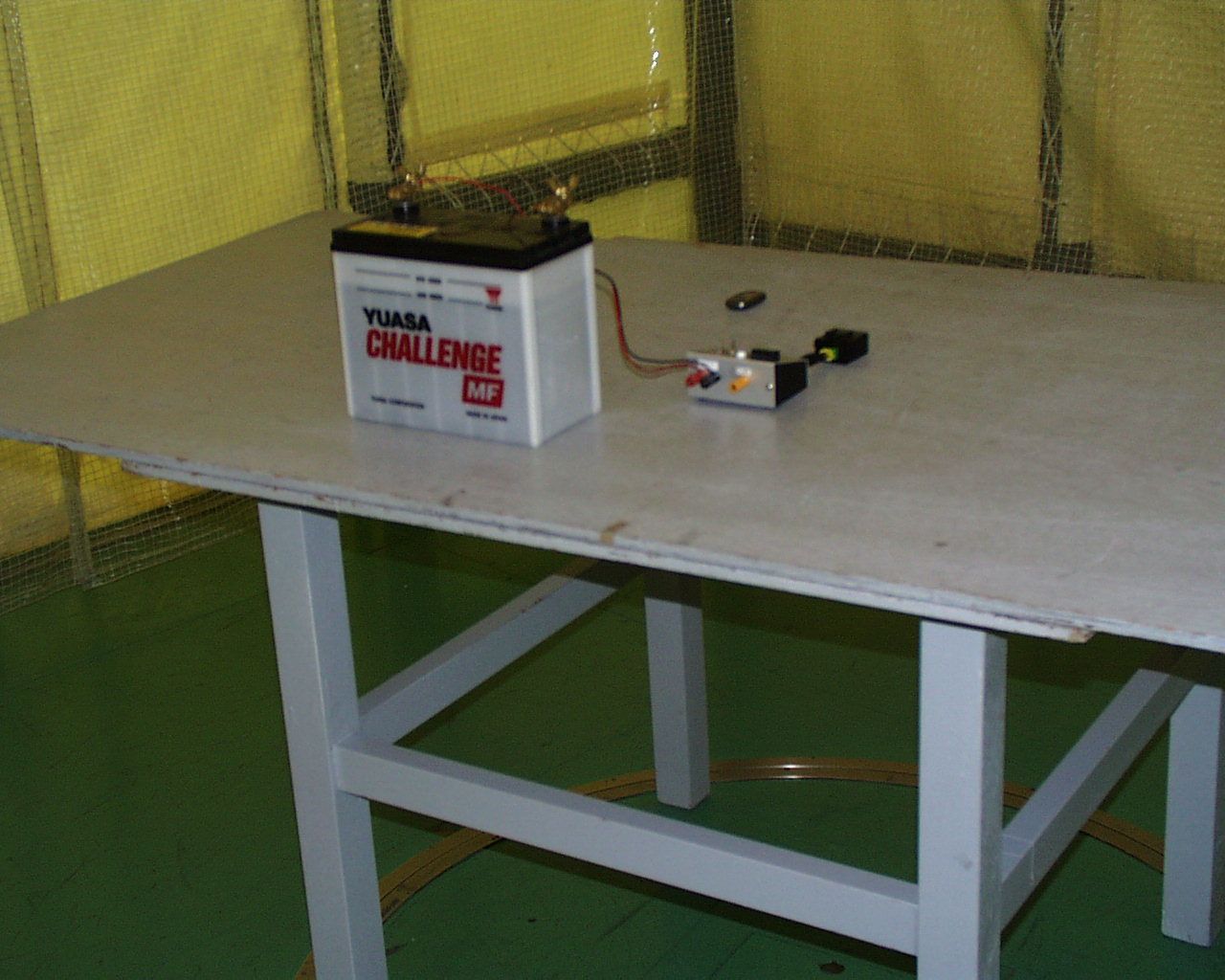

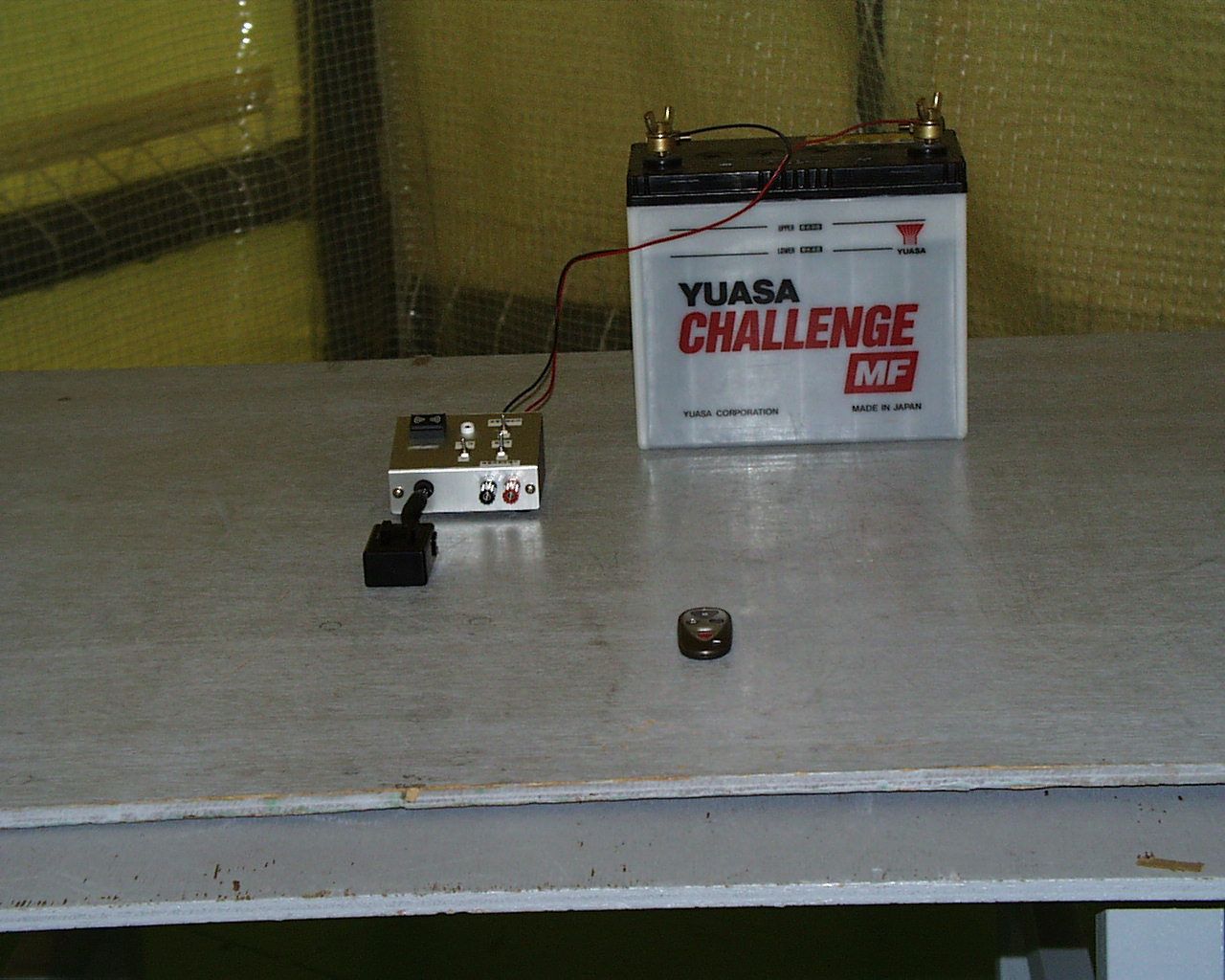

Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 EMISSION TEST REPORT Test Report No. : 19E0038-02-2 Applicant: OMRON Corporation Type of Equipment:Keyless Entry System (Receiver) Model No.:G8D-355H-B Test standard:FCC Part 15 Subpart B Class B IC RSS-210 (Issue No. 2) *IC RSS-210 (Issue No. 2) is based upon FCC Part 15. Test Result:Complies This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: May 20, 2000 Tested by: Naoki Sakamoto Approve d by: Issued date: May 24, 2000 Kazutoyo Nakanishi Group Leader of EMC section Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 2 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Tested System Details4 1.3 Tested Methodology5 1.4 Test Facility5 2 SYSTEM TEST CONFIGURATION6 2. 1 Operation Environment 6 2.2 Justification6 2. 3 EUT Exercise Software6 2.4 Test Procedure7 Figure 2.1 Configuration of Tested System8 3 RADIATED MEASUREMENT PHOTOS10 Figure 3.1 Radiated Measurement Photos10 3.1 Measurement Uncertainty11 4 RADIATED EMISSION DATA12 4.1 Field Strength Calculation13 5 TEST EQUIPMENT USED14 APPENDIX15 A:Test Data A1 - A2 Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 3 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: OMRON Corporation ADDRESS: 1-501, Yashirogaoka, Meito-ku, Nagoya-city Aichi, 465-0051 Japan Tel: +81-52-704-2525 Fax: +81-52-704-2769 REGULATION(S): FCC Part 15 Subpart B MODEL NUMBER: G8D-355H-B SERIAL NUMBER: - KIND OF EQUIPMENT: Keyless Entry System (Receiver) TESTED DATE: May 20, 2000 RECEIPT DATE OF SAMPLE : May 16, 2000 REPORT FILE NUMBER: 19E0038-02-2 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 4 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description OMRON Corporation, Model G8D-355H-B (referred to as the EUT in this report) is a Keyless Entry System (Receiver). The specification is as following : Operation Frequency: 4.19999MHz Local Clock Frequency : 324.55MHz Modulation: Single Superheterodyne Operation Voltage: DC 12V, 10mA 1.2 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: ModelFCC IDDescriptionCable descriptionBackshell Material (1) OMRONOUCG8D-355H-BKeyless Entry System Unshielded I/F Cable P.V.C. M/N: G8D-355H-B (Receiver) S/N: 000002 (EUT) (2) OMRONOUCG8D-355H-AKeyless Entry System - - M/N: G8D-355H-A (Transmitter) S/N: - (3) OMRONN/A Simulator Unshielded DC Power Cable P.V.C. M/N: - S/N: - (4) YUASA CorporationN/A Battery - - M/N: - S/N: - Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 5 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.3 Tested Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT. 1.4 Test Facility The open area site measurement facility used to collect the radiated data is located on 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. This site has been fully described in a report dated August 1, 1997 submitted to FCC office, and listed dated September 16, 1997 (31040/SIT 1300F2) and accepted Feb. 19, 1998 (IC2973-3) by Industry Canada. Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 6 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Radiation Temperature : 20 Degree Humidity: 69% Power supply : DC 12V 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation: Receiving mode Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 7 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2.4 Test Procedure 2.4.1 Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Te s t re port FCC ID : OUCG8D-355H-B Our reference : 19E0038-02-2 Page: 8 of 15 Issued date: 2000-5-24 Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106…

Text truncated - open the document above for the full version.
