OUCG8D-367HTire Pressure Monitoring System - Receiver

FCC ID:OUCG8D-367H-ECU 2. User’s manual Warning lamp output data is transmitted to a meter ECU through CAN. There are 2 output functions as below. Tire low pressure warning lamp: Light ON when either tire air pressure is low. 2 System trouble warning lamp: Light ON during TPMS system trouble. There is a communication function with an external diagnostic device through K-LINE, and failure diagnosis and various maintenance are performed. - 4 - - This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. “Complies with RSS-GEN of Industry Canada” NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC ID:OUCG8D-367H-ECU 7. Photographs Figure 7.1 appearance (front view) Figure 7.2 appearance (back view) - 15 - -

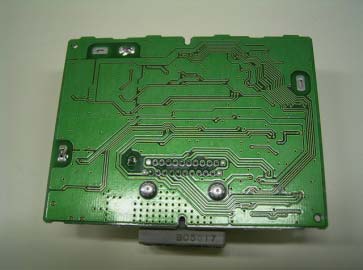

FCC ID:OUCG8D-367H-ECU - 16 - - Figure 7.3 PCB assy (front view) Figure 7.4 PCB assy (back view)

Test report No. : 25LE0149-HO-3a Page : 2 of 22 Issued date : October 17, 2005 Revised ate : December 8, 2005 FCC ID : OUCG8D-367H UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information............................................................................................. 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing.................................................................. 6 SECTION 6: Radiated Emission ............................................................................................ 8 APPENDIX 1: Photographs of test setup............................................................................... 9 Radiated Emission ......................................................................................................................... 9 APPENDIX 2: Test instruments ........................................................................................... 10 APPENDIX 3: Data of EMI test ........................................................................................... 11 Radiated Emission ....................................................................................................................... 11 Test report No. : 25LE0149-HO-3a Page : 3 of 22 Issued date : October 17, 2005 Revised ate : December 8, 2005 FCC ID : OUCG8D-367H UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : OMRON Corporation Brand name : OMRON Address : 6368 NENJOZAKA, OKUSA, KOMAKI, AICHI 485-0802 Japan Telephone Number : +81-568-78-6394 Facsimile Number : +81-568-78-7659 Contact Person : Harumi Itatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Tire Pressure Monitoring System (TPMS) ECU Model No. : G8D-367H-ECU-A (Applied model) G8D-366H-ECU-A (Tested model)* Serial No. : 1 Country of Manufacture : Japan Receipt Date of Sample : September 2, 2005 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) * Test was performed with the superior model, G8D-366H-ECU-A (with LF transmission function) of G8D-367H-ECU- A. The receiving function and hard ware are same in the both models. 2.2 Product Description Model No: G8D-367H-ECU-A is the receiver of Tire Pressure Monitoring System (TPMS). It is a system that receives the information from transmitters installed into each tire, about the inflation pressure of temperature of tires detected by the sensor, so that it can detect the abnormality of tires like fallen inflation pressure. Equipment Type : Receiver Receiving frequency : 314.98MHz Intermediate frequency : 10.7MHz Local clock frequency : 325.7MHz Other Clock Frequency : 16MHz (CPU clock) Method of Frequency Operation : Synthesizer Rating : DC 12V Temperature of operation : -40 deg. C. - +85 deg. C. FCC 15.111(b) The receiving antenna is installed inside the EUT, and it cannot be removed. Therefore, this EUT complies with the requirement in section 15.111(b). Test report No. : 25LE0149-HO-3a Page : 4 of 22 Issued date : October 17, 2005 Revised ate : December 8, 2005 FCC ID : OUCG8D-367H UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin *0) Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A N/A*1) Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 17.9dB 33.111MHz, QP, Vert. Complied *Note: UL Apex’s EMI Work Procedure QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *1) The test is not applicable since the EUT does not have AC power port. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Additions or deviations to standards No addition, deviation, nor exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications, FCC Part15 Subpart B 2005. 3.5 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report has enough margin, more than the site margin. Test report No. : 25LE0149-HO-3a Page : 5 of 22 Issued date : October 17, 2005 Revised ate : December 8, 2005 FCC ID : OUCG8D-367H UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) 3.6 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 IC4247A 19.2 …

Text truncated - open the document above for the full version.

Test report No. : 25LE0149-HO-3a Page : 9 of 22 Issued date : October 17, 2005 Revised ate : December 8, 2005 FCC ID : OUCG8D-367H UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear
