OUCG8D-444H-AKeyless Entry System TX

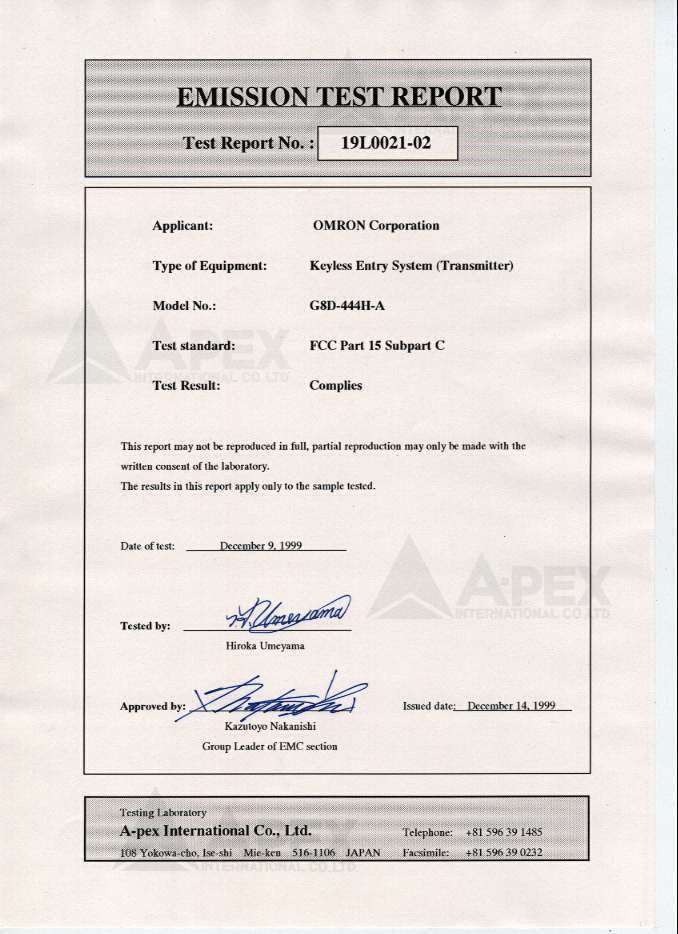

Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile:+81 596 39 0232 EMISSION TEST REPORT Test Report No. : 19L0021-02 Applicant: OMRON Corporation Type of Equipment:Keyless Entry System (Transmitter) Model No.:G8D-444H-A Test standard:FCC Part 15 Subpart C Test Result:Complies This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: December 9, 1999 Tested by: Hiroka Umeyama Approved by: Issued date: December 14, 1999 Kazutoyo Nakanishi Group Leader of EMC section Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 2 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 3 TESTED SYSTEM DETAILS5 4 SYSTEM TEST CONFIGURATION6 4.1 Justification6 4.2 Test Procedure6 Figure 4.2 Configuration of Tested System7 5 RADIATED MEASUREMENT PHOTOS8 Figure 5.1 Radiated Measurement Photos8 5.1 Measurement Uncertainty9 6 RADIATED EMISSION DATA10 6.1 Field Strength Calculation11 7 TEST EQUIPMENT USED12 APPENDIX13 Test Data A1 - A3 Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 3 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: OMRON Corporation ADDRESS: 1-501, Yashirogaoka, Meito-ku, Nagoya-city Aichi, 465-0051 Japan Tel: +81-52-704-2525 Fax: +81-52-704-2769 REGULATION(S): FCC Part 15 Subpart C MODEL NUMBER: G8D-444H-A SERIAL NUMBER: - KIND OF EQUIPMENT: Keyless Entry System (Transmitter) TESTED DATE: December 9, 1999 RECEIPT DATE OF SAMPLE : December 2, 1999 REPORT FILE NUMBER: 19L0021-02 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 4 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Tested Methodology Radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT . 1.2 Test Facility The open area site measurement facility used to collect the radiated data is located on 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. This site has been fully described in a report dated Aug. 1, 1997 submitted to FCC office, and listed dated Sep. 16, 1997 (31040/SIT 1300F2) and accepted Feb. 19, 1998 (IC2973-3) by Industry Canada. Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 5 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 PRODUCT DESCRIPTION OMRON Corporation, Model G8D-444H-A (referred to as the EUT in this report) is a Keyless Entry System (Transmitter). The specification is as following : Operation Frequency: 4.19MHz Carrier Frequency : 307.9MHz Operation Voltage: DC 3V, 20mA (Battery) 3 TESTED EQUIPMENT DETAILS The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) OMRONOUCG8D-444H-AKeyless Entry System - - M/N: G8D-444H-A (Transmitter) S/N: - (EUT) Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 6 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 4 SYSTEM TEST CONFIGURATION 4.1 Justification The measurement was performed with the system configuration shown in Figure 4.2. Running mode was taken for the EUT operation mode. 4.2 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.0m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 7 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Figure 4.2 Configuration of Tested System Front View Top View Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 8 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 5 RADIATED MEASUREMENT PHOTOS Figure 5.1 Radiated Measurement Photos Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 9 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 5.1 Measurement Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was +3.3dB. The data listed in this test report has enough margin, more than 3.3dB. Test report FCC ID : OUCG8D-444H-A Our reference : 19L0021-02 Page: 10 of 13 Issued date: 99-12-14 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 6 RADIATED EMISSION DATA The initial step in collecting radiated data was a spectrum analyzer peak scan of the measurement range (30MHz-3100MHz). The final data was reported in the worst-case emissions. The minimum…
