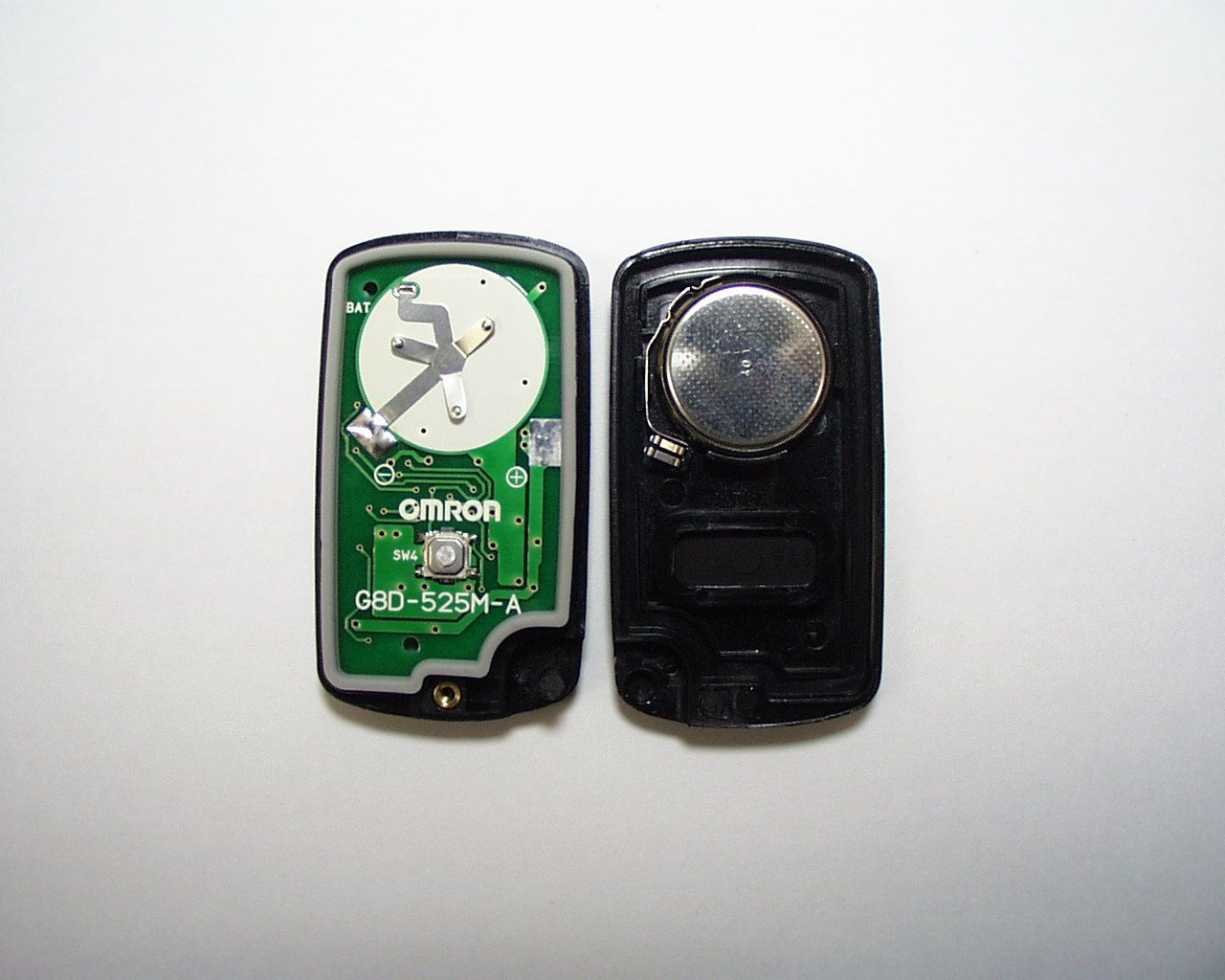

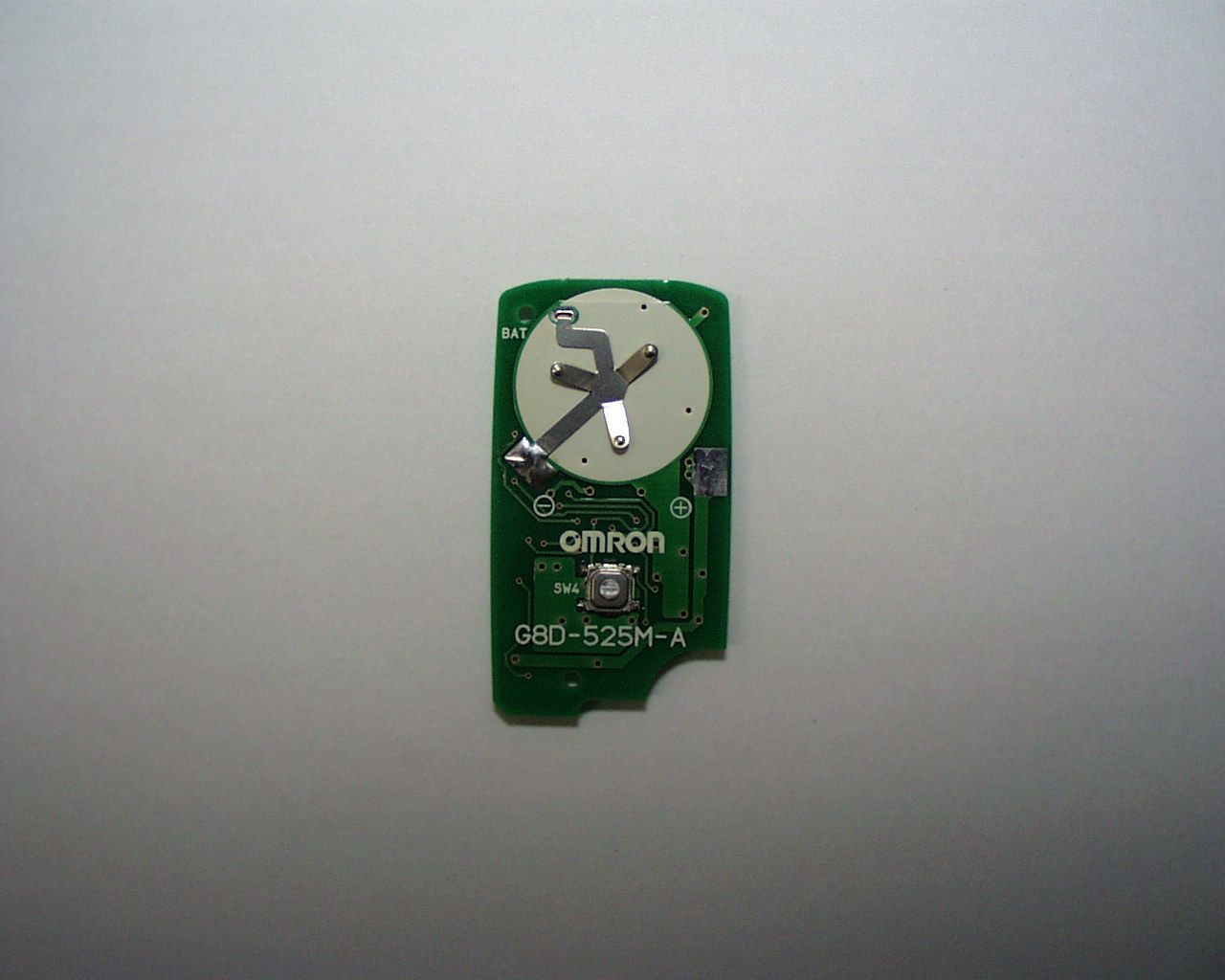

OUCG8D-525MAutomotive Security Transmitter

! CAUTION The remote control switch is a precision electronic device. Therefore, pay attention to the following: Do not impose shock on the remote control switch. Keep the remote control switch dry. Do not disassemble the remote control switch. Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) rules and Industry Canada rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following tow conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. “Complies with RSS-210 of Industry Canada.” NOTICE This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications However there is no guarantee that interference will not occur in particular installation. If this equipment dose cause harmful interference to radio or radio or television reception, which con be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

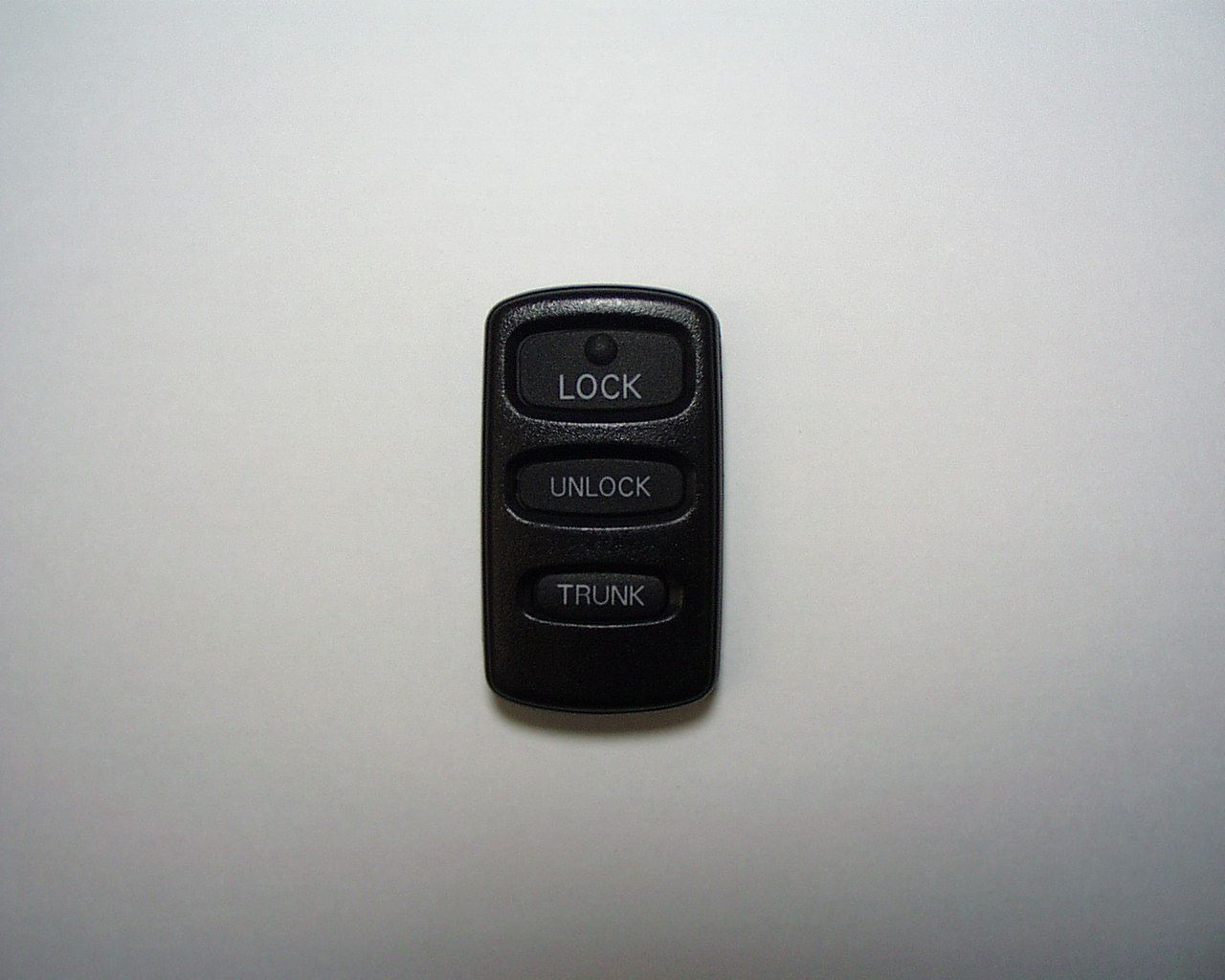

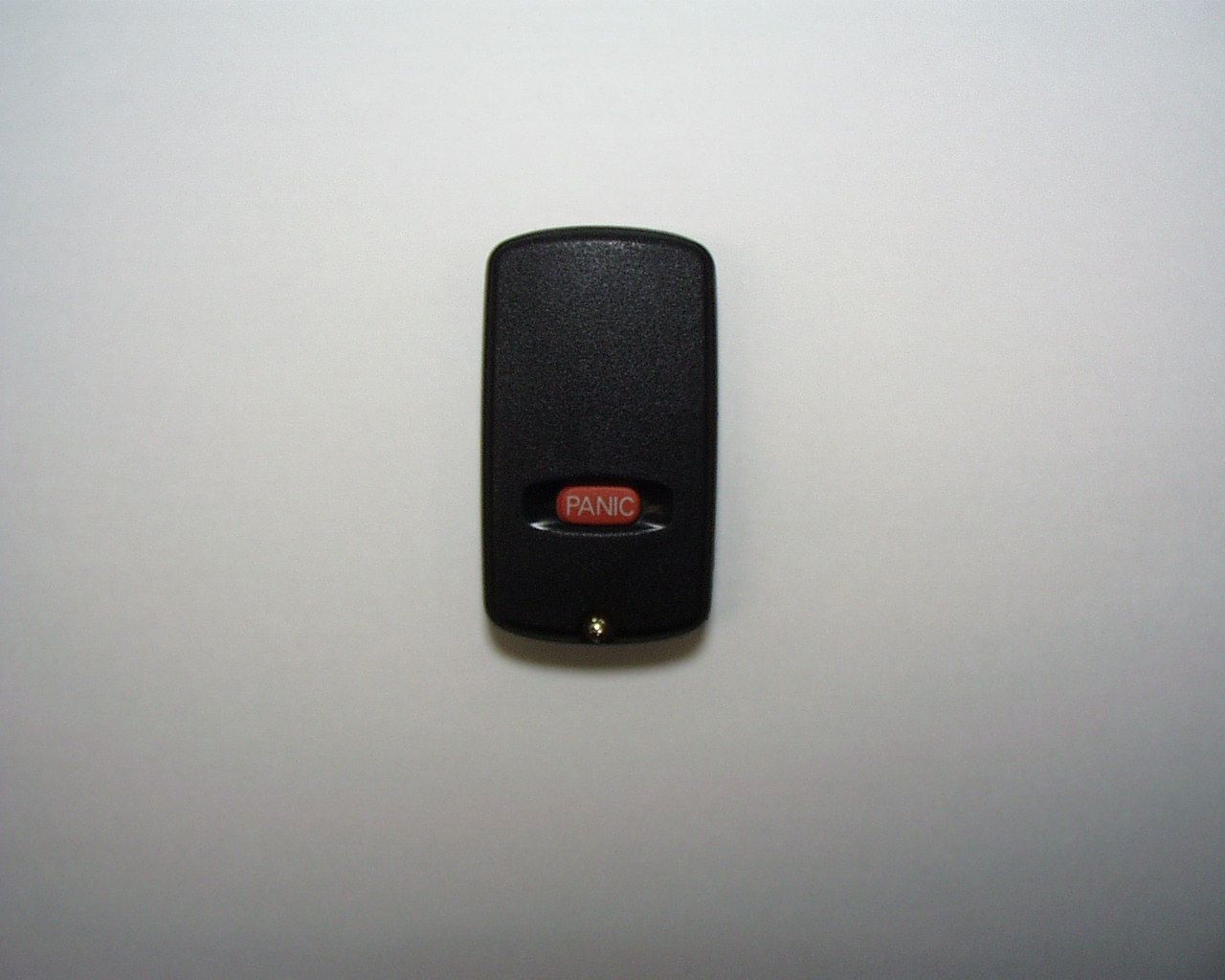

Constitution of the Radio Frequency Keyless Entry System with Door Lock Controller for vehicle The radio frequency keyless entry is a system that it controls locking and unlocking the door by wireless remote controller. This system consists of two components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes, uni que identification code, and security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of the remote transmitter. OPERATIONACTION LOCK Lock the door UNLOCK Unlock the door (the driver side first, then all doors) BOOTRELEASE Release the boot PANIC Beep the horn and flush the small light. This receiver also controls wired operation. When the key is i n the dri ver’s side key cylinder, all doors will Unlock if the key is turned to UNLOCK and hold more than one second. In case of the operation time is shorter, the only driver’s side door is mechanically unlocked. It is also available to control the door lock status by using the remote door control switch (both driver’s and passenger’s side). Features 1 Transmission frame The transmission begins i mmediatel y in case of LOCK or UNLOCK button is pressed. The transmission frame consists of the synchronous frame and the data frame. The synchronous frame has 81 synchronous codes that it will be used for the receiver to wake up. The data frame consists of 28-bit length identification code, 16-bit security code and function code. 1600 million different identification codes are available. The security code is always changed in case of any of the buttons is pressed. The transmission time is typically 370 milliseconds. 2 Battery saving To prevent the battery exhaustion, the microcomputer of the transmitter is usually inactive. When the button will be pressed, the microcomputer wakes up immediately and judges which button is pressing. Then the microcomputer constructs the transmission frame and radiates it from the antenna. After transmitting, the microcomputer switches stand-by mode by itself.

Test report Our reference : 21GE0046YW-1 Page: 2 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Test Specification4 1.3 Methods & Procedures4 1.4 Test Location4 2 SYSTEM TEST CONFIGURATION5 2. 1 Operation Environment 5 2.2 Justification5 2. 3 EUT Exercise Software5 2.4 Test Procedure5 Figure 2.1 Configuration of Tested System6 3 RADIATED MEASUREMENT PHOTOS7 Figure 3.1 Radiated Measurement Photos7 3.1 Measurement Uncertainty8 4 RADIATED EMISSION DATA9 4.1 Field Strength Calculation9 5 TEST EQUIPMENT USED11 APPENDIX12 A:Test Data A1 – A3 Test report Our reference : 21GE0046YW-1 Page: 3 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: OMRON CORPORATION TRADE NAME: OMRON ADDRESS: 6368 Nenjo-Zaka, Okusa, Komaki-City, Aichi 485-0802 Japan Tel: +81-568-78-6170 Fax: +81-568-78-6179 REGULATION(S): FCC Part 15 Subpart C MODEL NUMBER:G8D-525M-A5/ G8D-525M-A6/ G8D-525M-A7 : G8D-525M-A8/ G8D-525M-A9 FCC ID: OUCG8D-525M-A SERIAL NUMBER: Sample No.1 KIND OF EQUIPMENT: Keyless Entry System (Transmitter) TESTED DATE: March 2, 2001 RECEIPT DATE OF SAMPLE : February 28, 2001 REPORT FILE NUMBER: 21GE0046YW-1 TEST SITE: A-PEX Yokowa No.3 Open Test Site Test report Our reference : 21GE0046YW-1 Page: 4 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Model: G8D-525M-A5, G8D-525M-A6, G8D-525M-A7, G8D-525M-A8 and G8D-525M-A9 (referred to as the EUT in this report) is a Keyless Entry System (Transmitter). G8D-525M-A5, G8D-525M-A6, G8D-525M-A7, G8D-525M-A8 and G8D-525M-A9 are deemed to be equal about the level of EMC since they have few differences as remarked below, therefore, G8D-528M-A which is a top-level model was measured as their representative. Model No PWB Parts on PWB software G8D-525M-A5same as G8D-525M-A8Loaded two SW (LOCK,UNLOCK) same as G8D-525M-A8 G8D-525M-A6same as G8D-525M-A8Loaded three SW(LOCK,UNLOCK,PANIC)same as G8D-525M-A8 G8D-525M-A7same as G8D-525M-A8Loaded three SW(LOCK,UNLOCK,TRUNK)same as G8D-525M-A8 G8D-525M-A8 OriginOrigin(Loaded four SW) (LOCK,UNLOCK,TRUNK,PANIC) Origin G8D-525M-A9same as G8D-525M-A8Loaded two SW(LOCK,UNLOCK)same as G8D-525M-A8 The specification is as following : Carrier Frequency : 313.85 MHz Operation Voltage: Lithium Battery DC 3.0V(CR2032) Modulation: FSK 1.2 Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators 15.205 Restricted bands of operation 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70MHz 1.3Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1Restricted bands of operationFCC/ANSI C63.4:1992 15.205 3m 2 Electric Field Strength of Fundamental Emission FCC/ANSI C63.4:1992 15.231(b) 3m 3 Electric Field Strength of Spurious Emission FCC/ANSI C63.4:1992 15.231(b) 3m 4-20dB BandwidthFCC/ANSI C63.4:1992 15.231(c) - 1.4 Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412). *NVLAP Lab. code : 200109-0 Test report Our reference : 21GE0046YW-1 Page: 5 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Temperature: 25 Humidity: 31% 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation Mode : Transmitting 2.4 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Test report Our reference : 21GE0046YW-1 Page: 6 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Figure2.1 Configuration of Tested System Front View (1):EUT * Test data was taken under worse case conditions. Top View (1):EUT *Test data was taken under worse case conditions. No.ItemModel numberSerial numberManufacturerFCC ID 1Keyless Entry System (Transmitter) G8D-525M-A8Sample No.1OMRONOUCG8D-525M-A Test report Our reference : 21GE0046YW-1 Page: 7 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos Test report Our reference : 21GE0046YW-1 Page: 8 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3.1 Measurement Uncertainty Radiated …

Text truncated - open the document above for the full version.

Test report Our reference : 21GE0046YW-1 Page: 7 of 12 Issued date: March 5, 2001 FCC ID: OUCG8D-525M-A Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED MEASUREMENT PHOTOS Figure 3.1 Radiated Measurement Photos
