OUCG8D-571M-ATransmitter, RF Keyless Entry System

5/22 2. User’s manual Keyless Entry System Press the remote control switch, and all doors and tailgate will be locked or unlocked as desired. To l o c k Press the LOCK switch, and all doors and tailgate will be locked. To unlock Press the UNLOCK switch, and all doors and tailgate will be unlocked. △ NOTE The indicator lamp comes on each time a switch is pressed. If the UNLOCK switch is pressed and any of the doors or the tailgate is not opened within approximately 30 seconds, relocking will automatically occur. The keyless entry system does not operate in the following conditions:  The key is left in the key cylinder.  The doors or tailgate is open. The remote control switch will operate within about few meters from the vehicle. However, the operating range of the remote control switch may change if the vehicle is located near a power station, or radio/TV broadcasting station. If either of the following problems occurs, the battery may be exhausted.  The remote control switch is operated at the correct distance from the vehicle, but the doors and the tailgate are not locked/unlocked in responce.  The indicator lamp is dim or does not come on. For further information, please consult your service point. UNLOCK switch LOCK switch indicator lamp 6/22 Immobilizer System The immobilizer system is designed to reduce significantly the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start attempt. A valid start attempt can only be archeived by using a key “registerd” to the immobilizer system. △ NOTE In the following cases, the vehicle may not be able to receive the registerd ID code from the registered key and the motor may not start .  When the key contacts or is close to other metallic or magnetic object.  When the key grip contact metal of another key.  When the key contacts or is close to other immobilizing keys( including keys of other vehicles). In cases like these, remove the object or additional key from the vehicle key and turn the key back to “ACC” or “LOCK” position. Then try again to start the motor. △ CAUTION Don’t make any alternations or additions to the remote control switch and immobilizer system; alternations or additions could cause failure of their. 7/22 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

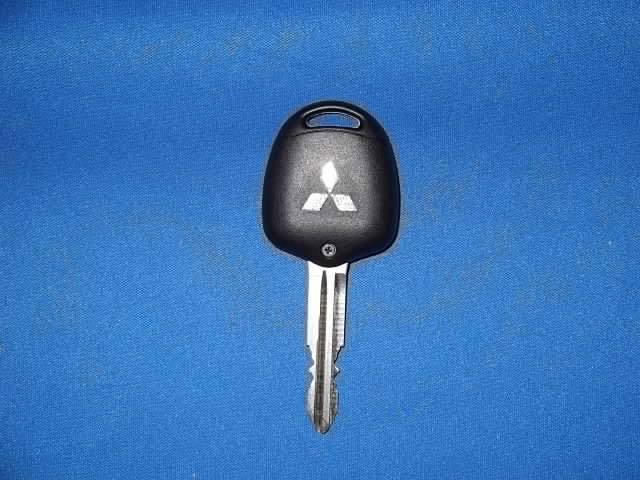

External Photo Transmitter, RF Keyless Entry System [Model: G8D-571M-A] Front Back External Photo Transmitter, RF Keyless Entry System [Model: G8D-571M-A] Front Back External Photo Transmitter, RF Keyless Entry System [Model: G8D-571M-A] Top Bottom External Photo Transmitter, RF Keyless Entry System [Model: G8D-571M-A] Side View1 Side View2

FCC ID indication back view of the equipment FCC ID ： OUCG8D-571M-A 5mm 15mm

Internal Photo Transmitter, RF Keyless Entry System [Model: G8D-571M-A] Front Back

Test report No. : 31DE0293-HO-01 Page : 2 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ············································································· 3 SECTION 2: Equipment under test (E.U.T.) ··································································· 3 SECTION 3: Test specification, procedures & results ························································ 4 SECTION 4: Operation of E.U.T. during testing ······························································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ·········································································· 9 SECTION 7: -20dB Bandwidth ··················································································· 9 APPENDIX 1: Photographs of test setup ······································································ 10 Radiated emission ............................................................................................................................. 10 Worst case position ........................................................................................................................... 11 APPENDIX 2: Data of EMI test ················································································· 12 Automatically deactivate .................................................................................................................. 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB Bandwidth .............................................................................................................................. 14 Duty Cycle ........................................................................................................................................ 15 APPENDIX 3:Test Instruments ·················································································· 17 Test report No. : 31DE0293-HO-01 Page : 3 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-7659 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Transmitter, RF Keyless Entry System Model No. : G8D-571M-A Serial No. : Please refer to Section 4 Clause 4.2 Rating : DC 3.0V (Lithium Battery (CR1616)) Receipt Date of Sample : December 6, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is not mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Keyless Entry System for vehicle controls locking and unlocking of doors and a trunk of the vehicle. This system consists of the transmitter and the ETACS. The transmitter a device that tranasmits the radio signal when the button is pressed. The ETACS is, installed into the vehicle, recieves the signal from the transmitter and controls locking and unlocking of doors and a trunk according received signal. The ETACS has a function of an immobilizer also. It communicates with a transponder, which is mounted in the head of the vehicle ignition and perform authentication for engine starting. Radio Specification Radio Type : Transmitter Frequency of Operation : 433.92MHz Modulation : FSK Power Supply (radio part input) : DC 3.0V Antenna type : Internal Antenna Test report No. : 31DE0293-HO-01 Page : 4 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 N/A N/A*1) - Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(a)(1) N/A Complied Radiated Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(b) 6.9dB 433.920MHz Horizontal, PK with Duty factor Complied Radiated Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205 Section 15.209 Section 15.231(b) 8.1dB 4339.200MHz Horizontal, PK with Duty factor Complied Radiated -20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(c) N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31DE0293-HO-01 Page : 5 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan,…

Text truncated - open the document above for the full version.

Test report No. : 31DE0293-HO-01 Page : 12 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31DE0293-HO-01 Date 12/06/2010 Temperature/ Humidity 21 deg.C./ 37% Engineer Keisuke Kawamura Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.325 5.00 Pass Test report No. : 31DE0293-HO-01 Page : 13 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 31DE0293-HO-01 Date 12/07/2010 12/08/2010 Temperature/ Humidity 23 deg.C./ 41% 23 deg.C./ 39% Engineer Tomotaka Sasagawa (Below 1GHz) Tomotaka Sasagawa (Above 1GHz) Mode Transmitting mode PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 433.920PK81.480.918.110.531.9-78.177.6100.822.723.2 Carrier 867.840PK30.128.923.812.731.5-35.133.980.845.746.9 Outside 1301.760PK48.550.125.12.433.8-42.243.873.931.730.1 Inside 1735.680PK47.247.926.52.732.8-43.644.380.837.236.5 Outside 2169.600PK45.948.227.22.932.2-43.846.180.837.034.7 Outside 2603.520PK49.249.227.43.232.0-47.847.880.833.033.0 Outside 3037.440PK46.446.928.13.431.9-46.046.580.834.834.3 Outside 3471.360PK46.846.229.33.631.7-48.047.480.832.833.4 Outside 3905.280PK46.044.329.53.931.6-47.846.173.926.127.8 Inside 4339.200PK47.642.729.84.131.5-50.045.173.923.928.8 Inside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 433.920PK81.480.918.110.531.9-4.273.973.480.86.97.4 Carrier 867.840PK30.128.923.812.731.5-4.230.929.760.829.931.1 Outside 1301.760PK48.550.125.12.433.8-4.238.039.653.915.914.3 Inside 1735.680PK47.247.926.52.732.8-4.239.440.160.821.420.7 Outside 2169.600PK45.948.227.22.932.2-4.239.641.960.821.218.9 Outside 2603.520PK49.249.227.43.232.0-4.243.643.660.817.217.2 Outside 3037.440PK46.446.928.13.431.9-4.241.842.360.819.018.5 Outside 3471.360PK46.846.229.33.631.7-4.243.843.260.817.017.6 Outside 3905.280PK46.044.329.53.931.6-4.243.641.953.910.312.0 Inside 4339.200PK47.642.729.84.131.5-4.245.840.953.98.113.0 Inside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] ReadingResult Test report No. : 31DE0293-HO-01 Page : 14 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB Bandwidth Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31DE0293-HO-01 Date 12/06/2010 Temperature/ Humidity 21 deg.C./ 37% Engineer Keisuke Kawamura Mode Normal use mode Bandwidth Limit : Fundamental Frequency 433.92MHz x 0.25% = 1084.80 kHz -20dB BandwidthResult [kHz] 133.07Pass Bandwidth Limit [kHz] 1084.80 Test report No. : 31DE0293-HO-01 Page : 15 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31DE0293-HO-01 Date 12/06/2010 Temperature/ Humidity 21 deg.C./ 37% Engineer Keisuke Kawamura Mode Normal use mode ON time(One pulse)ON time(in 50ms)ON time(in 100ms) TypeTimes[ms][ms][ms] A780.31724.702649.4052 B80.5674.53369.0672 C11.5671.5673.134 *1)ON time(in 50ms) = Times * ON time(One pulse) *2)ON time(in 100ms) = ON time(in 50ms) * 2 *3)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse train (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 61.61100.000.62-4.2 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) + Type C's ON time (in 100ms) *4)Duty = 20log 10 (ON time/Cycle) 100ms Test report No. : 31DE0293-HO-01 Page : 16 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle 50ms ： Type A ： Type B ： Type C Type B Type A Type C Test report No. : 31DE0293-HO-01 Page : 17 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-03 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/01 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MSA-10 Spectrum Analyzer Agilent E4448A MY46180655 RE 2010/02/03 * 12 MAEC-04 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/02 * 12 MOS-15 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-07 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-05 Spectrum Analyzer Advantest R3273 160400285 RE 2010/11/18 * 12 MTR-07 Test Receiver Rohde & Schwarz ESCI 100635 RE 2010/10/27 * 12 MBA-05 Biconical Antenna Schwarzbeck BBA9106 1302 RE 2010/10/11 * 12 MLA-08 Logperiodic Ant…

Text truncated - open the document above for the full version.

Test report No. : 31DE0293-HO-01 Page : 10 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 31DE0293-HO-01 Page : 11 of 17 Issued date : December 13 2010 FCC ID : OUCG8D-571M-A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
