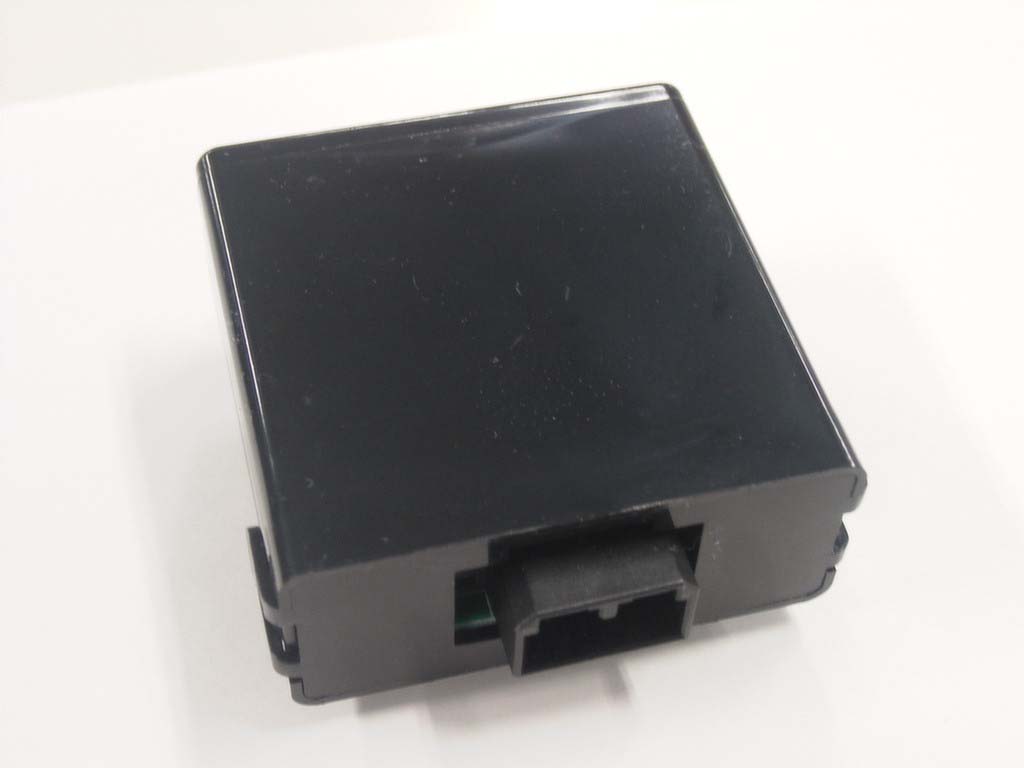

OUCG8D-584M-BReceiver, RF Keyless Entry System

G8D-584M-B1 Receiver, RF Keyless Entry System 1. Constitution of the Radio Frequency Keyless Entry System for Vehicle The radio frequency keyless entry is a system that it controls locking and unlocking the vehicle door and anti-theft protection using wireless remote controller. This system consists of two components.The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes, unique identification code, security code and function code. The RECEIVER is fixed inside the vehicle. It works intermitt ently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of the remote transmitter. OPERATION ACTION LOCK lock the door UNLOCK unlock the door TRUNK open the trunk PANIC Vehicle is disarming will be start sounding the horn and flushing the hazard lamp intermittently - 1 - 2. User’s manual (provisionally) REMOTE TRANSMITTER You can lock and unlock and anti-theft protection your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. UNLOCK When you push the UNLOCK button, all the doors will unlock. If you unlock the doors with the remote transmitter, but do not open any of the doors within 30 seconds, the doors will automatically relock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. TRUNK When you push the TRUNK buttons, open the trunk. PANIC (anti-theft protection) When you push the PANIC button, when the vehicle disarming. Then start sounding the horn and flushing the hazard lamp intermittently. It continues 3 minutes unless pressing any remote control switch. CAUTION The remote control switch is a precision electronic device. Therefore pay attention to the following: Do not impose shock on the remote control switch. Keep the remote control switch dry. Do not disassemble the remote control switch. When the remote control switch is opened, keep water, dust, etc, off its inside. In addition, do not touch the precision electronic device. - 2 - 3. Block diagram 8BIT CPU data Signal of vehicle status input output 12V (car battery) 5MHz 313.85MHz figure 3.1 block diagram of the receiver figure 3.2 block diagram receiver Circuit - 3 - 4. Specification 4.1 CPU Type PD789104(8bit) Manufacturer: NEC Corporation ROM 81928 bit RAM 2564 bit Clock frequency 5MHz Clock frequency generation Crystal resonator Package 30pinSSOP 4.2 EEPROM Type S-93C46ADFJ Manufacturer : Seiko Elec. Memory 1kbit Package 8pin SOP 4.3 RF Receiver Module Type G8D-21RX Manufacturer : IAM Elec. Local clock frequency 313.85MHz Frequency generation Crystal resonator Modulation Scheme FM Carrier Detect Sensitivity dBuVemf 4.3 Others Dimension 60mm62mm25mm Weight 45g Battery Car Battery (DC 12V) Operation Voltage , Current DC 12V, 10mA Operation temperature -30 ~ +80 - 4 - 5. Features 5.1 Door lock control The receiver sends “LOCK” signal to door-lock controller when LOCK button of transmitter was pressed. The receiver also sends “UNLOCK” signal to door-lock controller when UNLOCK button of transmitter was pressed. These facility doesn’t work if the key is inserted the key cylinder or the door is open. 5.2 Automatic locking The receiver sends “LOCK” signal to door-lock controller if the door has not opened within 30 seconds after UNLOCK button of transmitter was pressed. This facility helps accidental pressing the UNLOCK button such as the transmitter is a pocket. 5.3 Battery saving Because of the power source of the receiver is car battery, it is very important problem to minimize a power consumption. The receiver‘s CPU works intermittently to prevent the battery exhaustion. 5.4 Receiver exercise software The normal transmission operation of the receiver is conducted by a battery which is installed within a vehicle. For the measurements purpose a regulated DC power supply is used instead the battery of the vehicle. The reception of the receiver was conducted by operating intermittently a transmitter with the lock condition. There is no difference between the lock and unlock condition regarding the electrical and mechanical functions of a receiver. Also there is no deference between both conditions regarding the frequency of radiated emission. The only difference is the reception time. The following is no explain the difference: a) A receiver received the transmission code from a transmitter when the receiver is the “ON” condition. b) The “ON” condition of the receiver continues until the reception of the transmission code shall complete. c) After the reception of the transmission code shall complete, a door lock actuator shall operate. Waiting Codition 120msec 10msec Receive Conditon Waiting condition after Receive finished - 5 - ! CAUTION The remote control switch is a precision electronic device. Therefore, pay attention to the following: Do not impose shock on the remote control switch. Keep the remote control switch dry. Do not disassemble the remote control switch. Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) rules and Industry Canada rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following tow conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. “Complies with RSS-210 of Industry Canada.” NOTICE This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part 15 of the FCC Rules, These limits are desig…

Text truncated - open the document above for the full version.

3. Block diagram 8BIT CPU data Signal of vehicle status input output 12V (car battery) 5MHz 313.85MHz figure 3.1 block diagram of the receiver figure 3.2 block diagram receiver Circuit - 3 -
