OUCG8D-625M-ARKE Transmitter

2. User’s manual (provisionally) REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the Key cylinder. UNLOCK When you push the UNLOCK button once , only the driver’s door unlocks. The remaining door unlock when you push the button a second time. If you unlock the doors with the remote transmitter, but do not open any of the doors within 30 seconds, the doors will automatically relocked. You cannot unlock any of the doors with the remote transmitter if the key is in the key cylinder. BOOT RELEASE When you press the TRUNK button twice,the boots will open. The boot will not open if the key is in the key cylinder. PANIC MODE When you press the PANIC button, the vehicle starts sounding the horn and flashing the headlight intermittently.These functions continue for 180 seconds unless any of the buttons on the transmitter are pressed. -5- - ○FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with RSS-GEN of Industry Canada”

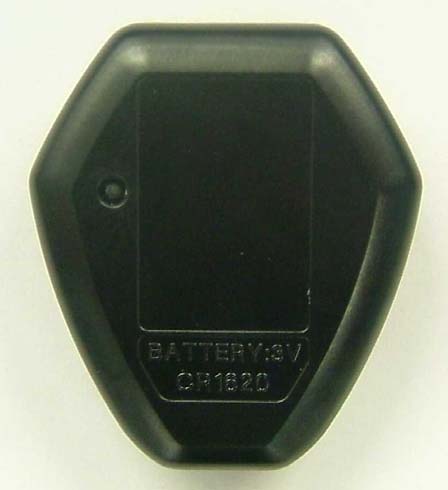

7. Photographs Figure 7.1 appearance (front view) Figure 7.2 appearance (back view) -16- -

Figure 7.3 PCB assy (front view) Figure 7.4 PCB assy (back view) -17- -

Test report No. : 26GE0263-HO-A-1 Page : 1 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) RADIO TEST REPORT Test Report No. : 26GE0263-HO-A-1 Applicant : OMRON Corporation Type of Equipment : FOB Model No. : G8D-625M-A Test standard : FCC Part 15 Subpart C Section 15.231:2006 FCC ID : OUCG8D-625M-A Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test : April 11 ,2006 Tested by : Norihisa Hashimoto EMC Services Approved by : Naoki Sakamoto Group Leader of EMC Services Test report No. : 26GE0263-HO-A-1 Page : 2 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 7 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 8 APPENDIX 1: Photographs of test setup........................................................................................ 9 Radiated emission......................................................................................................................................... 9 Worst case position .................................................................................................................................... 10 APPENDIX 2:Test Instruments...................................................................................................... 11 APPENDIX 3: Data of EMI test ..................................................................................................... 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 12 -20dB Bandwidth........................................................................................................................................ 13 Automatically deactivate ........................................................................................................................... 14 99% Occupied Bandwidth......................................................................................................................... 15 Duty Cycle................................................................................................................................................... 16 Test report No. : 26GE0263-HO-A-1 Page : 3 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) SECTION 1: Client information Company Name : OMRON Corporation Address : 6368 Nenjozaka, Okusa, Komaki, Aichi, 485-0802 Japan Telephone Number : +81- 568-78-6394 Facsimile Number : +81- 568-78-7659 Contact Person : Harumi Itatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : FOB Model No. : G8D-625M-A Serial No. : WK0003 Country of Manufacture : Japan Receipt Date of Sample : April 3, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: G8D-625M-A (referred to as the EUT in this report) is the FOB. Equipment Type : Transmitter Frequency of Operation : 315MHz Type of modulation : FM Power Control : No ITU code : F1D Power Supply : DC2.5 to 3.5V Antenna Type : Pattern Antenna Test report No. : 26GE0263-HO-A-1 Page : 4 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 26GE0263-HO-A-1 Page : 5 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst marginResults 1 Automatically Deactivate <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(a)(1) <IC> RSS-21…

Text truncated - open the document above for the full version.

Test report No. : 26GE0263-HO-A-1 Page : 11 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 2:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-02 Anechoic Chamber TDK Semi Anechoic Chamber 3m RE 2006/04/10 * 12 MCC-12 Coaxial Cable Fujikura/Agilent - RE 2006/02/23 * 12 MAT-07 Attenuator(6dB) Weinschel Corp 2 RE 2005/12/16 * 12 MBA-02 Biconical Antenna Schwarzbeck BBA9106 RE 2005/10/10 * 12 MLA-02 Logperiodic Antenna Schwarzbeck USLP9143 RE 2005/10/14 * 12 MTR-03 Test Receiver Rohde & Schwarz ESCI RE 2006/03/04 * 12 MPA-10 Pre Amplifier Agilent 8449B RE 2005/09/07 * 12 MCC-47 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 RE 2005/08/30 * 12 MCC-16 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX 104 RE 2006/02/02 * 12 MOS-02 Digital Humidity Indicator N.T NT-1800 RE 2004/11/25 * 24 MRENT-26 Spectrum Analyzer Advantest R3273 RE 2006/02/15 * 12 MSTW-14 EMI measurement program TSJ TEPTO-DV RE - All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item: RE: Radiated emission Test report No. : 26GE0263-HO-A-1 Page : 12 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 3: Data of EMI test Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) U L Apex Co., Ltd. Head Office EM C Lab. No.2 Semi Anechoic Chamber COMPANY: OMRON CORPORATIONREPORT NO: 26GE0263-HO EQUIPMENT : FOBREGULATION: Fcc Part15 Subpart C 231(b) / 205 MODEL: G8D-625M-ATEST DISTANCE : 3m S/N: W K0003DATE: 4/11/2006 POW ER: DC 3.0VTEMPERATURE: 25 deg.C. M ode: Continuous T ransmittingH U M ID IT Y: 52 % Axis: Hor.: X-axis , Ver.: Z-axisENGINEER: Norihisa Hashimoto (fundamental) QP DETECT No.FREQT/R READING : QPANTAMPLOSSRESULTLimitMARGIN HORVERFactorGAINHORVERHORVER [MHz][dB/m][dB][dB][dBuV/m][dB][dB] 1314.9773.969.914.727.28.670.066.075.65.69.6 (below 1GHz) QP DETECT No.FREQT/R READING : QPANTAMPLOSSRESULTLimitMARGIN HORVERFactorGAINHORVERHORVER [MHz][dB/m][dB][dB][dBuV/m][dB][dB] 2629.9328.227.519.628.79.528.627.946.017.418.1 3946.1130.328.722.327.710.535.433.846.010.612.2 (above 1GHz) PK DETECT(RB W : 1M H z , V BW : 1M Hz) (Inside Restricted bands (PK) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41260.1551.352.823.533.42.644.045.575.631.630.1 51575.1848.946.325.332.92.844.141.574.029.932.5 61890.2148.447.229.932.43.048.947.775.626.727.9 72205.2249.251.630.932.43.250.953.374.023.120.7 82520.1451.449.330.532.43.553.050.975.622.624.7 92835.3656.255.131.432.23.659.057.974.015.016.1 103150.4548.447.731.732.13.851.851.175.623.824.5 AV M EA SUR EM E NT Result = Reading (RBW : 1M Hz , V BW : 1M Hz) + Duty Factor No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41260.1551.352.823.533.42.6-8.735.336.855.620.318.8 51575.1848.946.325.332.92.8-8.735.432.854.018.621.2 61890.2148.447.229.932.43.0-8.740.239.055.615.416.6 72205.2249.251.630.932.43.2-8.742.244.654.011.89.4 82520.1451.449.330.532.43.5-8.744.342.255.611.313.4 92835.3656.255.131.432.23.6-8.750.349.254.03.74.8 103150.4548.447.731.732.13.8-8.743.142.455.612.513.2 REMARKS ANTENNA TYPE:30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz Horn CALCULATION RESULT=Reading + ANT Factor - Amp Gain + LOSS (Cable+ ATTEN.)+Duty factor Duty cycle Factor Measurement : The duty cycle factor = 20 log ( On time[sec.] / 1 cycle time[sec.]) :-8.7dB * The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *Except for the above table : All other spurious emissions were less than 20dB for the limit. The carrier level (or, noise levels) was (or were) measured at each position of all three axes X, Y and Z, and the position that has the maximum noise was determined. W ith the position, the noise levels of all the frequencies was measured. W ith the position, the noise levels of all the frequencies was measured. [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] Test report No. : 26GE0263-HO-A-1 Page : 13 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) -20dB Bandwidth Head Office EMC Lab. No.2 Semi Anechoic Chamber COMPANY : OMRON CORPORATIONREPORT NO: 26GE0263-HO EQUIPMEN T: FOBREGULATION: Fcc Part15 Subpart C 231(c) MODEL: G8D-625M-ATEST DISTANCE: 3m S/N: WK0003DATE: 4/11/2006 POWER: DC 3.0VTEMPERATURE: 25 deg.C. Mode: TransmittingHUMIDITY: 52 % ENGINEER: Norihisa Hashimoto Bandwidth Limit : Fundamental Frequency 315.04 MHz X 0.25% = 787.6kHz -20dB BandwidthResultMargin [kHz][kHz] 135.60Pass652.00 Bandwidth Limit [kHz] 787.60 Test report No. : 26GE0263-HO-A-1 Page : 14 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Automatically deactivate UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber COMPANY : OMRON CORPORATIONREPORT NO: 26GE0263-HO EQUIPMENT : FOBREGULATION: Fcc Part15 Subpart C 231(a) MODEL : G8D-625M-ATEST DISTANCE: 3m S/N : WK0003DATE: 4/11/2006 POWER : DC 3.0VTEMPERATURE: 25 deg.C. Mode : TransmittingHUMIDITY: 52 % ENGINEER: Norihisa Hashimoto Time ofLimit ResultMargin Tra…

Text truncated - open the document above for the full version.

Test report No. : 26GE0263-HO-A-1 Page : 9 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 26GE0263-HO-A-1 Page : 10 of 16 Issued date : June 1, 2006 Revised date : June 13, 2006 FCC ID : OUCG8D-625M-A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(24.05.06) Worst case position (Horizontal: X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis
