OUCG8D-625M-A-HFFOB

2. User’s manual Keyless Entry System Press the remote control switch, and all doors and tailgate will be locked or unlocked as desired. PANIC switch indicator lamp UNLOCK switch BOOT RELEASE switch* LOCK switch * OPTION To l o c k Press the LOCK switch, and all doors and tailgate will be locked. To unlock Press the UNLOCK switch, and all doors and tailgate will be unlocked. To boot release Press the BOOT RELEASE switch twice, and boot will be released. PANIC MODE When you press the PANIC switch, the vehicle starts sounding the horn and flashing the headlight intermittently. These functions continue for 180 seconds unless any of the buttons on the transmitter are pressed. △ NOTE The indicator lamp comes on each time a switch is pressed. If the UNLOCK switch is pressed and any of the doors or the tailgate is not opened within approximately 30 seconds, relocking will automatically occur. The keyless entry system does not operate in the following conditions: • The key is left in the key cylinder. • The doors or tailgate is open. The remote control switch will operate within about few meters from the vehicle. However, the operating range of the remote control switch may change if the vehicle is located near a power station, or radio/TV broadcasting station. If either of the following problems occurs, the battery may be exhausted. • The remote control switch is operated at the correct distance from the vehicle, but the doors and the tailgate are not locked/unlocked in response. • The indicator lamp is dim or does not come on. For further information, please consult your service point. -5- - Immobilizer System The immobilizer system is designed to reduce significantly the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start attempt. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system. △ NOTE In the following cases, the vehicle may not be able to receive the registered ID code from the registered key and the motor may not start . • When the key contacts or is close to other metallic or magnetic object. • When the key grip contact metal of another key. • When the key contacts or is close to other immobilizing keys( including keys of other vehicles). In cases like these, remove the object or additional key from the vehicle key and turn the key back to “ACC” or “LOCK” position. Then try again to start the motor. △ CAUTION Don’t make any alternations or additions to the remote control switch and immobilizer system; alternations or additions could cause failure of their. -6- - FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’ authority to operate the equipment. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. -7- -

back view

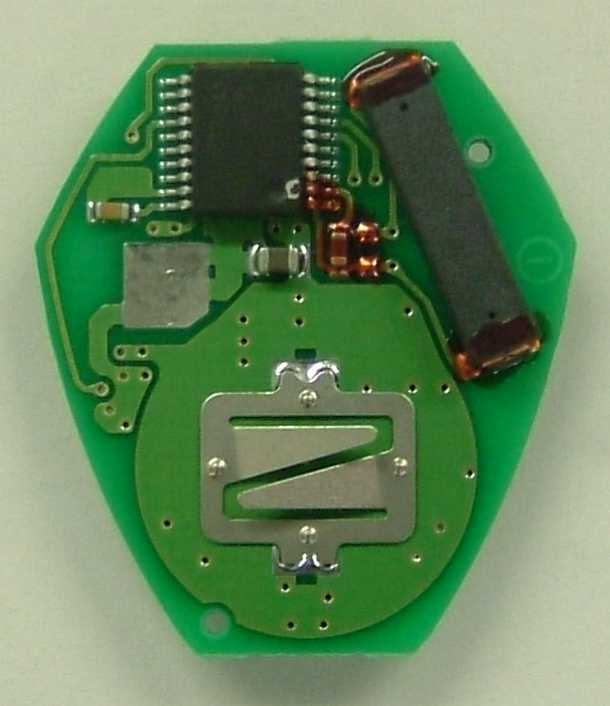

back view

-20- - Figure 7.6 PCB assy (front view) Figure 7.7 PCB assy (back view)

Test report No. : 31EE0173-HO-01-A-R1 Page : 2 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ············································································· 3 SECTION 2: Equipment under test (E.U.T.) ··································································· 3 SECTION 3: Test specification, procedures & results ························································ 4 SECTION 4: Operation of E.U.T. during testing ······························································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ·········································································· 9 SECTION 7: -20dB and 99% Occupied Bandwidth ··························································· 9 APPENDIX 1: Photographs of test setup ······································································ 10 Radiated emission ............................................................................................................................. 10 Worst case position ........................................................................................................................... 11 APPENDIX 2: Data of EMI test ················································································· 12 Automatically deactivate .................................................................................................................. 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 Duty Cycle ........................................................................................................................................ 15 APPENDIX 3:Test Instruments ·················································································· 17 Test report No. : 31EE0173-HO-01-A-R1 Page : 3 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Corporation Address : 6368 NEJOZAKA OKUSA KOMAKI AICHI 485-0802 JAPAN Telephone Number : +81-568-78-6159 Facsimile Number : +81-568-78-6179 Contact Person : Masashi Matsuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : FOB Model No. : G8D-625M-A-HF Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : February 17, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : CPU: 2MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 315MHz Modulation : FSK ITU code : F1D Power Supply (radio part input) : DC 2.5-3.5V Antenna type : Pattern Antenna Variant model EUT has a variant model:G8D-625M-A-HF-NT, and the diffrence between the two is number of button. - G8D-625M-A-HF (EUT): LOCK, UNLOCK, BOOT RELEASE, PANIC (4 buttons) - G8D-625M-A-HF-NT: LOCK, UNLOCK, PANIC (3 buttons) The difference does not influence on the radio specification. Test report No. : 31EE0173-HO-01-A-R1 Page : 4 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 6.1dB, 315.000MHz, Horizontal, PK with Duty factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 2.4dB, 1575.000MHz, Vertical, PK with Duty factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31EE0173-HO-01-A-R1 …

Text truncated - open the document above for the full version.

Test report No. : 31EE0173-HO-01-A-R1 Page : 12 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31EE0173-HO-01 Date 02/17/2011 Temperature/ Humidity 23 deg.C./ 31% Engineer Tomohisa Nakagawa Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.300 5.00 Pass Test report No. : 31EE0173-HO-01-A-R1 Page : 13 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31EE0173-HO-01 Date 02/17/2011 Temperature/ Humidity 23 deg.C./ 31% Engineer Tomohisa Nakagawa Mode Transmitting mode PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 315.000 PK81.176.515.610.031.8-74.970.395.620.725.3 Carrier 630.000 PK35.531.419.711.932.0-35.131.075.640.544.6 Outside 945.000 PK35.231.522.713.530.8-40.636.975.635.038.7 Outside 1260.000 PK59.061.026.02.034.4-52.654.675.623.021.0 Outside 1575.000 PK58.261.427.12.033.6-53.756.973.920.217.0 Inside 1890.000 PK53.551.227.92.132.9-50.648.375.625.027.3 Outside 2205.000 PK57.354.327.92.232.6-54.851.873.919.122.1 Inside 2520.000 PK56.451.827.72.332.4-54.049.475.621.626.2 Outside 2835.000 PK55.053.128.62.532.2-53.952.073.920.021.9 Inside 3150.000 PK57.054.829.42.632.1-56.954.775.618.720.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 315.000 PK81.176.515.610.031.8-5.469.564.975.66.110.7 Carrier 630.000 PK35.531.419.711.932.0-5.429.725.655.625.930.0 Outside 945.000 PK35.231.522.713.530.8-5.435.231.555.620.424.1 Outside 1260.000 PK59.061.026.02.034.4-5.447.249.255.68.46.4 Outside 1575.000 PK58.261.427.12.033.6-5.448.351.553.95.62.4 Inside 1890.000 PK53.551.227.92.132.9-5.445.242.955.610.412.7 Outside 2205.000 PK57.354.327.92.232.6-5.449.446.453.94.57.5 Inside 2520.000 PK56.451.827.72.332.4-5.448.644.055.67.011.6 Outside 2835.000 PK55.053.128.62.532.2-5.448.546.653.95.47.3 Inside 3150.000 PK57.054.829.42.632.1-5.451.549.355.64.16.3 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). [dBuV][dBuV/m] Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The noise measured with PK detect was pulse emission. Test report No. : 31EE0173-HO-01-A-R1 Page : 14 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB and 99% Occupied Bandwidth Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31EE0173-HO-01 Date 02/17/2011 Temperature/ Humidity 23 deg.C./ 31% Engineer Tomohisa Nakagawa Mode Transmitting mode Bandwidth Limit : Fundamental Frequency 315 MHz x 0.25% = 787.50kHz -20dB BandwidthResult [kHz] 148.08Pass 99% Occupied BandwidthResult [kHz] 365.78Pass [kHz] 787.50 Bandwidth Limit [kHz] 787.50 Bandwidth Limit -20dB Bandwidth 99% Bandwidth Test report No. : 31EE0173-HO-01-A-R1 Page : 15 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31EE0173-HO-01 Date 02/17/2011 Temperature/ Humidity 23 deg.C./ 31% Engineer Tomohisa Nakagawa Mode Normal use mode ON time(One pulse)ON time(in 100ms) [ms][ms] 0.26753.460 *1)ON time(in 100ms) = Times * ON time(One pulse) * 4 ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 53.460100.000.53-5.4 *2) Duty = 20 log (On time/Cycle) Times (in 25msec) 50 Test report No. : 31EE0173-HO-01-A-R1 Page : 16 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle On time 267.3usec 25msec 50msec 100msec Test report No. : 31EE0173-HO-01-A-R1 Page : 17 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-03 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2010/02/01 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 - RE 2010/02/09 * 12 MJM-06 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2010/11/30 * 12 MTR-08 Test Receiver Rohde & Schwarz ESCI 100767 RE 2010/08/23 * 12 MBA-03 Biconical Antenna Schwarzbeck BBA9106 1915 RE 2010/10/11 * 12 MLA-03 Logperiodic Antenna Schwarzbeck US…

Text truncated - open the document above for the full version.

Test report No. : 31EE0173-HO-01-A-R1 Page : 10 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 31EE0173-HO-01-A-R1 Page : 11 of 17 Issued date : March 3, 2011 Revised date : April 1, 2011 FCC ID : OUCG8D-625M-A-HF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Below 1GHz: Horizontal: X-axis/Vertical : Z-axis Above 1GHz: Horizontal: Z-axis/Vertical : Y-axis X-axis Y-axis Z-axis
